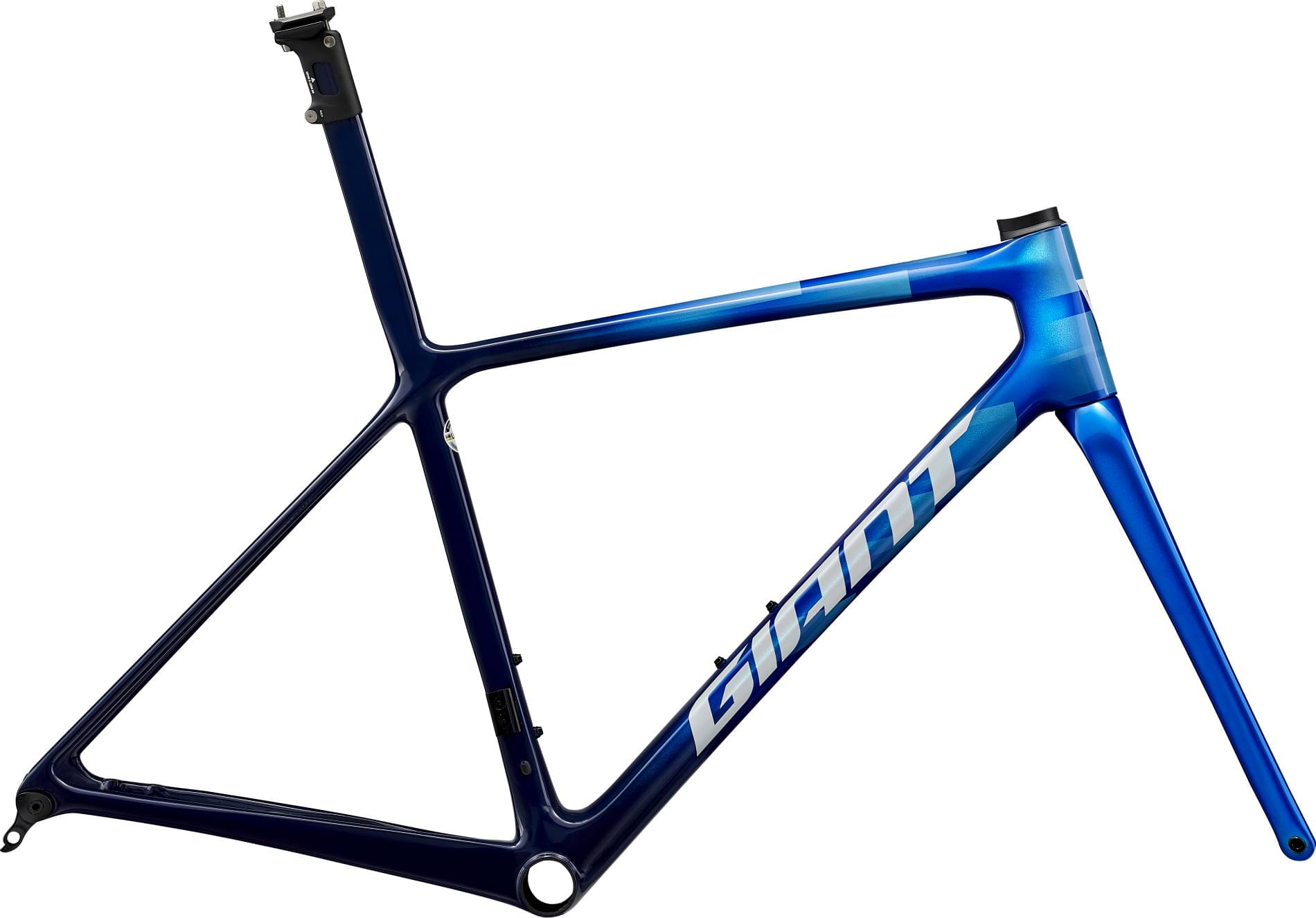

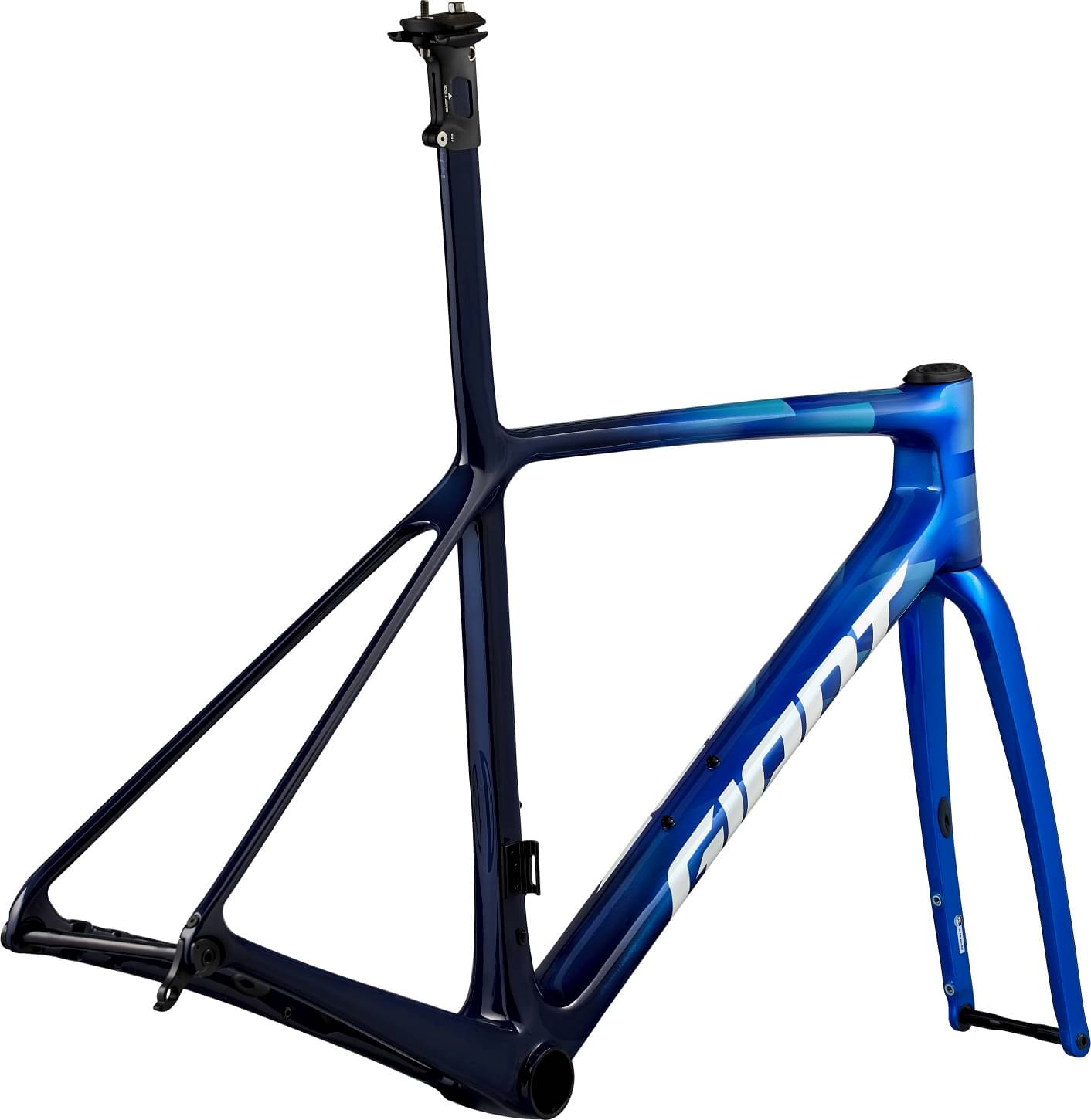

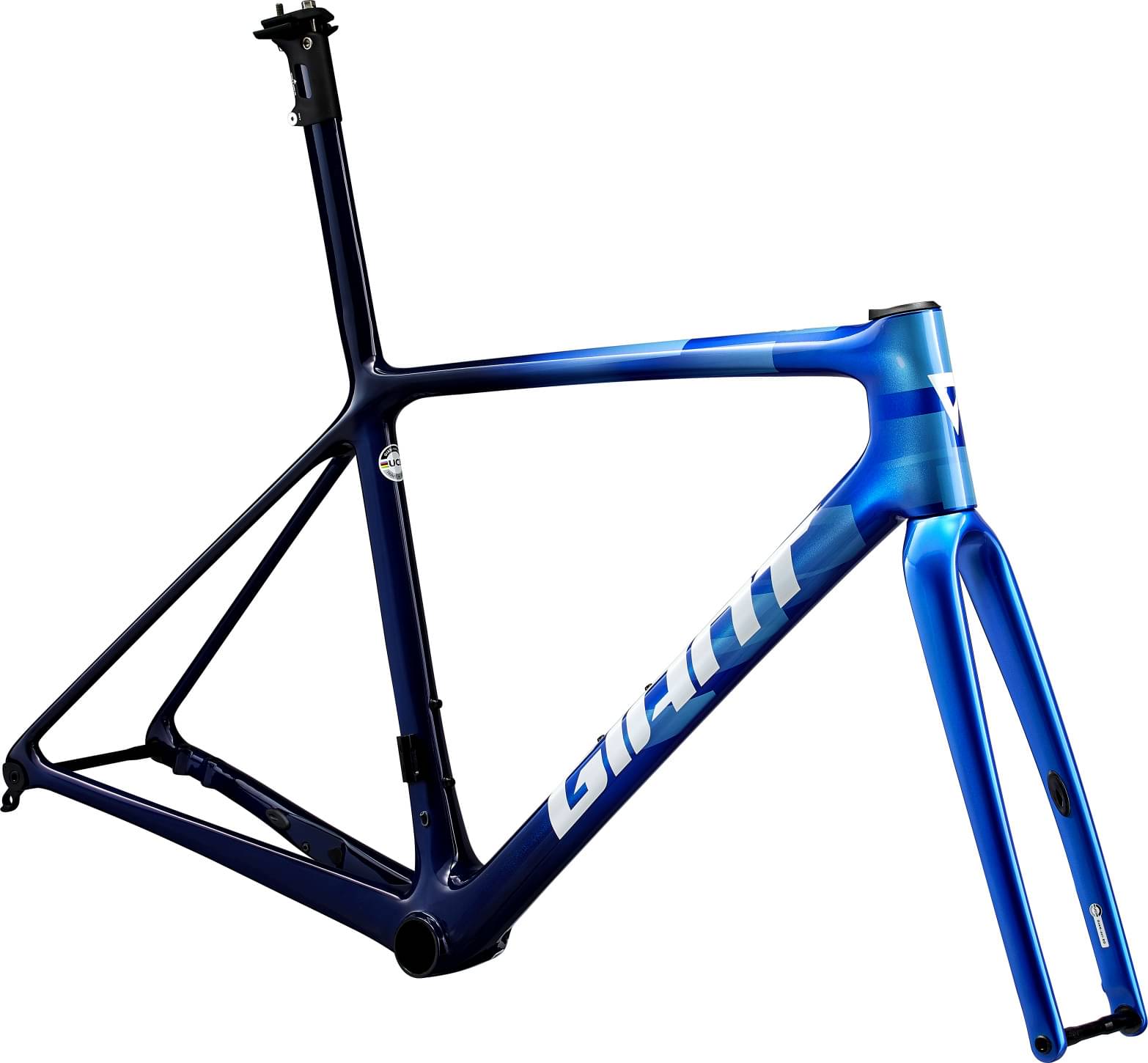

Giant TCR Advanced SL Disc Team Frameset 2023
2023 Road
Estimate price |
4,128$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
171cm - 181cm
MD/LG
177cm - 187cm
LG
183cm - 193cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced SL-Grade Composite, integrated seatpost, disc
Suspension Fork
Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
Rear Shock
N/A
Drivetrain
Bottom Bracket
BB86 accepts press fit style BB only, bearing set not included
Seat
Seatpost
Advanced SL-Grade composite, integrated design, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.4 mm | 1.43 mm | 1.44 mm | 1.44 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 582 mm | 585 mm | 595 mm | 610 mm | 624 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 64 mm | 59.2 mm | 59.2 mm | 59.2 mm | 59.2 mm |
| Stack | 532 mm | 549 mm | 566 mm | 585 mm | 600 mm |
| Reach | 387 mm | 392 mm | 397 mm | 406 mm | 416 mm |
| Top Tube Length | 539 mm | 554 mm | 569 mm | 584 mm | 604 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 710 mm | 740 mm | 770 mm | 800 mm | 830 mm |
| Head Tube Angle | 72.3 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 130 mm | 145 mm | 165 mm | 185 mm | 200 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 981 mm | 984 mm | 995 mm | 1010 mm | 1024 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 729 mm | 751 mm | 777 mm | 804 mm | 820 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 171 cm | 177 cm | 183 cm | 189 cm |
| Rider Max Height | 175 cm | 181 cm | 187 cm | 193 cm | 199 cm |
About this model
TCR Advanced SL Disc Team Frameset completes the Giant Tcr model. There are 260 frames that carry this model name. Take a sneak peek at all Giant Tcr frames models from 2023, by clicking here.
Model range prices
Giant TCR Advanced Pro Disc Frameset 2023 is the most affordable frame of this model and has a price of 2188$. On the other hand, Giant TCR Advanced SL Disc Team Frameset 2023, is the most expensive and costs 3821$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race frames average price
Our math shows that the average cost of a dependable Race frame is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Giant TCR Advanced SL Disc Team Frameset price was 3821$. Doing a quick comparison, we notice that TCR Advanced SL Disc Team Frameset price is 56.28% higher than the average cost of a Race frame.
Overview of components
Fork material
TCR Advanced SL Disc Team Frameset has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Sizes
TCR Advanced SL Disc Team Frameset comes in 5 sizes, that range from 165 cm – 199 cm (5.41 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
