Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, Shimano -
Suspension Rigid -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite
Suspension Fork
Advanced-grade composite, Full-composite OverDrive 2 steerer
Rear Shock
N / A
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
N/A
Shift Levers
Shimano RS785
Cassette
Shimano Ultegra 11x32, 11-speed
Crank
FSA SLK Light, 40T, Giant 1x chain guide
Bottom Bracket
FSA, Press fit
Chain
KMC X11 SL
Pedals
N/A
Wheels
Front Hub
Giant CXR 1 WheelSystem; precision-sealed cartridge bearings, 28h, [F] 100x12mm axle, [R] 142x12mm axle
Rear Hub
Giant CXR 1 WheelSystem; precision-sealed cartridge bearings, 28h, [F] 100x12mm axle, [R] 142x12mm axle
Rims
Giant CXR 1 WheelSystem; 24mm wide, Tubeless compatible, alloy
Spokes
Giant CXR 1 WheelSystem; DT Swiss Competition stainless
Tires
Schwalbe X-One Tubeless, 700x33
Brakes
Brakes
Shimano RS805, hydraulic disc, 140mm
Brake Levers
Shimano RS785
Cockpit
Stem
Giant Contact SL
Handlebar
Giant Contact SL, 31.8mm
Seat
Saddle
Giant Contact SL Neutral, SST tubular rails
Seatpost
Giant D-Fuse SL, composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.48 mm | 1.48 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 585 mm | 591 mm | 596 mm | 607 mm | 617 mm | 632 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 68 mm | 65 mm | 62 mm | 59 mm | 59 mm |
| Stack | 533 mm | 547 mm | 563 mm | 579 mm | 596 mm | 610 mm |
| Reach | 376 mm | 377 mm | 382 mm | 392 mm | 402 mm | 413 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 582 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 475 mm | 500 mm | 525 mm | 545 mm | 555 mm | 565 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 530 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1015 mm | 1021 mm | 1026 mm | 1037 mm | 1047 mm | 1062 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 765 mm | 765 mm | 810 mm | 828 mm | 839 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
About this model

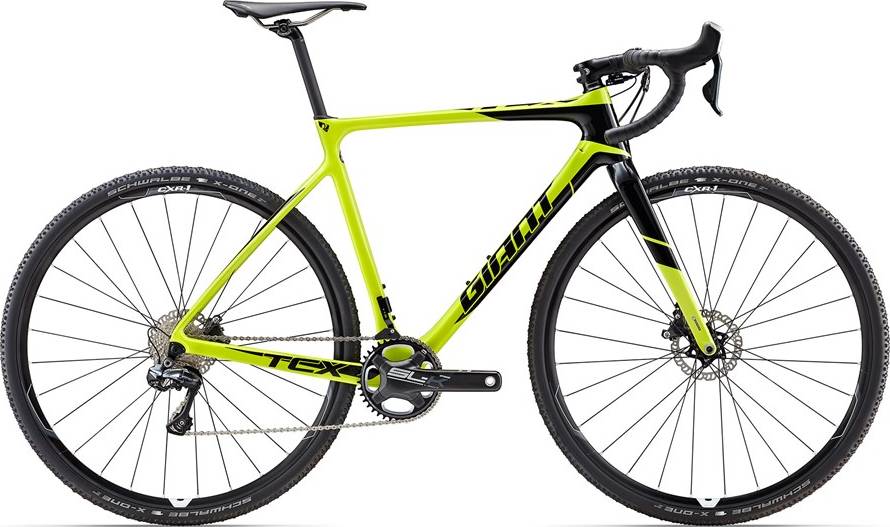

TCX Advanced Pro 1 is a Giant Tcx model. 95 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Giant TCX Espoir 24 2017 is the cheapest bike model and costs 670$. Giant TCX Advanced Pro 1 2017 is the most expensive one and costs 4400$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Cyclocross bikes average price
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, even if your budget is less than the average, you might still be able to get a top-quality Cyclocross bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Giant TCX Advanced Pro 1 price was 4400$. In conclusion, this bike price is 118.69% more expensive than the price of the average Cyclocross bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Giant TCX Advanced Pro 1 2017, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
