Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
166cm - 174cm
MD
172cm - 180cm
MD/LG
178cm - 186cm
LG
184cm - 192cm
XL
190cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

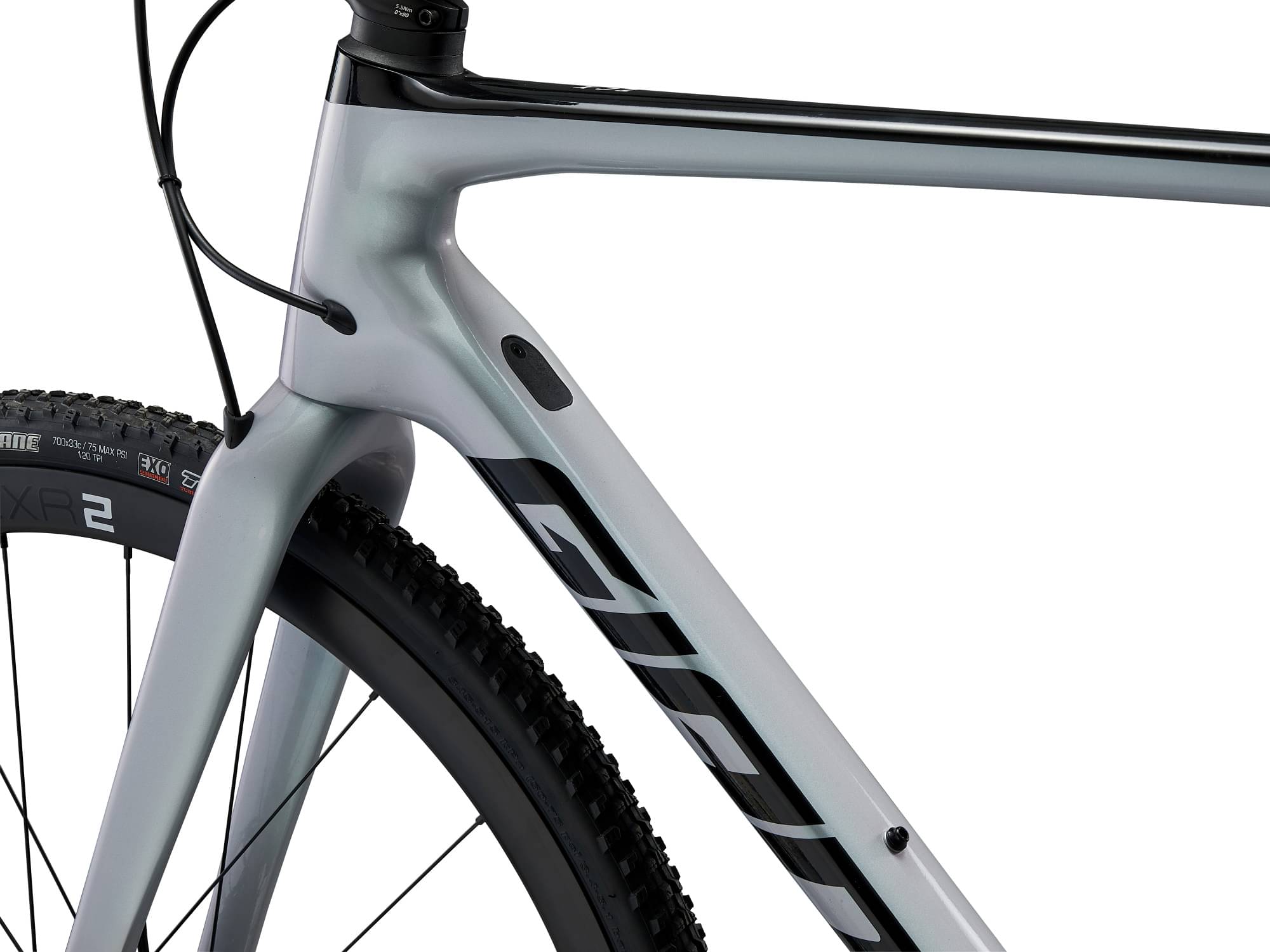

Frame
Frame
Advanced-Grade Composite, 12mm thru-axle, disc

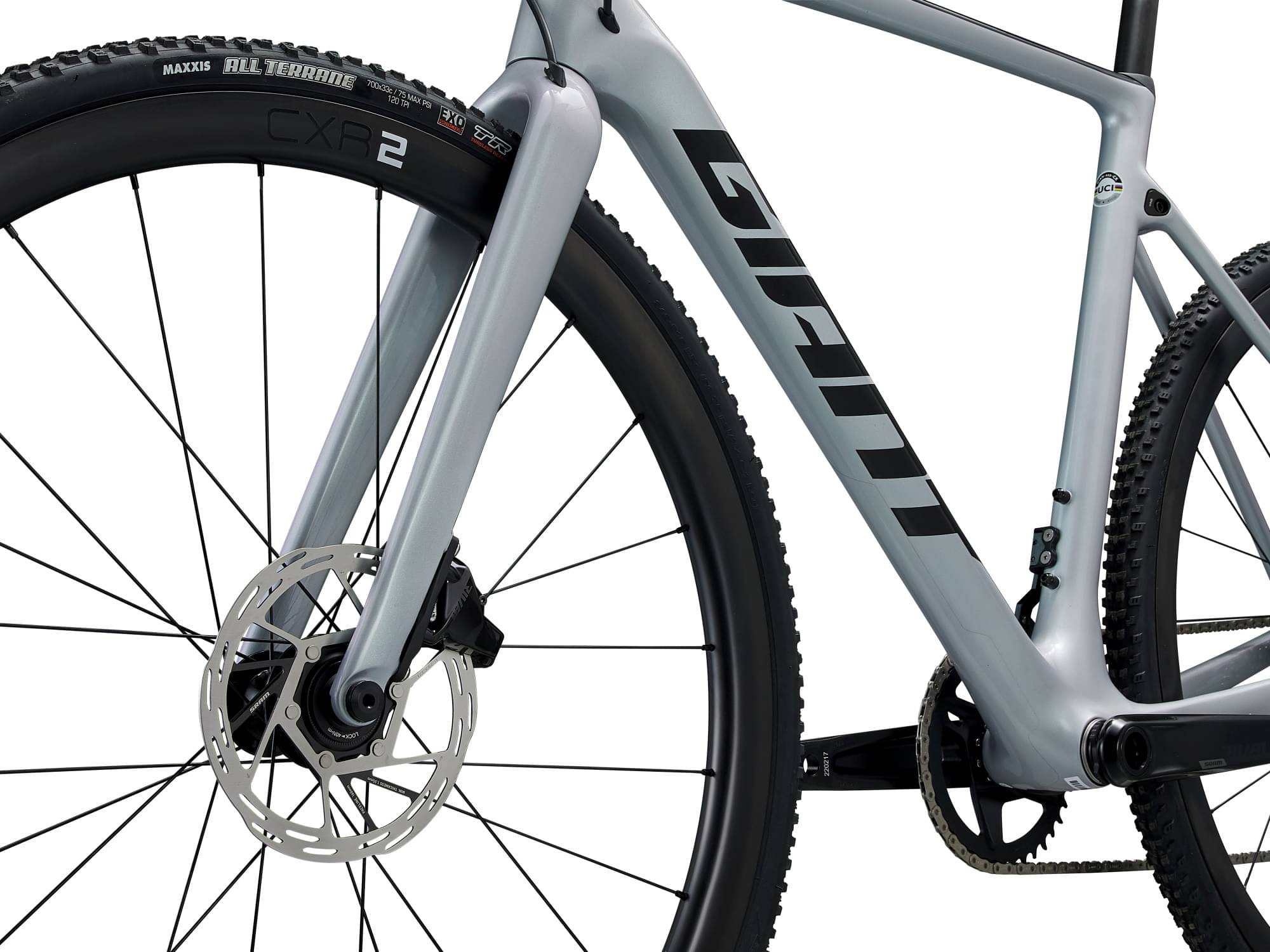

Suspension Fork
Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
Rear Shock
N/A
Drivetrain

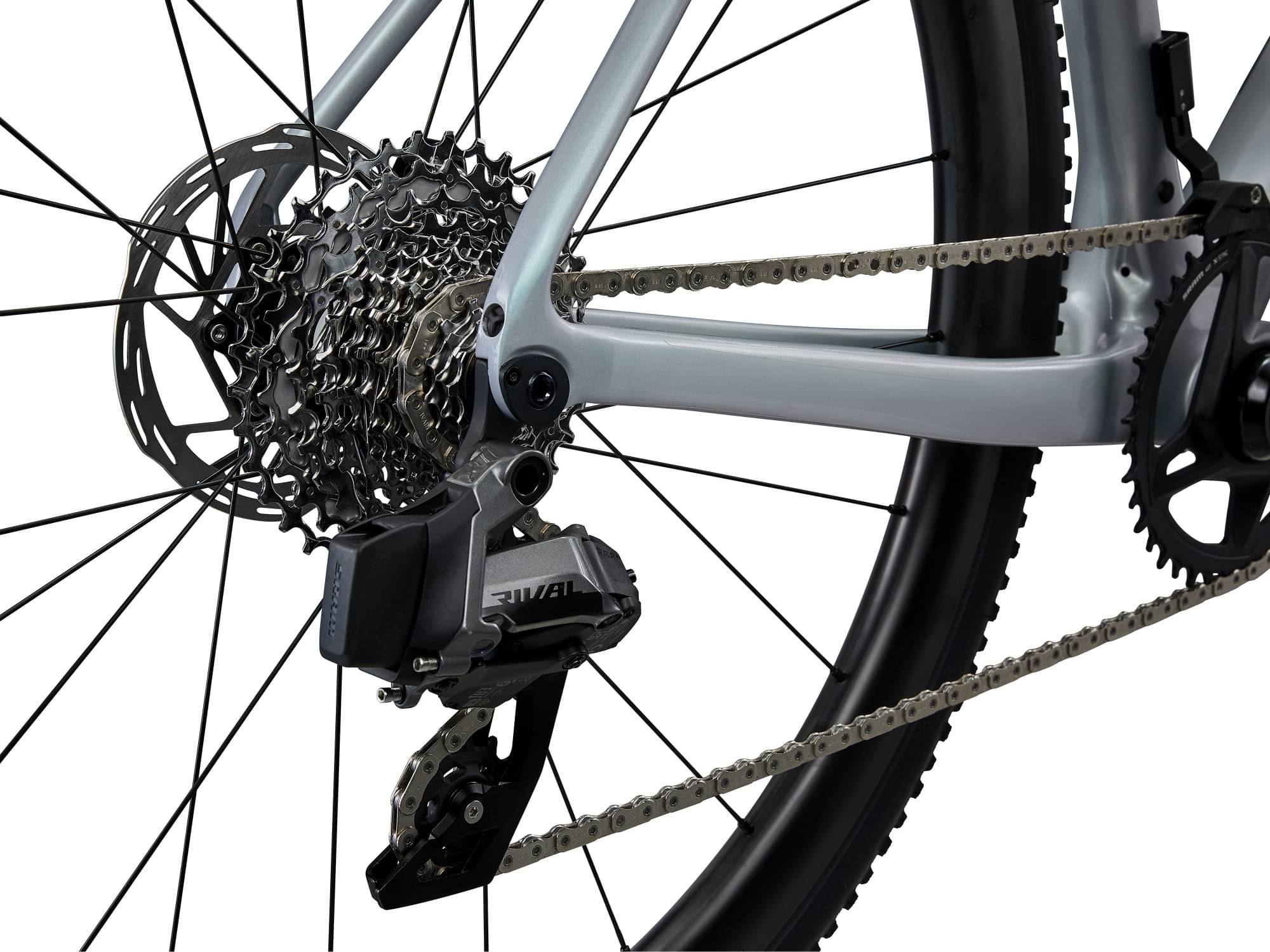

Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
N/A
Shift Levers
SRAM Rival eTap AXS, 1x12
Cassette
SRAM Rival, 12-speed, 10x36

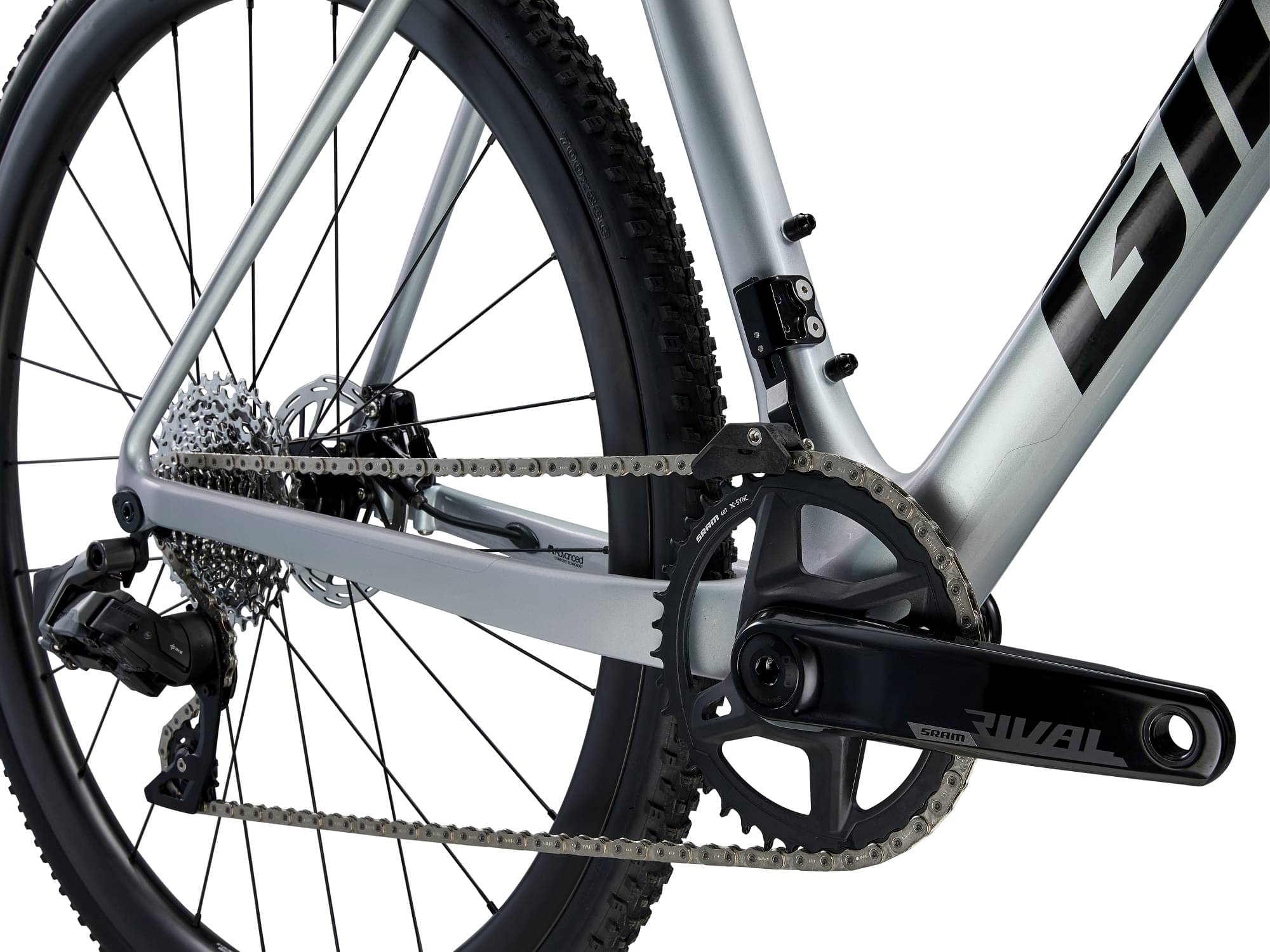

Crank
SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Rival D1
Pedals
N/A
Wheels
Front Hub
[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Rims
Giant CXR 2 Carbon Disc WheelSystem,[F] 35mm, [R] 35mm
Spokes
Sapim Sprint
Tires
Maxxis All-Terrene, 700x33c, tubeless
Brakes
Brakes
SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm

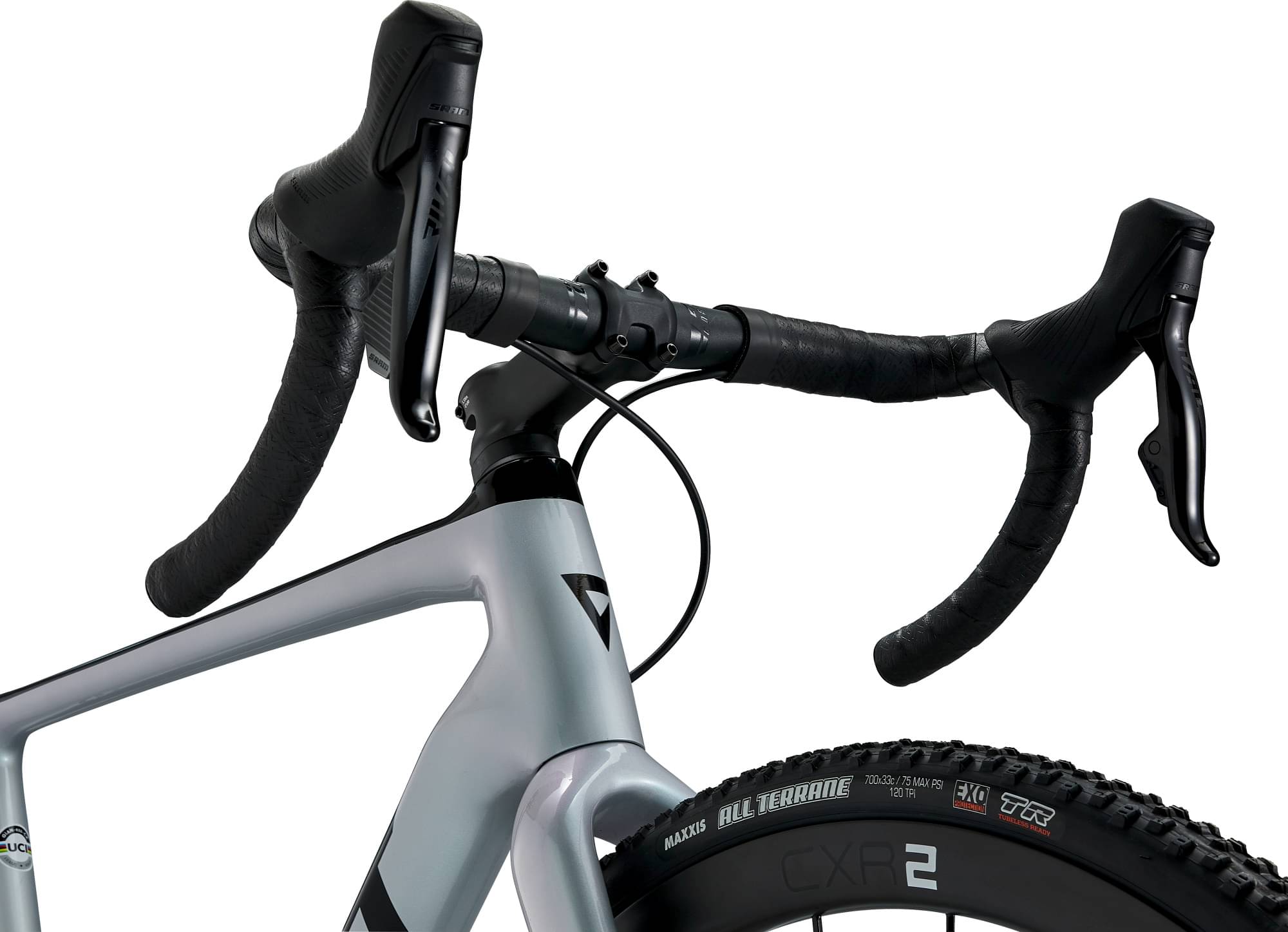

Brake Levers
SRAM Rival eTap AXS hydraulic
Cockpit
Stem
Giant Contact SL XS:70mm, S:80mm, M:90mm, M/L:100mm, L:100mm, XL:110mm

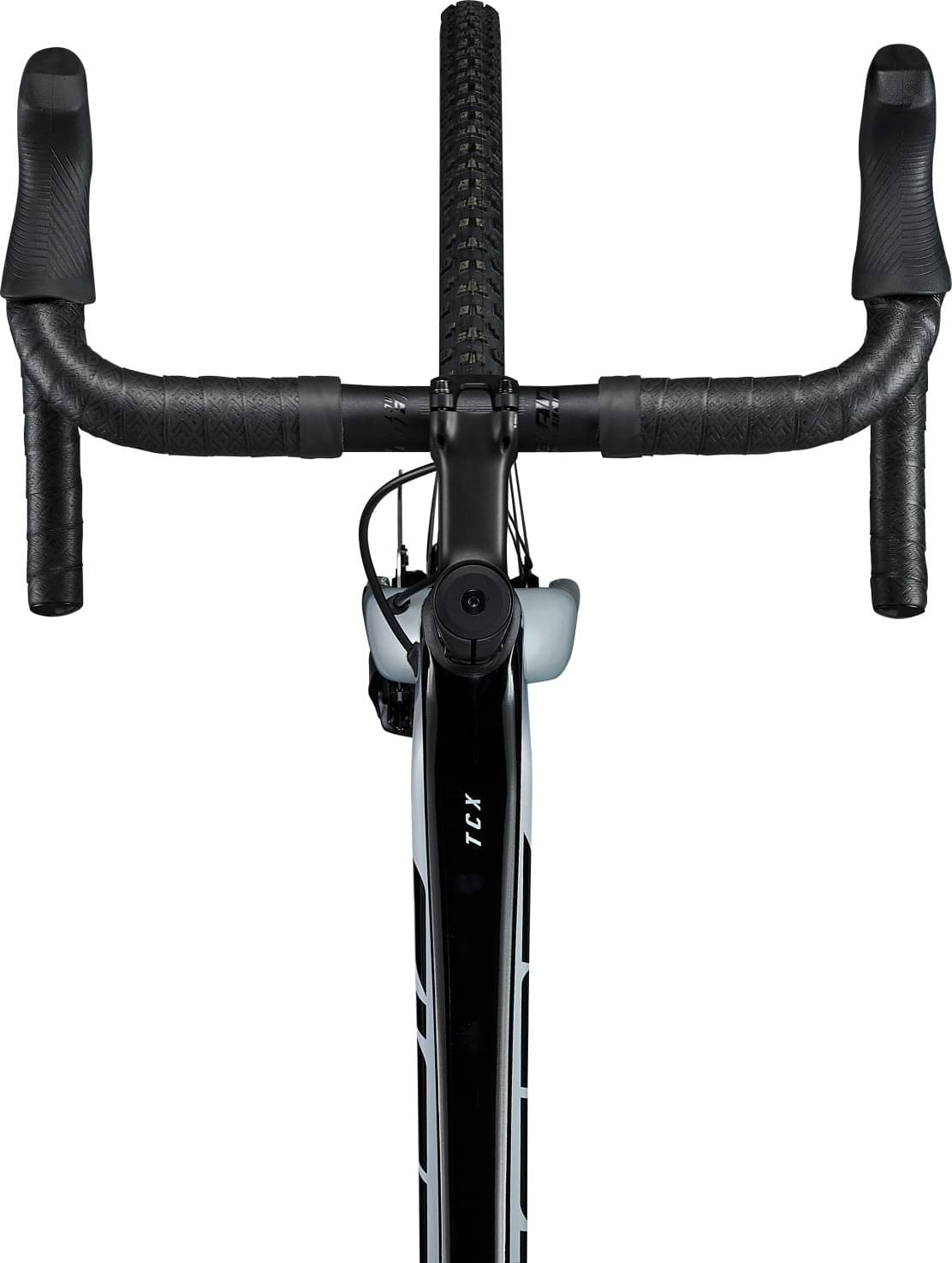

Handlebar
Giant Contact SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips
Stratus Lite 3.0
Seat
Saddle
Giant Approach SL
Seatpost
Giant D-Fuse SLR, composite, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.48 mm | 1.49 mm | 1.48 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 591 mm | 597 mm | 607 mm | 617 mm | 632 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 68.3 mm | 65.1 mm | 61.8 mm | 58.6 mm | 58.6 mm |
| Stack | 543 mm | 559 mm | 575 mm | 592 mm | 606 mm |
| Reach | 373 mm | 378 mm | 388 mm | 398 mm | 409 mm |
| Top Tube Length | 533 mm | 548 mm | 563 mm | 578 mm | 593 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 505 mm | 525 mm | 545 mm | 555 mm | 565 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 133 mm | 148 mm | 163 mm | 178 mm | 193 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1017 mm | 1023 mm | 1033 mm | 1043 mm | 1058 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 791 mm | 810 mm | 829 mm | 835 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 166 cm | 172 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 174 cm | 180 cm | 186 cm | 192 cm | 198 cm |
Model Overview
TCX, Advanced Pro 1 is part of the Giant Tcx model. Giant released 95 bikes variations of this model so far. Take a sneak peek at all Giant Tcx bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Giant TCX, Advanced Pro 2 2023 has a starting price of 3000$. Giant TCX, Advanced Pro 0 2023 on the other hand is the most expensive at 4967$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Cyclocross bikes
If you want an acceptable Cyclocross bike you should know that the average price is 2012$. However, you could also get a good Cyclocross bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Giant released this model in 2023, its price was 4800$. In conclusion, this bike price is 138.57% higher than the price of the average Cyclocross bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The TCX, Advanced Pro 1 2023 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The TCX, Advanced Pro 1 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
TCX, Advanced Pro 1 comes in 5 sizes, that range from 166 cm – 198 cm (5.45 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
