Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-Grade Aluminum
Suspension Fork
Advanced-Grade Composite
Drivetrain
Bottom Bracket
86.5mm shell accepts press-fit style BB only, bearing set not included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Top Tube Length | 535 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1016 mm | 1022 mm | 1032 mm | 1042 mm | 1052 mm |
| Standover Height | 787 mm | 805 mm | 826 mm | 841 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |

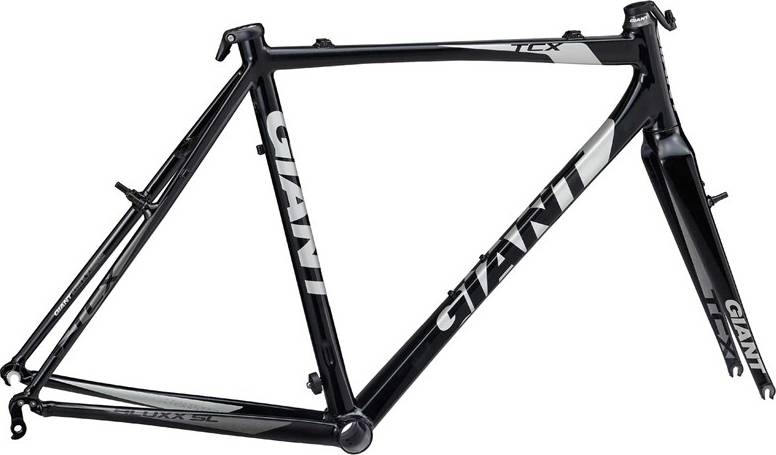

Model Overview
TCX Frameset is part of the Giant Tcx model. Giant released 95 frames variations of this model so far. Take a sneak peek at all Giant Tcx frames models from 2012, by clicking here.
Model range prices
Giant TCX Frameset 2012 is the most economical model, with a starting price of 750$. Giant TCX Advanced SL Frameset 2012 on the other hand costs 2899$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Cyclocross frames
If you want an acceptable Cyclocross frame you should know that the average price is 1405$. However, this doesn’t mean that if you spend less money on a Cyclocross frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Giant TCX Frameset price was 750$. Comparing the average cost of a Cyclocross frame to this one, you will see that TCX Frameset price is 87.33% lower.
TCX Frameset components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Sizes
Giant TCX Frameset frame has 5 sizes, in the range of 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
