Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Apex 1, FSA -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 169cm
SM
165cm - 175cm
MD
171cm - 181cm
MD/LG
177cm - 187cm
LG
182cm - 193cm
XL
189cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SLR-Grade Aluminum with hidden rack mounts, disc
Suspension Fork
Advanced-Grade Composite, alloy OverDrive steerer, 12mm thru-axle, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Apex 1
Front Derailleur
N/A
Shift Levers
SRAM Apex 1
Cassette
SRAM PG1130, 11x42, 11-Speed
Crank
FSA Omega, 40t
Bottom Bracket
FSA, press fit
Chain
SRAM PC1110
Pedals
N/A
Wheels
Front Hub
Giant Tracker Sport, [F] 12mm [R] 12x142mm, 32h
Rear Hub
Giant Tracker Sport, [F] 12mm [R] 12x142mm, 32h
Rims
Giant S-X2, Double Wall, Disc
Spokes
Sapim
Tires
Maxxis All-Terrane Tubeless, 700x33, 60 TPI, EXO
Brakes
Brakes
Giant Conduct Hydraulic Disc, 160mm
Brake Levers
Apex 1
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect
Seat
Saddle
Giant Contact, Neutral, UniClip Accessory Mount
Seatpost
Giant D-Fuse, composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.48 mm | 1.48 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 585 mm | 591 mm | 596 mm | 607 mm | 617 mm | 632 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 68 mm | 65 mm | 62 mm | 59 mm | 59 mm |
| Stack | 533 mm | 547 mm | 563 mm | 579 mm | 596 mm | 610 mm |
| Reach | 376 mm | 377 mm | 382 mm | 392 mm | 402 mm | 413 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 582 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 475 mm | 500 mm | 525 mm | 545 mm | 555 mm | 565 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1015 mm | 1021 mm | 1026 mm | 1037 mm | 1047 mm | 1062 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 765 mm | 790 mm | 810 mm | 828 mm | 839 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 182 cm | 189 cm |
| Rider Max Height | 169 cm | 175 cm | 181 cm | 187 cm | 193 cm | 199 cm |

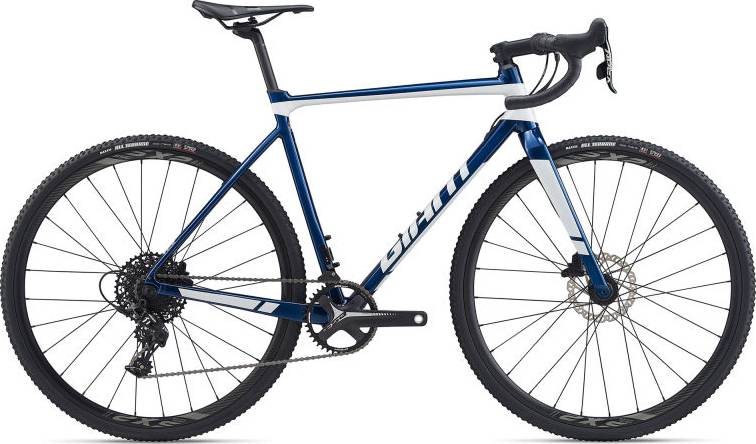

About this model
TCX SLR 2 is part of the Giant Tcx model. There are 95 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Giant TCX Espoir 26 2020 is the cheapest bike model and costs 730$. Giant TCX Advanced Pro 0 Force 2020 is the most expensive one and costs 5400$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Cyclocross bikes
If you want an acceptable Cyclocross bike you should know that the average price is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 1373$. Comparing this to the average Cyclocross bike price, we see that the price is 46.54% lower.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The TCX SLR 2 2020 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant TCX SLR 2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
TCX SLR 2 comes in 6 sizes, that range from 157 cm – 199 cm (5.15 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
