Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, 5.5" Maestro suspension
Suspension Fork
RockShox Revelation RL Dual Position Air w/ 15mm thru-axle, OverDrive steerer, 120-140mm travel
Rear Shock
RockShox Monarch RT3
Drivetrain
Rear Derailleur
Shimano XT, Shadow +
Front Derailleur
Shimano SLX
Shift Levers
Shimano SLX
Cassette
Shimano HG81 11x36, 10-speed
Crank
Shimano XT, 24/38 w/ MRP 2x Guide
Bottom Bracket
Shimano, Press fit
Chain
KMC X10
Pedals
N/A
Wheels
Front Hub
Giant P-TRX1 WheelSystem; 28h, [F] 15mm axle, [R] 142x12 axle
Rear Hub
Giant P-TRX1 WheelSystem; 28h, [F] 15mm axle, [R] 142x12 axle
Rims
Giant P-TRX1 Composite WheelSystem; 27mm wide, Tubeless compatible
Spokes
Sapim Race, 14/15g
Tires
[F] Schwalbe Nobby Nic Trailstar, Snakeskin, Tubeless ready, 27.5x2.25, [R] Schwalbe Nobby Nic Pacestar, Snakeskin, Tubeless ready, 27.5x2.25
Brakes
Brakes
Shimano SLX, Hydraulic disc, [F] 180mm [R] 160mm
Brake Levers
Shimano SLX
Cockpit
Stem
Giant Contact
Handlebar
Giant Contact, Low rise, 31.8mm
Seat
Saddle
Giant Contact, Upright
Seatpost
Giant Contact SL Switch-R, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.431 mm | 1.344 mm | 1.344 mm | 1.325 mm |
| Stack | 571 mm | 571 mm | 571 mm | 590 mm | 604 mm |
| Reach | 383 mm | 399 mm | 425 mm | 439 mm | 456 mm |
| Top Tube Length | 551 mm | 569 mm | 599 mm | 620 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 99 mm | 99 mm | 99 mm | 119 mm | 135 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1105 mm | 1125 mm | 1156 mm | 1176 mm | 1204 mm |
| Standover Height | 678 mm | 681 mm | 714 mm | 754 mm | 770 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

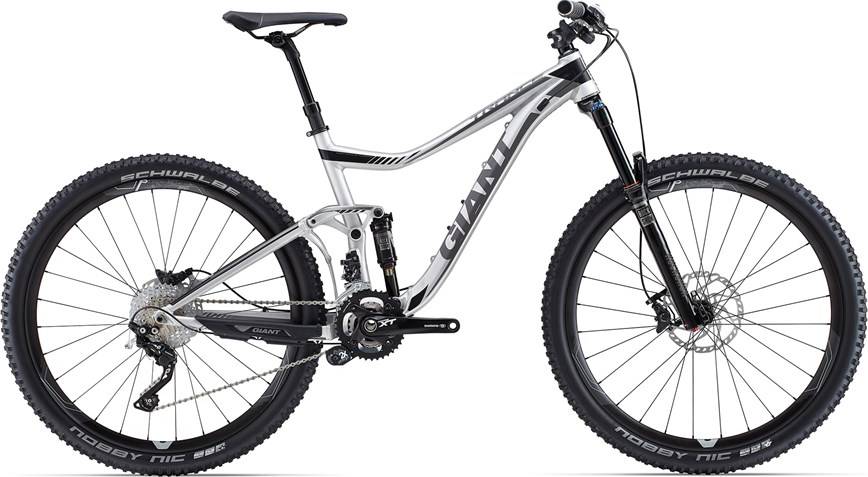

Trance 27.5 1 is a Giant Trance model. 139 bikes variations carry this model name so far. You can easily view all of the Giant Trance bikes models from 2015, here.
Model range prices
Giant Trance 27.5 3 2015 is the most affordable bike of this model and has a price of 2175$. On the other hand, Giant Trance Advanced 27.5 0 2015, is the most expensive and costs 7750$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Giant released this model in 2015, its price was 4050$. Doing a quick comparison, we notice that Trance 27.5 1 price is 46.63% higher than the average cost of a Trail bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Trance 27.5 1 has a rear shock with a travel of 140mm. The model RockShox Monarch RT3 is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Trance 27.5 1 model has 27.5″ carbon wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Trance 27.5 1 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
