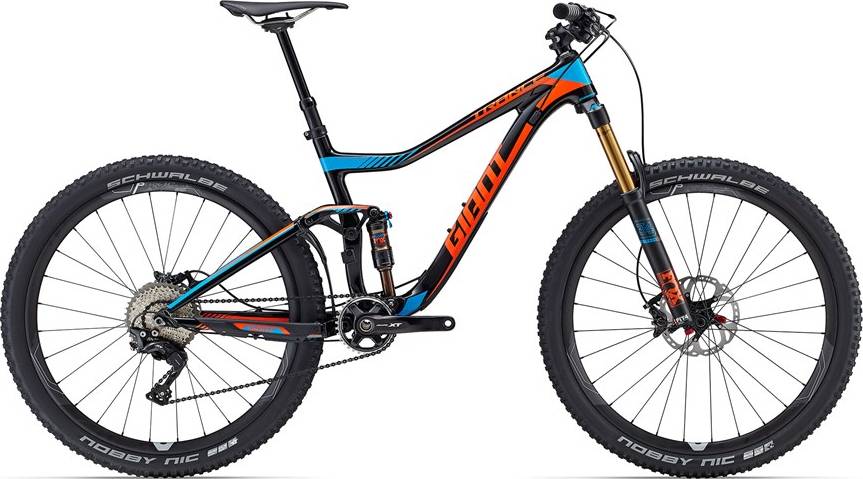

Giant Trance Advanced 27.5 1 2016
2016 Mountain
Estimate price |
5,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite w/ ALUXX SL rear triangle, 5.5" Maestro suspension
Suspension Fork
Fox 34 Float Factory Kashima w/ 15mm thru-axle, OverDrive steerer, 140mm travel
Rear Shock
Fox Float Factory
Drivetrain
Rear Derailleur
Shimano XT, Shadow+
Front Derailleur
N/A
Shift Levers
Shimano XT, Rear only
Cassette
Shimano XT 11x42, 11-speed
Crank
Shimano XT, 32T
Bottom Bracket
Shimano, Press Fit
Chain
KMC X11SL DLC
Pedals
N/A
Wheels
Front Hub
Giant TRX 1 Composite WheelSystem; 28h, [F] 15mm axle, [R] 142x12 axle
Rear Hub
Giant TRX 1 Composite WheelSystem; 28h, [F] 15mm axle, [R] 142x12 axle
Rims
Giant TRX 1 Composite WheelSystem; 27mm wide, Tubeless compatible
Spokes
Giant TRX 1 Composite WheelSystem; Sapim Race, 14/15g
Tires
Schwalbe Nobby Nic, 27.5x2.25, Tubeless ready, Snakeskin [F] Trailstar [R] Pacestar
Brakes
Brakes
Shimano XT, Hydraulic disc, [F] 180mm [R] 160mm
Brake Levers
Shimano XT, Hydraulic disc
Cockpit
Stem
Giant Contact SL
Handlebar
Giant Contact SL, Low rise, 31.8mm
Seat
Saddle
Giant Contact SL neutral, SST tubular metalic rails
Seatpost
Giant Contact SL Switch, dropper, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.431 mm | 1.344 mm | 1.344 mm | 1.325 mm |
| Stack | 571 mm | 571 mm | 571 mm | 590 mm | 604 mm |
| Reach | 383 mm | 399 mm | 425 mm | 439 mm | 456 mm |
| Top Tube Length | 551 mm | 569 mm | 599 mm | 620 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 99 mm | 99 mm | 99 mm | 119 mm | 135 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1105 mm | 1125 mm | 1156 mm | 1176 mm | 1204 mm |
| Standover Height | 678 mm | 681 mm | 714 mm | 754 mm | 770 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Trance Advanced 27.5 1 is a Giant Trance model. There are 139 bikes that carry this model name. Take a sneak peek at all Giant Trance bikes models from 2016, by clicking here.
Model range prices
The most economical model, the Giant Trance 27.5 3 2016 has a starting price of 2100$. Giant Trance Advanced 27.5 0 2016 on the other hand is the most expensive at 7700$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2016 for 5000$. If we compare this with the average Trail bike cost we notice that the price is 81.03% higher.
Overview of components
Fork
The Trance Advanced 27.5 1 comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float Factory, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Trance Advanced 27.5 1 bike is equipped with the 27.5″ carbon model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trance Advanced 27.5 1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Giant Trance Advanced 27.5 1 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Giant model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
