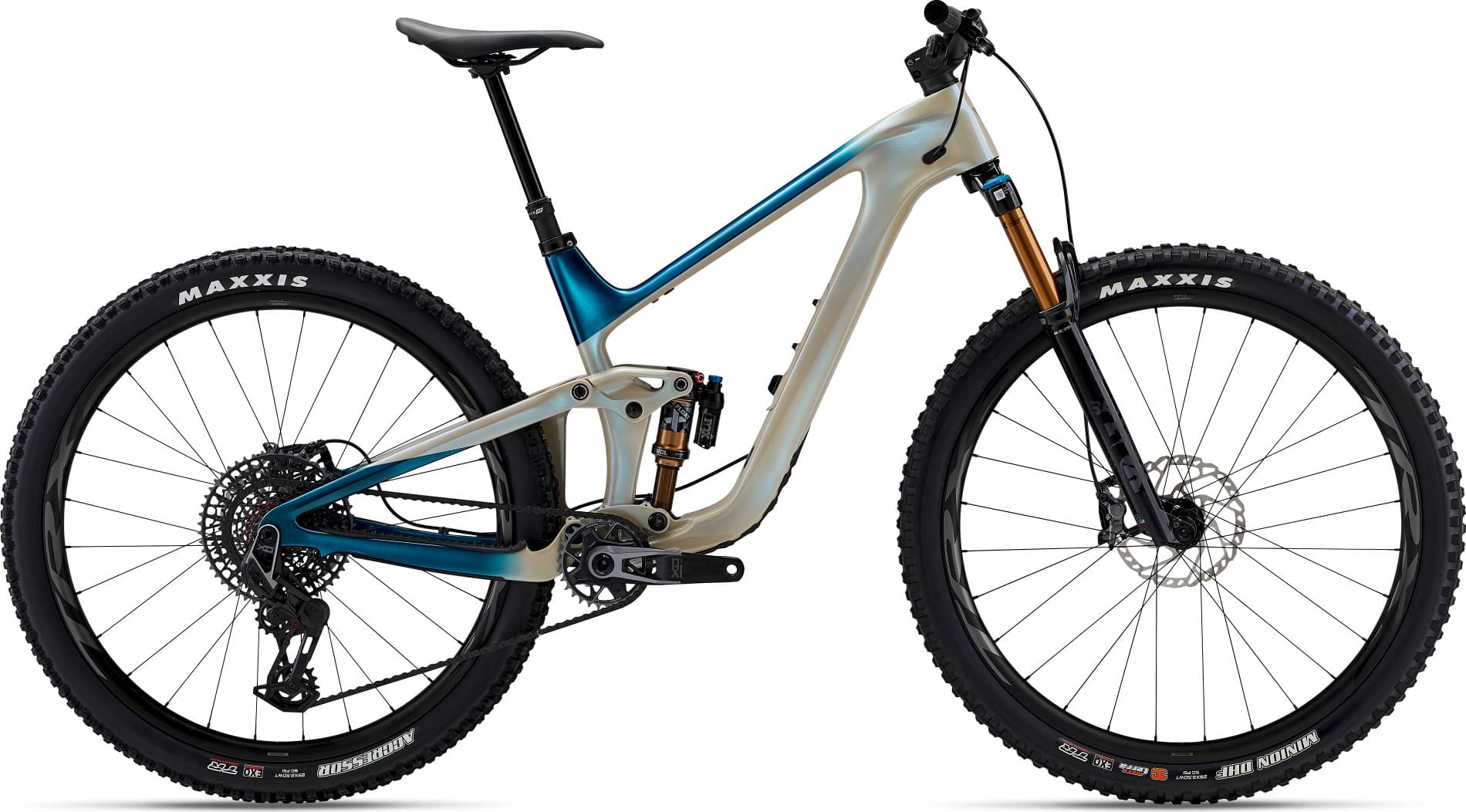

Giant Trance, Advanced 29 0 2024
2024 Mountain
Estimate price |
7,243$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
163cm - 173cm
SM Low
163cm - 173cm
MD High
170cm - 181cm
MD Low
170cm - 181cm
LG High
178cm - 189cm
LG Low
178cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite front and rear triangles, 120mm Maestro suspension, flip chip - Maestro, 12x148mm thru-axle, integrated downtube storage
Suspension Fork
Fox 34 Factory, 130mm, GRIP 2, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
Rear Shock
Fox Float X Factory, 185/50, custom tuned for Giant
Drivetrain
Rear Derailleur
SRAM XO Eagle Transmission
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod, discrete clamp, 1x12
Cassette
SRAM XO Transmission, 10x52
Crank
SRAM XO Eagle Transmission, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket
SRAM, press fit
Chain
SRAM XO
Pedals
N/A
Wheels
Front Hub
Front : Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Rear Hub
Front : Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Rims
Giant TRX 2 29 Carbon WheelSystem, 30mm inner width
Spokes
Sapim
Tires
[F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29x2.5, EXO, TR, tubeless
Brakes
Brakes
Shimano Deore XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]180mm, [R]180mm
Brake Levers
Shimano Deore XT BL-M8100
Cockpit
Stem
Giant Contact Integrated SLR TR35, composite S:40mm, M:40mm, L:50mm, XL:50mm
Handlebar
Giant Contact Integrated SLR TR35, composite, 800x35mm
Grips
Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
Seat
Saddle
Giant Romero SL
Seatpost
TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.401 mm | 1.445 mm | 1.344 mm | 1.385 mm | 1.296 mm | 1.331 mm | 1.225 mm | 1.256 mm |
| Bottom Bracket Height | 339 mm | 329 mm | 339 mm | 329 mm | 339 mm | 329 mm | 339 mm | 329 mm |
| Front Center | 730 mm | 731 mm | 759 mm | 760 mm | 688 mm | 689 mm | 827 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | -47 mm | -46 mm | 44 mm | 44 mm |
| Trail | 120 mm | 126 mm | 120 mm | 126 mm | 217 mm | 221 mm | 120 mm | 126 mm |
| Stack | 604 mm | 610 mm | 613 mm | 619 mm | 622 mm | 628 mm | 631 mm | 637 mm |
| Reach | 431 mm | 422 mm | 456 mm | 447 mm | 480 mm | 472 mm | 515 mm | 507 mm |
| Top Tube Length | 559 mm | 561 mm | 597 mm | 599 mm | 624 mm | 626 mm | 661 mm | 663 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 77 ° | 76.3 ° | 77 ° | 76.3 ° | 77 ° | 76.3 ° |
| Seat Tube Length | 420 mm | 420 mm | 430 mm | 430 mm | 465 mm | 465 mm | 496 mm | 496 mm |
| Head Tube Angle | 66.2 ° | 65.4 ° | 66.2 ° | 65.5 ° | 66.2 ° | 65.5 ° | 66.2 ° | 65.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 437 mm | 439 mm | 437 mm | 439 mm | 437 mm | 439 mm | 437 mm | 439 mm |
| Wheelbase | 1165 mm | 1166 mm | 1194 mm | 1195 mm | 1123 mm | 1124 mm | 1262 mm | 1263 mm |
| Bottom Bracket Drop | 35 mm | 45 mm | 35 mm | 45 mm | 35 mm | 45 mm | 35 mm | 45 mm |
| Standover Height | 737 mm | 729 mm | 732 mm | 723 mm | 755 mm | 746 mm | 760 mm | 751 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 163 cm | 170 cm | 170 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 173 cm | 173 cm | 181 cm | 181 cm | 189 cm | 189 cm | 198 cm | 198 cm |
About this model
Trance, Advanced 29 0 is part of the Giant Trance model. Giant released 143 bikes variations of this model so far. You can easily view all of the Giant Trance bikes models from 2024, here.
Model range prices
The most economical model, the Giant Trance Jr 26 2024 has a starting price of 2329$. Giant Trance, Advanced 29 0 2024 on the other hand is the most expensive at 7228$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7228$. If we compare this with the average Trail bike cost we notice that the price is 161.69% more expensive.
Trance, Advanced 29 0 components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Giant Trance, Advanced 29 0 bike has the Fox Float X Factory model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Trance, Advanced 29 0 bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Trance, Advanced 29 0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 8 sizes. They vary from 163 cm – 198 cm (5.35 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Giant Trance, Advanced 29 0 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
