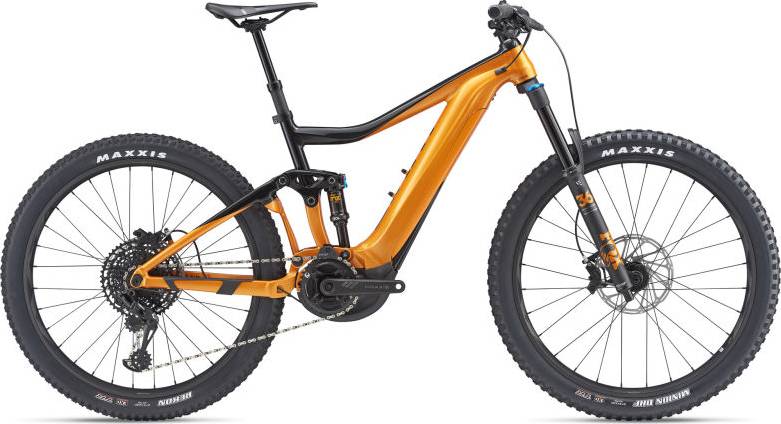

Giant Trance E+ 1 Pro 2019
2019 E-bike
Estimate price |
5,565$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, SRAM -
Suspension Full -
Motor Yamaha 80Nm mid-drive -
Battery Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 173cm
MD
170cm - 181cm
LG
178cm - 189cm
XL
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
Suspension Fork
Fox 36 Float Performance 27.5+ 150mm, EVOL, 3-position Micro Adjust Grip Damper, Boost 110x15QR, e-Bike optimized
Rear Shock
Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
SRAM GX Eagle, Type 2
Front Derailleur
MRP 1X V3 custom
Shift Levers
SRAM GX Eagle
Cassette
SRAM PG-1230, 11-50T, 12-Speed
Crank
SRAM X-Sync Eagle 36T 104BCD chainringPraxis e-Cadet+ custom forged crankarm set
Chain
SRAM GX Eagle PowerLock 12-Speed
Chain Guide
MRP 1X V3 custom
Pedals
None included
Wheels
Front Hub
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized
Rear Hub
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized
Rims
Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized
Spokes
Sapim E-Lite [r] Race [f], e-bike optimized
Tires
Maxxis Minion DHF 27.5x2.6" Foldable, Tubeless, EXO, Dual compound [F] Maxxis Rekon 27.5x2.6" Foldable, Tubeless, EXO, Dual Compound [R]
Brakes
Brakes
SRAM Code R, hydraulic disc, 200mm
Brake Levers
SRAM Code R
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact 35 Trail, 35x800mm
Seat
Saddle
Giant Contact, Neutral
Seatpost
Giant Contact Switch, dropper, 30,9mm, under bar remote lever
Motor & Battery
Motor
Giant SyncDrive Pro, 80Nm, 360% tuneable support, powered by YAMAHA. Pedal assist up to 20 mph.
Battery
Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion
Remote
Giant RideControl ONE, remote button
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.32 mm | 1.29 mm | 1.27 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 714 mm | 740 mm | 761 mm | 789 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 585 mm | 590 mm | 599 mm | 617 mm |
| Reach | 424 mm | 448 mm | 466 mm | 485 mm |
| Top Tube Length | 591 mm | 616 mm | 636 mm | 661 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 445 mm | 482 mm | 507 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1190 mm | 1216 mm | 1237 mm | 1265 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 745 mm | 746 mm | 778 mm | 798 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 163 cm | 170 cm | 178 cm | 186 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 198 cm |
Model Overview
Trance E+ 1 Pro is a Giant E Trance model. Giant released 42 e-bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Giant Trance E+ 2 2019 is the cheapest e-bike model and costs 4600$. Giant Trance E+ SX 0 Pro 2019 is the most expensive one and costs 7035$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Giant Trance E+ 1 Pro price was 5565$. In conclusion, this e-bike price is 65.38% more expensive than the price of the average Trail e-bike.
Overview of components
Fork
Giant Trance E+ 1 Pro 2019 e-bike is equipped with the Fox Performance Float 36 fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Giant Trance E+ 1 Pro e-bike has the Fox Float DPS Performance model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Giant Trance E+ 1 Pro 2019, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Trance E+ 1 Pro has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Giant Trance E+ 1 Pro e-bike has 4 sizes, in the range of 163 cm – 198 cm (5.35 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Giant model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
