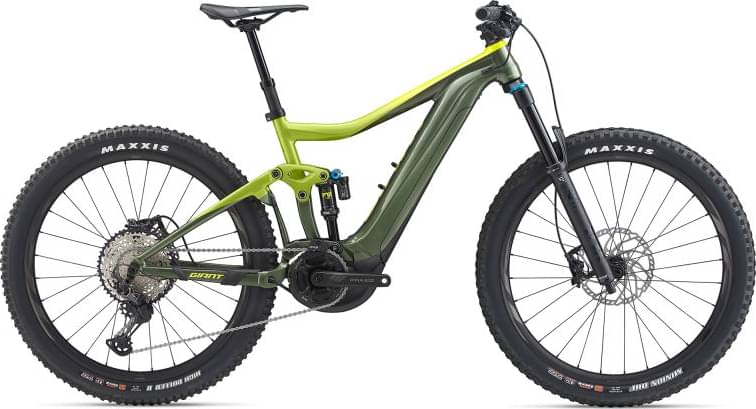

Giant Trance E+ 1 Pro Electric Bike 2020
2020 E-bike
Estimate price |
6,021$
Weight | 24.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset XT, Praxis -
Suspension Full -
Motor Yamaha 80Nm mid-drive -
Battery Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
Suspension Fork
Fox 36 Float Performance 27.5+ 150mm, 44mm offset, EVOL, 3-position Micro Adjust Grip Damper, Boost 110x15QR, e-Bike optimized
Rear Shock
Fox Float DPX2 Performance,EVOL Large Volume sleeve, 3-Pos Lever, 185x52.5mm Trunnion mount
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-Speed, Shadow+
Front Derailleur
MRP 1X custom "V3" co-moulded TR chain guide
Shift Levers
Shimano Deore XT, 12-speed
Cassette
Shimano HG-M7100, 10-51T, 12-Speed
Crank
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, XS/S:160, M/L:165, XL:170)
Bottom Bracket
N/A
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Pedals
-
Wheels
Front Hub
Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle
Rear Hub
Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle
Rims
Giant e-TR1 27.5, Tubeless ready, 30mm inner width
Spokes
Giant e-TR1
Tires
Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO, 3c MaxxTerra[F]Maxxis HighRollerII 27.5x2.6" Foldable, Tubeless, EXO, 120tpi 3C Compound [R]
Brakes
Brakes
Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore XT, BL-M8120
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact 35 Trail, 35x780mm
Seat
Saddle
Giant Contact, Neutral
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)
Motor & Battery
Motor
Giant SyncDrive Pro, automatic support, 5-mode, 50-360% tunable support, 80Nm, powered by YAMAHA
Battery
Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion
Remote
Giant RideControl ONE, remote button
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.32 mm | 1.29 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 699 mm | 714 mm | 740 mm | 761 mm | 789 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 576 mm | 576 mm | 581 mm | 590 mm | 608 mm |
| Reach | 400 mm | 415 mm | 439 mm | 457 mm | 476 mm |
| Top Tube Length | 567 mm | 582 mm | 607 mm | 627 mm | 652 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 406 mm | 445 mm | 482 mm | 507 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1166 mm | 1181 mm | 1207 mm | 1228 mm | 1256 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 725 mm | 736 mm | 737 mm | 769 mm | 789 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Trance E+ 1 Pro Electric Bike is part of the Giant E Trance model. Giant launched 42 e-bikes of this model so far. You can easily view all of the Giant E Trance e-bikes models from 2020, here.
Model range prices
Giant Trance E+ 2 Pro 2020 is the most economical model, with a starting price of 4121$. Giant Trance E+ 0 Pro Electric Bike 2020 on the other hand costs 6689$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Giant Trance E+ 1 Pro Electric Bike price was 5473$. If we compare this with the average Trail e-bike cost we notice that the price is 62.64% higher.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Giant Trance E+ 1 Pro Electric Bike it’s weighing 24.9 kg (54.9 lbs). At this weight, is a bit heavier than average. In other words, this model is 5.06% heavier than the average Trail e-bike.
Overview of components
Fork
Giant Trance E+ 1 Pro Electric Bike 2020 e-bike is equipped with the Fox Performance Float 36 fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPX2 Performance, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Trance E+ 1 Pro Electric Bike e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Trance E+ 1 Pro Electric Bike comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
The Giant model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
