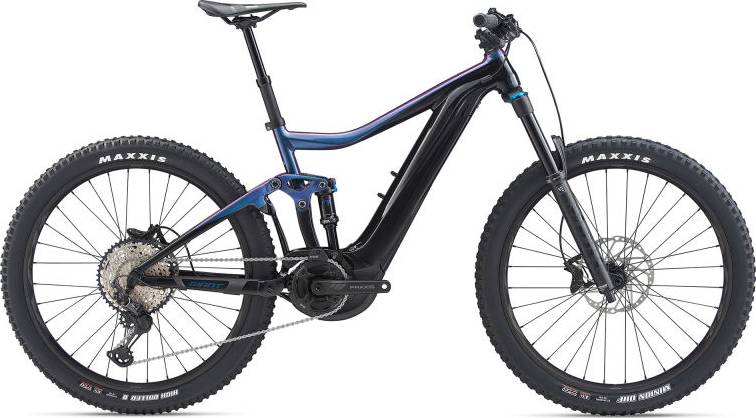

Giant Trance E+ 2 Pro Electric Bike 2020
2020 E-bike
Estimate price |
5,352$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor Yamaha 80Nm mid-drive -
Battery Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
Suspension Fork
Fox 36 Float Rhythm 27.5+ 150mm, 44mm offset, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-Bike optimized
Rear Shock
Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-Speed, Shadow+
Front Derailleur
MRP 1X CS custom
Shift Levers
Shimano SLX 12-speed
Cassette
Shimano HG-M7100, 10-51T, 12-Speed
Crank
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, XS/S:160, M/L:165, XL:170)
Bottom Bracket
N/A
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Pedals
-
Wheels
Front Hub
Shimano Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spling Drive Body Thru-axle
Rear Hub
Shimano Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spling Drive Body Thru-axle
Rims
Giant AM 27.5+, Tubeless ready, 35mm inner width
Spokes
Sapim E-Lite [r] Race [f]
Tires
Maxxis Minion DHF 27.5x2.6" Foldable, Tubeless, EXO, Dual compound [F] Maxxis HighRollerII 27.5x2.6" Foldable, Tubeless, EXO, Dual Compound [R]
Brakes
Brakes
Shimano BR-MT520, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano BL-MT501
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact 35 Trail, 35x780mm
Seat
Saddle
Giant Contact, Neutral
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)
Motor & Battery
Motor
Giant SyncDrive Pro, automatic support, 5-mode, 50-360% tunable support, 80Nm, powered by YAMAHA
Battery
Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion
Remote
Giant RideControl ONE, remote button
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.32 mm | 1.29 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 699 mm | 714 mm | 740 mm | 761 mm | 789 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 576 mm | 576 mm | 581 mm | 590 mm | 608 mm |
| Reach | 400 mm | 415 mm | 439 mm | 457 mm | 476 mm |
| Top Tube Length | 567 mm | 582 mm | 607 mm | 627 mm | 652 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 406 mm | 445 mm | 482 mm | 507 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1166 mm | 1181 mm | 1207 mm | 1228 mm | 1256 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 725 mm | 736 mm | 737 mm | 769 mm | 789 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Trance E+ 2 Pro Electric Bike is a Giant E Trance model. There are 42 e-bikes that carry this model name. You can easily view all of the Giant E Trance e-bikes models from 2020, here.
Model range prices
Giant Trance E+ 2 Pro 2020 is the most economical model, with a starting price of 4121$. Giant Trance E+ 0 Pro Electric Bike 2020 on the other hand costs 6689$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Giant Trance E+ 2 Pro Electric Bike price was 4864$. In conclusion, this e-bike price is 44.55% higher than the price of the average Trail e-bike.
Overview of components
Fork
The Fox Rhythm Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Giant Trance E+ 2 Pro Electric Bike e-bike has the Fox Float DPS Performance model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Trance E+ 2 Pro Electric Bike e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
