Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork RockShox Pike RC
-
Groupset X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, 5.5" Maestro suspension
Suspension Fork
RockShox Pike RC Dual Position Air w/ 15mm thru-axle, OverDrive steerer, 140-160mm travel
Rear Shock
RockShox Monarch Plus Debonair RT
Drivetrain
Rear Derailleur
SRAM X1, Type 2
Front Derailleur
N/A
Shift Levers
SRAM X1 Trigger, Rear only
Cassette
SRAM XG1180 10x42, 11-speed
Crank
SRAM X1, 32T
Bottom Bracket
SRAM, Press fit
Chain
KMC X11SL
Pedals
N/A
Wheels
Front Hub
Giant Performance Tracker, 32h, [F] 15mm axle, [R] 142x12mm axle
Rear Hub
Giant Performance Tracker, 32h, [F] 15mm axle, [R] 142x12mm axle
Rims
Giant P-AM2, Double wall
Spokes
Stainless Steel, 14g
Tires
[F] Schwalbe Hans Dampf Trailstar, Snakeskin, 27.5x2.35, [R] Schwalbe Rock Razor Pacestar, Snakeskin, 27.5x2.35
Brakes
Brakes
Avid Guide R, Hydraulic disc, [F] 180mm [R] 170mm
Brake Levers
Avid Guide R
Cockpit
Stem
Truvativ Holzfeller
Handlebar
Giant Contact SL DH, 31.8mm
Seat
Saddle
Giant Contact, Upright
Seatpost
Giant Contact SL Switch-R, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.431 mm | 1.344 mm | 1.344 mm | 1.325 mm |
| Stack | 571 mm | 571 mm | 571 mm | 590 mm | 604 mm |
| Reach | 383 mm | 399 mm | 425 mm | 439 mm | 456 mm |
| Top Tube Length | 551 mm | 569 mm | 599 mm | 620 mm | 645 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 99 mm | 99 mm | 99 mm | 119 mm | 135 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1113 mm | 1133 mm | 1163 mm | 1186 mm | 1212 mm |
| Standover Height | 693 mm | 696 mm | 729 mm | 770 mm | 785 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

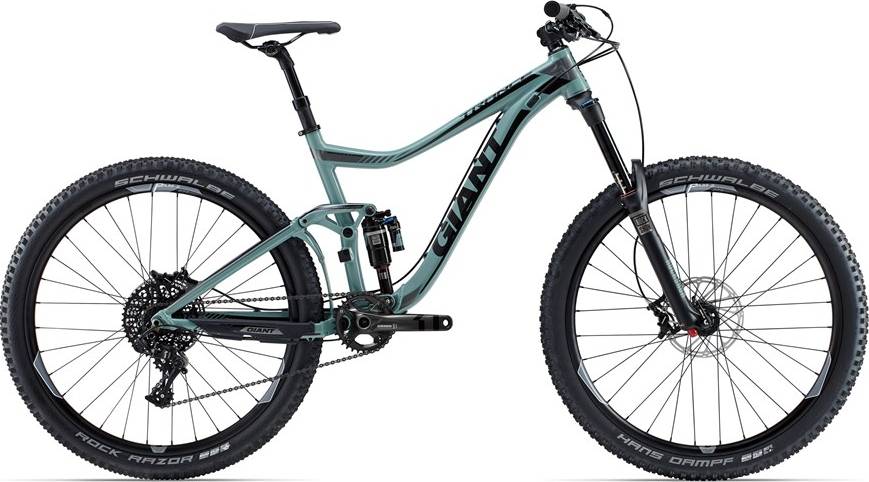

About this model
Trance SX 27.5 is a Giant Trance model. 139 bikes variations carry this model name so far. You can easily view all of the Giant Trance bikes models from 2015, here.
Model range prices
The most economical model, the Giant Trance 27.5 3 2015 has a starting price of 2175$. Giant Trance Advanced 27.5 0 2015 on the other hand is the most expensive at 7750$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Giant Trance SX 27.5 price was 4250$. Comparing the average cost of a Trail bike to this one, you will see that Trance SX 27.5 price is 53.87% more expensive.
Trance SX 27.5 components
Fork
The Trance SX 27.5 comes factory-installed with the RockShox Pike RC fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Giant Trance SX 27.5 bike has the RockShox Monarch Plus Debonair RT model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Trance SX 27.5 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant Trance SX 27.5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Trance SX 27.5 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
