Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 125mm -
Fork Fox Factory Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum, 5" Maestro suspension
Suspension Fork
Fox 32 Float CTD Factory, w/Kashima coating, 15mm thru-axle, OverDrive 2 steerer, 120mm travel
Rear Shock
Fox Float CTD Factory, w/Kashima coating
Drivetrain
Rear Derailleur
Shimano Deore XT, Shadow Plus
Front Derailleur
Shimano Deore XT
Shift Levers
Shimano Deore XT, Rapid Fire
Cassette
Shimano HG81 11x36, 10-speed
Crank
Shimano Deore XT, 24/38
Bottom Bracket
Shimano Press Fit
Chain
KMC X10
Pedals
N/A
Wheels
Front Hub
Giant P-TRX1 WheelSystem, [F] 15mm axle [R] 135x5mm QR
Rear Hub
Giant P-TRX1 WheelSystem, [F] 15mm axle [R] 135x5mm QR
Rims
Giant P-TRX1 WheelSystem
Spokes
Giant P-TRX1 WheelSystem
Tires
Schwalbe Nobby Nic Evo, tubeless ready, 29x2.25, folding
Brakes
Brakes
Shimano Deore XT, hydraulic disc, [F] 180mm, [R] 160mm
Brake Levers
Shimano Deore XT
Cockpit
Stem
Giant Contact, OverDrive 2
Handlebar
Giant Contact, low rise, 31.8mm
Seat
Saddle
Fi'zi:k Gobi XM, MG rails
Seatpost
Giant Contact Switch-R, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Top Tube Length | 551 mm | 569 mm | 594 mm | 612 mm | 635 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 104 mm | 104 mm | 104 mm | 104 mm | 109 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1090 mm | 1095 mm | 1120 mm | 1140 mm | 1163 mm |
| Standover Height | 640 mm | 645 mm | 671 mm | 691 mm | 714 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

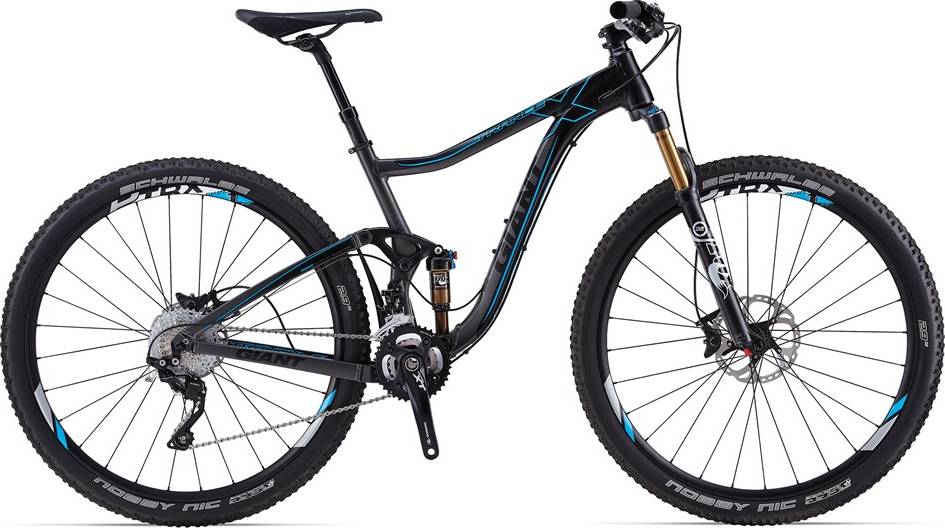

Trance X 29er 0 is part of the Giant Trance model. There are 139 bikes that carry this model name. Check out the entire range from 2014 of this model, by clicking this link.
Model range prices
Giant Trance X 29er 2 2014 is the cheapest bike model and costs 1975$. Giant Trance Advanced 27.5 0 2014 is the most expensive one and costs 7725$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2014 for 5000$. If we compare this with the average Trail bike cost we notice that the price is 81.03% more expensive.
Overview of components
Fork
The Trance X 29er 0 comes factory-installed with the Fox Factory Float 32 fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox Float CTD Factory, with a travel distance of 125mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Trance X 29er 0 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Trance X 29er 0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Trance X 29er 0 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
