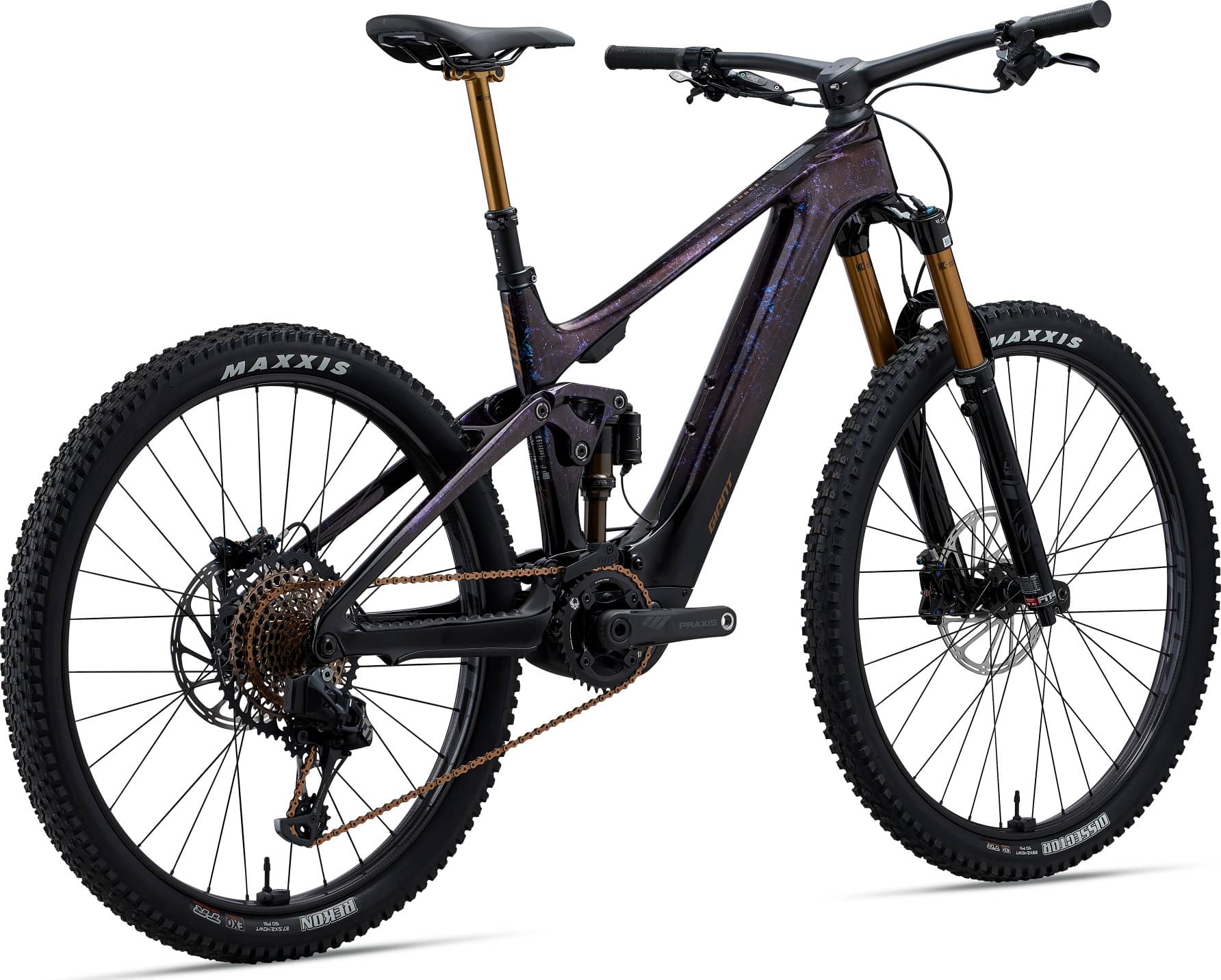

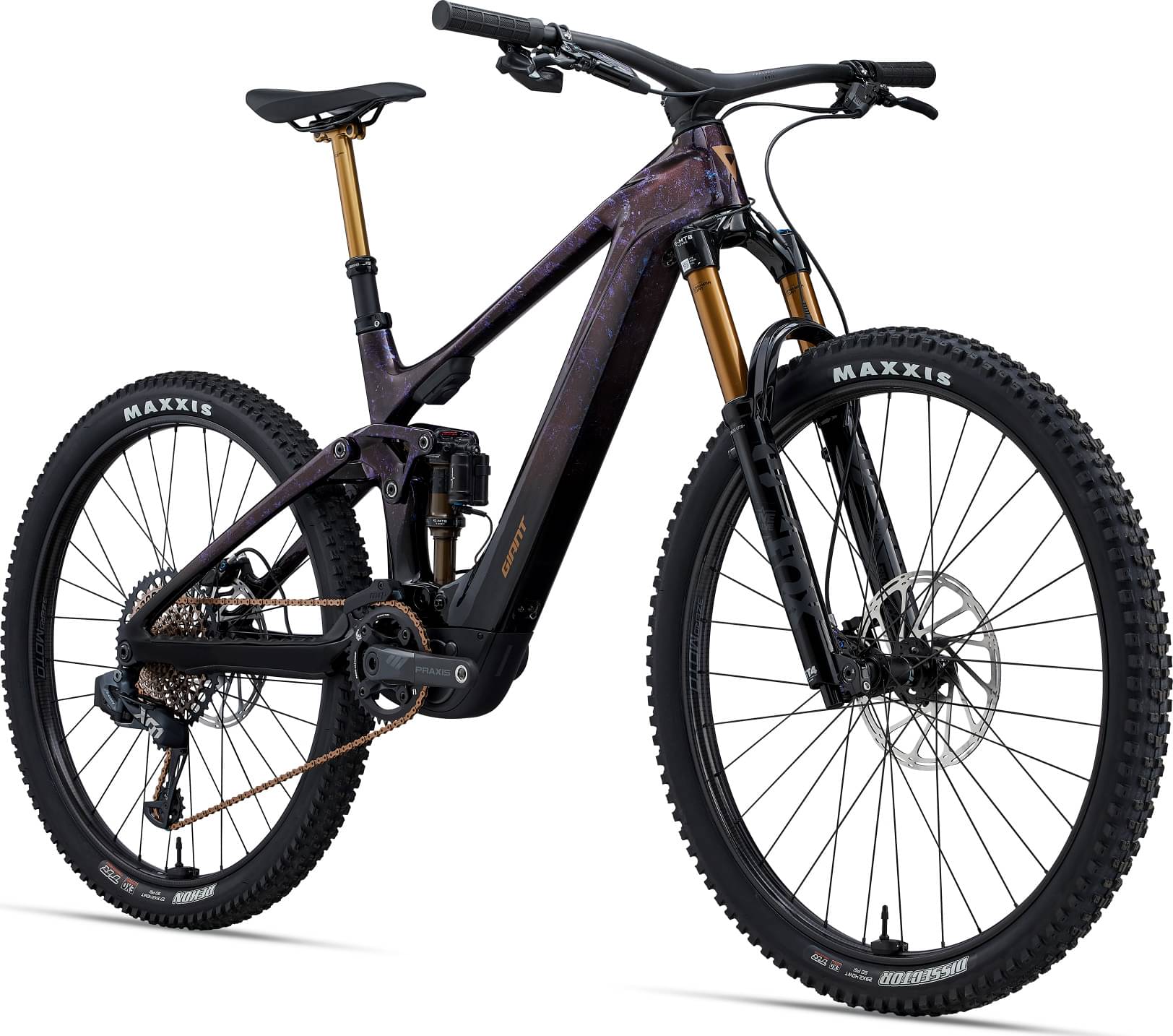

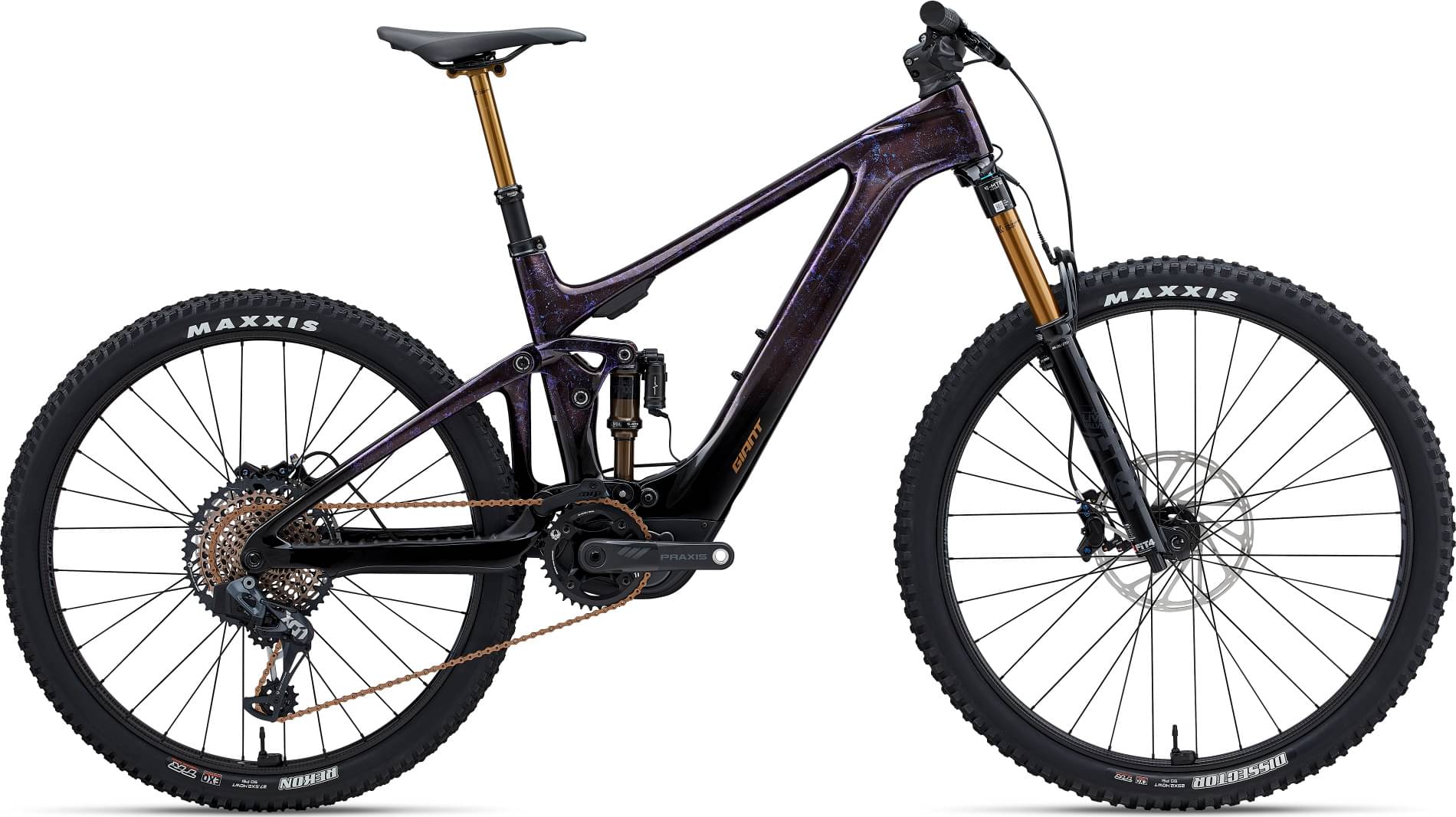

Giant Trance X Advanced, E+ Elite 0 2023
2023 E-bike
Estimate price |
14,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS, Praxis -
Suspension Full, Electronic -
Motor Yamaha 250W 85Nm mid-drive -
Battery EnergyPak Smart 400, EnergyPak Plus range extender compatible -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
163cm - 174cm
SM Low
163cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
176cm - 186cm
LG Low
176cm - 186cm
XL High
183cm - 193cm
XL Low
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components

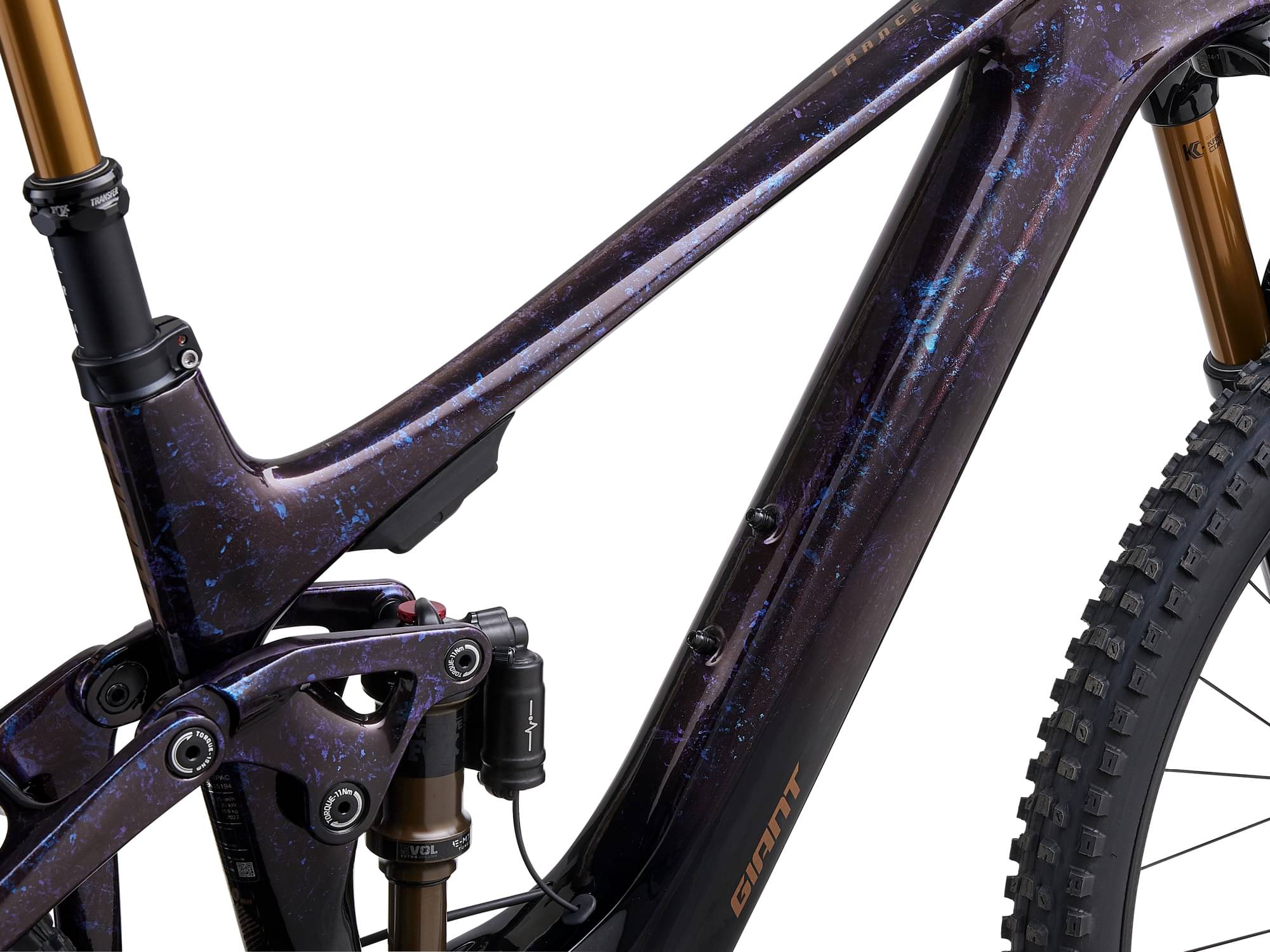

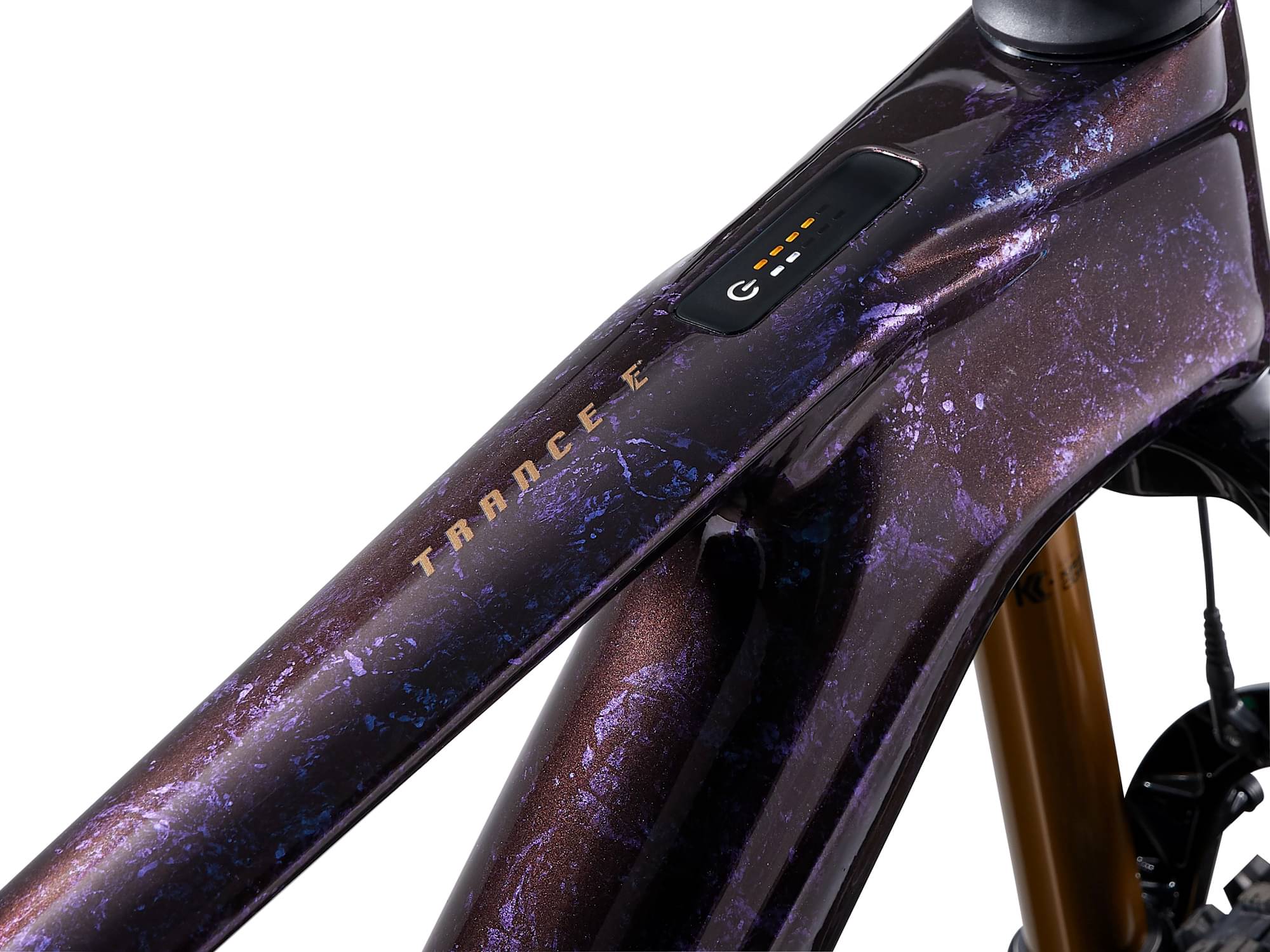

Frame
Frame
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Suspension Fork
Fox 36 Factory Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, e-bike integrated

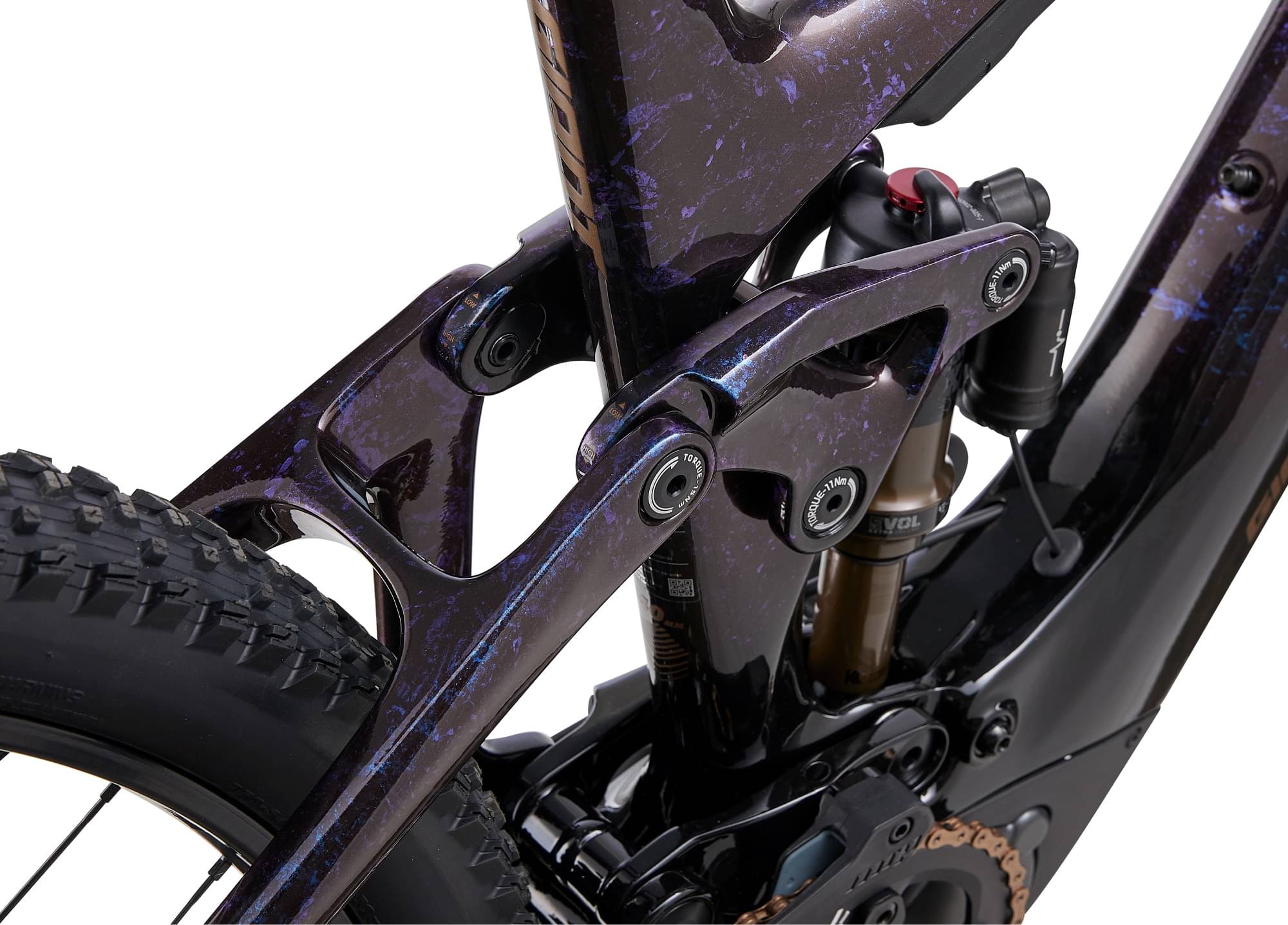

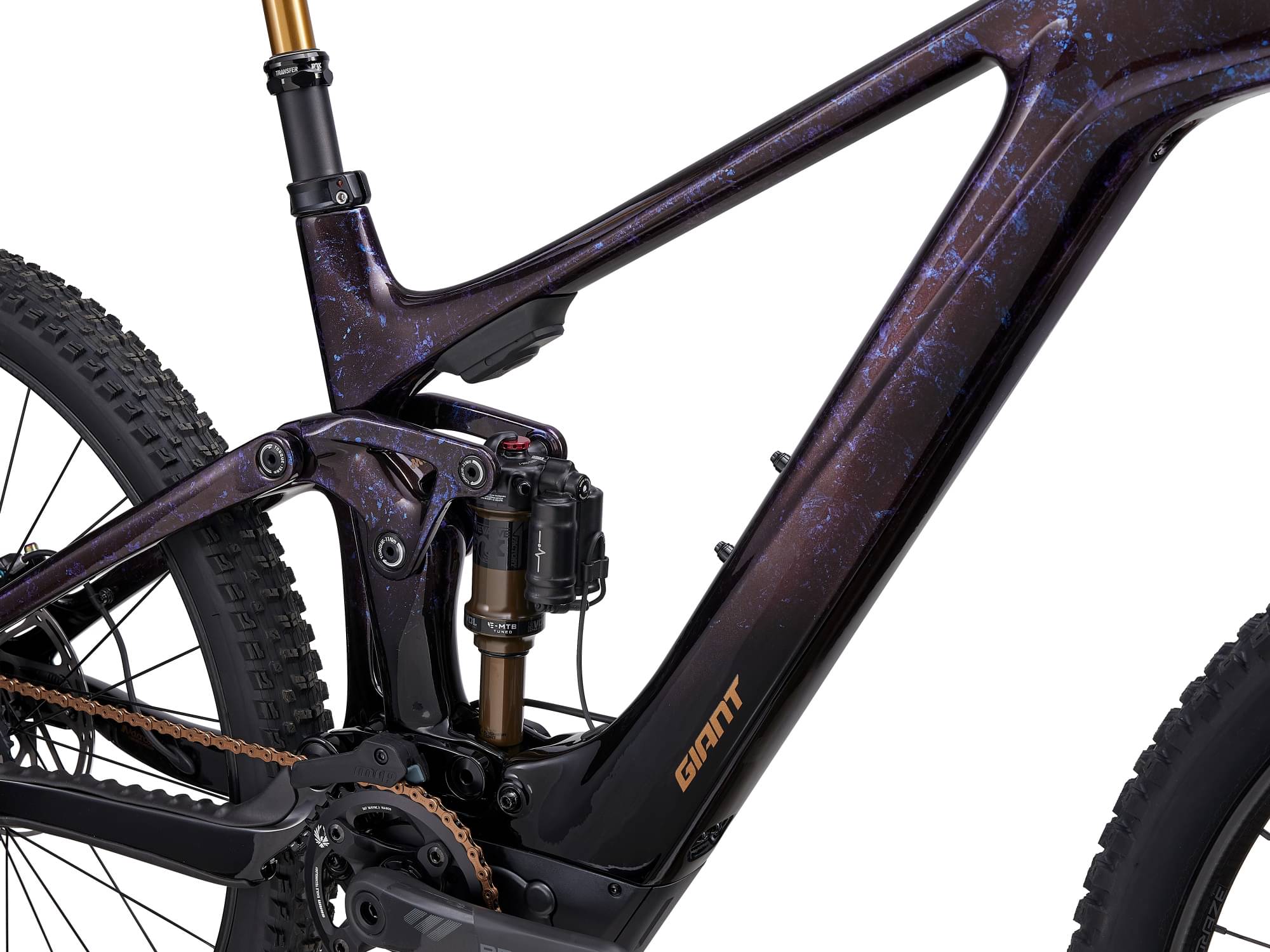

Rear Shock
Fox Float Factory Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
Drivetrain
Rear Derailleur
SRAM XO1 Eagle AXS
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
SRAM AXS Rocker Paddle, wireless electronic shifting
Cassette
SRAM XG-1299, 10-52T, 12-speed
Crank
Praxis Performance Carbon e-crank arms (S:160,M/L:165, XL:170) SRAM X-SYNC Eagle 36T chain ring
Bottom Bracket
n/a
Chain
SRAM XX1 Eagle Powerlink
Pedals
n/a
Wheels
Front Hub
Zipp 3MOTO ZM2
Rear Hub
Zipp 3MOTO ZM2
Rims
Zipp 3MOTO 29" [F] /27.5" [R], Carbon
Spokes
Zipp 3MOTO
Tires
Maxxis Dissector 29X2.40" Foldable, TLR, EXO [F]Maxxis Rekon 27.5x2.4" Foldable, TLR, EXO+ [R]
Brakes
Brakes
SRAM Code RSC, 4-piston, hydraulic disc,220mm[F] / 200mm[R]
Brake Levers
SRAM Code RSC

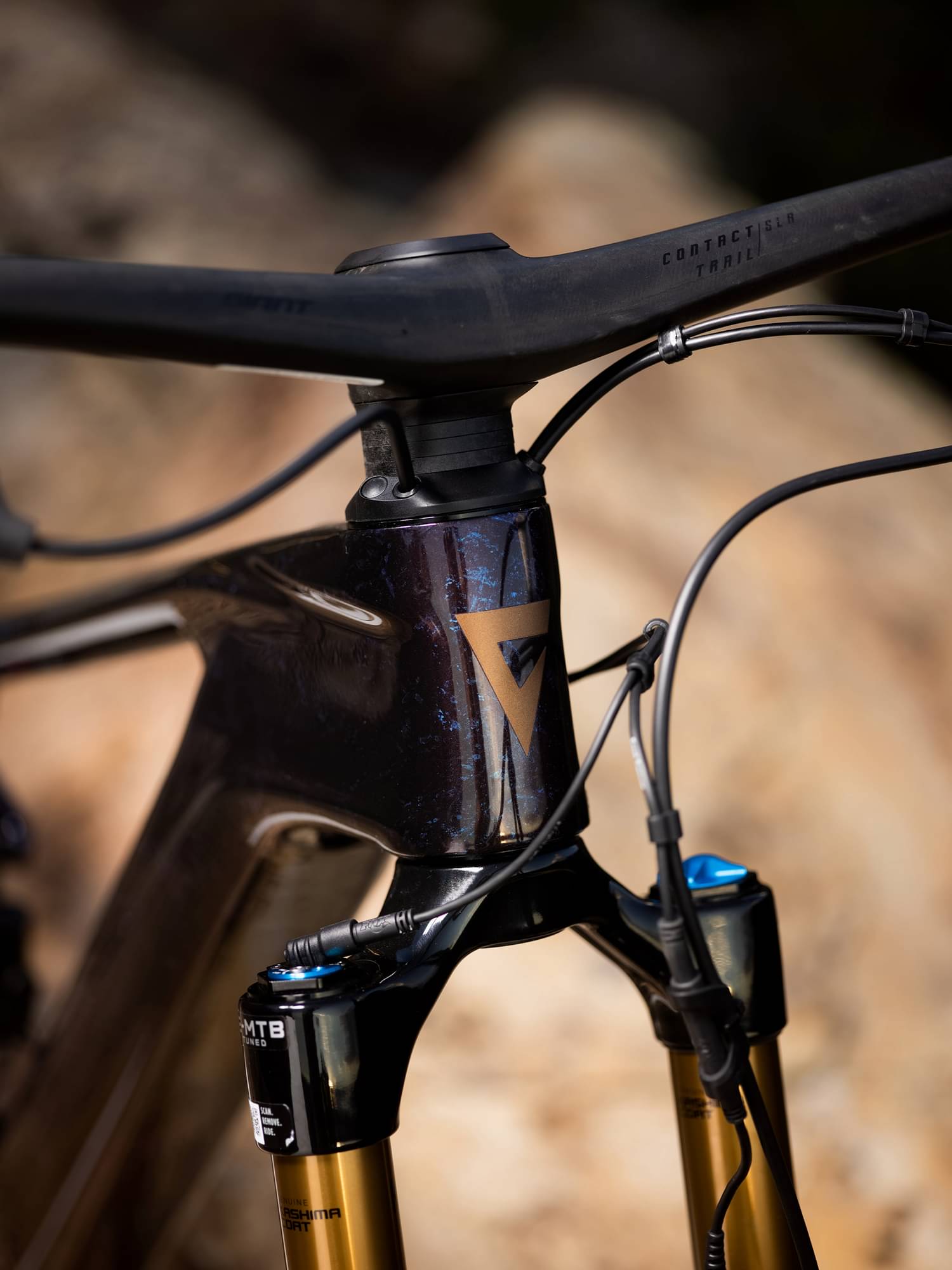

Cockpit

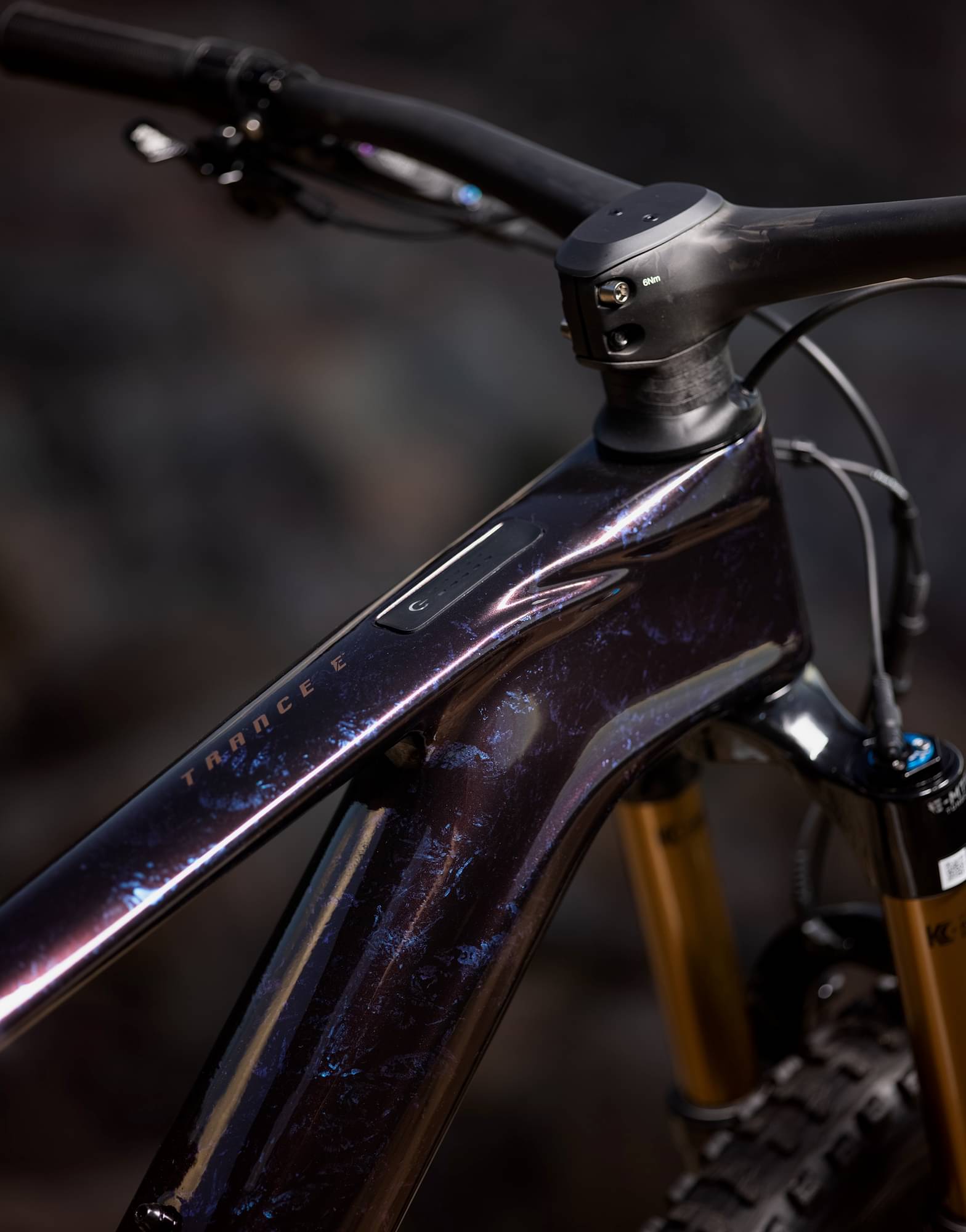

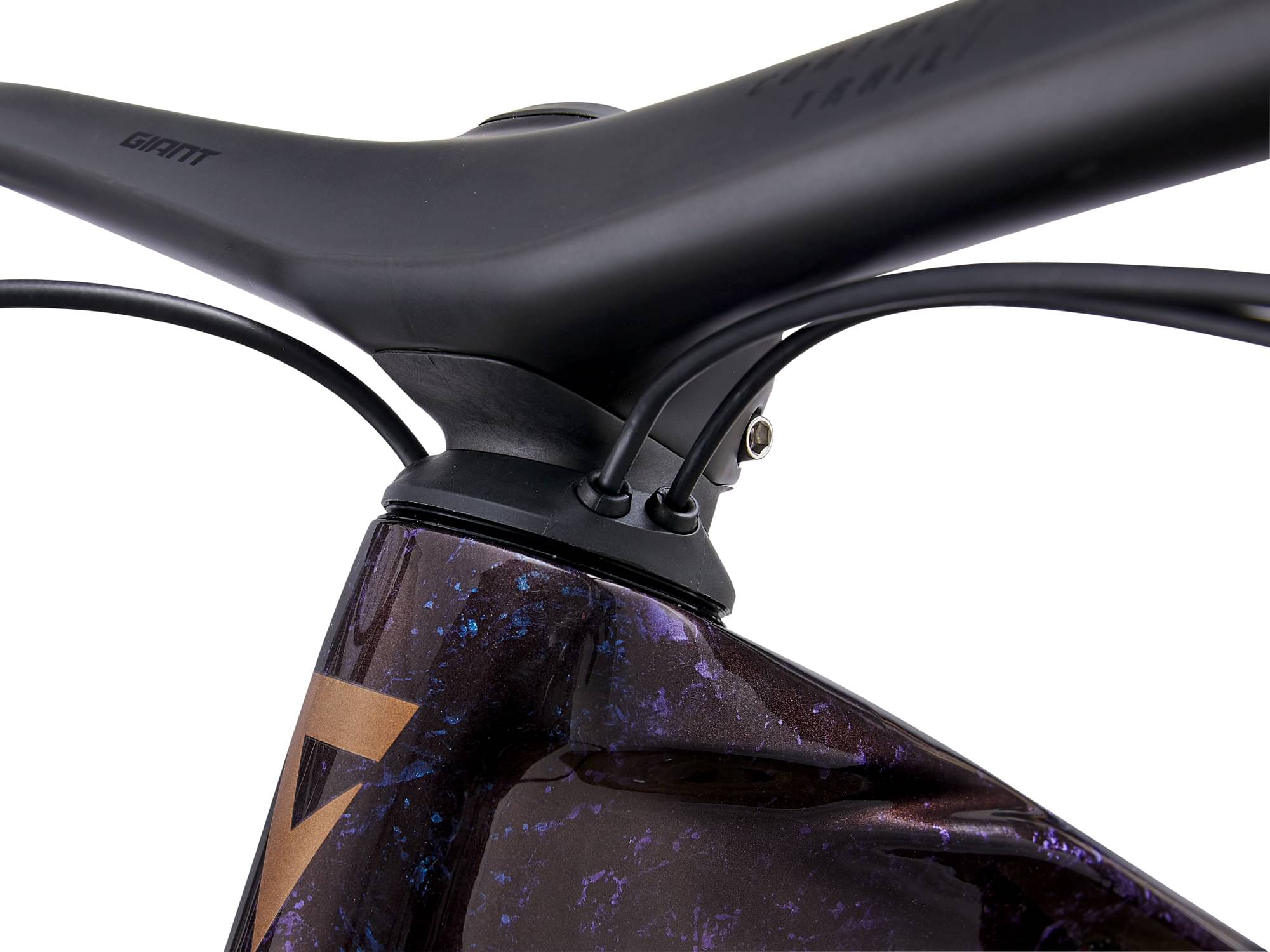

Stem
Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System

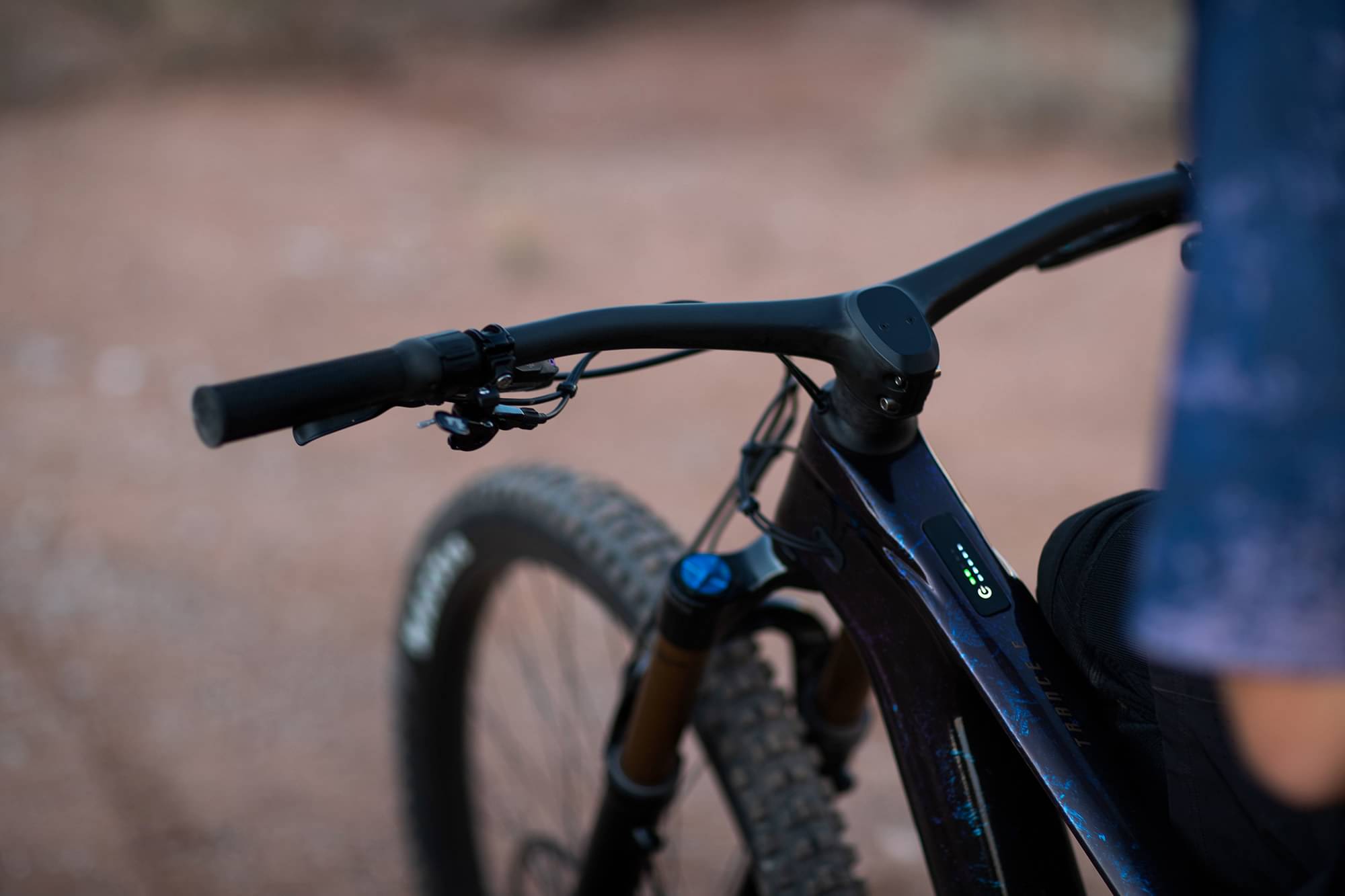

Handlebar
Giant Contact SLR Trail, carbon, 800mm
Grips
Giant Tactal Pro-E, single lock-on
Seat
Saddle
Giant Romero SL, Neutral
Seatpost
Fox Transfer Factory (S:125, M:150, L/XL 175mm)
Motor & Battery

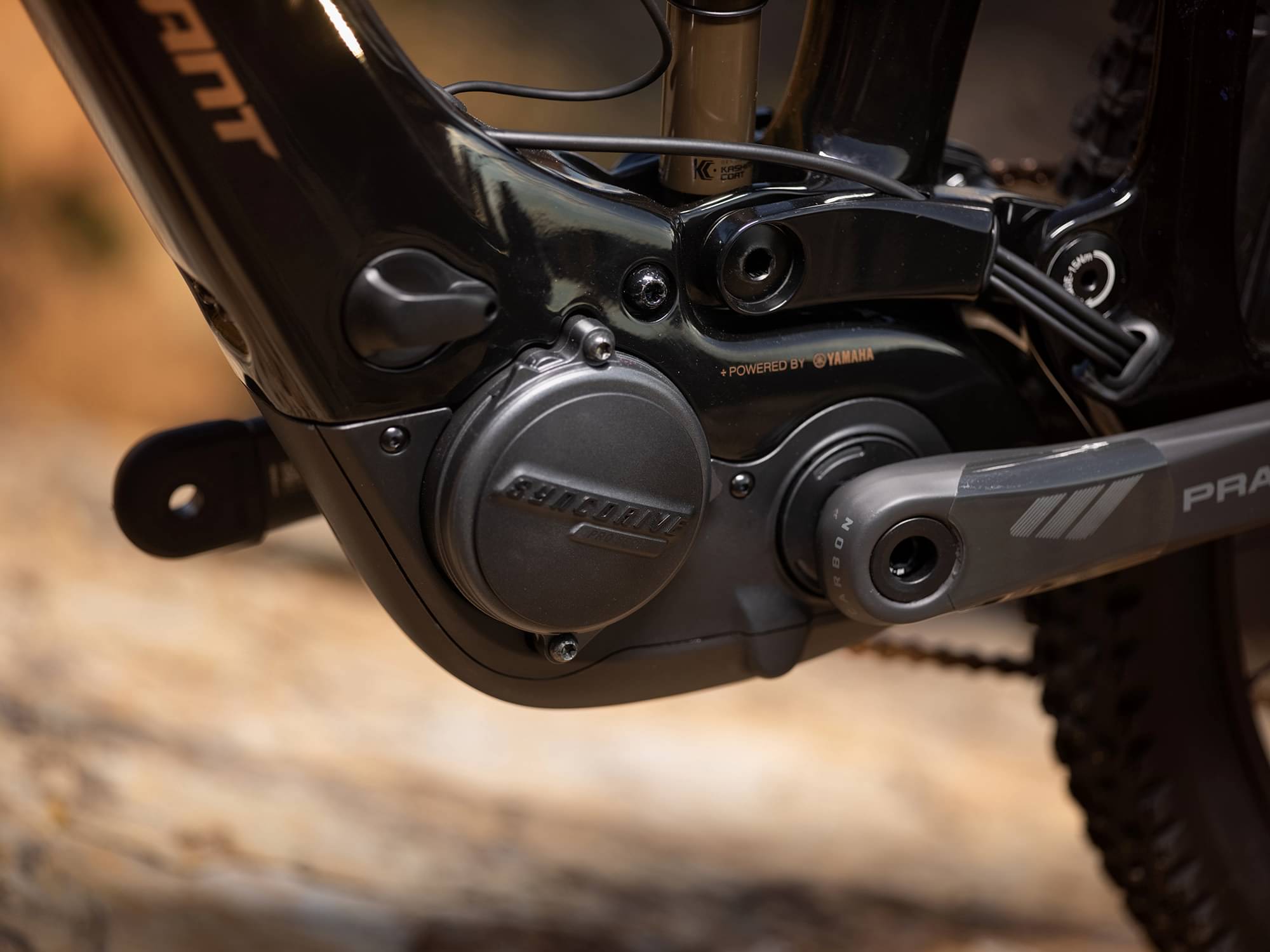

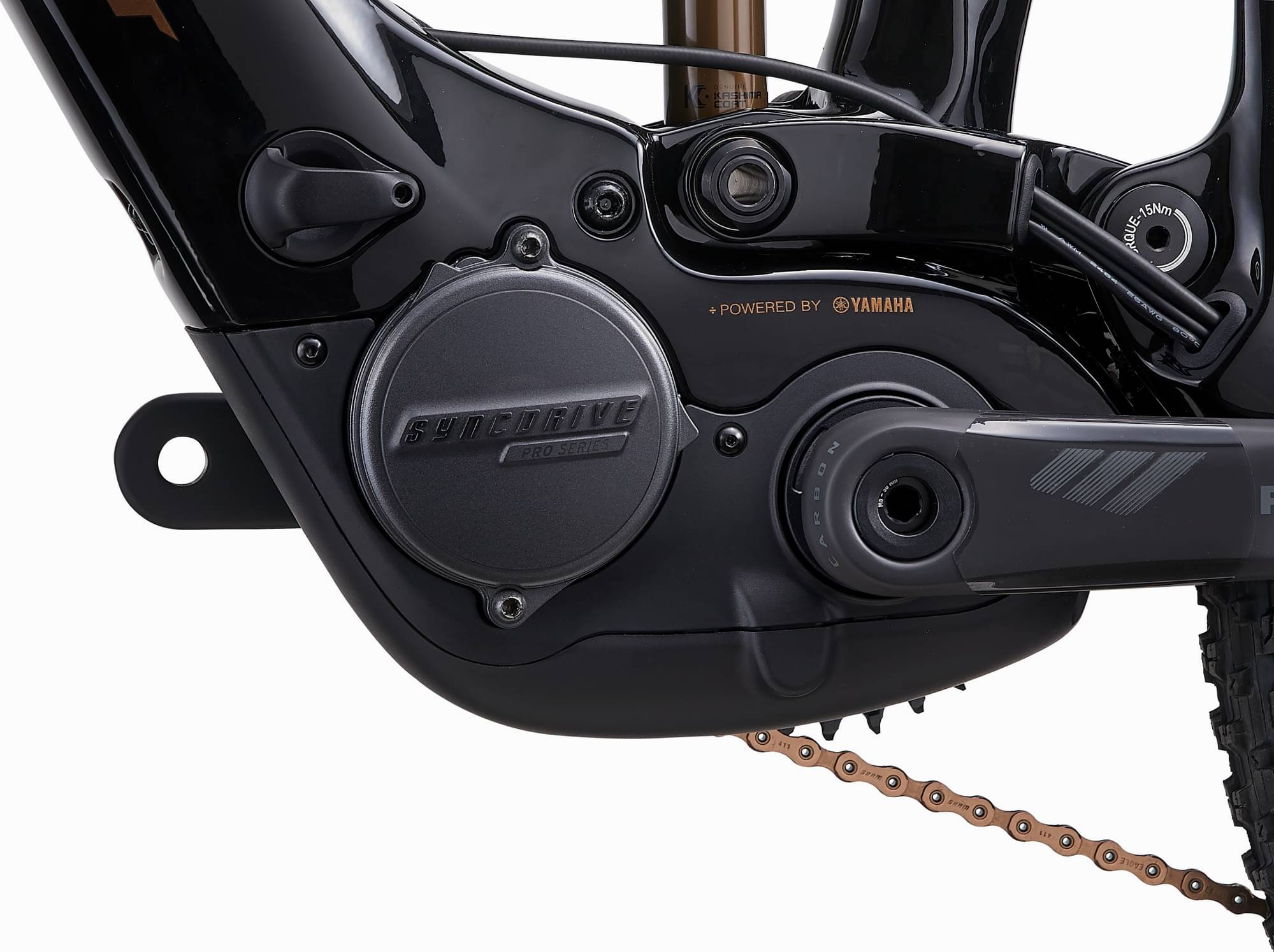

Motor
SyncDrive Pro, 85Nm, powered by Yamaha
Battery

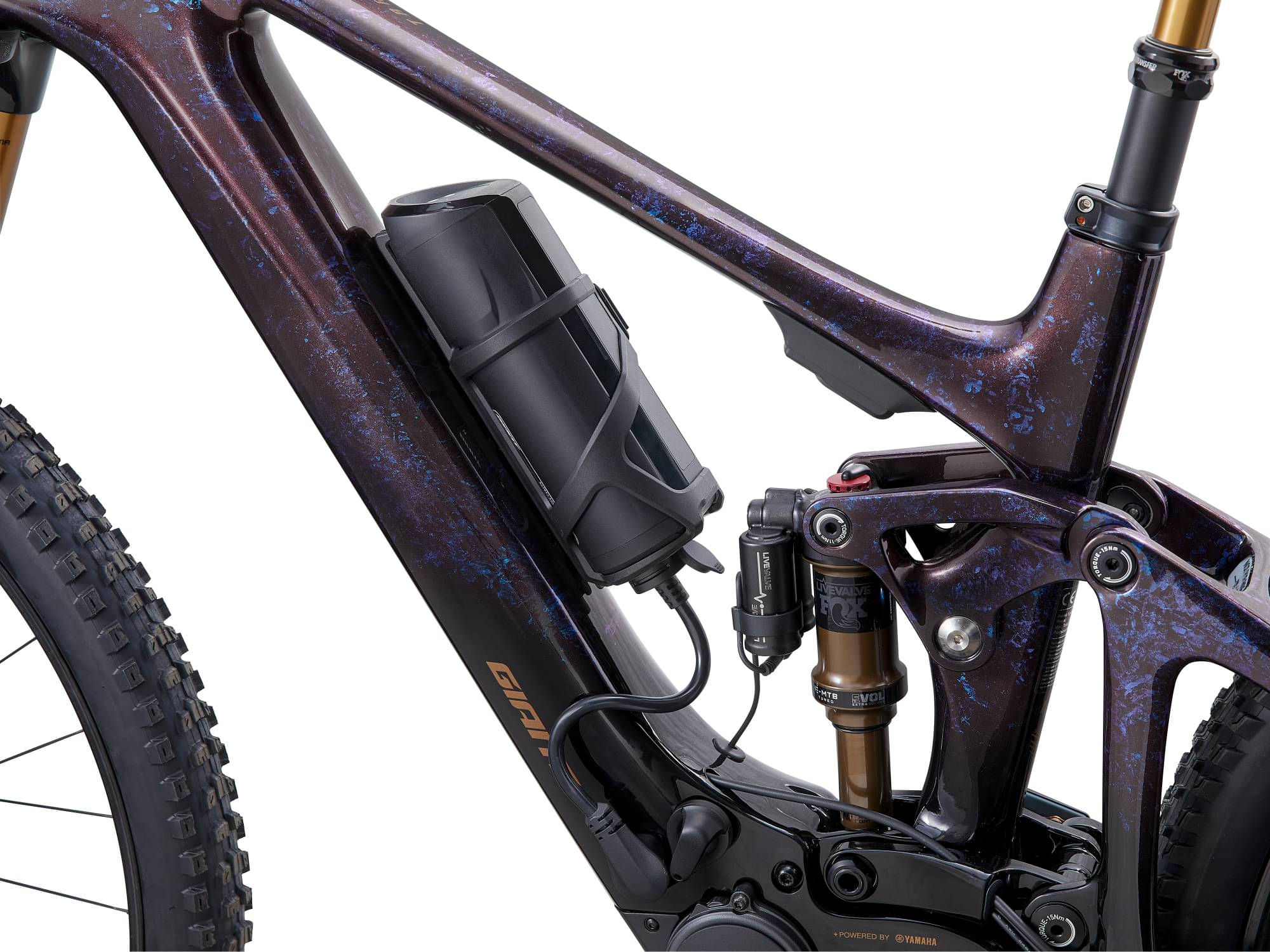

EnergyPak Smart 400, EnergyPak Plus range extender compatible
Charger
Giant EnergyPak 4A smart charger, 60% in 1:45
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.383 mm | 1.31 mm | 1.337 mm | 1.271 mm | 1.302 mm | 1.234 mm | 1.265 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 748 mm | 747 mm | 765 mm | 768 mm | 797 mm | 797 mm | 828 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 113.1 mm | 108 mm | 113.1 mm | 108 mm | 113.1 mm | 108 mm | 113.1 mm |
| Stack | 601 mm | 607 mm | 605 mm | 611 mm | 619 mm | 625 mm | 633 mm | 639 mm |
| Reach | 447 mm | 439 mm | 462 mm | 457 mm | 487 mm | 480 mm | 513 mm | 505 mm |
| Top Tube Length | 575 mm | 577 mm | 605 mm | 607 mm | 634 mm | 636 mm | 663 mm | 665 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° |
| Seat Tube Length | 400 mm | 400 mm | 425 mm | 425 mm | 450 mm | 450 mm | 475 mm | 475 mm |
| Head Tube Angle | 66.5 ° | 65.7 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 115 mm | 115 mm | 130 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1195 mm | 1194 mm | 1212 mm | 1215 mm | 1244 mm | 1244 mm | 1275 mm | 1275 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 735 mm | 726 mm | 742 mm | 733 mm | 741 mm | 732 mm | 750 mm | 741 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 163 cm | 163 cm | 171 cm | 171 cm | 176 cm | 176 cm | 183 cm | 183 cm |
| Rider Max Height | 174 cm | 174 cm | 182 cm | 182 cm | 186 cm | 186 cm | 193 cm | 193 cm |
About this model
Trance X Advanced, E+ Elite 0 belongs to the Giant E Trance model. 42 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Giant Trance X Advanced E+, EL 3 2023 is the most economical model, with a starting price of 5700$. Giant Trance X Advanced, E+ Elite 0 2023 on the other hand costs 14000$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 14000$. Comparing this to the average Trail e-bike price, we see that the price is 316.05% higher.
Trance X Advanced, E+ Elite 0 components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.

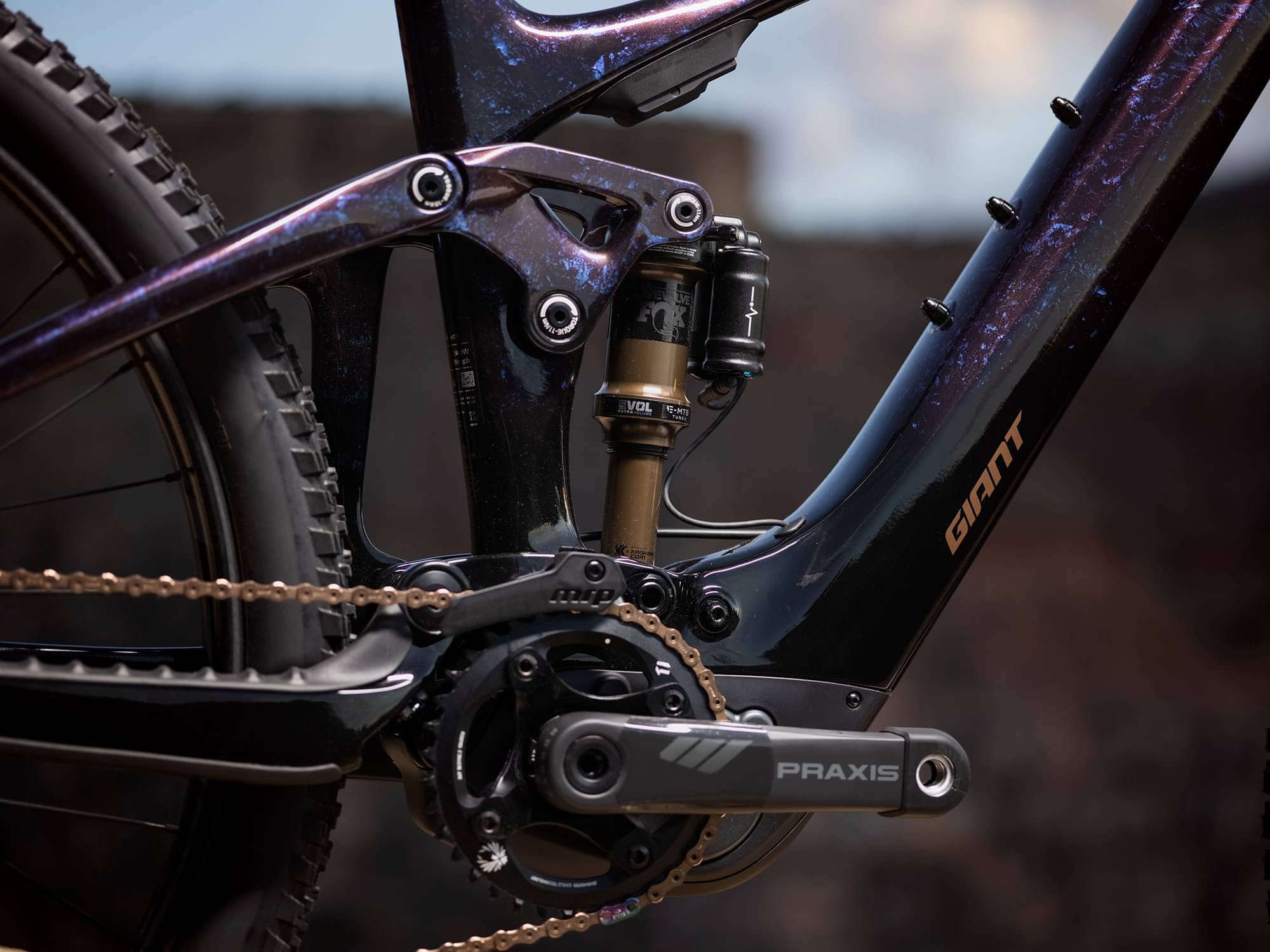

Rear Shock
The Trance X Advanced, E+ Elite 0 has a rear shock with a travel of 140mm. The model Fox Float Factory Live Valve is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Giant Trance X Advanced, E+ Elite 0 2023, has a 27.5″ carbon model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 163 cm – 193 cm (5.35 ft – 6.33 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Trance X Advanced, E+ Elite 0. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
