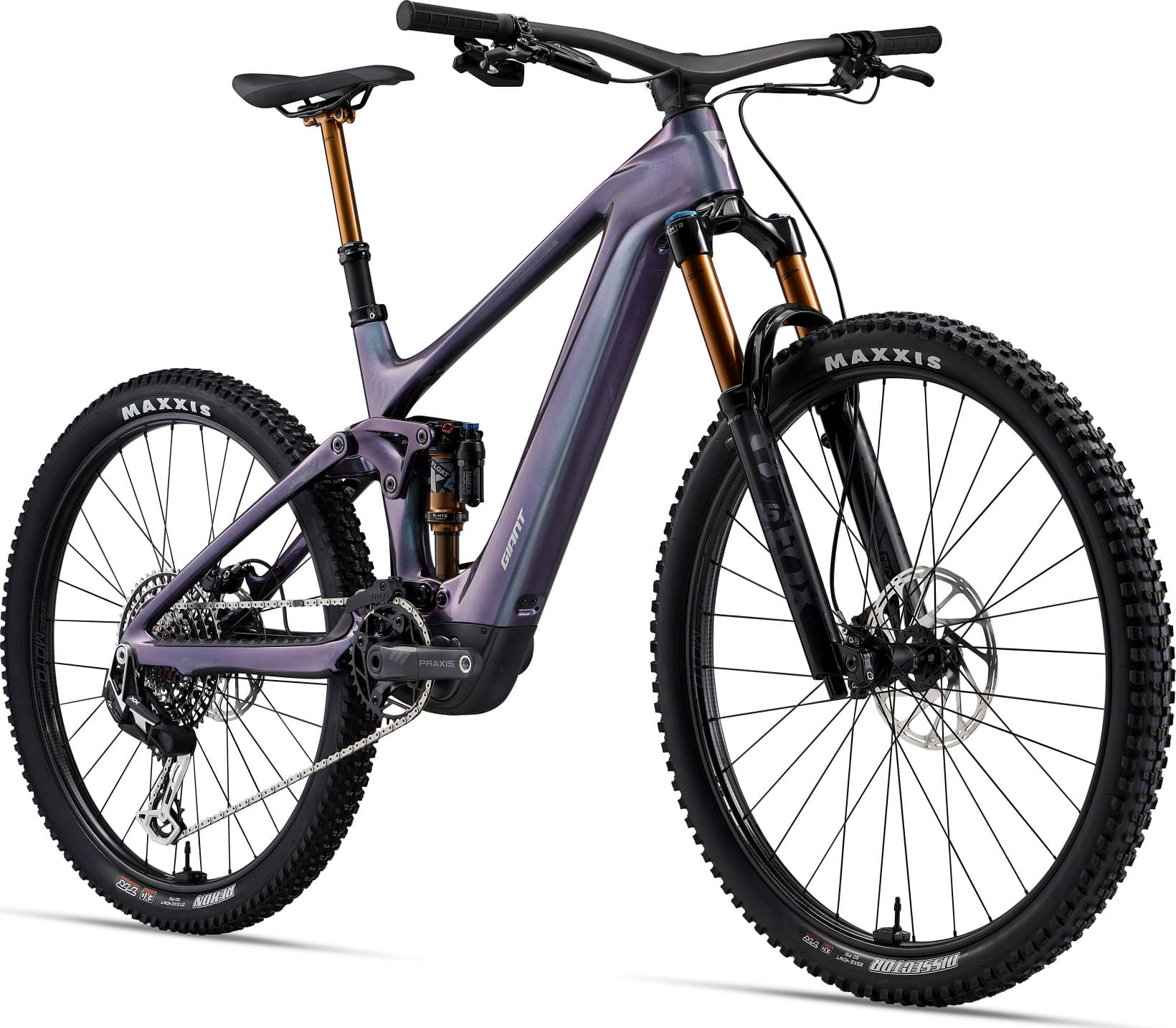

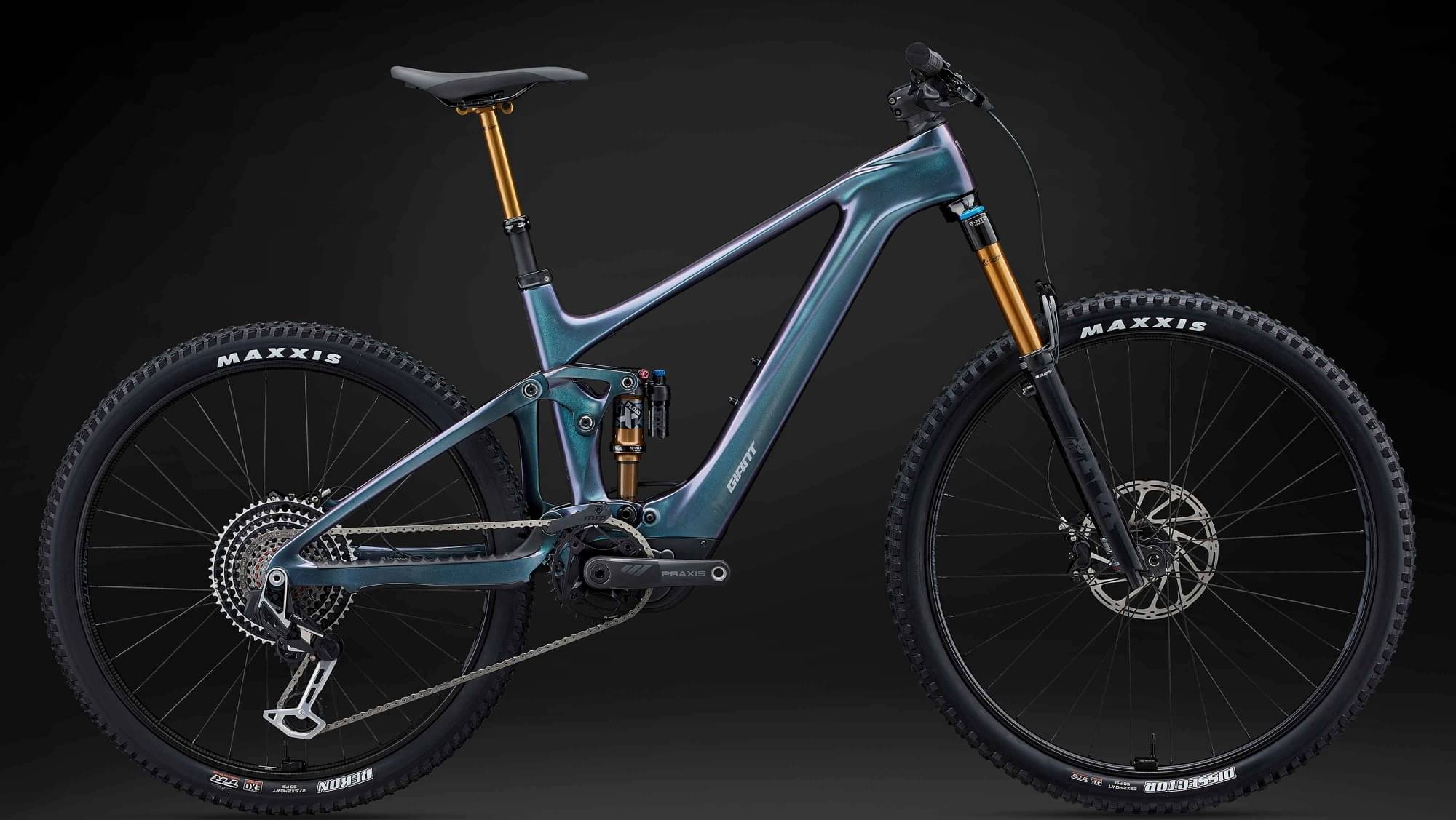

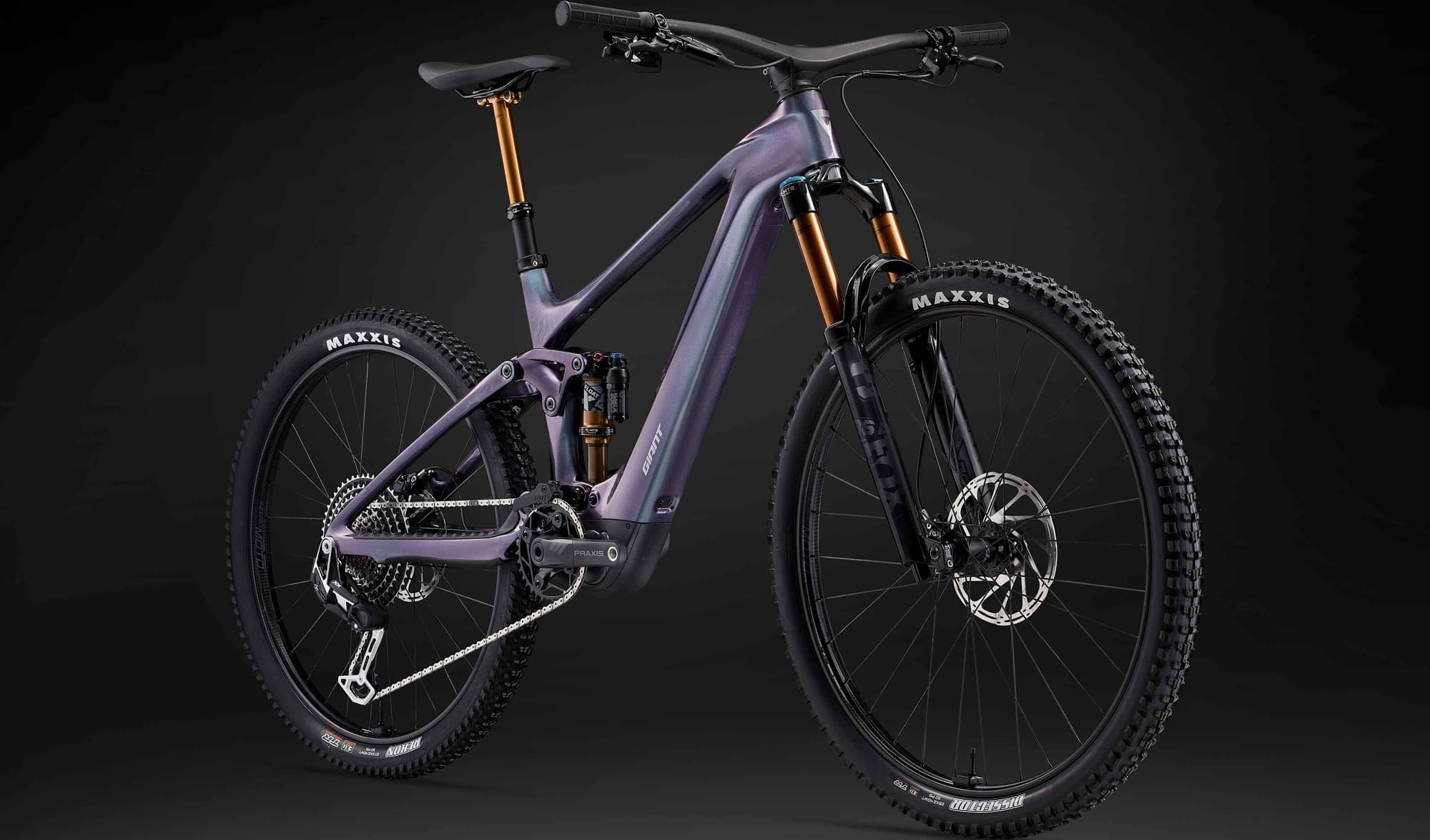

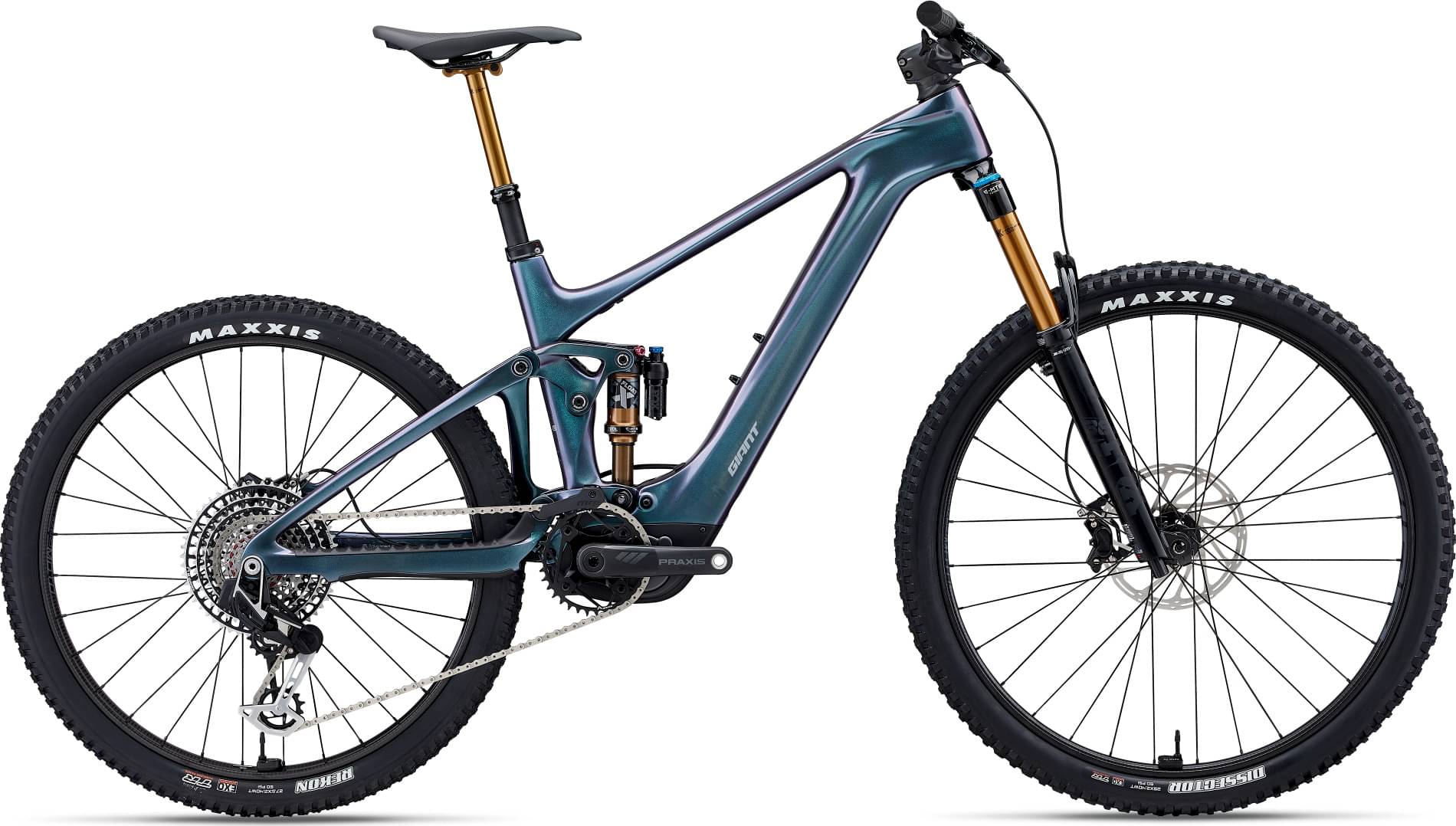

Giant Trance X Advanced, E+ Elite 0 2024
2024 E-bike
Estimate price |
12,313$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 190cm
LG Low
179cm - 190cm
XL High
187cm - 198cm
XL Low
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

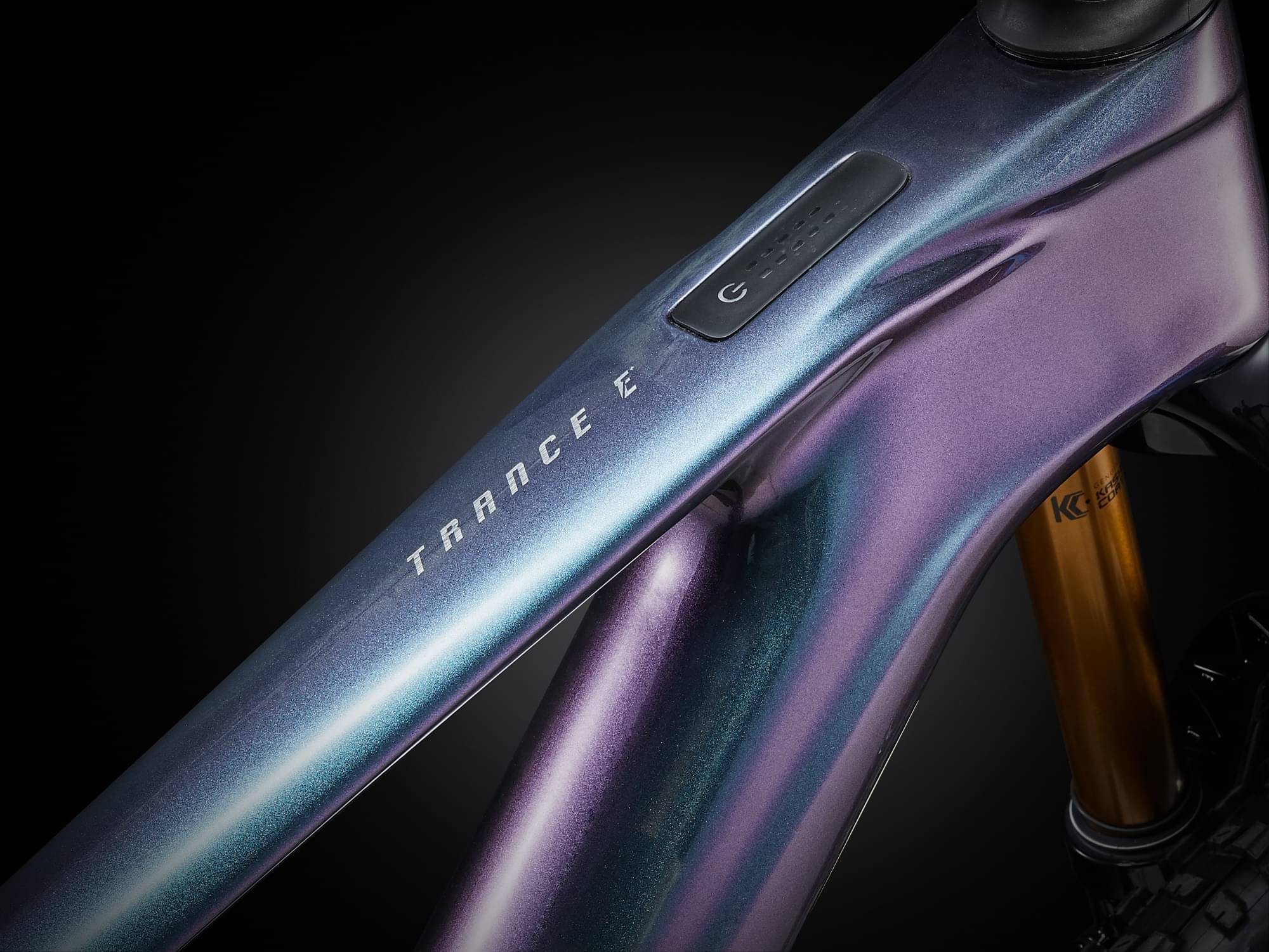

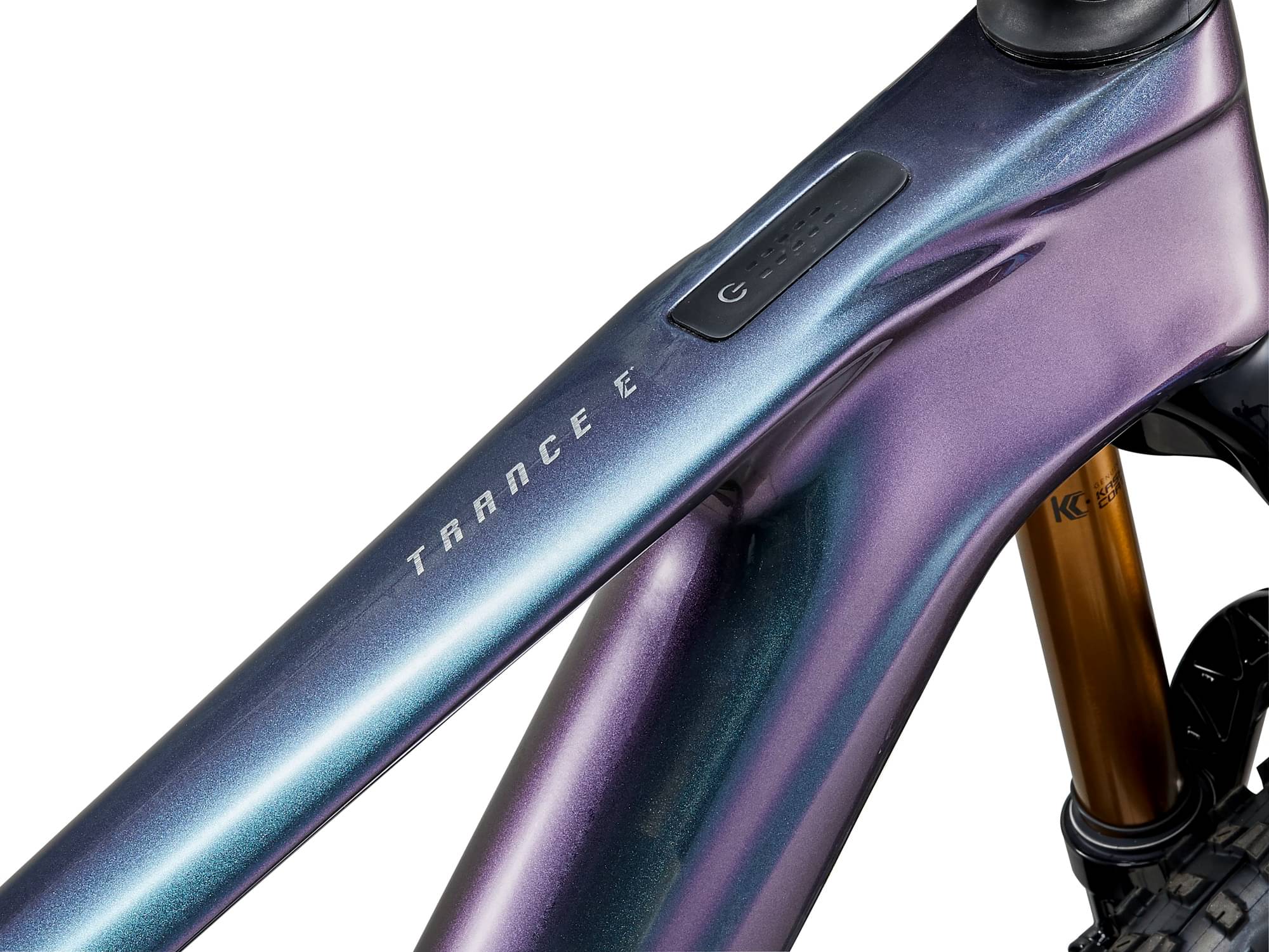

Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Suspension Fork

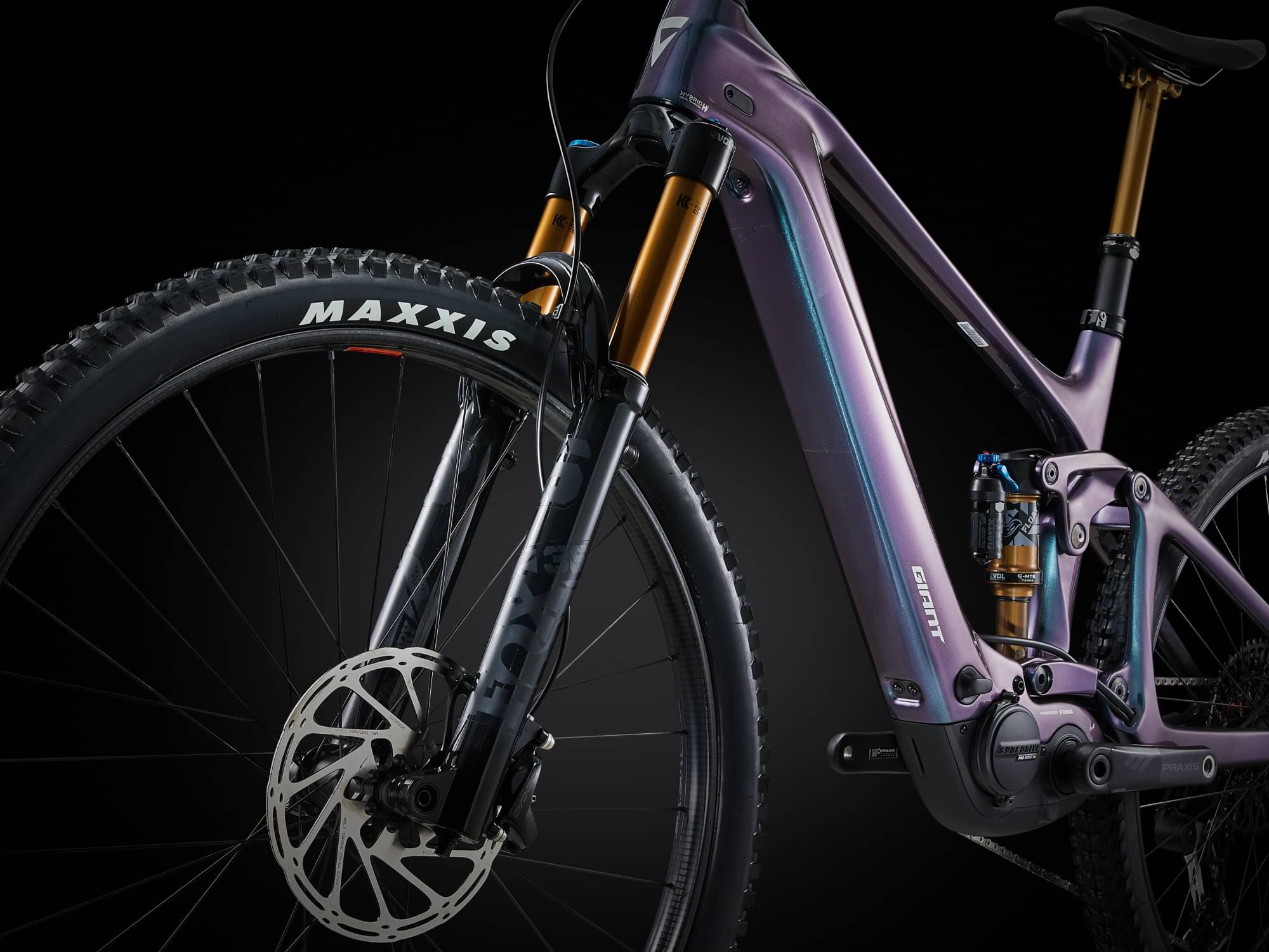

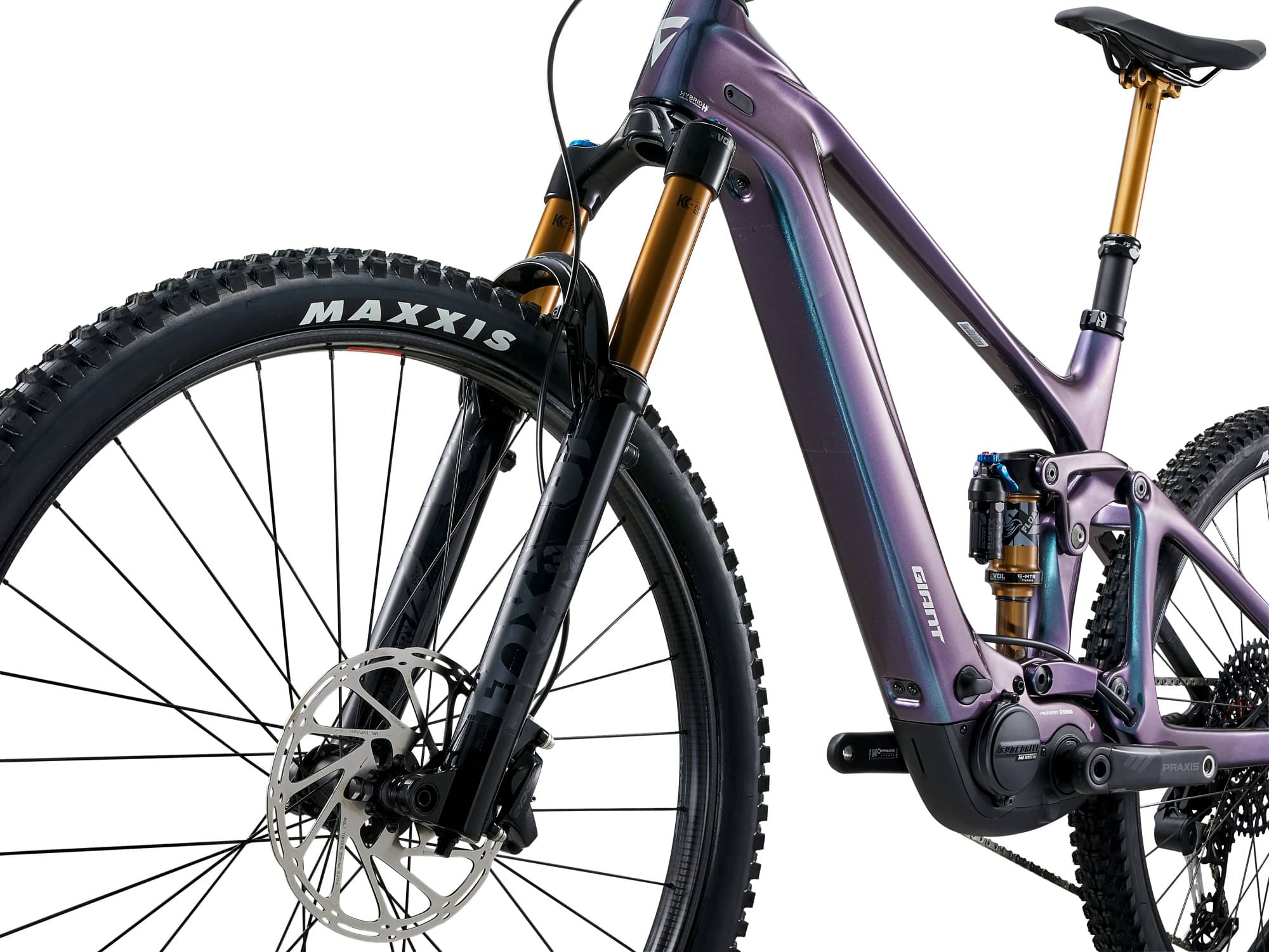

Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
Rear Shock
Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission, AXS
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
SRAM AXS Rocker Paddle, wireless electronic shifting
Cassette
SRAM XX Eagle SL Transmission, 10-52T, 12-speed
Crank
SRAM Eagle Transmission chain ring 36T 104BCDPraxis Carbon e-crank arms (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T
Bottom Bracket
n/a
Chain
SRAM XX Eagle Transmission, Powerlink
Pedals
n/a
Wheels
Front Hub
Zipp 3MOTO ZM2
Rear Hub
Zipp 3MOTO ZM2
Rims
Zipp 3MOTO 29" [F] /27.5" [R], Carbon
Spokes
Zipp 3MOTO
Tires
Maxxis Dissector 29X2.40" Foldable, TLR, EXO [F]Maxxis Rekon 27.5x2.4" Foldable, TLR, EXO+ [R]
Brakes
Brakes
SRAM G2 Ultimate, 4-piston, hydraulic disc, 200mm[F], 180mm[R]
Brake Levers
SRAM Code RSC
Cockpit
Stem

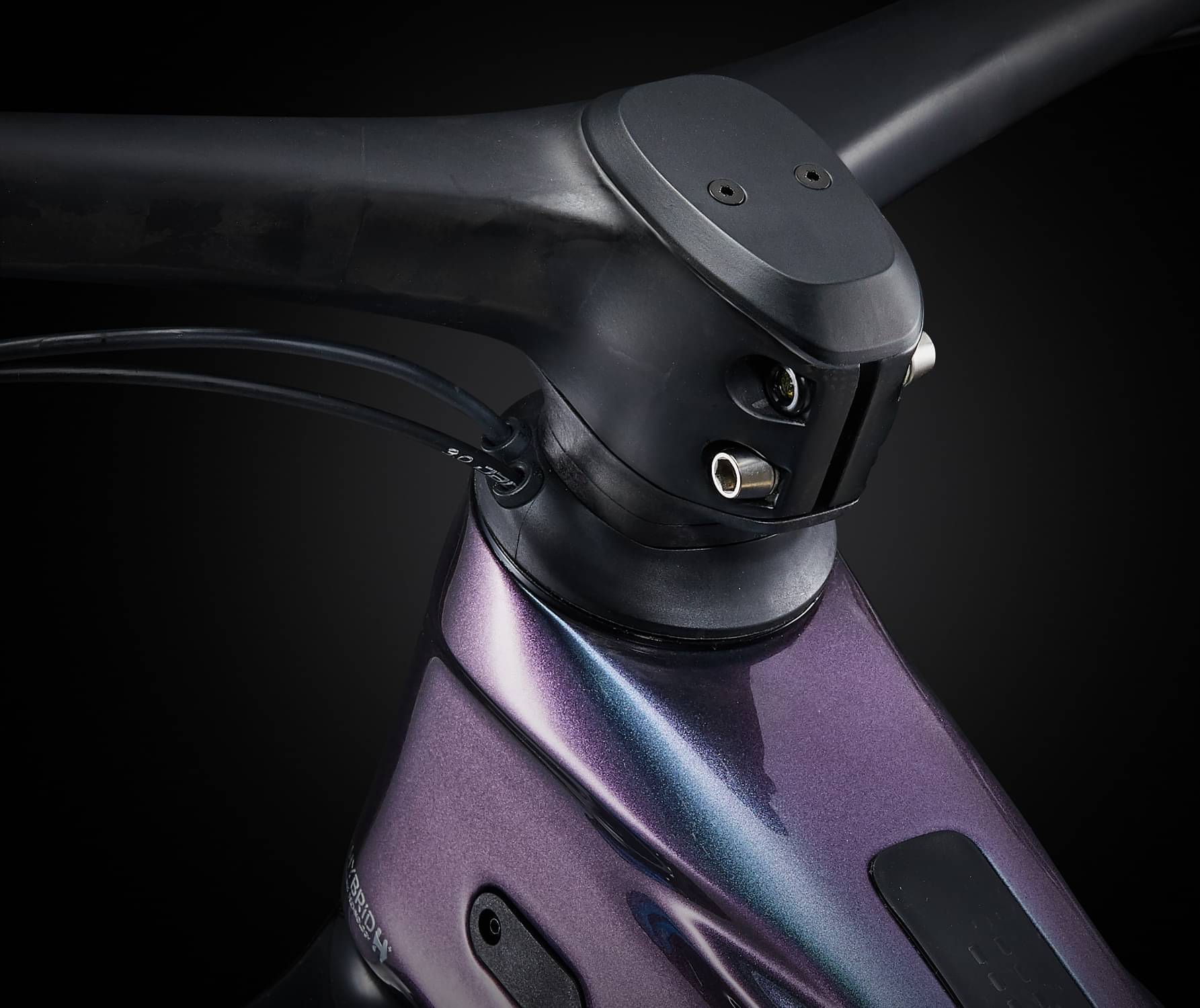

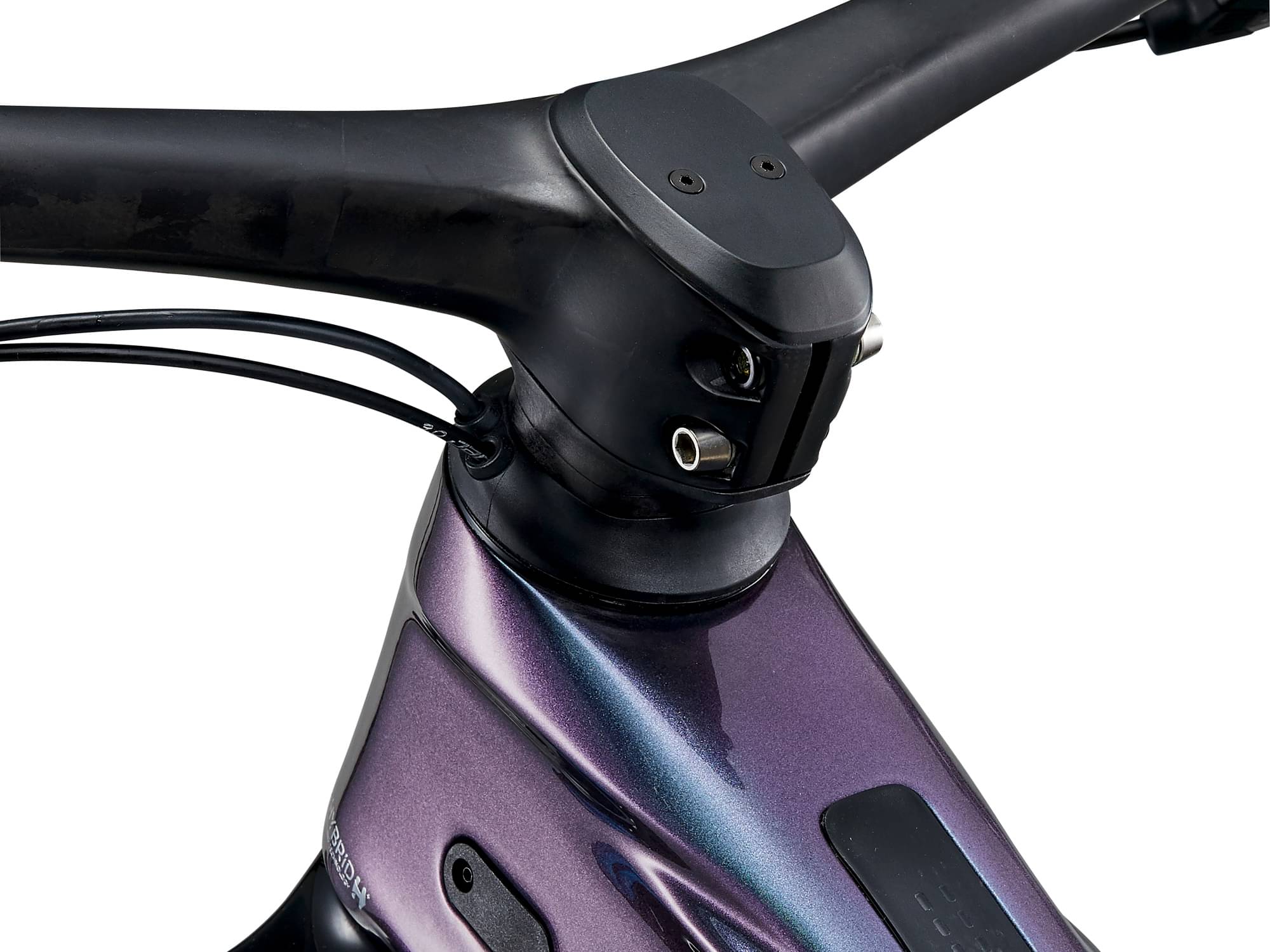

Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
Handlebar
Giant Contact SLR Trail, carbon, 800mm
Grips
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Seat
Saddle
Giant Romero SL, Neutral
Seatpost
Fox Transfer Factory (S:125, M:150, L: 175, XL:200mm) Fox MMX Remote
Motor & Battery
Motor

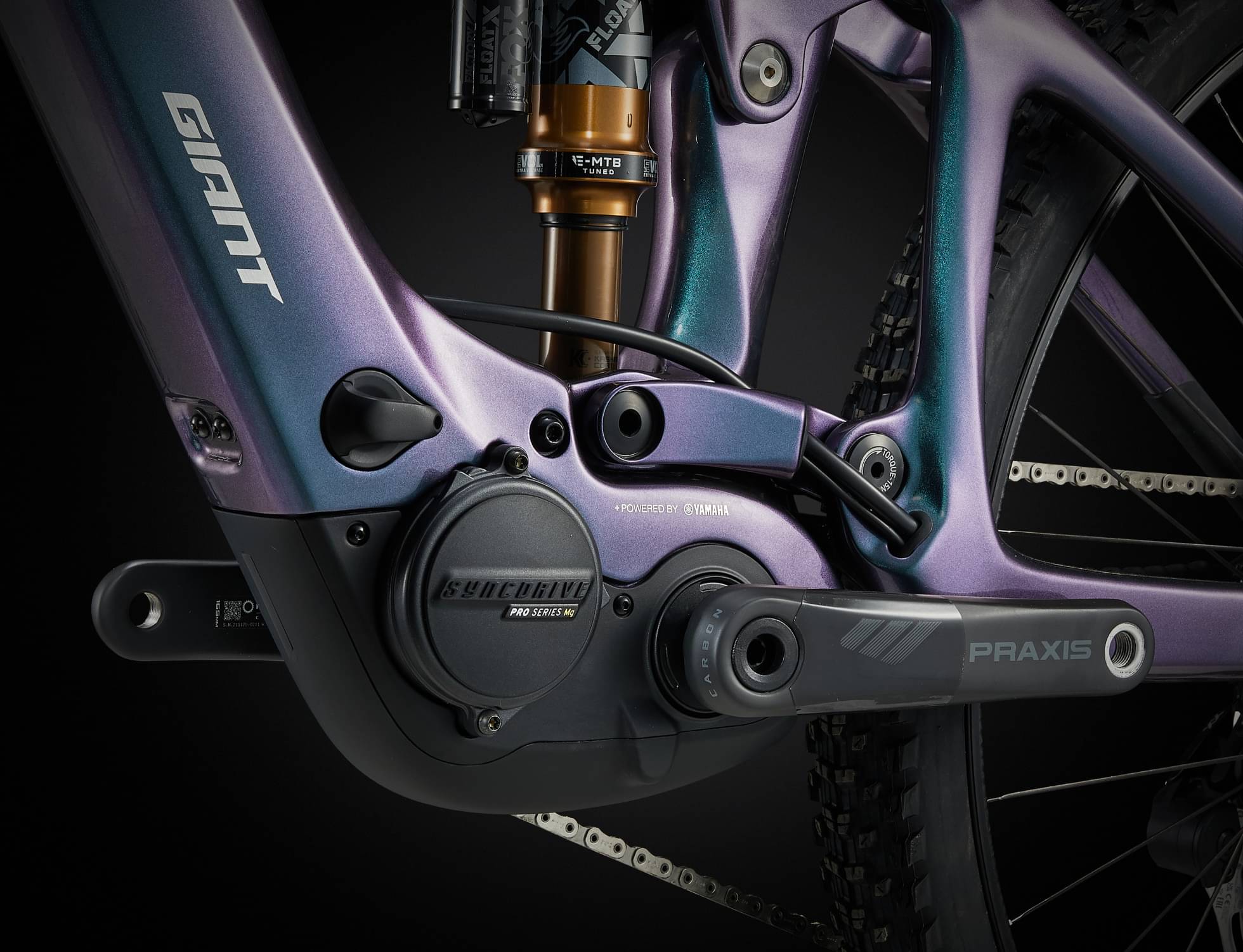

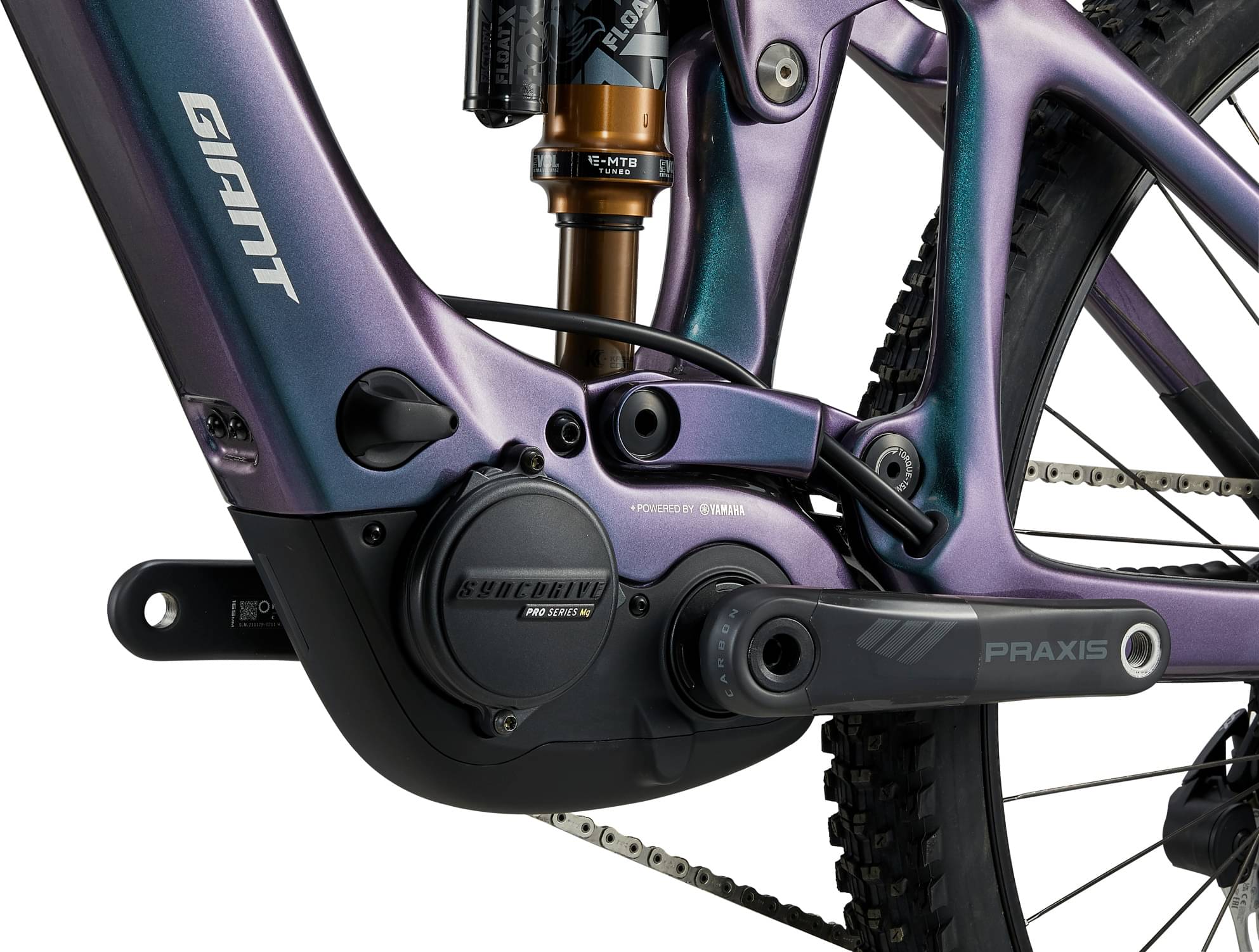

Giant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Charger
EnergyPak 4A smart charger compact
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.337 mm | 1.271 mm | 1.302 mm | 1.234 mm | 1.265 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 765 mm | 768 mm | 797 mm | 797 mm | 828 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 113.1 mm | 108 mm | 113.1 mm | 108 mm | 113.1 mm |
| Stack | 605 mm | 611 mm | 619 mm | 625 mm | 633 mm | 639 mm |
| Reach | 462 mm | 457 mm | 487 mm | 480 mm | 513 mm | 505 mm |
| Top Tube Length | 605 mm | 607 mm | 634 mm | 636 mm | 663 mm | 665 mm |
| Seat Tube Angle | 76.7 ° | 76 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° |
| Seat Tube Length | 425 mm | 425 mm | 450 mm | 450 mm | 475 mm | 475 mm |
| Head Tube Angle | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 130 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1212 mm | 1215 mm | 1244 mm | 1244 mm | 1275 mm | 1275 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 742 mm | 733 mm | 741 mm | 732 mm | 750 mm | 741 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 182 cm | 182 cm | 190 cm | 190 cm | 198 cm | 198 cm |
Model Overview
Trance X Advanced, E+ Elite 0 is a Giant E Trance model. 46 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Giant Trance X Advanced, E+ Elite 3 2024 is the most economical model, with a starting price of 6352$. Giant Trance X Advanced, E+ Elite 0 2024 on the other hand costs 12288$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Giant Trance X Advanced, E+ Elite 0 price was 12288$. Comparing the average cost of a Trail e-bike to this one, you will see that Trance X Advanced, E+ Elite 0 price is 265.17% more expensive.
Trance X Advanced, E+ Elite 0 components
Fork
The Trance X Advanced, E+ Elite 0 comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Giant Trance X Advanced, E+ Elite 0 e-bike has the Fox Float X Factory model installed, and has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Trance X Advanced, E+ Elite 0 2024 e-bike is equipped with 27.5″ carbon wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trance X Advanced, E+ Elite 0 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 6 sizes. They vary from 171 cm – 198 cm (5.61 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Giant model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
