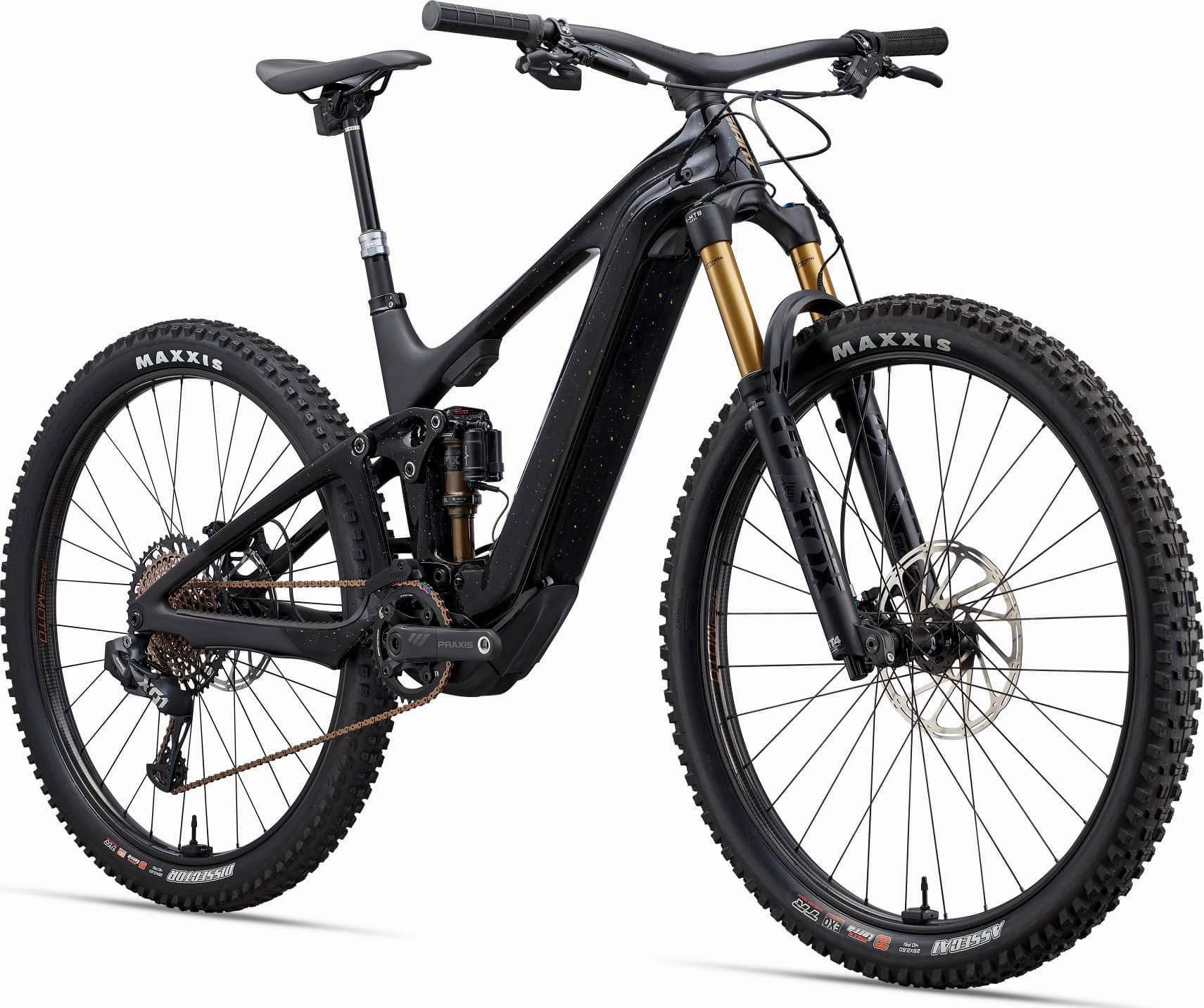

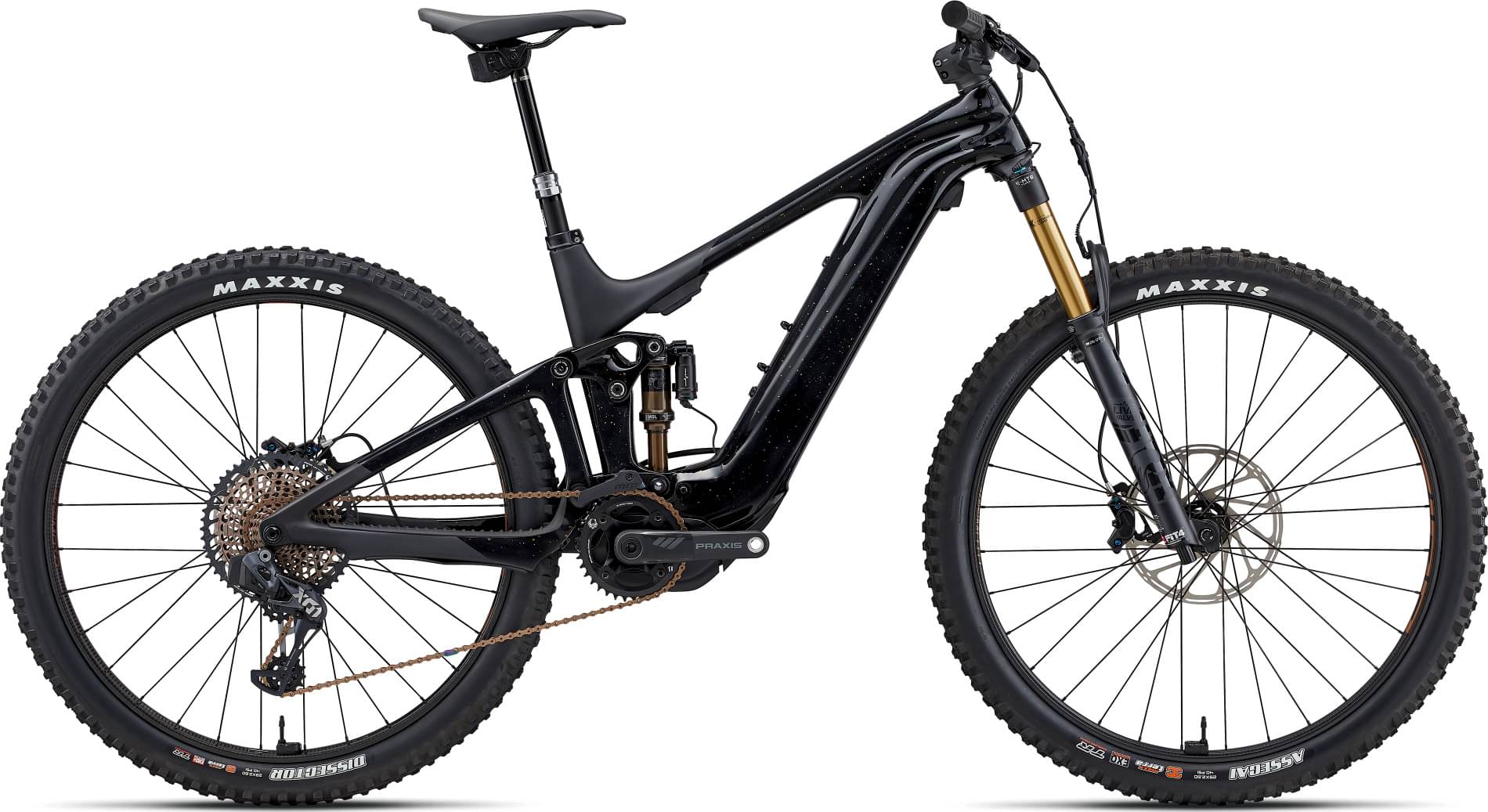

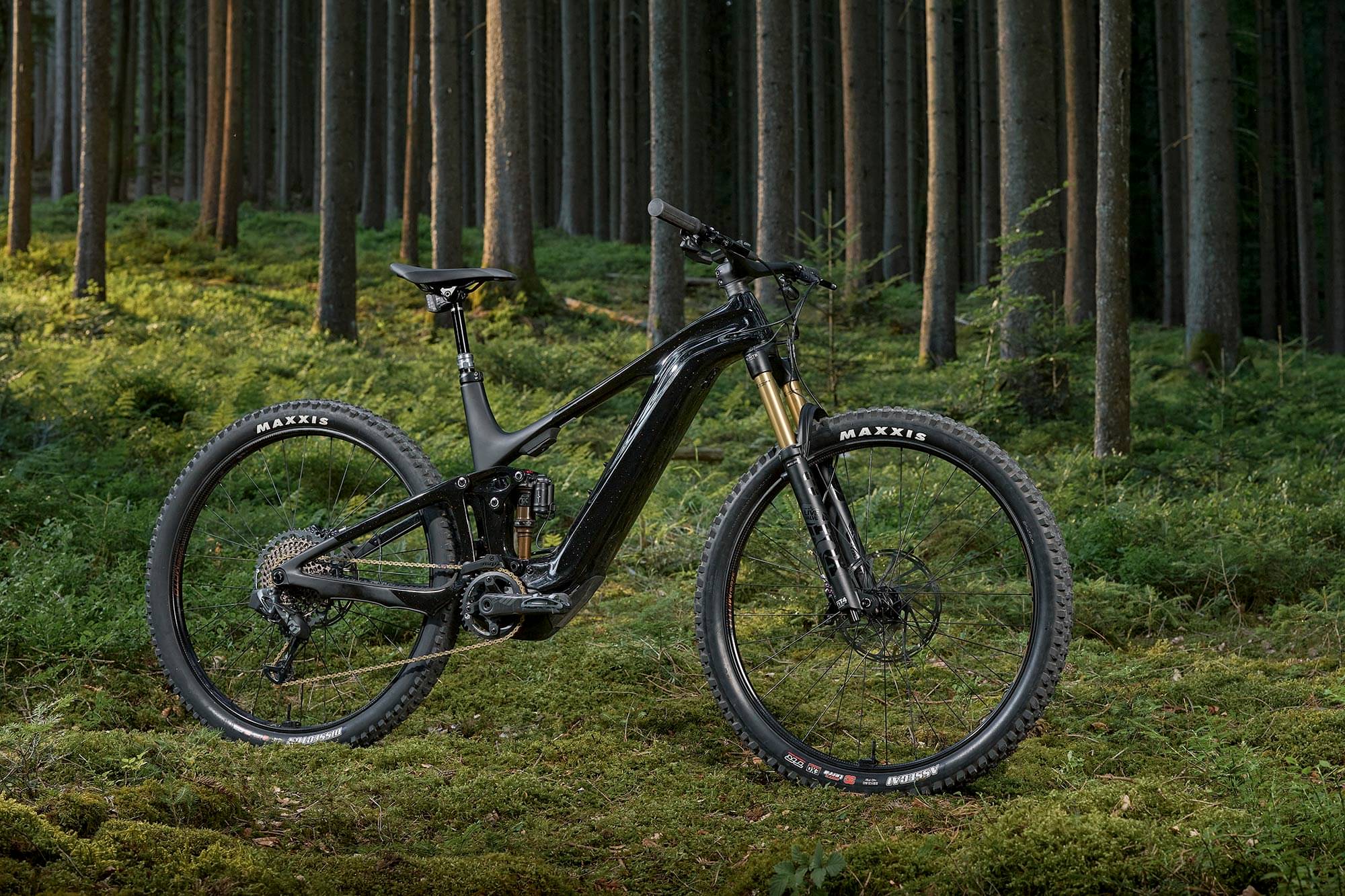

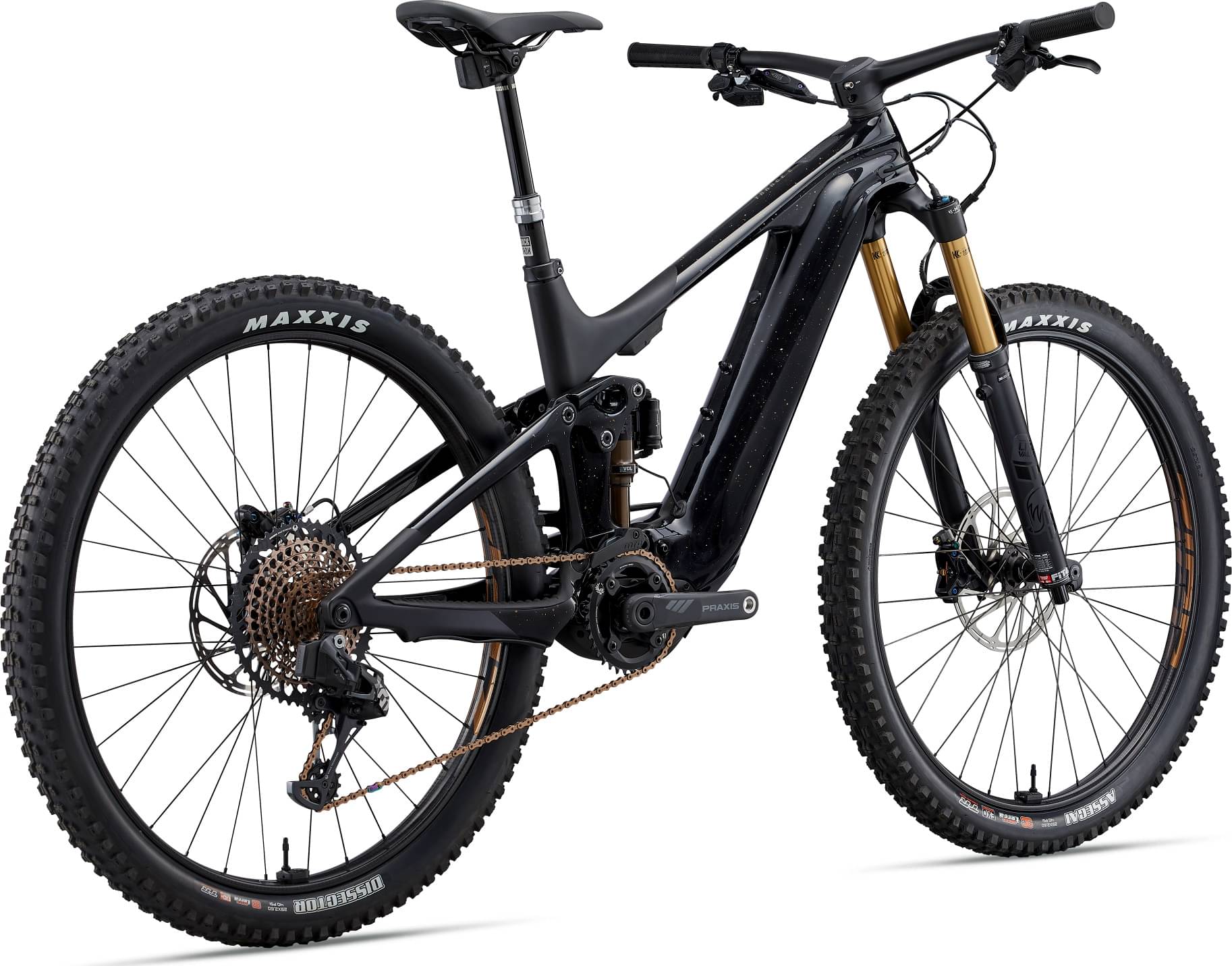

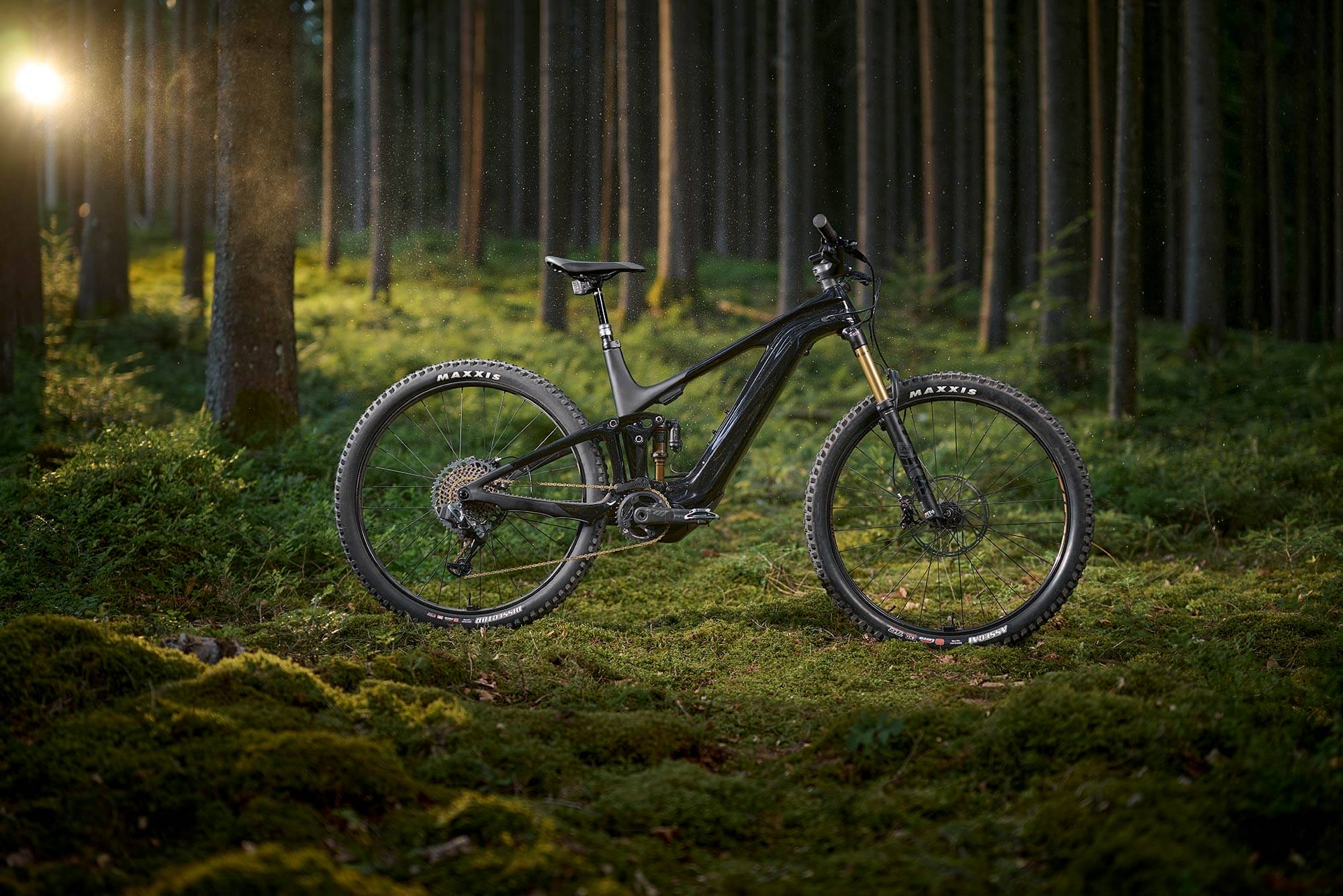

Giant Trance X Advanced E+, LTD 2022
2022 E-bike
Estimate price |
15,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS, Praxis -
Suspension Full, Electronic -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
163cm - 174cm
SM Low
163cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 190cm
LG Low
179cm - 190cm
XL High
187cm - 198cm
XL Low
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

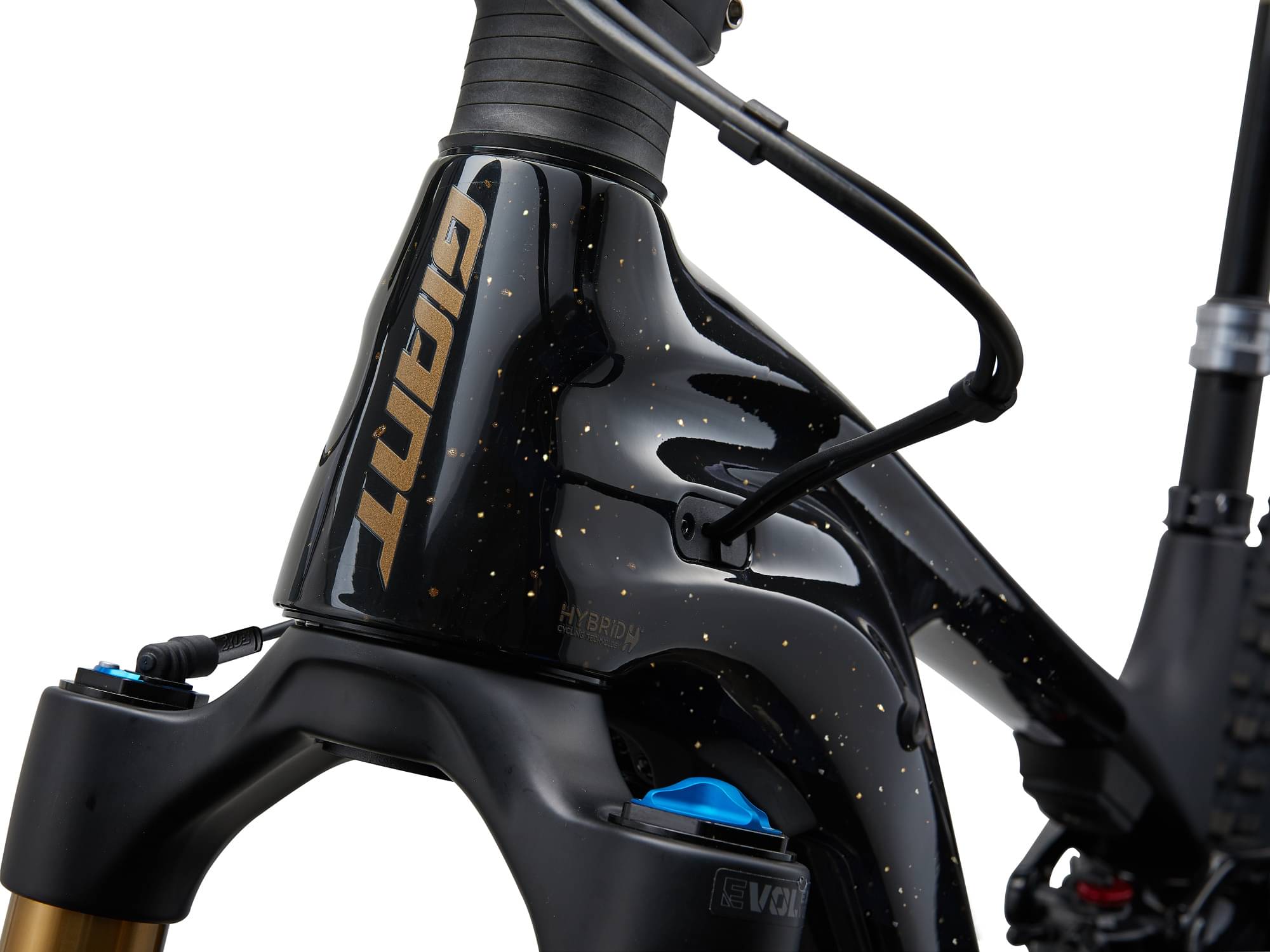

Frame
Frame
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible

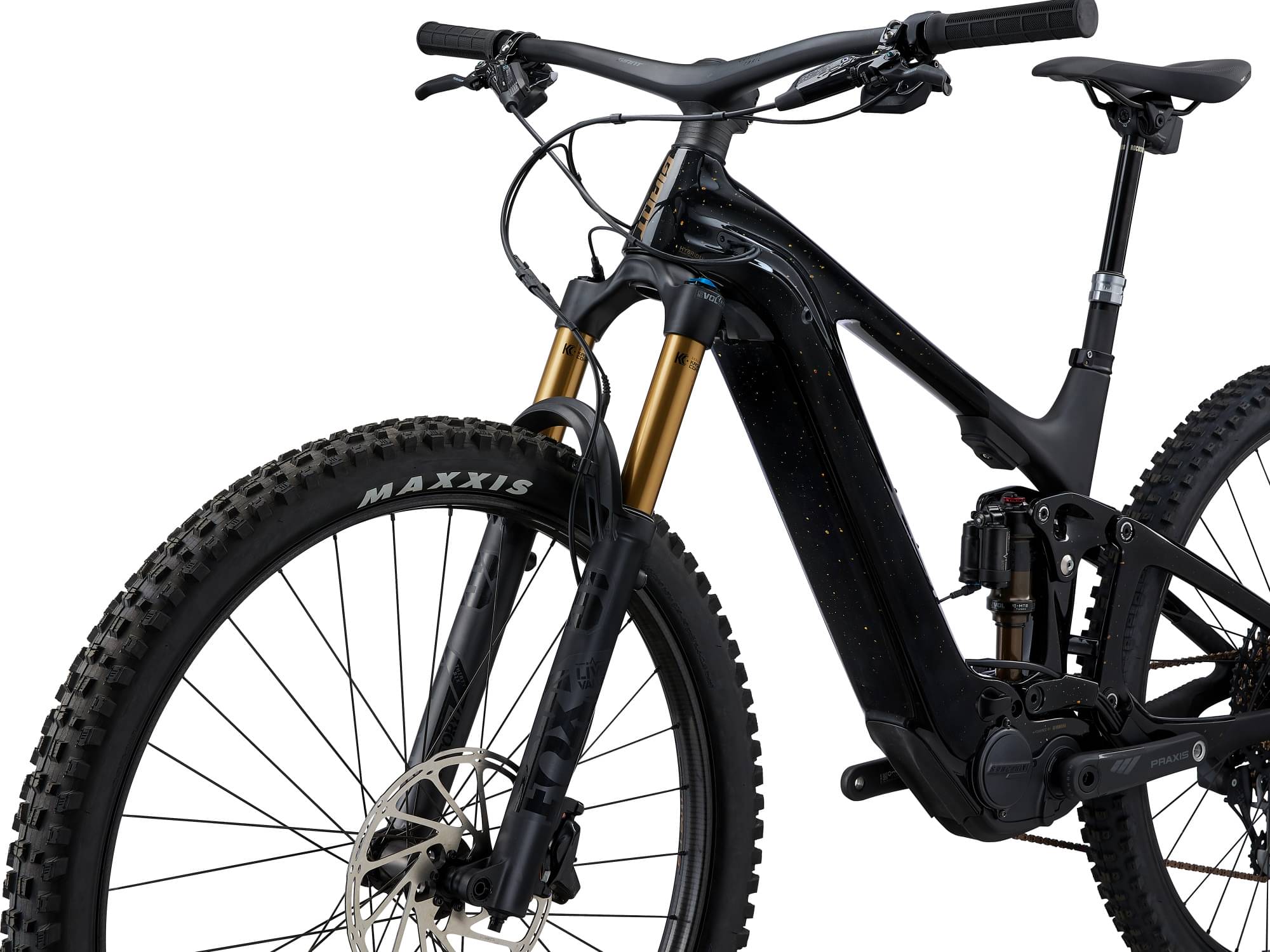

Suspension Fork
Fox 36 Factory Live Valve, 150mm travel, 44mm offset, Fit4 damper, Boost 110x15QR, electronic adaptive suspension, E-bike integrated

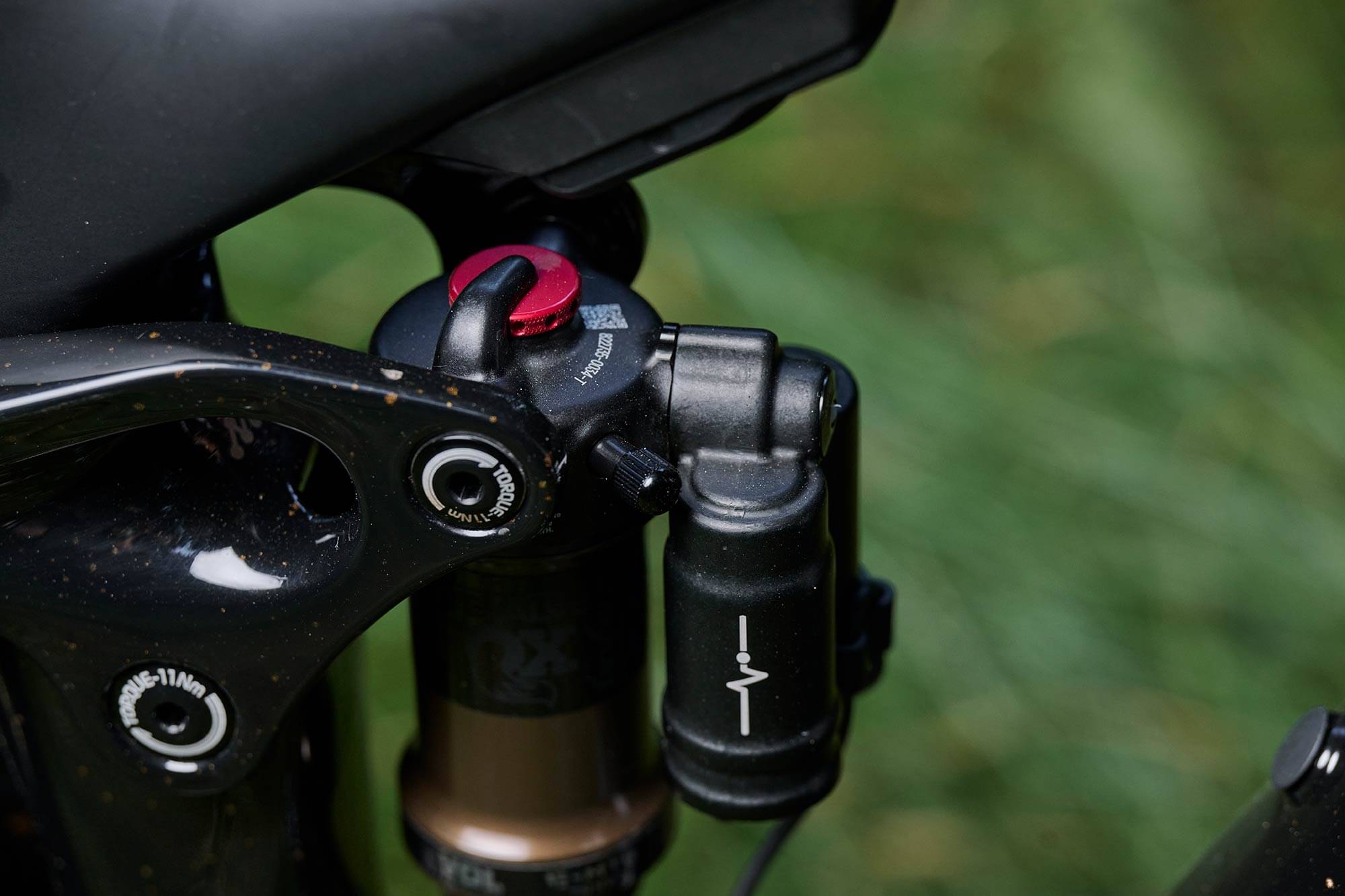

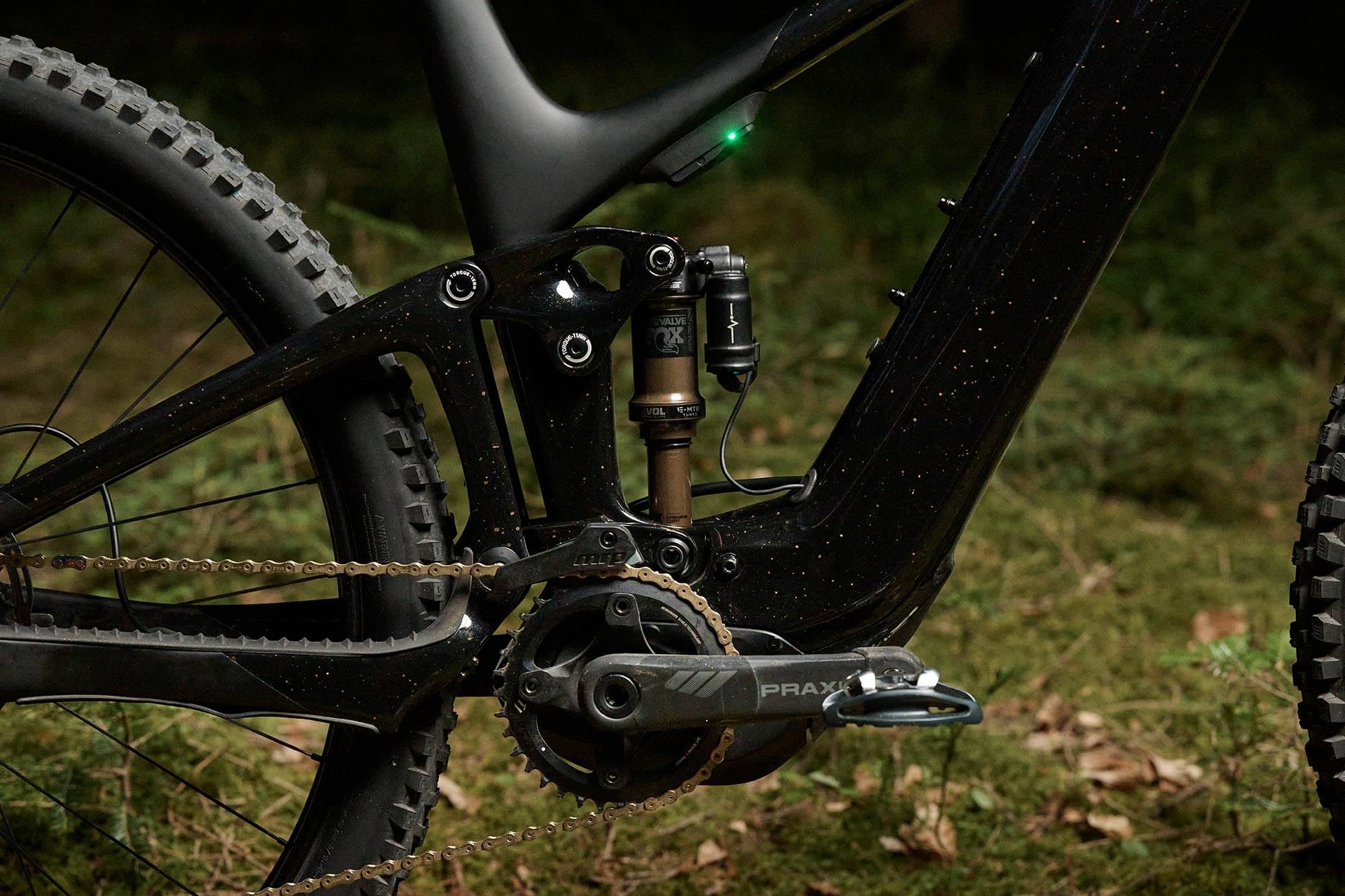

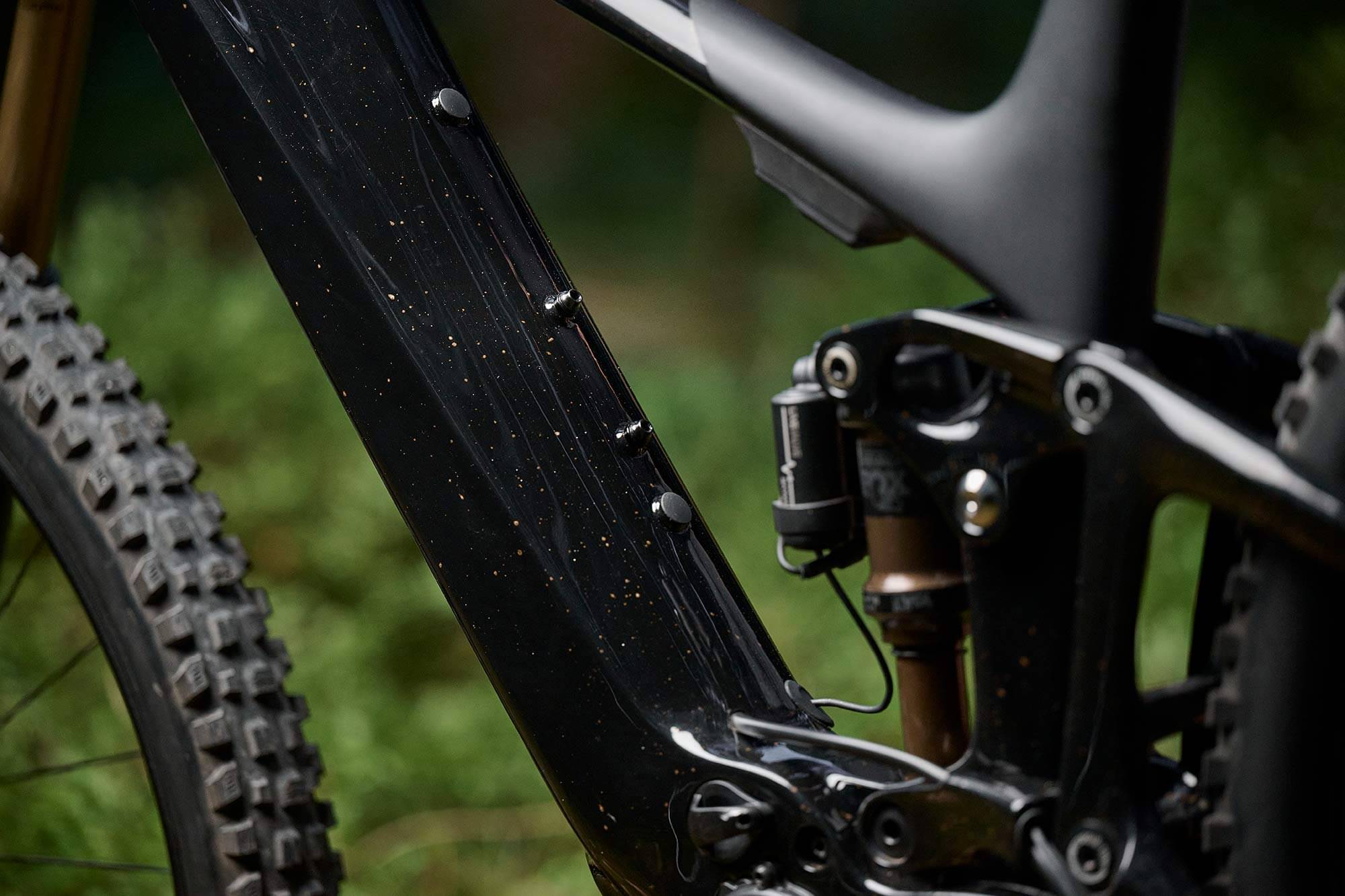

Rear Shock
Fox Float X Factory Live Valve, 185x52.5mm Trunnion mount, electronic suspension, E-bike integrated

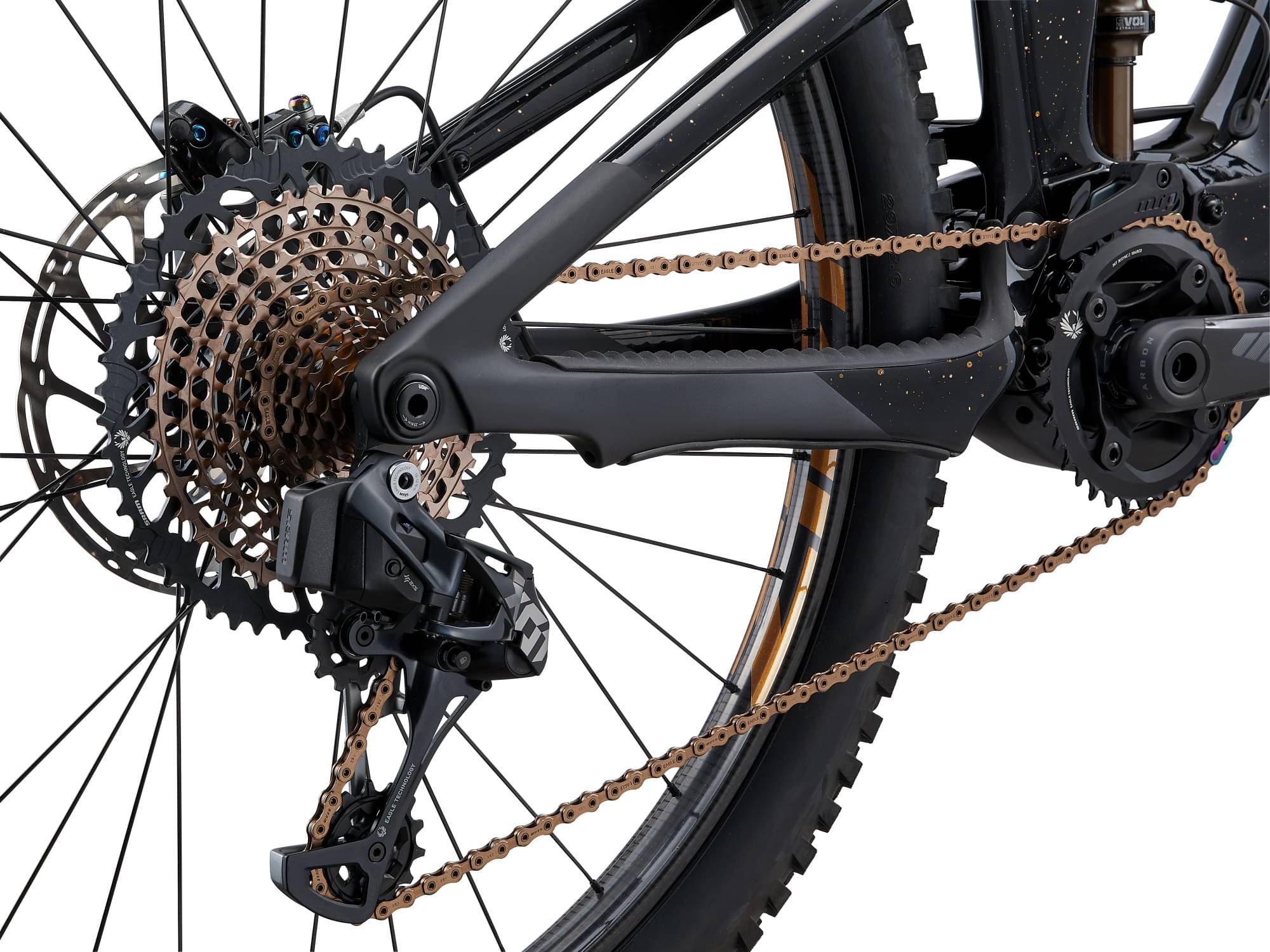

Drivetrain

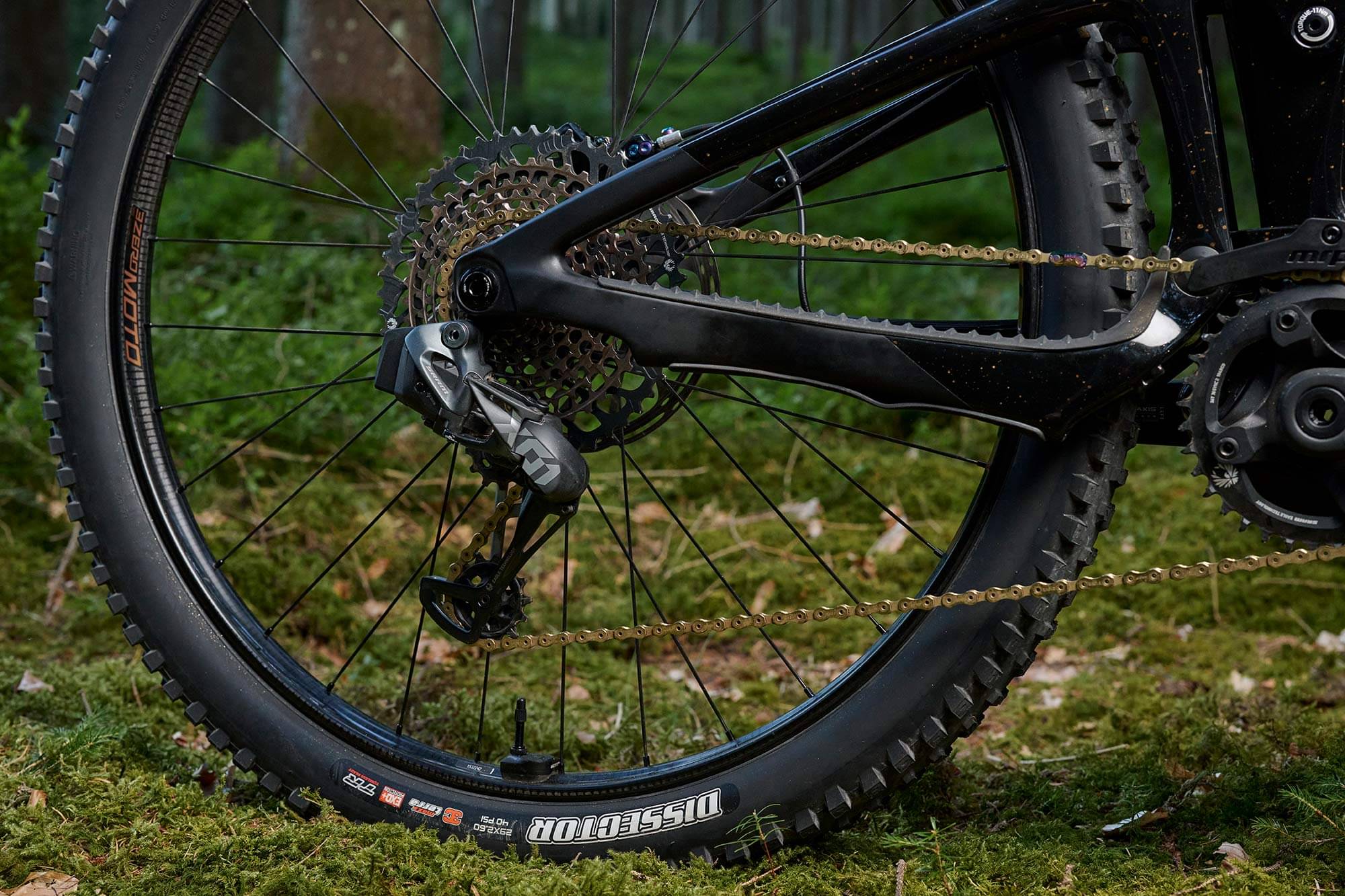

Rear Derailleur
SRAM XO1 Eagle AXS wireless electronic shifting
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
SRAM AXS Rocker Paddle, wireless electronic shifting

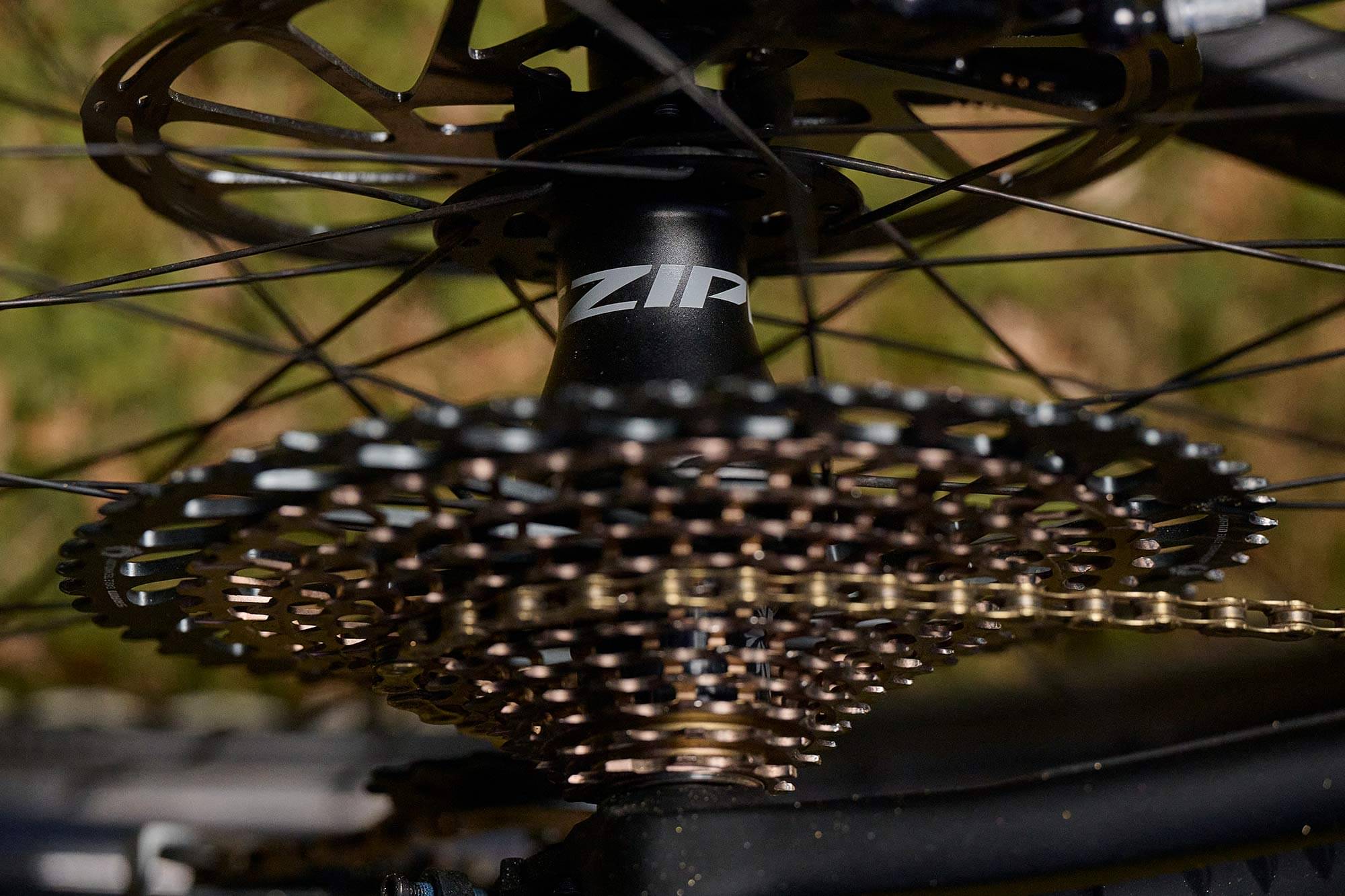

Cassette
SRAM XG 1299 Eagle, 10-52T, 12-Speed
Crank
Praxis Performance Carbon e-crank arms, SRAM X-SYNC Eagle 36T chain ring
Bottom Bracket
-
Chain
SRAM XX1 Eagle PowerLock, 12-Speed
Pedals
Flat pedal
Wheels
Front Hub
Zipp 3ZERO MOTO ZM2
Rear Hub
Zipp 3ZERO MOTO ZM2
Rims
Zipp 3ZERO MOTO Carbon
Spokes
Zipp 3ZERO MOTO
Tires
Maxxis Minion DHF 29x2.6"" foldable, Tubeless, EXO+, 3C MaxxTerra [F] Maxxis Dissector 29x2.6"" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
Brakes
Brakes
SRAM Code RSC, 4-piston, hydraulic disc,220mm[F] / 200mm[R]
Brake Levers
SRAM Code RSC

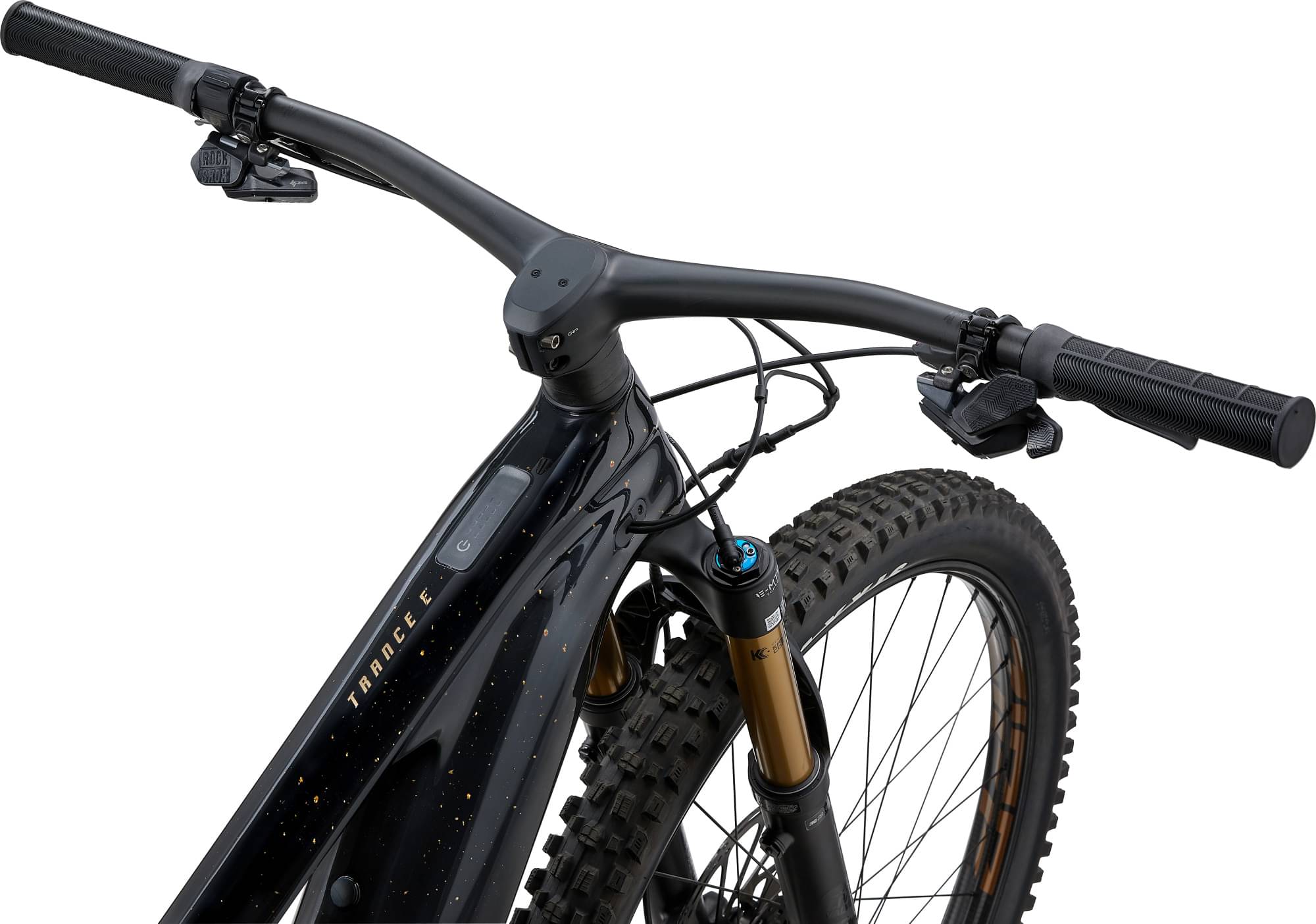

Cockpit
Stem
Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 40/45/50mm Reach, +3°/0°/-3° Adjust System

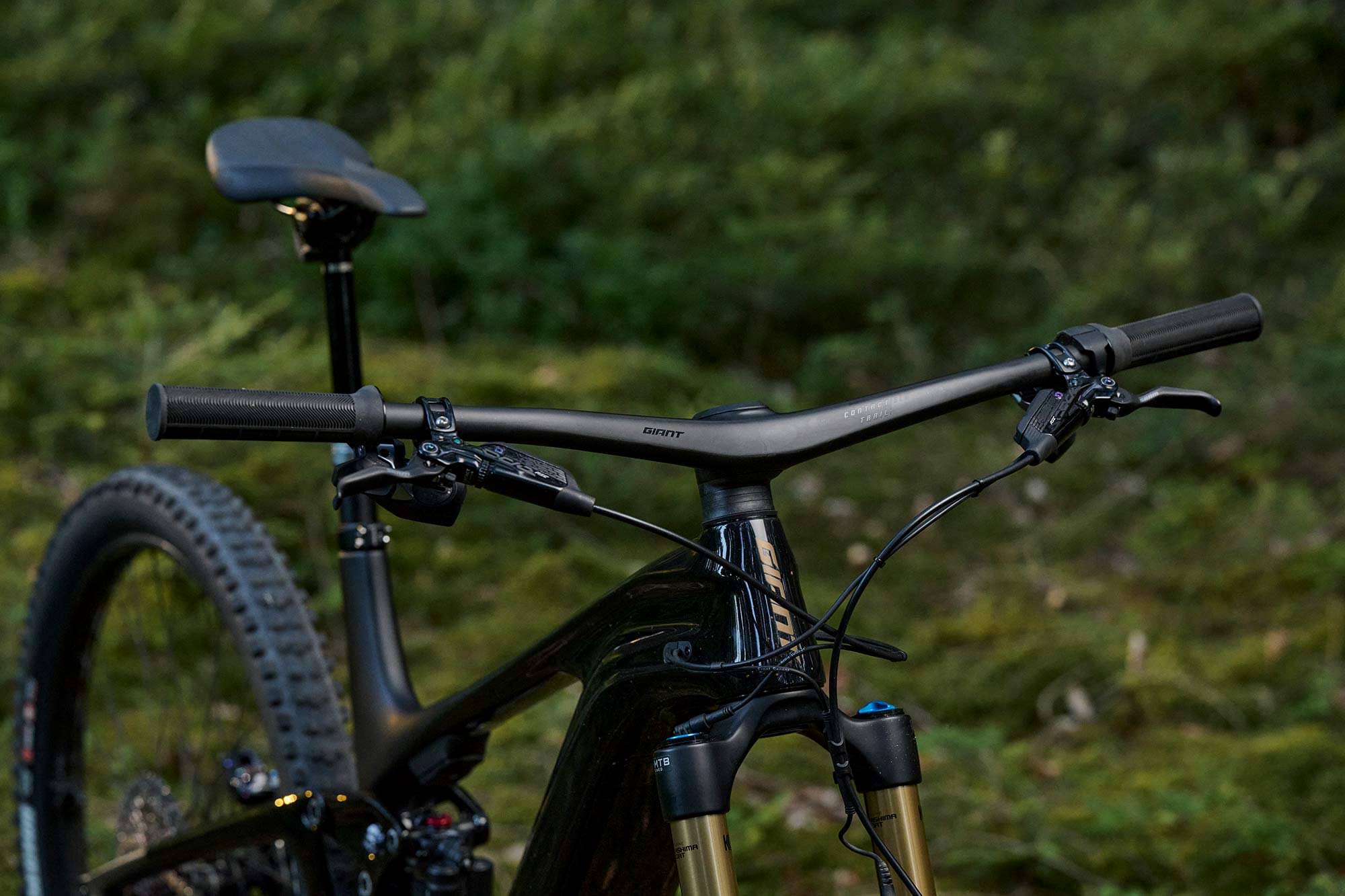

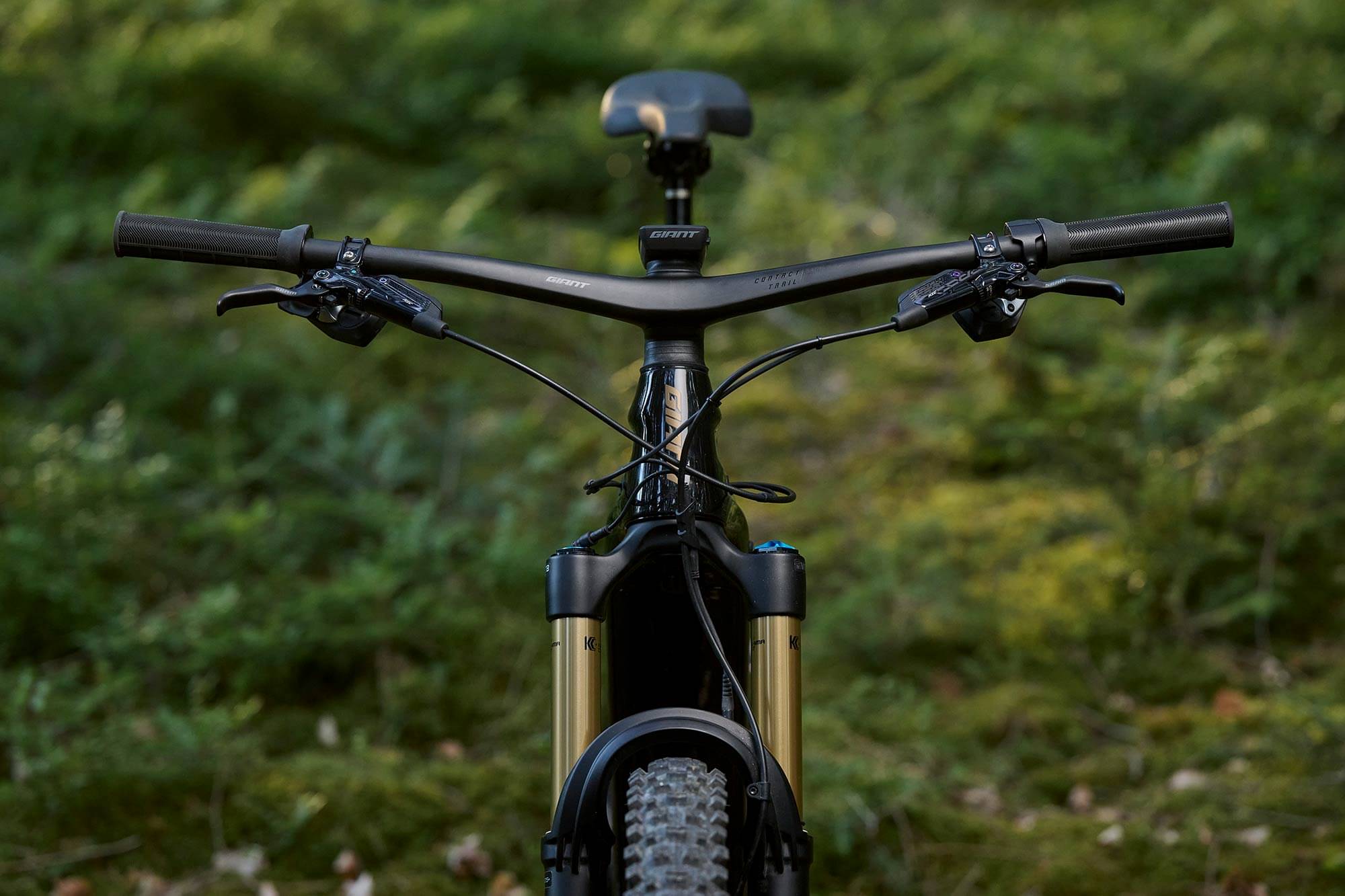

Handlebar
Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 800mm (760mm minimum cut width), 7/8/9° Back Sweep adjust system, meets DH test standard, GPS mount included
Grips
Giant Tactal Pro-E, single lock-on, tapered design, 135mm 28~30mm (S/M) 142mm 29~32mm (L/XL), Integrated for Ergo3 remote button left or right (optional)
Seat
Saddle
Giant Romero SL, Neutral

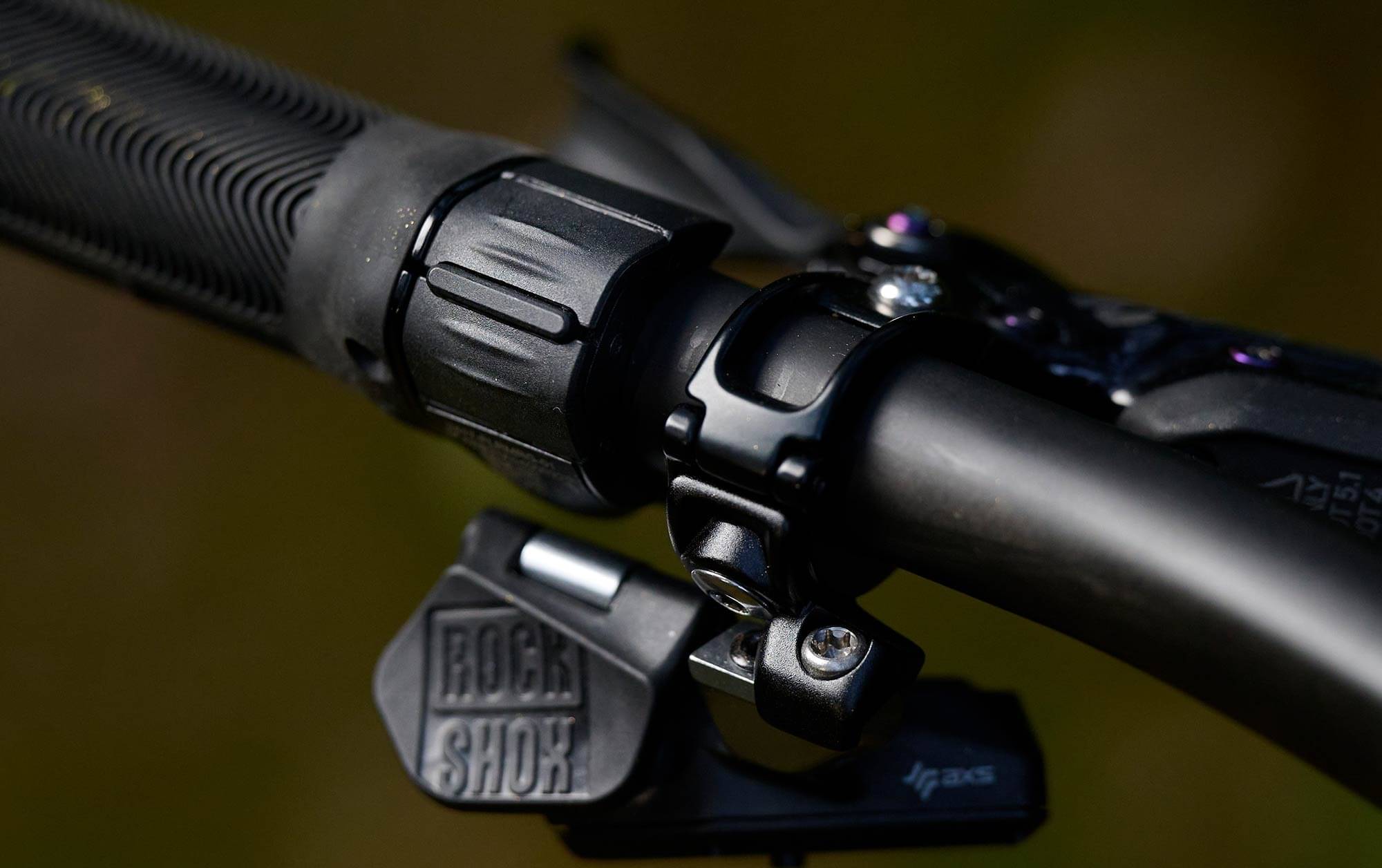

Seatpost
SRAM Reverb AXS, dropper, 30.9mm (S:125, M:150, L/XL:170)

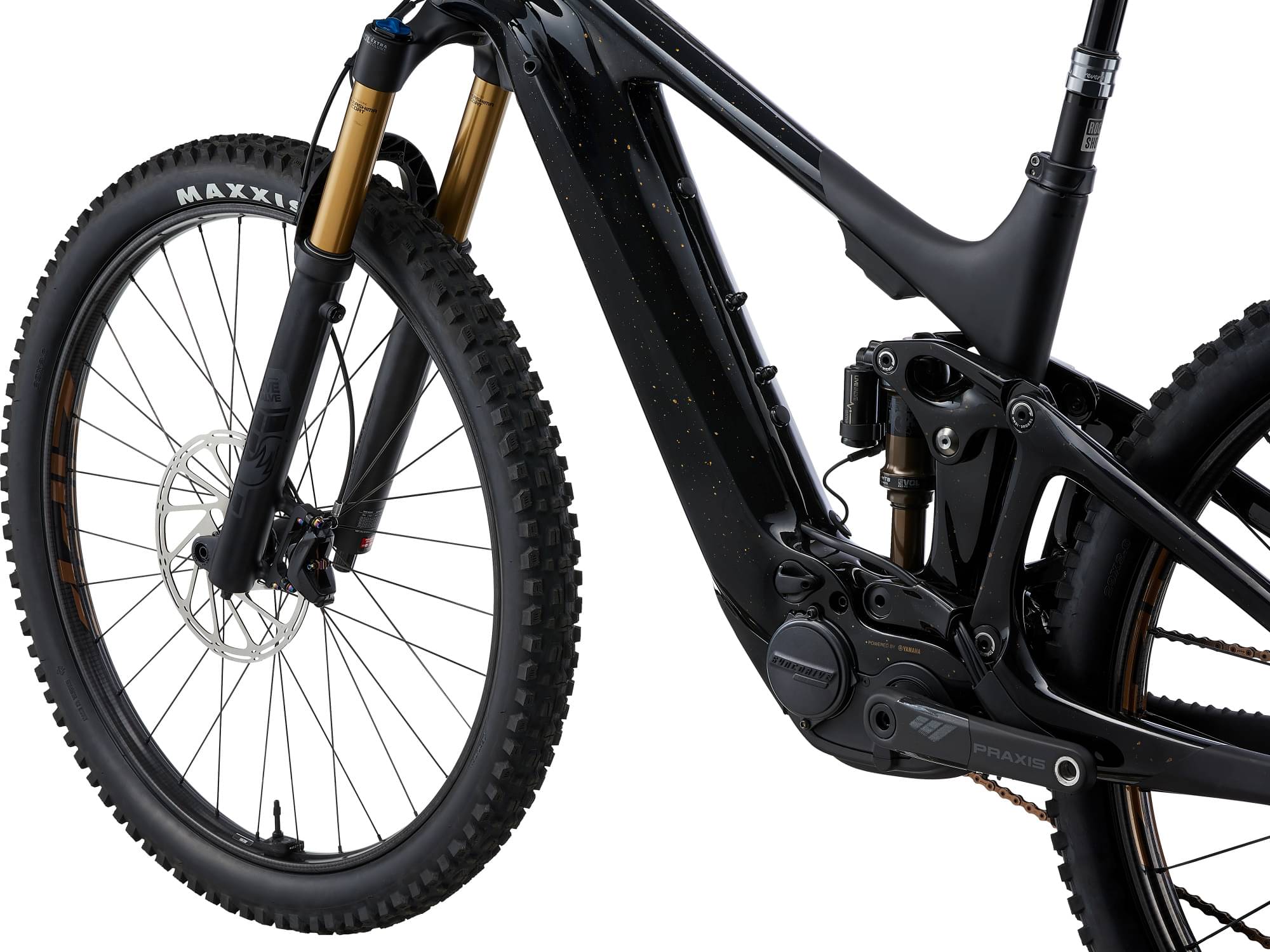

Motor & Battery

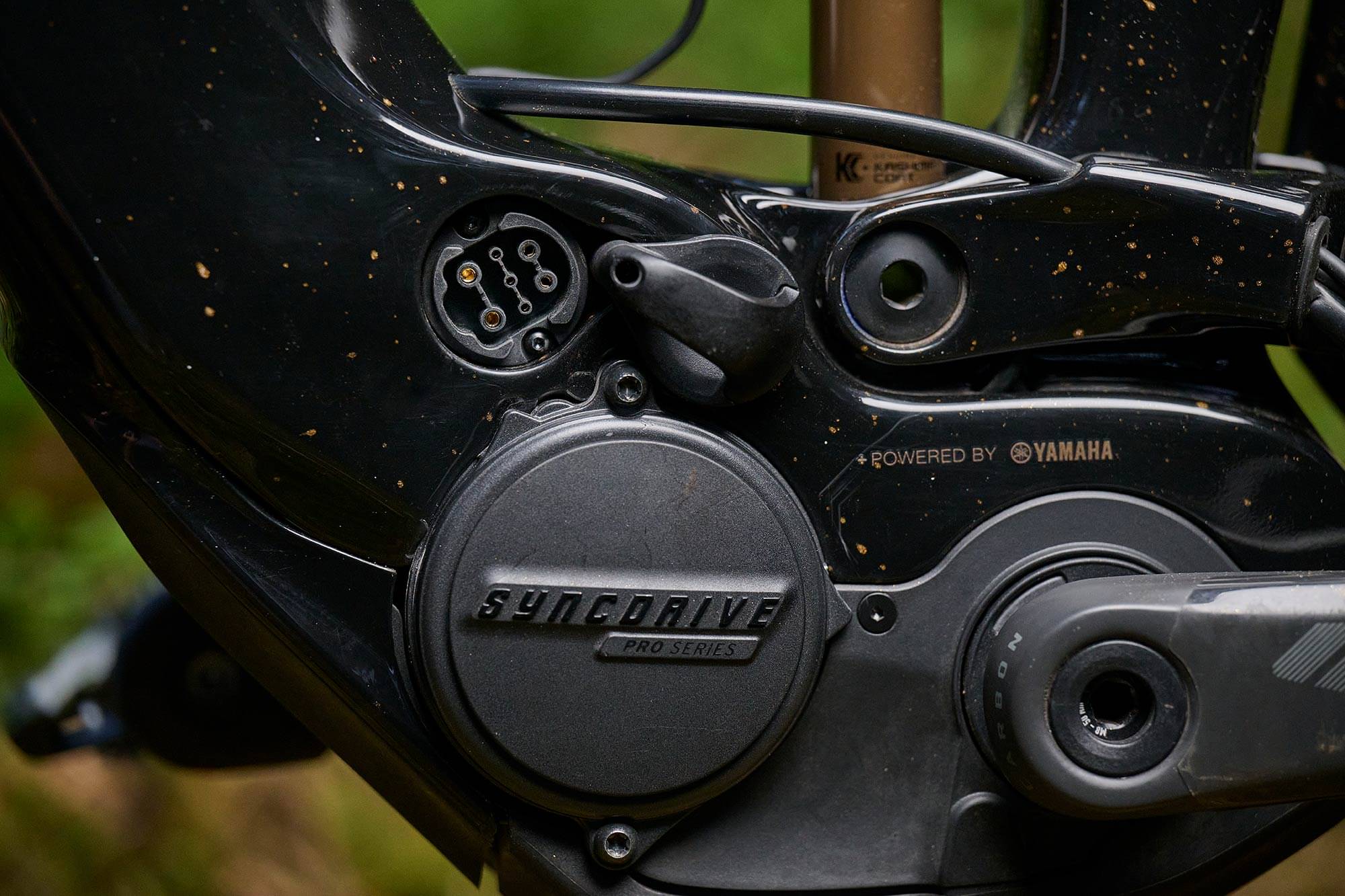

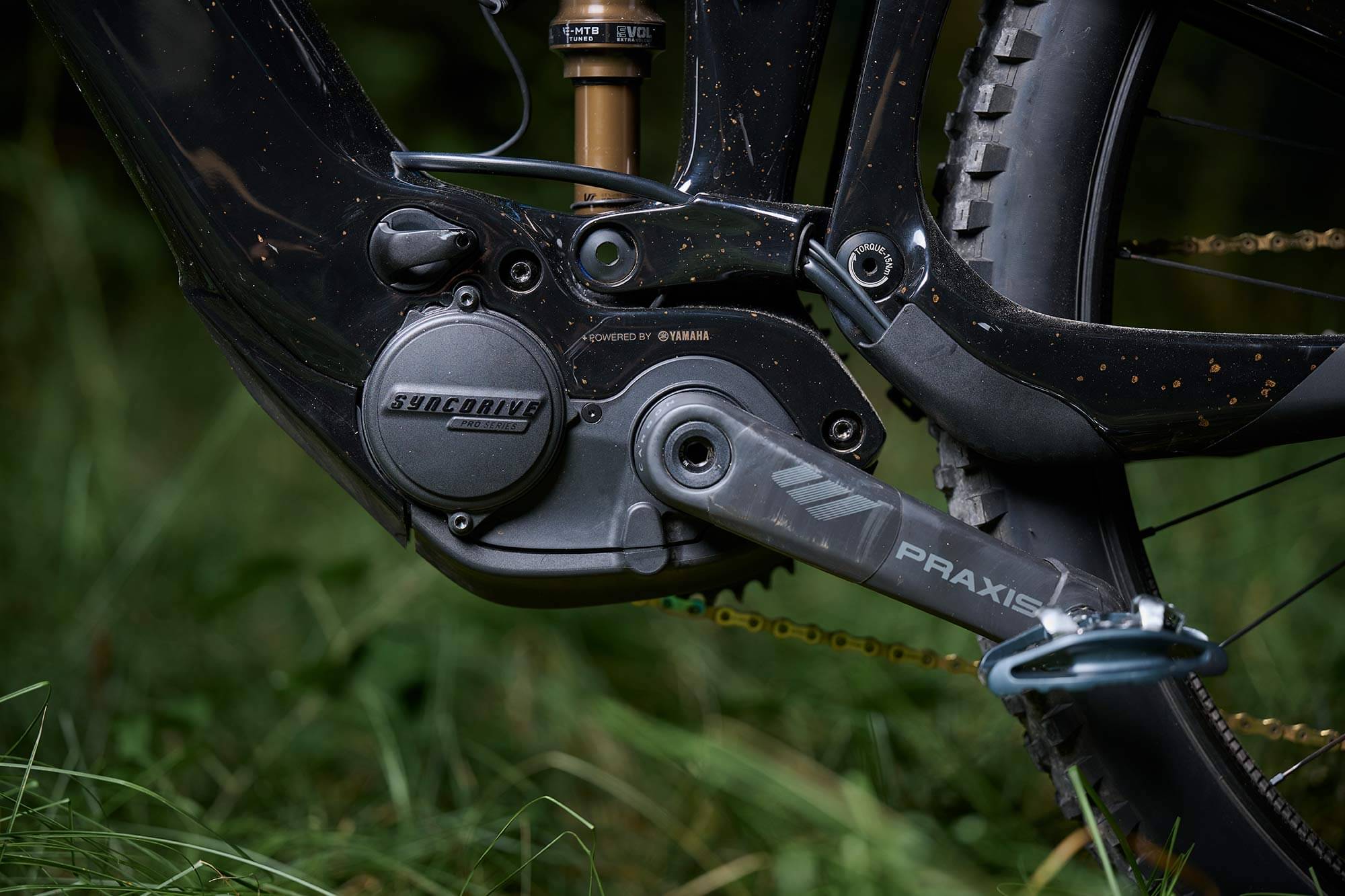

Motor
Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology

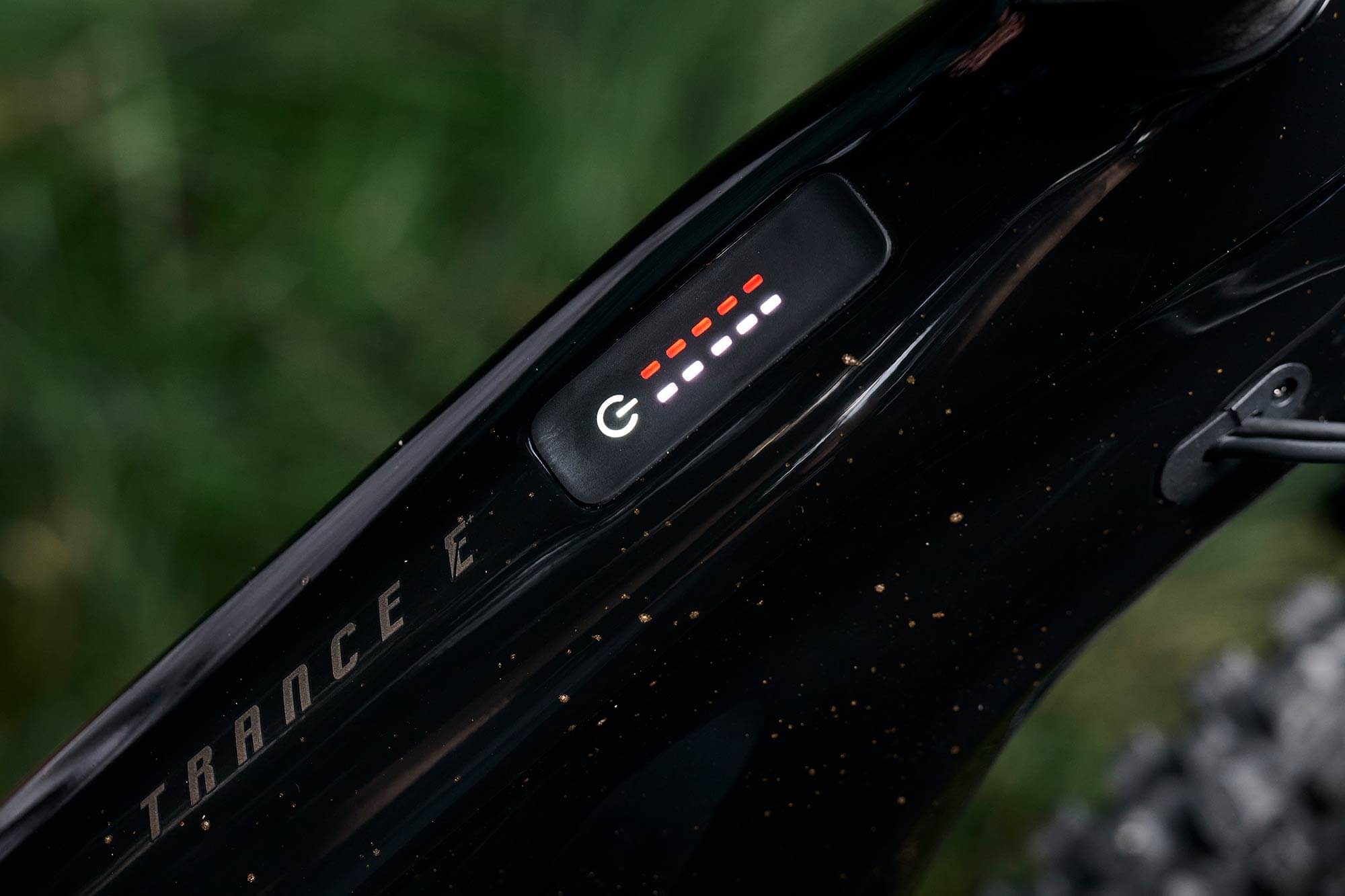

Battery
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
Charger
Giant EnergyPak 6A smart charger, 60% in 3:00h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.38 mm | 1.31 mm | 1.337 mm | 1.256 mm | 1.288 mm | 1.207 mm | 1.235 mm |
| Bottom Bracket Height | 354 mm | 344 mm | 354 mm | 344 mm | 354 mm | 344 mm | 354 mm | 344 mm |
| Front Center | 749 mm | 749 mm | 765 mm | 768 mm | 797 mm | 797 mm | 829 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122.4 mm | 117 mm | 122.4 mm | 117 mm | 122.4 mm | 117 mm | 122.4 mm | 117 mm |
| Stack | 601 mm | 606 mm | 605 mm | 611 mm | 614 mm | 621 mm | 624 mm | 630 mm |
| Reach | 447 mm | 439 mm | 462 mm | 457 mm | 489 mm | 482 mm | 517 mm | 510 mm |
| Top Tube Length | 575 mm | 577 mm | 605 mm | 607 mm | 635 mm | 637 mm | 665 mm | 667 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° |
| Seat Tube Length | 400 mm | 400 mm | 425 mm | 425 mm | 450 mm | 450 mm | 475 mm | 475 mm |
| Head Tube Angle | 66.5 ° | 65.7 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1221 mm | 1220 mm | 1237 mm | 1239 mm | 1269 mm | 1268 mm | 1301 mm | 1300 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm |
| Standover Height | 746 mm | 740 mm | 734 mm | 727 mm | 726 mm | 718 mm | 723 mm | 715 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 163 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 174 cm | 174 cm | 182 cm | 182 cm | 190 cm | 190 cm | 198 cm | 198 cm |
Model Overview
Trance X Advanced E+, LTD is a Giant E Trance model. There are 42 e-bikes that carry this model name. You can easily view all of the Giant E Trance e-bikes models from 2022, here.
Model range prices
Giant Trance X E+ 1 2022 is the cheapest e-bike model and costs 5423$. Giant Trance X Advanced E+, LTD 2022 is the most expensive one and costs 15000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 15000$. Comparing the average cost of a Trail e-bike to this one, you will see that Trance X Advanced E+, LTD price is 345.77% higher.
Overview of components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the Fox Float X Factory Live Valve model, with a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Trance X Advanced E+, LTD are the 29″ carbon type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Trance X Advanced E+, LTD comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 8 sizes. They vary from 163 cm – 198 cm (5.35 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Trance X Advanced E+, LTD. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
