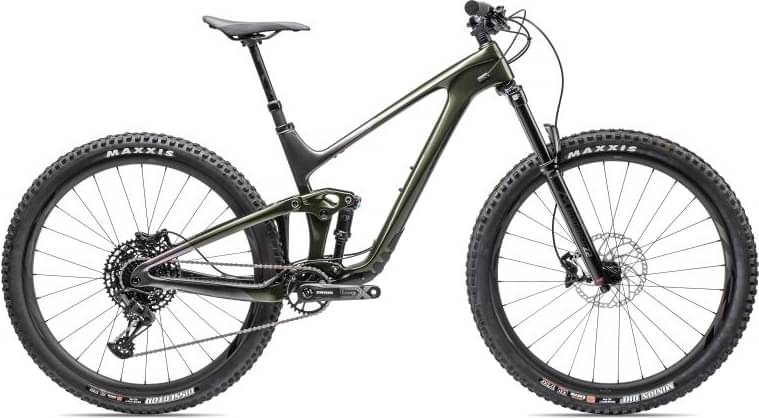

Giant Trance X Advanced Pro 29 3 2022
2022 Mountain
Estimate price |
4,300$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Marzocchi Bomber Z2
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle
Suspension Fork
Marzocchi Z2, 150mm, Rail damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
Rear Shock
Fox Float DPS Performance, 185/55, custom tuned for Giant
Drivetrain
Rear Derailleur
SRAM SX Eagle
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle, 1x12
Cassette
SRAM SX, 11x50
Crank
SRAM SX, 30t S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM SX Eagle
Pedals
platform [GC,GT]
Wheels
Front Hub
Giant TR 1 29 WheelSystem
Rear Hub
Giant TR 1 29 WheelSystem
Rims
Giant TR 1 29 WheelSystem
Spokes
Giant TR 1 29 WheelSystem
Tires
[F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29x2.4, EXO, TR, tubeless
Brakes
Brakes
Shimano Deore BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers
Shimano Deore BL-MT401
Cockpit
Stem
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Handlebar
Giant Contact TR35, 780x35mm, 20mm rise
Grips
Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
Seat
Saddle
Giant Romero SL
Seatpost
Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.37 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 738 mm | 770 mm | 804 mm | 833 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125.14 mm | 125.14 mm | 125.14 mm | 125.14 mm |
| Stack | 613 mm | 617 mm | 627 mm | 636 mm |
| Reach | 422 mm | 452 mm | 482 mm | 506 mm |
| Seat Tube Angle | 77.2 ° | 77.2 ° | 77.2 ° | 77.2 ° |
| Seat Tube Length | 430 mm | 430 mm | 465 mm | 496 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1169 mm | 1201 mm | 1235 mm | 1264 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 725 mm | 725 mm | 748 mm | 756 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Trance X Advanced Pro 29 3 is a Giant Trance model. Giant released 139 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Giant Trance Jr 26 2022 is the most affordable bike of this model and has a price of 2228$. On the other hand, Giant Trance Advanced Pro 29 0 2022, is the most expensive and costs 10500$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Giant Trance X Advanced Pro 29 3 price was 4300$. Doing a quick comparison, we notice that Trance X Advanced Pro 29 3 price is 55.68% higher than the average cost of a Trail bike.
Overview of components
Fork
The fork installed on this bike is the Marzocchi Bomber Z2 model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS Performance, with a travel distance of 135mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Trance X Advanced Pro 29 3 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Trance X Advanced Pro 29 3 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Giant Trance X Advanced Pro 29 3 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
