Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 125mm -
Travel Rear 125mm -
Fork Fox Float 32
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-Grade Aluminum, 5" Maestro Suspension
Suspension Fork
Fox 32 F125RL FIT w/ 15QR Thru Axle and Tapered Steerer, 125mm Travel
Rear Shock
Fox Float RP23 Boostvalve
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow, Top Normal, 10-Speed
Front Derailleur
Shimano SLX
Shift Levers
Shimano Deore XT M770 Rapidfire, 3x10 Speed
Cassette
Shimano HG81 11x36, 10-Speed
Crank
Shimano Deore XT, 24/32/42
Bottom Bracket
Shimano Press Fit
Chain
Shimano HG-74
Pedals
Not Included
Wheels
Front Hub
Shimano Deore XT w/ 15mm Front Axle
Rear Hub
Shimano Deore XT w/ 15mm Front Axle
Rims
Shimano Deore XT
Spokes
Shimano Deore XT
Tires
Kenda Nevegal, 120 tpi, 26x2.1 Folding
Brakes
Brakes
Shimano Deore XT M775 (XC Racing), [F] 180mm [R] 160mm
Brake Levers
Shimano Deore XT M775 (XC Racing)
Cockpit
Stem
Giant Contact
Handlebar
Giant Contact TR, Low Rise 31.8
Seat
Saddle
Fi'zi:k Gobi XM (Giant LTD Edition) w/ Manganese Rails
Seatpost
Giant Contact, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 559 mm | 584 mm | 610 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 117 mm | 127 mm | 145 mm | 165 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1082 mm | 1105 mm | 1133 mm | 1158 mm |
| Standover Height | 724 mm | 762 mm | 792 mm | 823 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

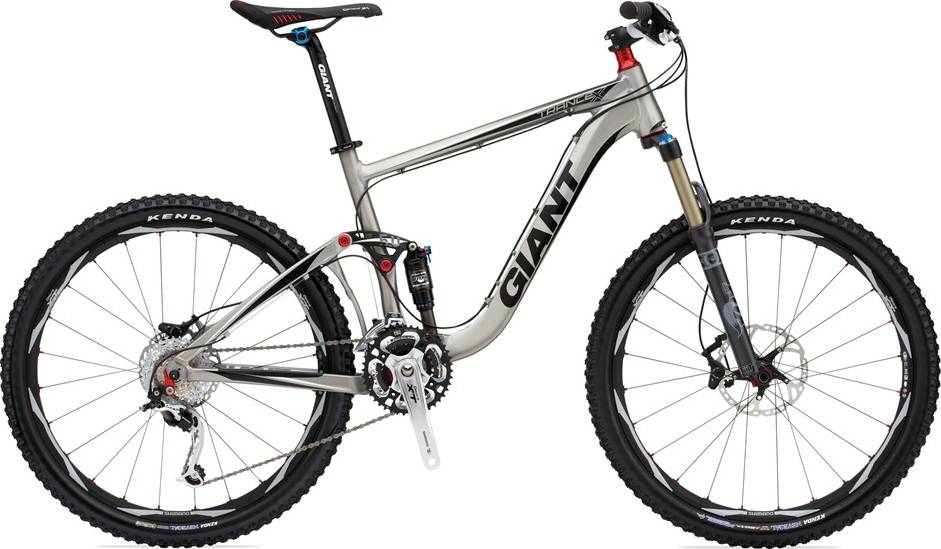

Trance X1 is a Giant Trance model. Giant released 139 bikes variations of this model so far. Take a sneak peek at all Giant Trance bikes models from 2011, by clicking here.
Model range prices
Giant Trance X4 2011 is the cheapest bike model and costs 1500$. Giant Trance X Advanced SL 0 2011 is the most expensive one and costs 8700$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3850$. If we compare this with the average Trail bike cost we notice that the price is 39.39% more expensive.
Trance X1 components
Fork
This bike has the Fox Float 32 fork installed. The fork’s travel is 125mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Giant Trance X1 bike has the Fox Float RP23 Boostvalve model installed, and has a travel of 125mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Trance X1 are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant Trance X1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
