Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite
Suspension Fork
Advanced-grade composite, Hybrid steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano BSR1 Bar End Shifters
Cassette
Shimano 105 11x28, 11-speed
Crank
FSA Gossamer Pro, 34/50
Bottom Bracket
FSA , Press fit
Chain
KMC X11 SL
Pedals
N/A
Wheels
Front Hub
Giant Sport Tracker Road, 26h
Rear Hub
Giant Sport Tracker Road, 26h
Rims
Giant SR-2
Spokes
Stainless Steel, 14g
Tires
Giant SL2, Flat Guard, Front and Rear Specific, 700x25(700x23C for XS size)
Brakes
Brakes
Giant SpeedControl
Brake Levers
Tektro RX 4.1
Cockpit
Stem
Giant Connect
Handlebar
Giant Contact base bar w/ Composite extensions
Seat
Saddle
Giant Contact Forward
Seatpost
Giant Trinity, Composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.22 mm | 1.25 mm | 1.3 mm | 1.35 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 571 mm | 592 mm | 607 mm | 622 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 474 mm | 502 mm | 531 mm | 560 mm |
| Reach | 390 mm | 402 mm | 409 mm | 415 mm |
| Top Tube Length | 560 mm | 572 mm | 594 mm | 600 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 460 mm | 490 mm | 515 mm | 545 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 80 mm | 110 mm | 140 mm | 170 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm |
| Wheelbase | 959 mm | 980 mm | 995 mm | 1010 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 734 mm | 759 mm | 782 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

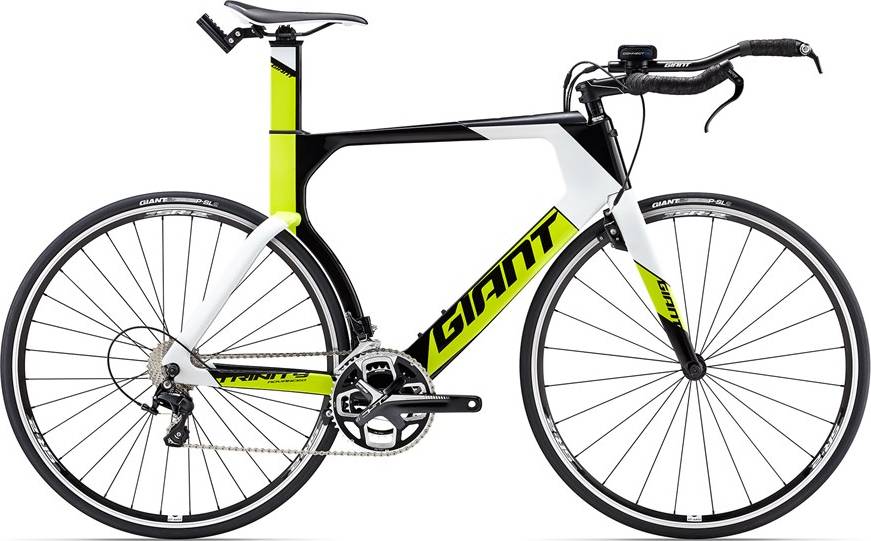

Model Overview
Trinity Advanced is part of the Giant Trinity model. There are 68 bikes that carry this model name. You can easily view all of the Giant Trinity bikes models from 2017, here.
Model range prices
Giant Trinity Advanced 2017 is the most economical model, with a starting price of 1850$. Giant Trinity Advanced Pro 0 2017 on the other hand costs 6700$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Triathlon bikes average price
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2017 for 1850$. Doing a quick comparison, we notice that Trinity Advanced price is 125.78% smaller than the average cost of a Triathlon bike.
Trinity Advanced components
Fork material
Trinity Advanced has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Giant Trinity Advanced 2017, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Trinity Advanced comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
Trinity Advanced comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
