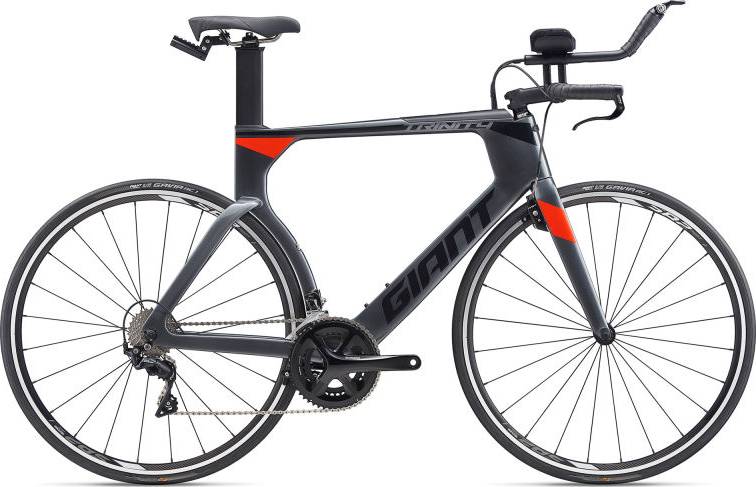

Giant Trinity Advanced 2020
2020 Road
Estimate price |
2,400$
Weight | 9.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
160cm - 172cm
SM
166cm - 178cm
MD
172cm - 184cm
LG
179cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite
Suspension Fork
Advanced-Grade Composite, alloy OverDrive steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano TT SL-BSR 1
Cassette
Shimano 105, 11x28
Crank
Shimano FC-RS510, 34/50
Bottom Bracket
Shimano, press fit
Chain
KMC X11EL-1
Pedals
N/A
Wheels
Front Hub
Giant SR-2 wheelset
Rear Hub
Giant SR-2 wheelset
Rims
Giant SR-2 wheelset
Spokes
Giant SR-2 wheelset
Tires
Giant Gavia Course AC 1, tubeless, 700x25, folding
Brakes
Brakes
Front: TKB84 rear: TBK88
Brake Levers
Tektro RX 4.1
Cockpit
Stem
Giant Connect
Handlebar
Giant alloy Contact base bar aluminum extension ski bend
Seat
Saddle
ISM PS1.0, steel rail
Seatpost
Trinity composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.22 mm | 1.25 mm | 1.3 mm | 1.35 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 571 mm | 592 mm | 607 mm | 622 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 61 mm | 61 mm | 61 mm | 61 mm |
| Stack | 474 mm | 502 mm | 531 mm | 560 mm |
| Reach | 390 mm | 402 mm | 409 mm | 415 mm |
| Top Tube Length | 501 mm | 520 mm | 533 mm | 546 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 460 mm | 490 mm | 515 mm | 545 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 80 mm | 110 mm | 140 mm | 170 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm |
| Wheelbase | 959 mm | 980 mm | 995 mm | 1010 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 734 mm | 759 mm | 782 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 166 cm | 172 cm | 179 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 193 cm |
Model Overview
Trinity Advanced completes the Giant Trinity model. Giant launched 68 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Giant Trinity Advanced 2020 is the cheapest bike model and costs 2400$. Giant Trinity Advanced Pro 1 Force 2020 is the most expensive one and costs 6200$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Triathlon bikes average price
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Giant Trinity Advanced price was 2400$. Comparing this to the average Triathlon bike price, we see that the price is 74.04% lower.
Average weight for Triathlon bikes
On a deeper look, we notice that the average weight of a Triathlon bike is 8.9 kg (19.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 9.5 kg (20.94 lbs), Giant bike is a bit heavier than average. In short, the average Triathlon bike weight is 6.74% lower than this one.
Trinity Advanced components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Giant Trinity Advanced 2020, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Trinity Advanced comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, finding one for you shouldn’t be a problem.
