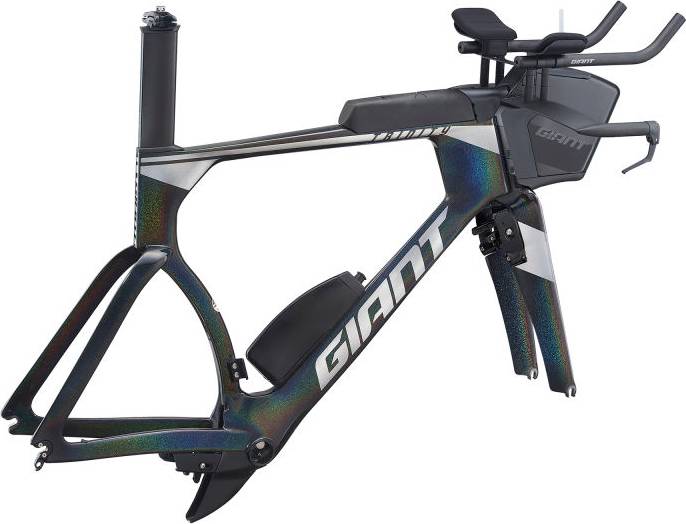

Giant Trinity Advanced Pro Tri Frameset 2021
2021 Road
Estimate price |
3,047$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
SM
166cm - 178cm
MD
172cm - 184cm
LG
179cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced grade composite
Suspension Fork
AeroDrive Advanced grade composite fork with alloy/Composite hybrid steerer
Drivetrain
Bottom Bracket
BB86 accepts press-fit style BB only, bearing set not included
Brakes
Brakes
Giant SpeedControl brakes with TT (UCI) rear brake cover
Brake Levers
Giant Trinity Aero
Cockpit
Stem
AeroDrive stem (high position)
Handlebar
Giant Trinity Composite basebar (TRI) with ski bend extensions
Seat
Seatpost
Giant Trinity Composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.24 mm | 1.29 mm | 1.34 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm |
| Front Center | 592 mm | 607 mm | 622 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 61 mm | 61 mm | 61 mm |
| Stack | 515 mm | 544 mm | 573 mm |
| Reach | 415 mm | 422 mm | 428 mm |
| Top Tube Length | 533 mm | 546 mm | 559 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 490 mm | 515 mm | 545 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 140 mm | 170 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm |
| Wheelbase | 993 mm | 1008 mm | 1023 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 772 mm | 795 mm | 841 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 166 cm | 172 cm | 179 cm |
| Rider Max Height | 178 cm | 184 cm | 193 cm |
About this model
Trinity Advanced Pro Tri Frameset belongs to the Giant Trinity model. 68 frames variations carry this model name so far. Take a sneak peek at all Giant Trinity frames models from 2021, by clicking here.
Model range prices
Giant Trinity Advanced Pro TT Frameset 2021 is the most economical model, with a starting price of 2738$. Giant Trinity Advanced Pro Tri Frameset 2021 on the other hand costs 2738$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Triathlon frames
If you want to purchase a solid Triathlon frame, it is important to know that the average cost is 3089$. However, this doesn’t mean that if you spend less money on a Triathlon frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Giant Trinity Advanced Pro Tri Frameset price was 2738$. In conclusion, this frame price is 12.82% lower than the price of the average Triathlon frame.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Trinity Advanced Pro Tri Frameset has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
Trinity Advanced Pro Tri Frameset comes in 3 sizes, that range from 166 cm – 193 cm (5.45 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
