Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced SL-grade aero composite, electronic ready
Suspension Fork
Advanced SL-grade composite, full-composite steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano BSR1, bar end
Cassette
Shimano Ultegra 11x25, 11-speed
Crank
Shimano Ultegra, 39/53
Bottom Bracket
Shimano Press Fit
Chain
Shimano Ultegra
Pedals
N/A
Wheels
Front Hub
Formula, Sealed Bearing, [F] 24h, [R] 28h
Rear Hub
Formula, Sealed Bearing, [F] 24h, [R] 28h
Rims
Giant P-A2, Aero
Spokes
Sapim Race, 14/15g
Tires
Giant P-SLR2, front and rear specific, 700x23, folding
Brakes
Brakes
Giant Trinity SpeedControl
Brake Levers
Giant Trinity Advanced SL
Cockpit
Stem
AeroDrive Composite, 3 heights included
Handlebar
AeroDrive Composite Base Bar w/Composite Aero Extensions
Seat
Saddle
Fi'zi:k TT, K:ium rails
Seatpost
Giant Trinity Vector SLR, effective seattube angle adjustable from 78.0 to 74.7 degrees
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Top Tube Length | 500 mm | 522 mm | 533 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° |
| Head Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 80 mm | 110 mm | 140 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 991 mm | 1005 mm |
| Standover Height | 787 mm | 815 mm | 843 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

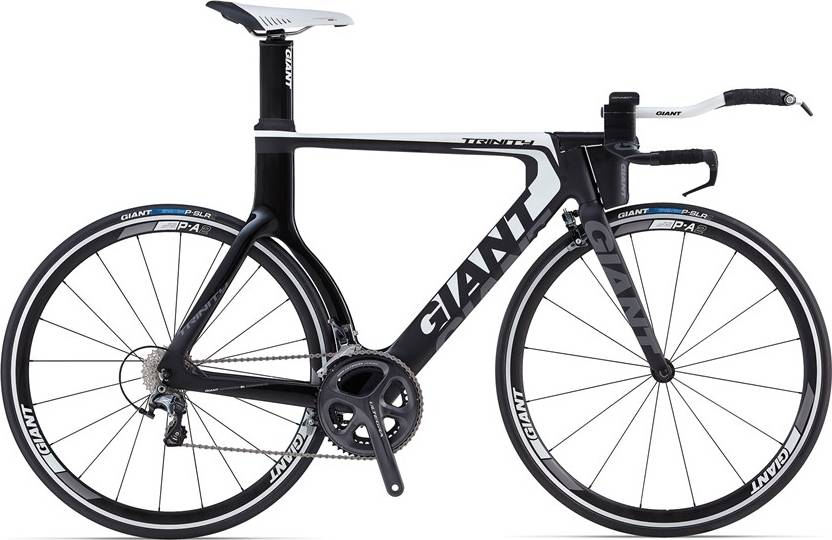

About this model
Trinity Advanced SL 1 completes the Giant Trinity model. Giant released 68 bikes variations of this model so far. Take a sneak peek at all Giant Trinity bikes models from 2014, by clicking here.
Model range prices
The most economical model, the Giant Trinity Composite 2 W 2014 has a starting price of 1925$. Giant Trinity Advanced SL 0 2014 on the other hand is the most expensive at 8775$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Triathlon bikes
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2014 for 5150$. Doing a quick comparison, we notice that Trinity Advanced SL 1 price is 23.29% higher than the average cost of a Triathlon bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Trinity Advanced SL 1 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Trinity Advanced SL 1 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
