Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite
Suspension Fork
Fox 32 Float SC Factory Kashima, FIT4 damper, Kabolt, Boost, OverDrive, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT, Shadow+
Front Derailleur
N/A
Shift Levers
Shimano Deore XT
Cassette
Shimano SLX 11x42, 11-speed
Crank
Shimano Deore XT, 32T
Bottom Bracket
Shimano, Press fit
Chain
KMC X11 EL
Pedals
N/A
Wheels
Front Hub
Giant XCR 1 Composite DBL WheelSystem; 28h, [F] Boost 110x15mm, [R] 142x12mm
Rear Hub
Giant XCR 1 Composite DBL WheelSystem; 28h, [F] Boost 110x15mm, [R] 142x12mm
Rims
Giant XCR 1 Composite DBL WheelSystem; 21mm wide, Tubeless compatible
Spokes
Giant XCR 1 Composite DBL WheelSystem; Sapim Laser
Tires
Schwalbe Racing Ralph, 27.5x2.25, Snakeskin, TL Easy, Pacestar
Brakes
Brakes
Shimano Deore XT, hydraulic disc, [F] 180mm [R] 160mm
Brake Levers
Shimano Deore XT
Cockpit
Stem
Giant Contact SL
Handlebar
Giant Contact SL Trail, 31.8mm
Seat
Saddle
Giant Contact SL Forward, SST tubular rails
Seatpost
Giant Contact, Composite, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.44 mm | 1.41 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 628 mm | 648 mm | 663 mm | 684 mm | 709 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 88 mm | 88 mm | 88 mm | 88 mm | 88 mm |
| Stack | 581 mm | 581 mm | 586 mm | 595 mm | 605 mm |
| Reach | 384 mm | 404 mm | 417 mm | 434 mm | 456 mm |
| Top Tube Length | 556 mm | 576 mm | 596 mm | 616 mm | 641 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 350 mm | 390 mm | 440 mm | 490 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1054 mm | 1074 mm | 1089 mm | 1110 mm | 1135 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 689 mm | 707 mm | 740 mm | 776 mm | 799 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

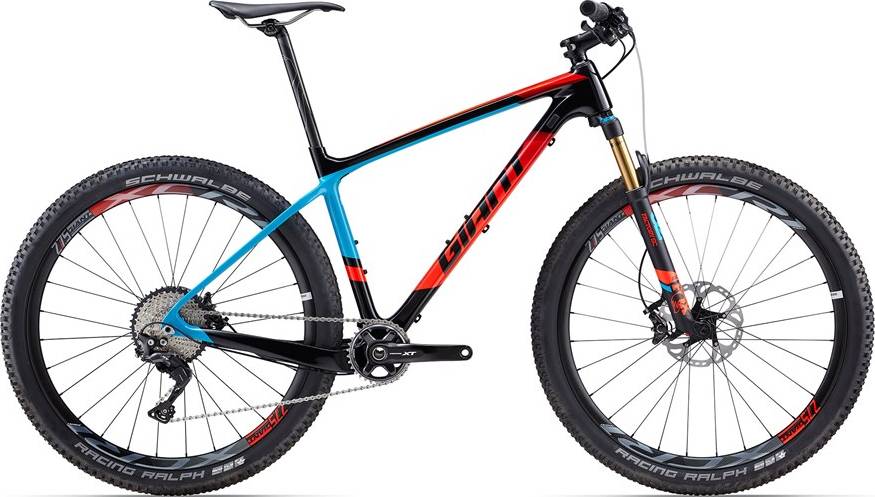

XTC Advanced 1 is a Giant Xtc model. There are 151 bikes that carry this model name. You can easily view all of the Giant Xtc bikes models from 2017, here.
Model range prices
The most economical model, the Giant XtC Jr 20 Lite 2017 has a starting price of 260$. Giant XTC Advanced 29 0 2017 on the other hand is the most expensive at 7200$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2017 for 4125$. Doing a quick comparison, we notice that XTC Advanced 1 price is 116.54% more expensive than the average cost of a Crosscountry bike.
XTC Advanced 1 components
Fork
This bike has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Giant XTC Advanced 1 2017, has a 27.5″ carbon model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Giant XTC Advanced 1 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
