Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite with horizontal dropouts
Suspension Fork
RockShox SID RL Remote, Charger Damper, OneLoc, Boost, Maxle Stealth, OverDrive, 100mm travel (not compatible with 27.5+ size tires)
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX Eagle
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle 10x50, 12-Speed
Crank
Truvativ Stylo 6k Eagle, 34T
Bottom Bracket
SRAM GXP, Press Fit
Chain
SRAM GX 12-speed
Pedals
N/A
Wheels
Front Hub
Giant XCR 1 29 composite WheelSystem; Pawl driver, Boost
Rear Hub
Giant XCR 1 29 composite WheelSystem; Pawl driver, Boost
Rims
Giant XCR 1 29 composite WheelSystem; 27mm wide, tubeless
Spokes
Giant XCR 1 29 Composite WheelSystem; Dynamic Balanced Lacing, Sapim butted stainless steel
Tires
Maxxis IKON 29x2.2, Tubeless, 3C, EXO, Folding, 120 TPI
Brakes
Brakes
SRAM Level TL, hydraulic disc, [F] 180mm, [R] 160mm
Brake Levers
SRAM Level TL
Cockpit
Stem
Giant Contact
Handlebar
Giant Contact SL XC, Flat
Seat
Saddle
Giant Contact SL Forward
Seatpost
Giant Contact, composite, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 656 mm | 670 mm | 684 mm | 704 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm |
| Stack | 619 mm | 619 mm | 628 mm | 638 mm |
| Reach | 405 mm | 419 mm | 430 mm | 447 mm |
| Top Tube Length | 592 mm | 612 mm | 632 mm | 652 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 390 mm | 440 mm | 490 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1081 mm | 1095 mm | 1109 mm | 1129 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 746 mm | 772 mm | 804 mm | 834 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

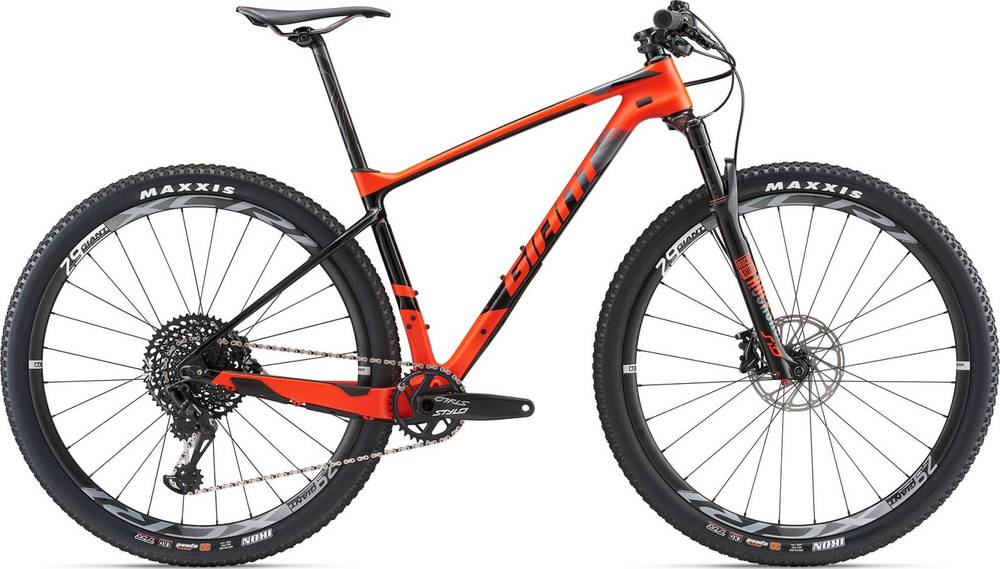

About this model
XTC Advanced 29 1 is a Giant Xtc model. 151 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Giant XTC Jr 20 Lite 2018 is the cheapest bike model and costs 240$. Giant XTC Advanced 29 1 2018 is the most expensive one and costs 4080$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2018 for 4080$. Doing a quick comparison, we notice that XTC Advanced 29 1 price is 114.17% more expensive than the average cost of a Crosscountry bike.
Overview of components
Fork
This bike has the RockShox SID fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Giant XTC Advanced 29 1 2018, has a 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The XTC Advanced 29 1 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
XTC Advanced 29 1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
