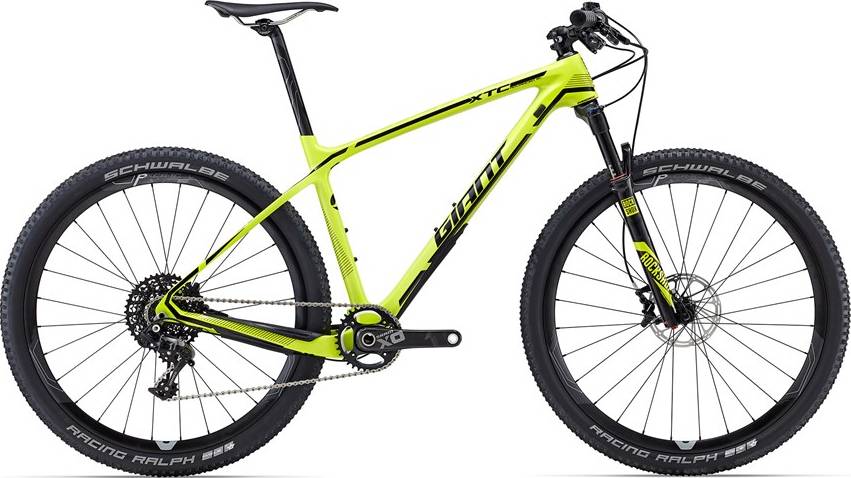

Giant XtC Advanced SL 27.5 1 2016
2016 Mountain
Estimate price |
4,600$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset X01 -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced SL-grade composite
Suspension Fork
RockShox SID RL w/ Pushloc lockout, 15mm thru-axle, OverDrive steerer, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X01, Type 2
Front Derailleur
N/A
Shift Levers
SRAM X01 Trigger, Rear only
Cassette
SRAM XG-1180 10x42, 11-speed
Crank
SRAM X01, 34T
Bottom Bracket
SRAM, Press Fit
Chain
KMC X11L
Pedals
N/A
Wheels
Front Hub
Giant XCR 1 Composite WheelSystem; 28h, [F] 15mm axle, [R] 142x12 axle
Rear Hub
Giant XCR 1 Composite WheelSystem; 28h, [F] 15mm axle, [R] 142x12 axle
Rims
Giant XCR 1 Composite WheelSystem; 25mm wide, Tubeless compatible
Spokes
Giant XCR 1 Composite WheelSystem; Sapim Race 14/15g
Tires
Schwalbe Racing Ralph, Evo, 27x2.1, Tubeless ready, Folding
Brakes
Brakes
SRAM Guide RS, Hydraulic disc, [F] 160mm [R] 140mm
Brake Levers
SRAM Guide RS, Hydraulic disc
Cockpit
Stem
Giant Contact SL
Handlebar
Contact SLR XC, Flat, Composite, 31.8mm
Seat
Saddle
Giant Contact, forward
Seatpost
Giant Contact SLR, Composite, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.406 mm | 1.372 mm | 1.327 mm |
| Stack | 580 mm | 585 mm | 594 mm | 604 mm |
| Reach | 403 mm | 416 mm | 433 mm | 455 mm |
| Top Tube Length | 574 mm | 594 mm | 615 mm | 640 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 94 mm | 99 mm | 109 mm | 119 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1074 mm | 1087 mm | 1110 mm | 1133 mm |
| Standover Height | 706 mm | 739 mm | 775 mm | 798 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
XtC Advanced SL 27.5 1 completes the Giant Xtc model. 151 bikes variations carry this model name so far. Check out the entire range from 2016 of this model, by clicking this link.
Model range prices
The most economical model, the Giant XTC Jr 20 Lite 2016 has a starting price of 235$. Giant XtC Advanced SL 27.5 0 2016 on the other hand is the most expensive at 8900$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2016 for 4600$. If we compare this with the average Crosscountry bike cost we notice that the price is 141.47% more expensive.
Overview of components
Fork
This bike has the RockShox SID fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Giant XtC Advanced SL 27.5 1 2016, has a 27.5″ carbon model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
XtC Advanced SL 27.5 1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
