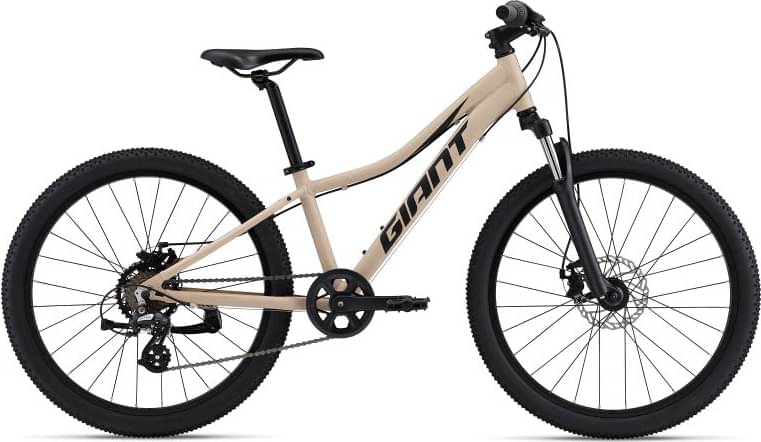

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 50mm -
Fork Giant
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
One Size
130cm - 150cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminium
Suspension Fork
Giant WIN254, 50mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
N/A
Shift Levers
Shimano REVOSHIFT, 1x7
Cassette
14x34
Crank
Alloy, 32t, 140mm
Bottom Bracket
Semi-cartridge
Chain
KMC HV500
Pedals
Platform
Wheels
Front Hub
Nutted, 28h
Rear Hub
Nutted, 28h
Rims
Giant Kids 24", alloy
Spokes
Stainless, 14g
Tires
Giant Junior Sport 24x2.1", 22 tpi
Brakes
Brakes
Mechanical disc [F]160mm, [R]140mm rotors
Brake Levers
Alloy, junior MTB
Cockpit
Stem
Forged alloy Ahead, 8-degree
Handlebar
Giant Sport, alloy, 31.8mm
Grips
Giant Junior
Seat
Saddle
Giant Jr. Sports
Seatpost
Alloy, single-bolt, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.46 mm |
| Front Center | 574 mm |
| Rake | 40 mm |
| Trail | 69 mm |
| Stack | 525 mm |
| Reach | 359 mm |
| Top Tube Length | 527 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 305 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 417 mm |
| Wheelbase | 990 mm |
| Bottom Bracket Drop | 24 mm |
| Standover Height | 620 mm |
| Wheels | 24" |
| Rider Min Height | 130 cm |
| Rider Max Height | 150 cm |
About this model
XtC Jr Disc 24 belongs to the Giant Xtc model. There are 151 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Giant XtC Jr 20 2022 is the cheapest bike model and costs 305$. Giant XTC Advanced SL 29 1 2022 is the most expensive one and costs 4139$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Mountain bikes
According to our math, the average price for a trustworthy Mountain bike is 616$. However, even if your budget is less than the average, you might still be able to get a top-quality Mountain bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 381$. Comparing the average cost of a Mountain bike to this one, you will see that XtC Jr Disc 24 price is 61.68% lower.
Overview of components
Fork
This bike has the Giant fork installed. The fork’s travel is 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the XtC Jr Disc 24 model has 24″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Giant XtC Jr Disc 24 2022 is available in one size only. In short, make sure you double-check if it fits you.
