Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 167cm
MD
164cm - 179cm
LG
176cm - 187cm
XL
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

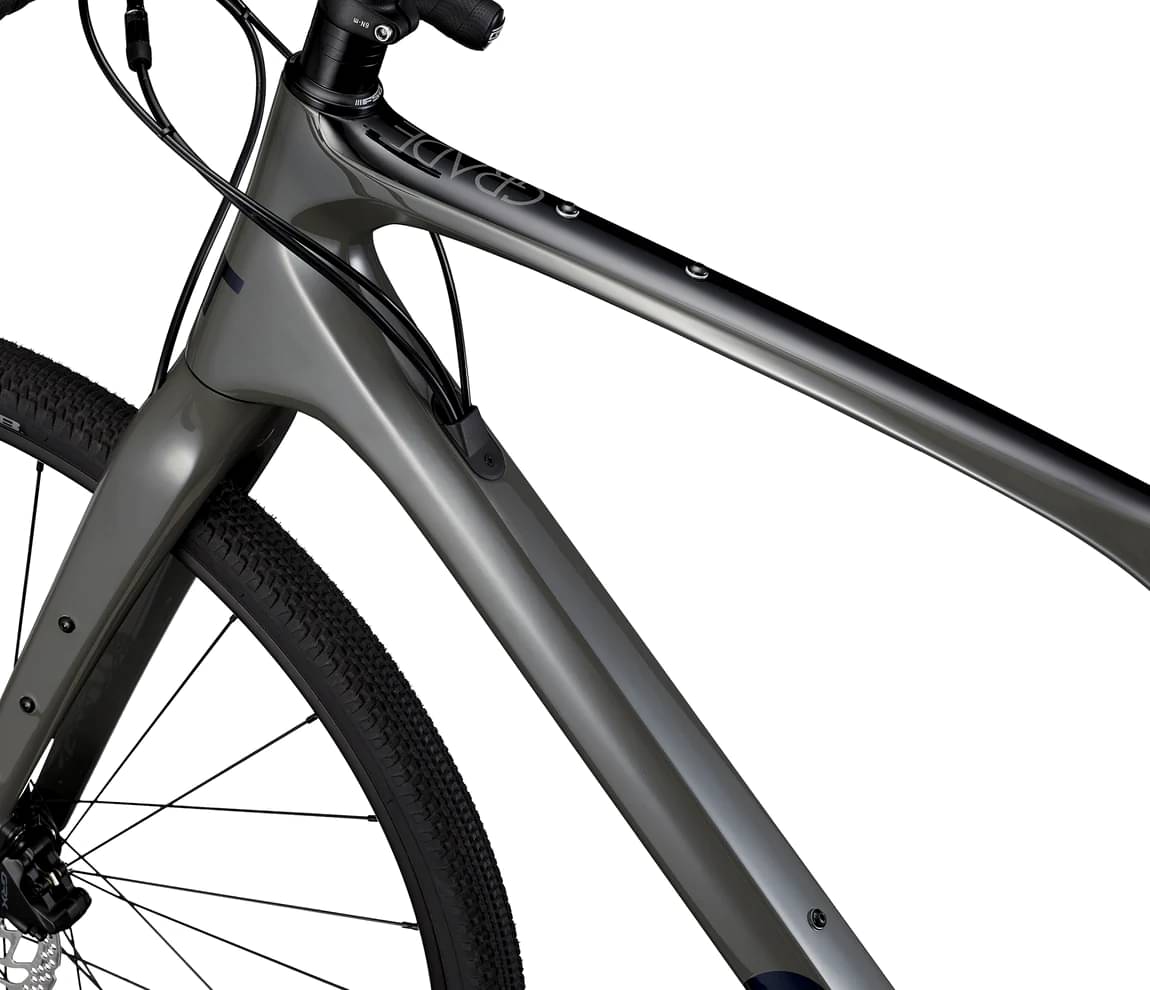

Frame
Frame

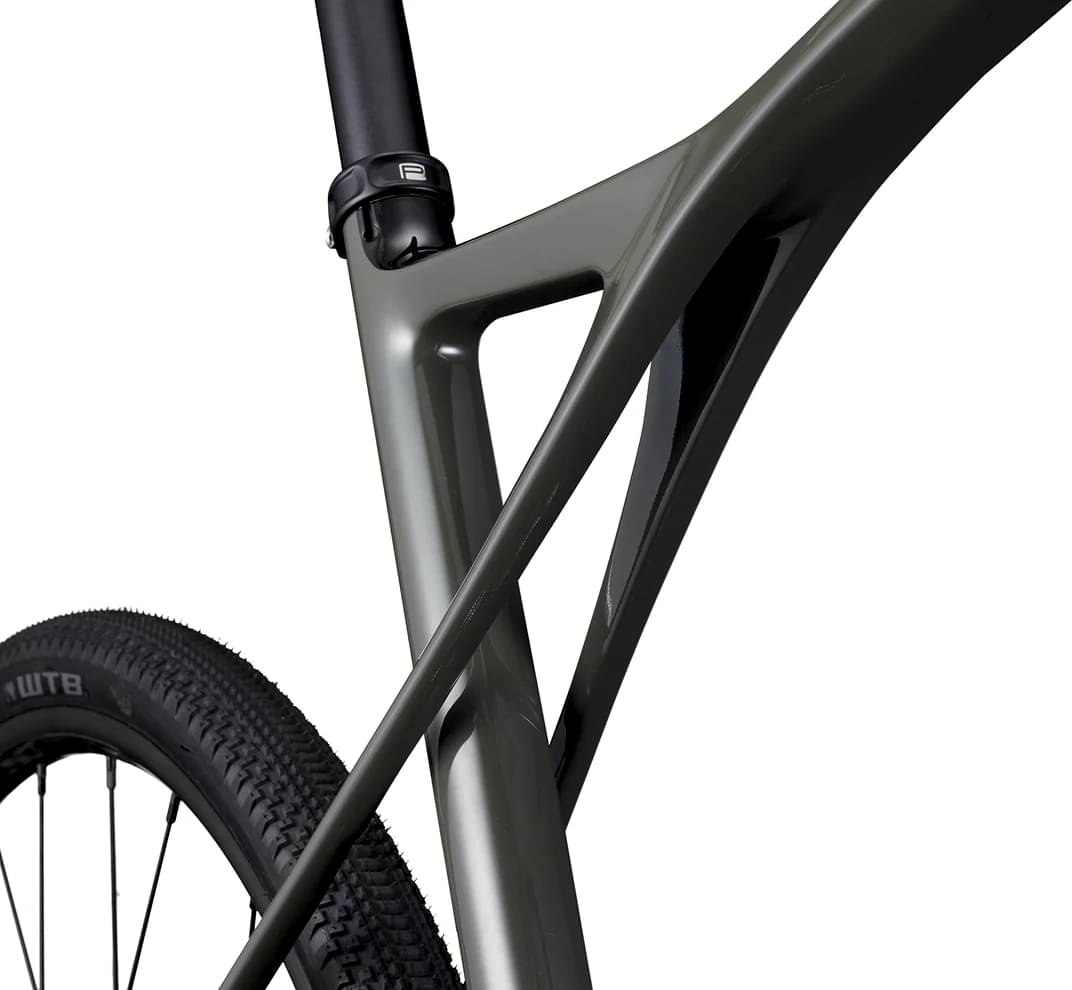

Grade Carbon Frame, Triple Triangle Design feat. Floating Seatstays, 12x142mm Thru Axle
Suspension Fork
Grade Carbon Fork, 1.5 Tapered Carbon Steerer, 12x100 Thru Axle

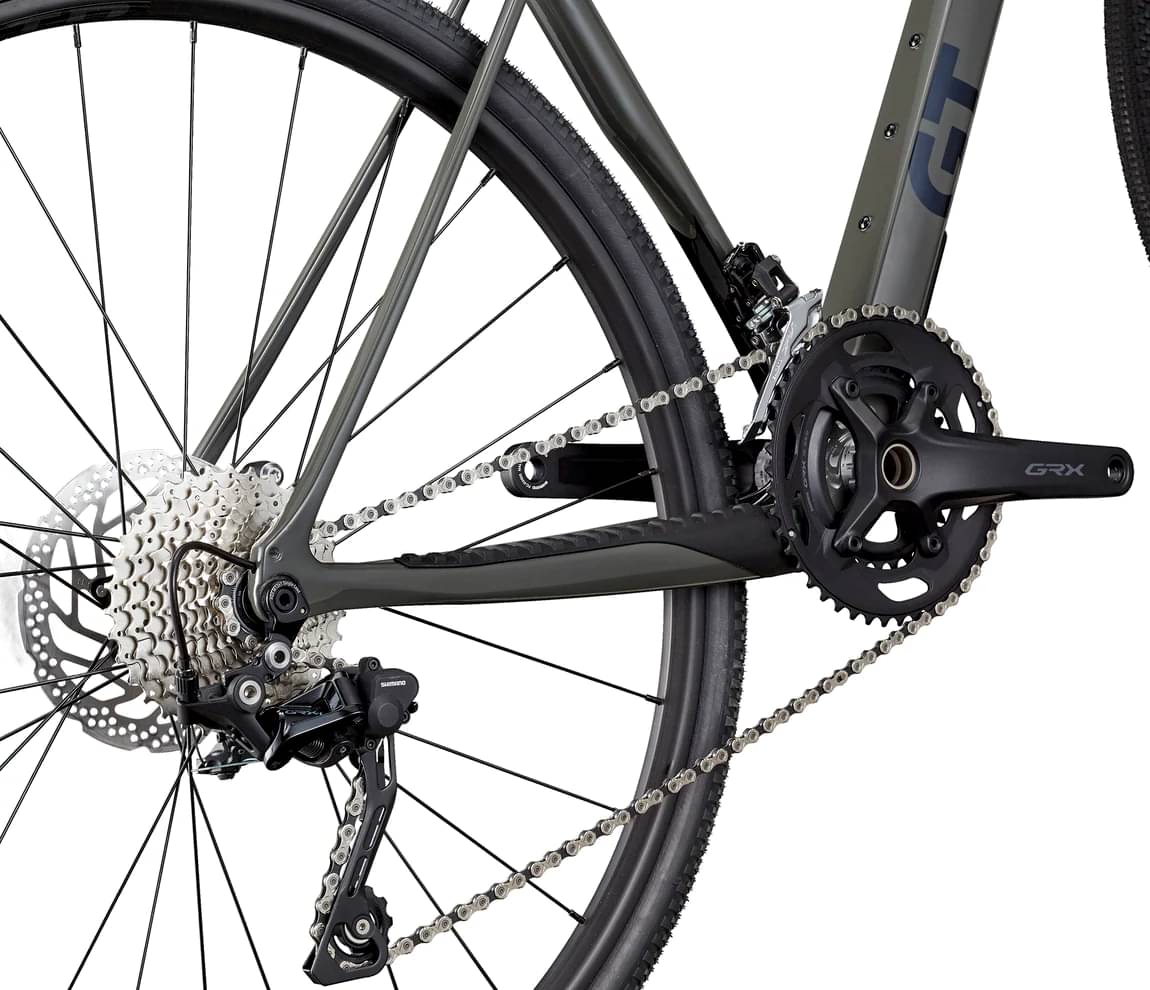

Drivetrain
Rear Derailleur
Shimano GRX RX400, Shadow Plus

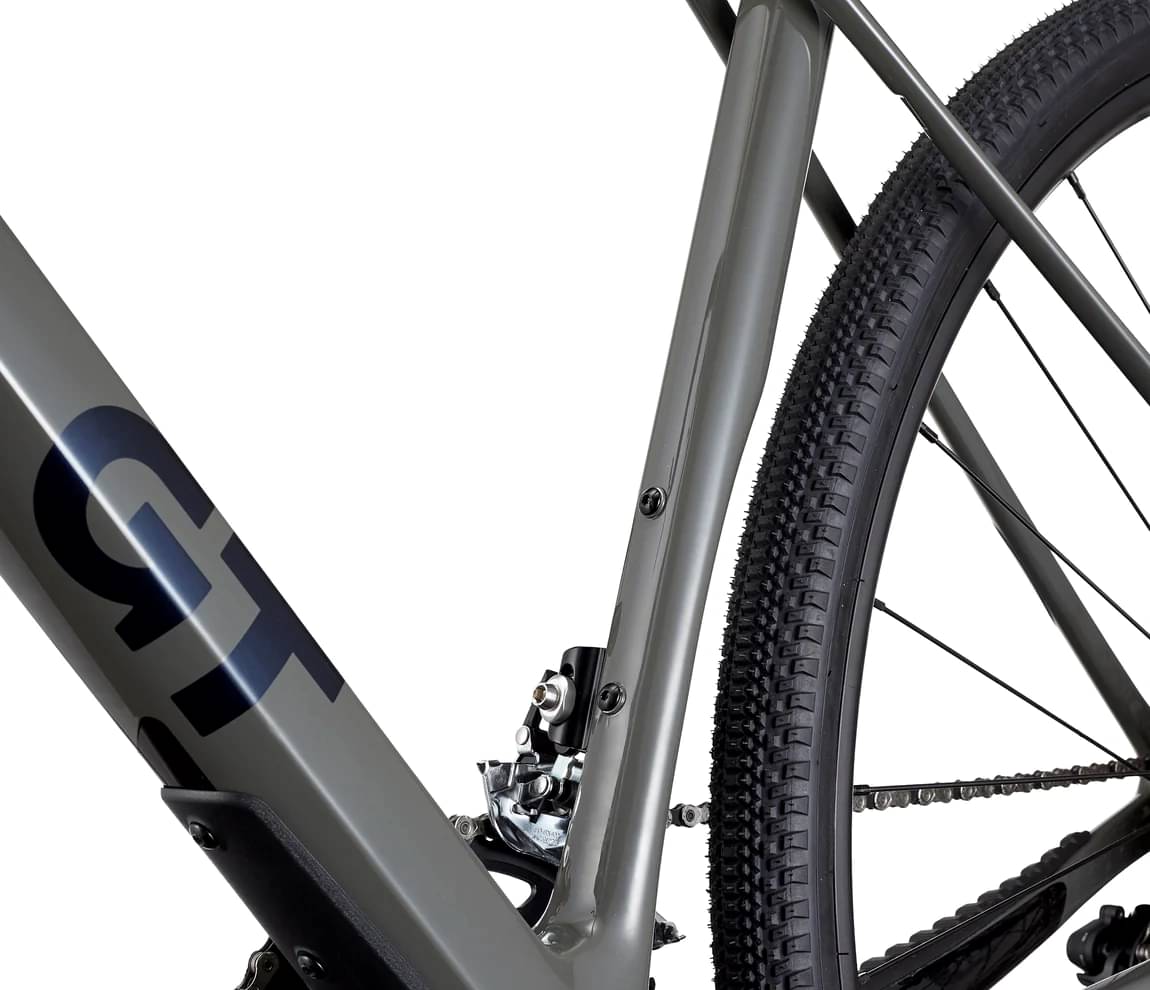

Front Derailleur
Shimano GRX RX-400
Shift Levers
Shimano GRX 400 2x10
Cassette
Shimano HG5001, 11-34T

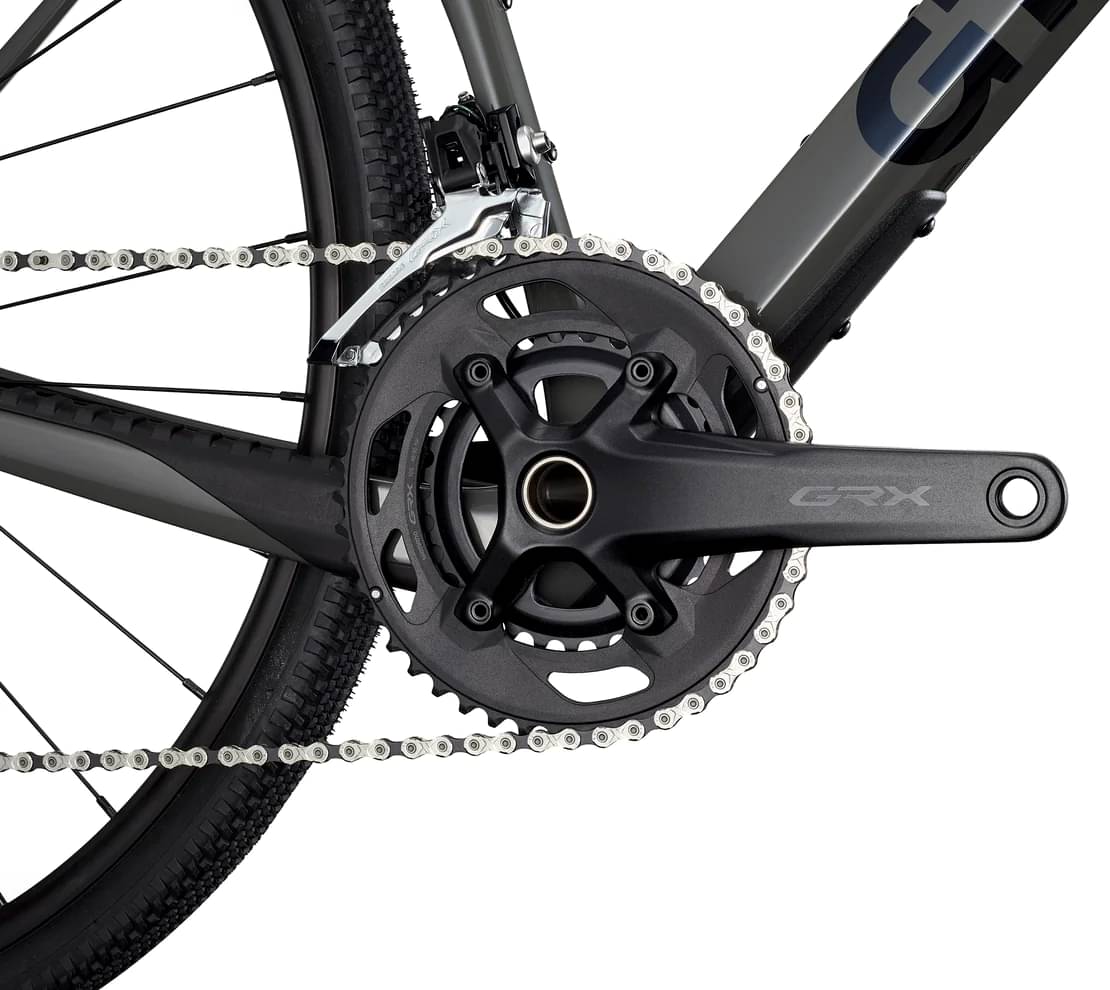

Crank
Shimano GRX RX6001, 46/30T
Bottom Bracket
Shimano RS500 BSA
Chain
KMC X10, 10-speed
Wheels
Front Hub
Formula CL-712, 12x100mm Centerlock
Rear Hub
Formula, 12x142mm Centerlock
Rims
WTB ST i23 TCS 2.0, 28h, Tubeless Ready
Tires
Front: WTB Vulpine TCS Light, 700x40c, Dual DNA Compound, TCS Aramid Bead, Rear: WTB Vulpine TCS Light, 700x40c, Dual DNA Compound, TCS Aramid Bead

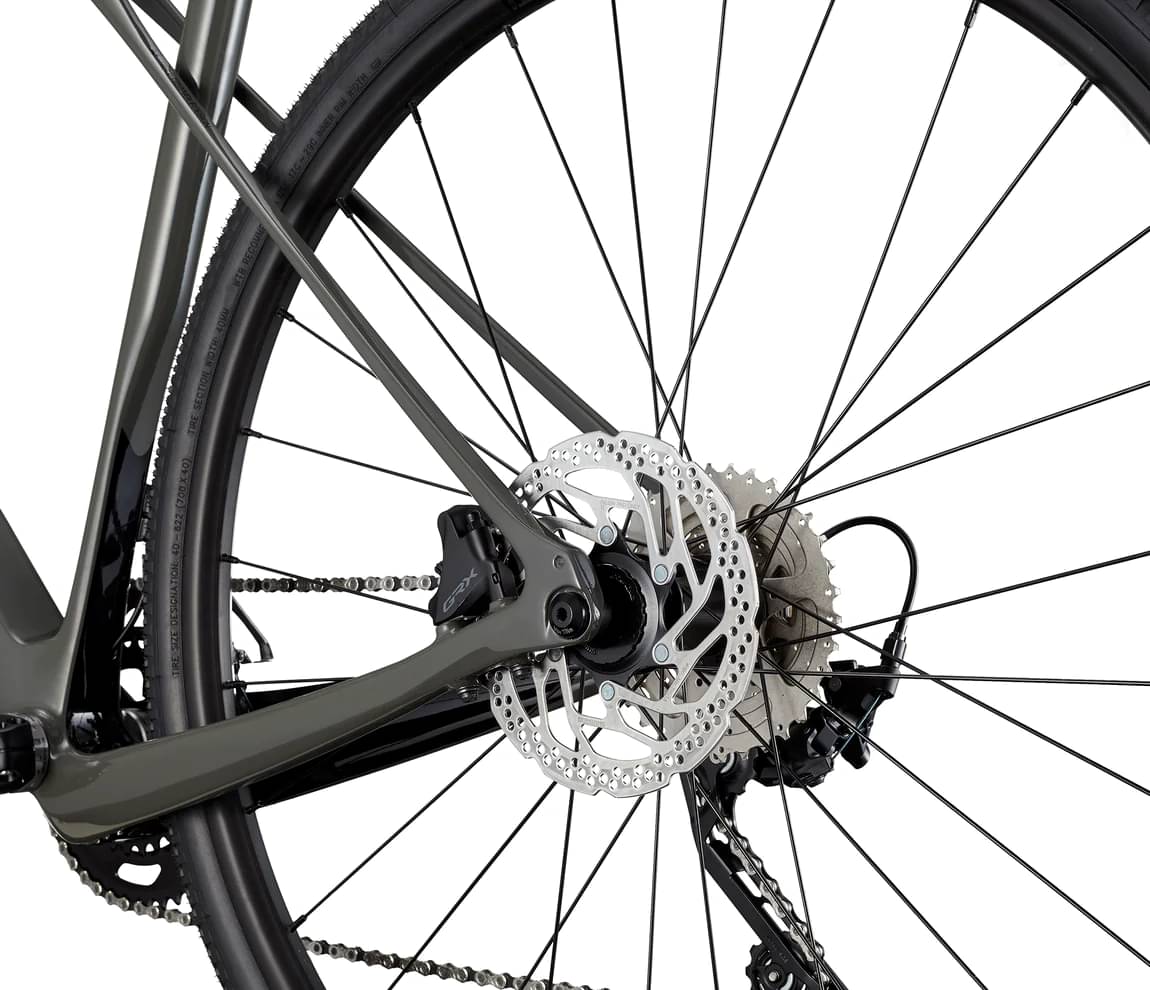

Brakes
Brakes
Shimano GRX 400, 160/160mm RT30 Rotors

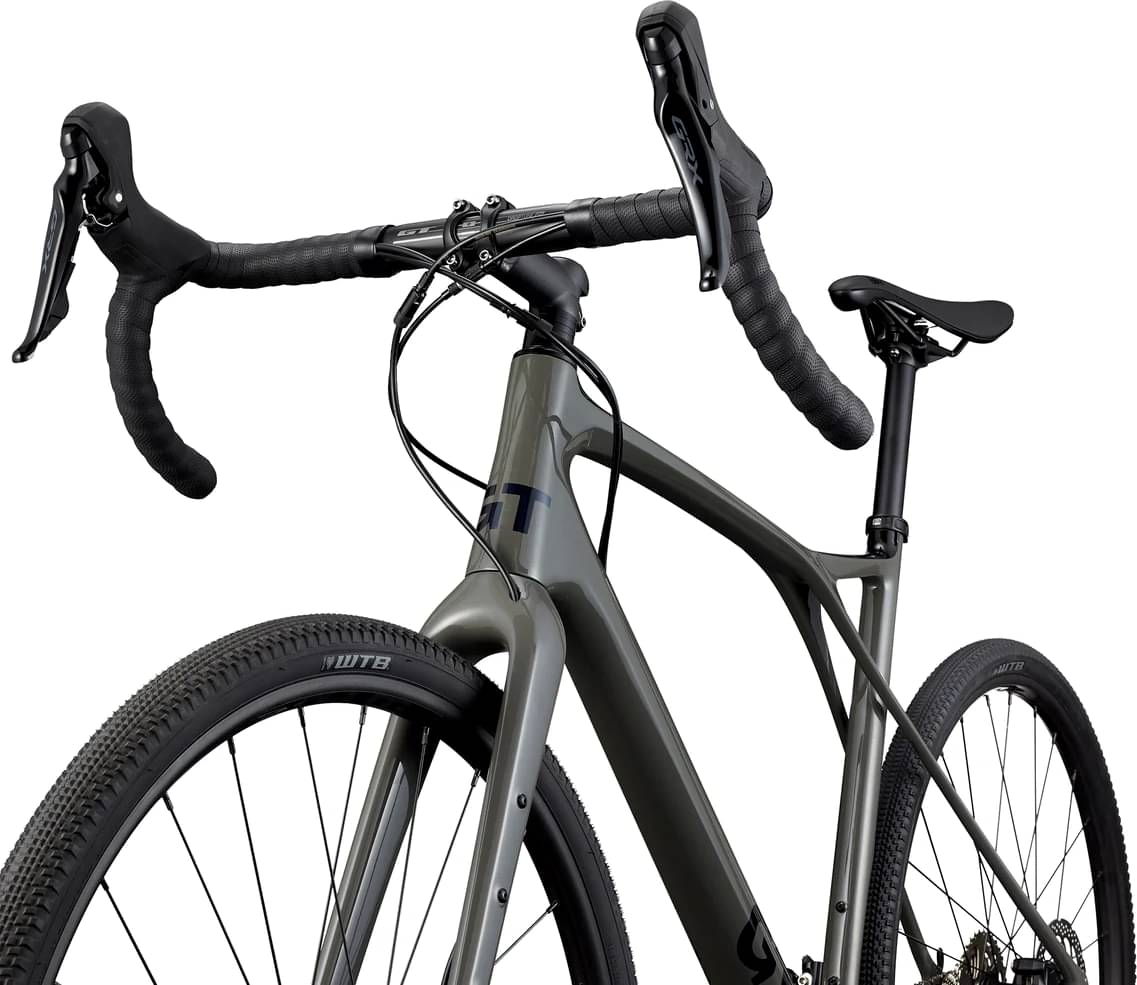

Cockpit
Stem
GT 3D Forged SL Alloy, 31.8
Handlebar
GT DropTune RS, Alloy, 16° Flare
Grips
GT Gravel Grip Premium Tape
Headset
FSA No.42 ACB
Seat
Saddle
WTB Silverado
Seatpost
GT Carbon, 27.2mm 350mm (S/M/L-350mm), XL-400mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 621 mm | 650 | 680 mm | 710 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 549 mm | 576 mm | 602 mm | 629 mm |
| Reach | 384 mm | 404 mm | 424 mm | 444 mm |
| Top Tube Length | 552 mm | 580 mm | 608 mm | 637 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 106 mm | 134 mm | 162 mm | 191 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1039 mm | 1068 mm | 1098 mm | 1128 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 729 mm | 752 mm | 791 mm | 815 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 164 cm | 176 cm | 184 cm |
| Rider Max Height | 167 cm | 179 cm | 187 cm | 198 cm |
Model Overview
Grade Carbon Elite is part of the Gt Grade model. GT released 34 bikes variations of this model so far. Take a sneak peek at all Gt Grade bikes models from 2023, by clicking here.
Model range prices
GT Grade Sport 2023 is the most affordable bike of this model and has a price of 1500$. On the other hand, GT Grade Carbon Pro LE 2023, is the most expensive and costs 4200$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 2500$. Comparing the average cost of a Gravel bike to this one, you will see that Grade Carbon Elite price is 1.54% more expensive.
Overview of components
Fork material
Grade Carbon Elite has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, GT Grade Carbon Elite 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. GT Grade Carbon Elite is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
GT Grade Carbon Elite bike has 4 sizes, in the range of 152 cm – 198 cm (4.99 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
