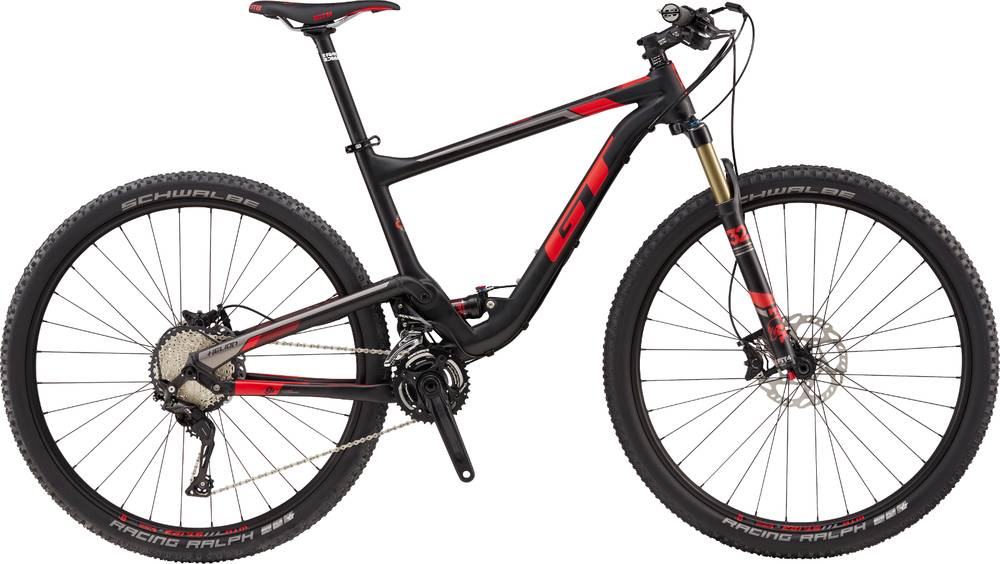

GT Helion Carbon Expert 9R 2017
2017 Mountain
Estimate price |
4,260$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 110mm -
Fork Fox Performance Float 32
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FOC Ultra Carbon Front w/ 6069 Hydroformed Alloy Rear, 110mm AOS Suspension System 1 1/8?-1 1/2? Integrated Head Tube, and 12x142mm Maxle Dropouts
Suspension Fork
Fox Performance 32 Float SC 29", 100mm Travel, 15QR x 110mm, Remote Lockout & Rebound Adjust
Rear Shock
Fox Performance Elite Float, 6.5"x1.5" Air Shock, w/ Rebound Adjust & Remote Lockout
Drivetrain
Rear Derailleur
Deore XT Shadow Plus SGS
Front Derailleur
Shimano SLX
Shift Levers
Shimano SLX, Rapid Fire
Cassette
Shimano SLX, 11-Speed, 11-42T
Crank
Race Face Ride, 36/26T, 2x11
Bottom Bracket
Race Face
Chain
KMC X11
Pedals
N/A
Wheels
Front Hub
(F) Shimano SLX 7010, Centerlock Disc, 15x110mm Thru Axle, (R) SLX 7010 Centerlock Disc, 12x142 Thru Axle
Rear Hub
(F) Shimano SLX 7010, Centerlock Disc, 15x110mm Thru Axle, (R) SLX 7010 Centerlock Disc, 12x142 Thru Axle
Rims
WTB STS i23 29", Tubeless Compatible, 32H
Tires
(F) Schwalbe Racing Ralph Snakeskin 29x2.25" Folding TL-Easy, (R) 29x2.0" Folding TL-Easy
Brakes
Brake Levers
Shimano SLX
Cockpit
Stem
Race Face Ride 35, 1-1/8" Threadless, 6? Rise, 35mm Clamp, 80mm
Handlebar
Race Face Ride 35, Low Rise, 740mm Width
Grips
GT Statement Single Lock-on Grips
Headset
FSA Orbit C-40-ACB
Seat
Saddle
WTB Silverado Race SL, Cromoly Rail
Seatpost
Race Face Ride, 31.6x375mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Helion Carbon Expert 9R belongs to the Gt Helion model. 3 bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
GT Helion Elite GTw 2017 is the cheapest bike model and costs 2130$. GT Helion Carbon Expert 9R 2017 is the most expensive one and costs 4260$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When GT released this model in 2017, its price was 4260$. Comparing this to the average Crosscountry bike price, we see that the price is 123.62% more expensive.
Overview of components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Fox Performance Elite Float, with a travel distance of 110mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, GT Helion Carbon Expert 9R 2017, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. GT Helion Carbon Expert 9R is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
