Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6069 Hydroformed Aluminum Frame, 130mm AOS Suspension System 1 1/8?-1 1/2? Integrated Head Tube, and 135mm QR Dropouts
Suspension Fork
RockShox Recon RL 27.5 Solo Air, 140mm Travel, 15x100mm Maxle, w/ Lockout & Rebound Adjust
Rear Shock
RockShox Monarch RL Air Shock, w/ Rebound Adjust & Lockout
Drivetrain
Rear Derailleur
SRAM NX 1x11 Speed
Front Derailleur
N/A
Shift Levers
SRAM NX 1x11 Trigger, Right Side Only
Cassette
Sunrace CSMS8, 11-Speed, 11-42T
Crank
Race Face Ride 32T
Bottom Bracket
Race Face
Chain
KMC X11-1
Chain Guide
e*thirteen TRSR HD
Pedals
none
Wheels
Front Hub
(F) All Terra Tall Flange Alloy Centerlock Disc, Sealed Bearing, 15x100mm Thru Axle, (R) Shimano M6000 Centerlock
Rear Hub
Front: All Terra Tall Flange Alloy, 15mm x 100mm:, Rear: Shimano M6000, 135mm quick release skewer
Rims
WTB STP i25, Tubeless Compatible, 32H
Tires
(F) Schwalbe Nobby Nic Performance, Folding TL-Ready, 27.5x2.35" (R) 27.5x2.25"
Brakes
Brakes
Shimano M425 Hydraulic, 180/180mm Centerlock Rotor
Brake Levers
Shimano BL-M425
Cockpit
Stem
Race Face Ride, 1-1/8" Threadless, 6? Rise, 31.8mm Clamp, 60mm
Handlebar
All Terra AL6061 DB, 760mm, 15 Rise
Grips
GT Statement Single Lock-on Grips
Headset
FSA Orbit C-40-ACB
Seat
Saddle
WTB Silverado Sport
Seatpost
All Terra 2-bolt, 34.9x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.45 mm | 1.42 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 603 mm | 581 mm | 601 mm | 616 mm | 631 mm |
| Reach | 385 mm | 400 mm | 422 mm | 446 mm | 470 mm |
| Top Tube Length | 563 mm | 579 mm | 608 mm | 636 mm | 665 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 406 mm | 426 mm | 476 mm | 527 mm |
| Head Tube Angle | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 92 mm | 92 mm | 108 mm | 124 mm | 140 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1101 mm | 1112 mm | 1142 mm | 1172 mm | 1202 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 738 mm | 744 mm | 731 mm | 758 mm | 800 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

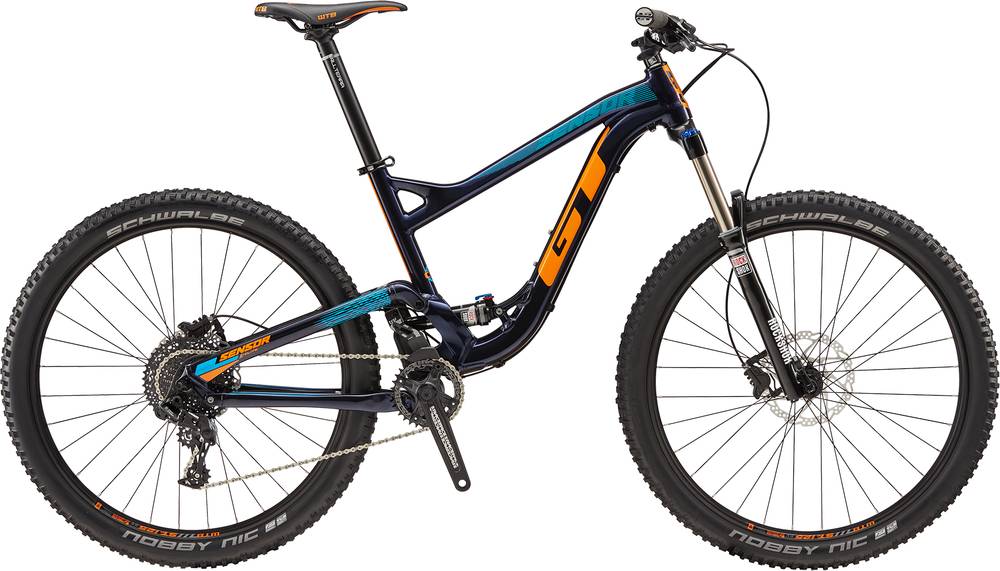

Sensor Elite is a Gt Sensor model. GT launched 38 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
GT Sensor Alloy Sport 2018 is the most economical model, with a starting price of 1799$. GT Sensor Carbon Pro 2018 on the other hand costs 4999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, GT Sensor Elite price was 3200$. If we compare this with the average Trail bike cost we notice that the price is 15.86% higher.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
GT Sensor Elite bike has the RockShox Monarch RL Air Shock model installed, and has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Sensor Elite are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sensor Elite comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
