Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Suspension Hardtail
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revved Carbon front triangle and swingarm. Alloy seatstay.
Suspension Fork
None
Rear Shock
None 160 mm
Drivetrain
Bottom Bracket
73 mm BSA threaded
Wheels
Tires
Front: None, Rear: None
Brakes
Brakes
None
Cockpit
Stem
None
Handlebar
None
Grips
None
Seat
Saddle
None
Seatpost
30.9 mm with stealth dropper routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Size 2 | Size 3 | Size 4 |
|---|---|---|---|
| Stack Reach Ratio | 1.392 mm | 1.353 mm | 1.313 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm |
| Stack | 618 mm | 636 mm | 654 mm |
| Reach | 444 mm | 470 mm | 498 mm |
| Top Tube Length | 600 mm | 630 mm | 666 mm |
| Seat Tube Angle | 76.1 ° | 76 ° | 75.9 ° |
| Seat Tube Length | 400 mm | 430 mm | 480 mm |
| Head Tube Angle | 63.6 ° | 63.6 ° | 63.6 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1239 mm | 1273 mm | 1311 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Standover Height | 743 mm | 744 mm | 745 mm |
| Wheels | 29" | 29" | 29" |
Model Overview

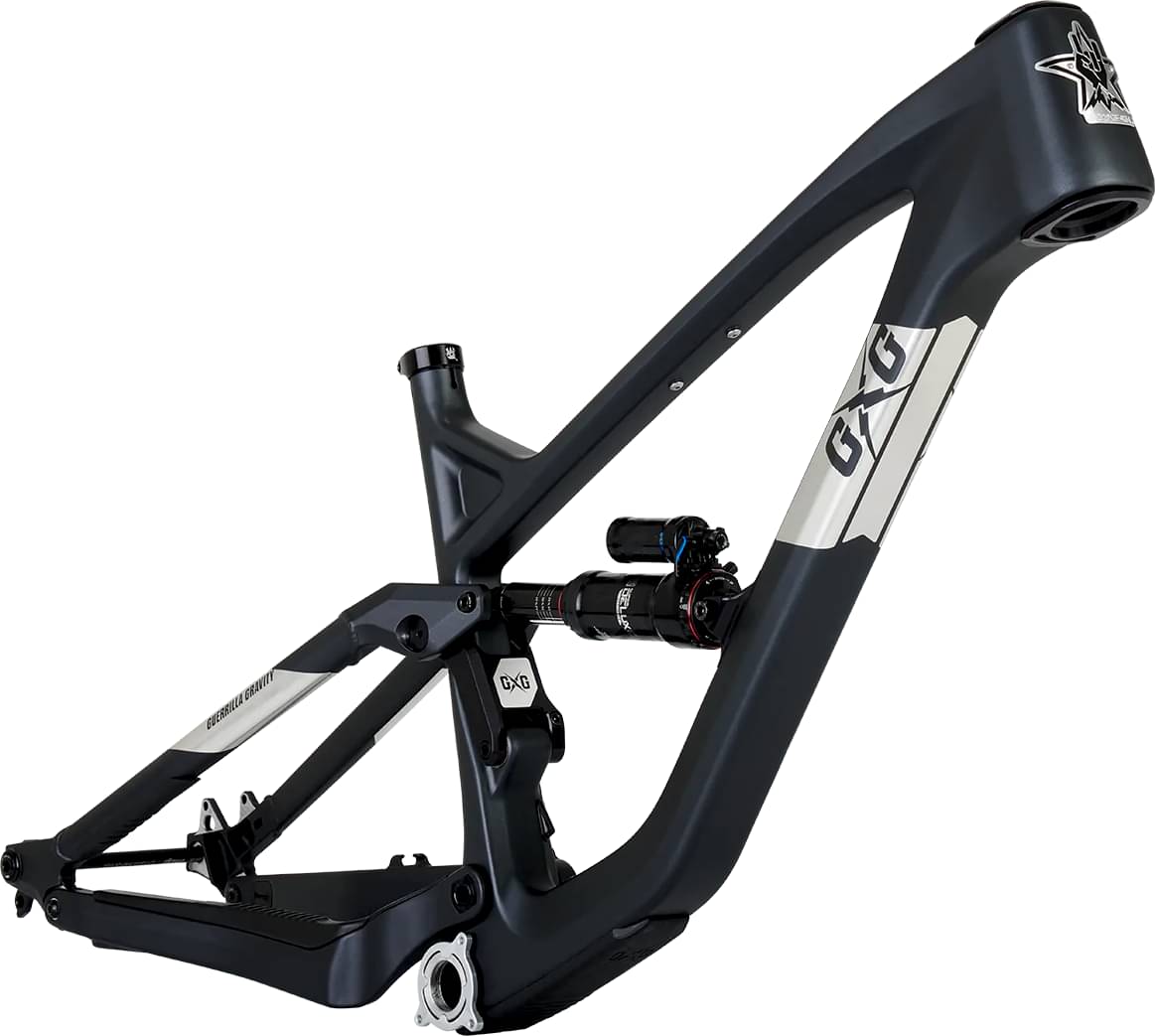

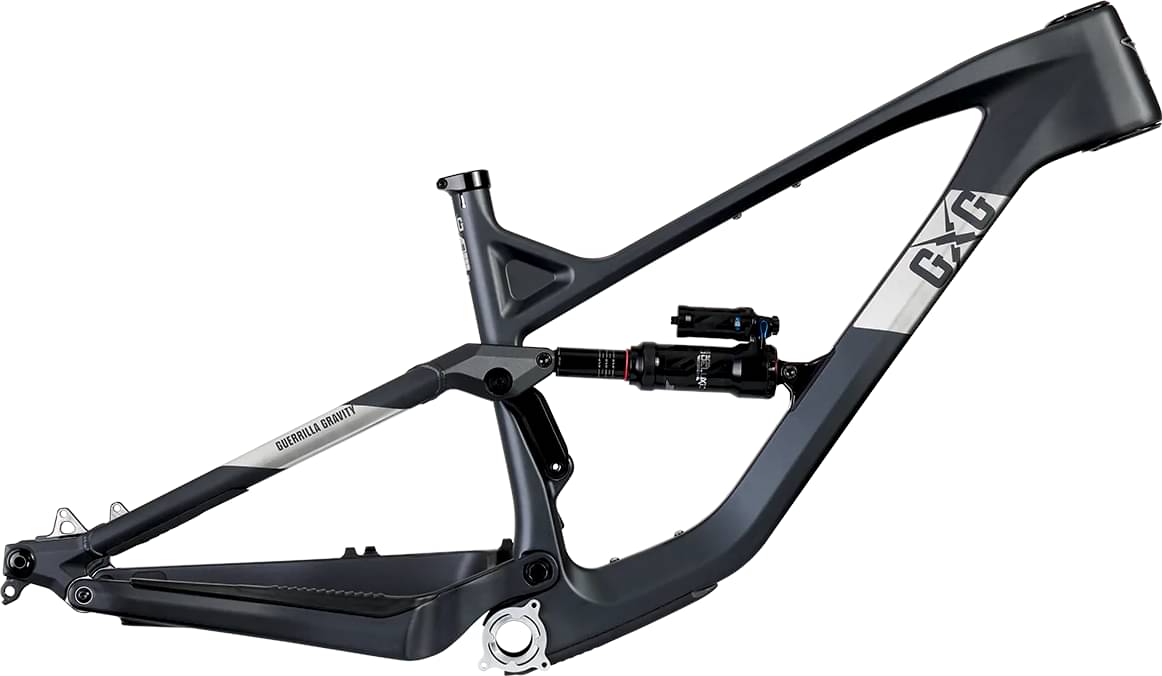

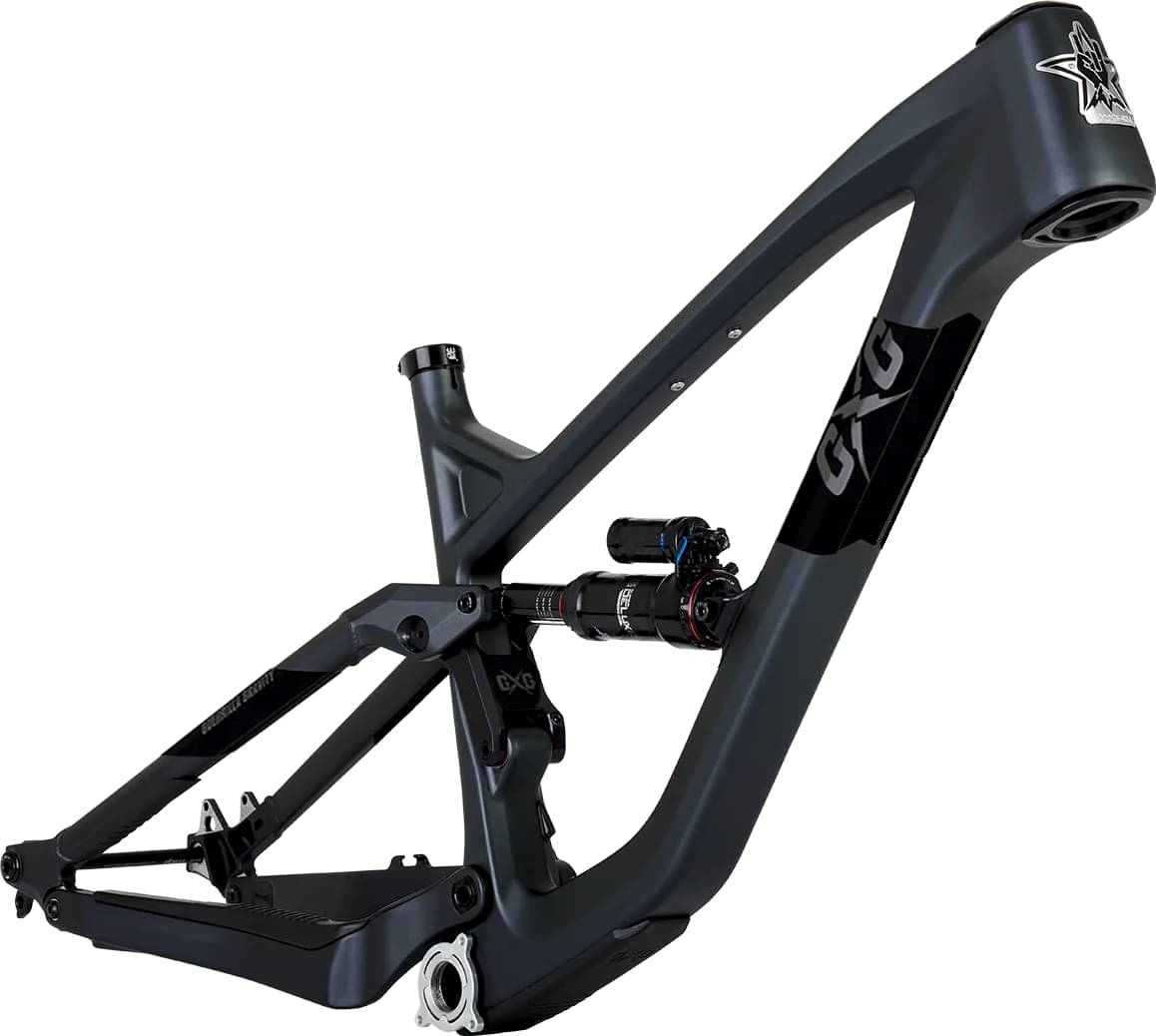

Gnarvana – Frameset is a Guerrillagravity Gnarvana model. Guerrilla Gravity released 12 frames variations of this model so far. You can easily view all of the Guerrillagravity Gnarvana frames models from 2022, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro frames
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Dropper post
Guerrilla Gravity Gnarvana – Frameset includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
