Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5"
Parts list
Components
Main components, grouped by system.
Bike components

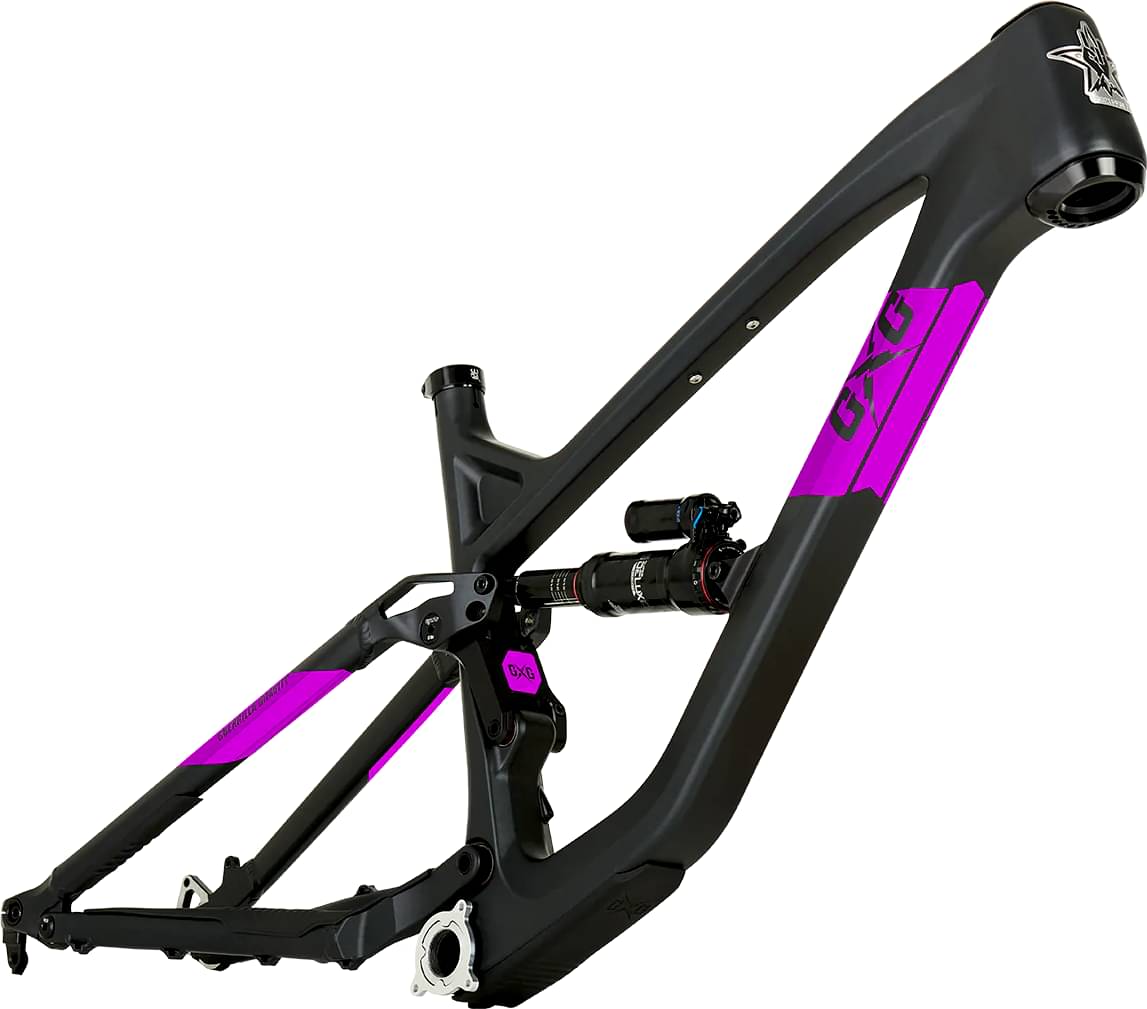

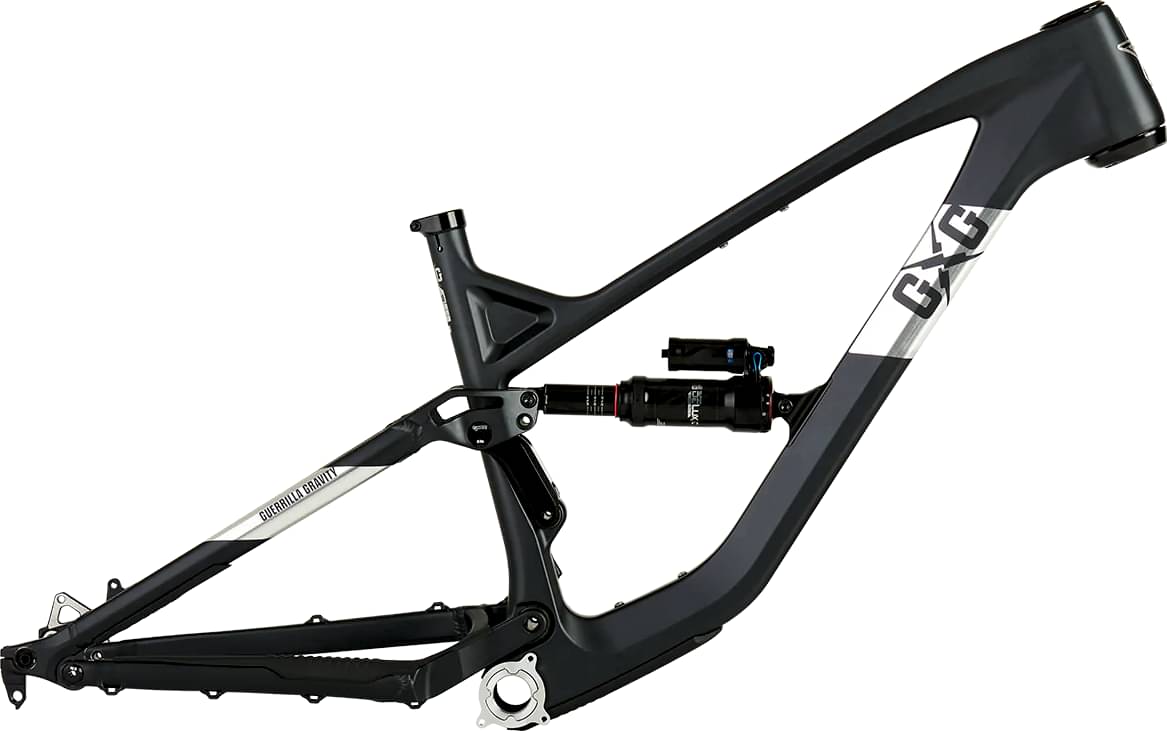

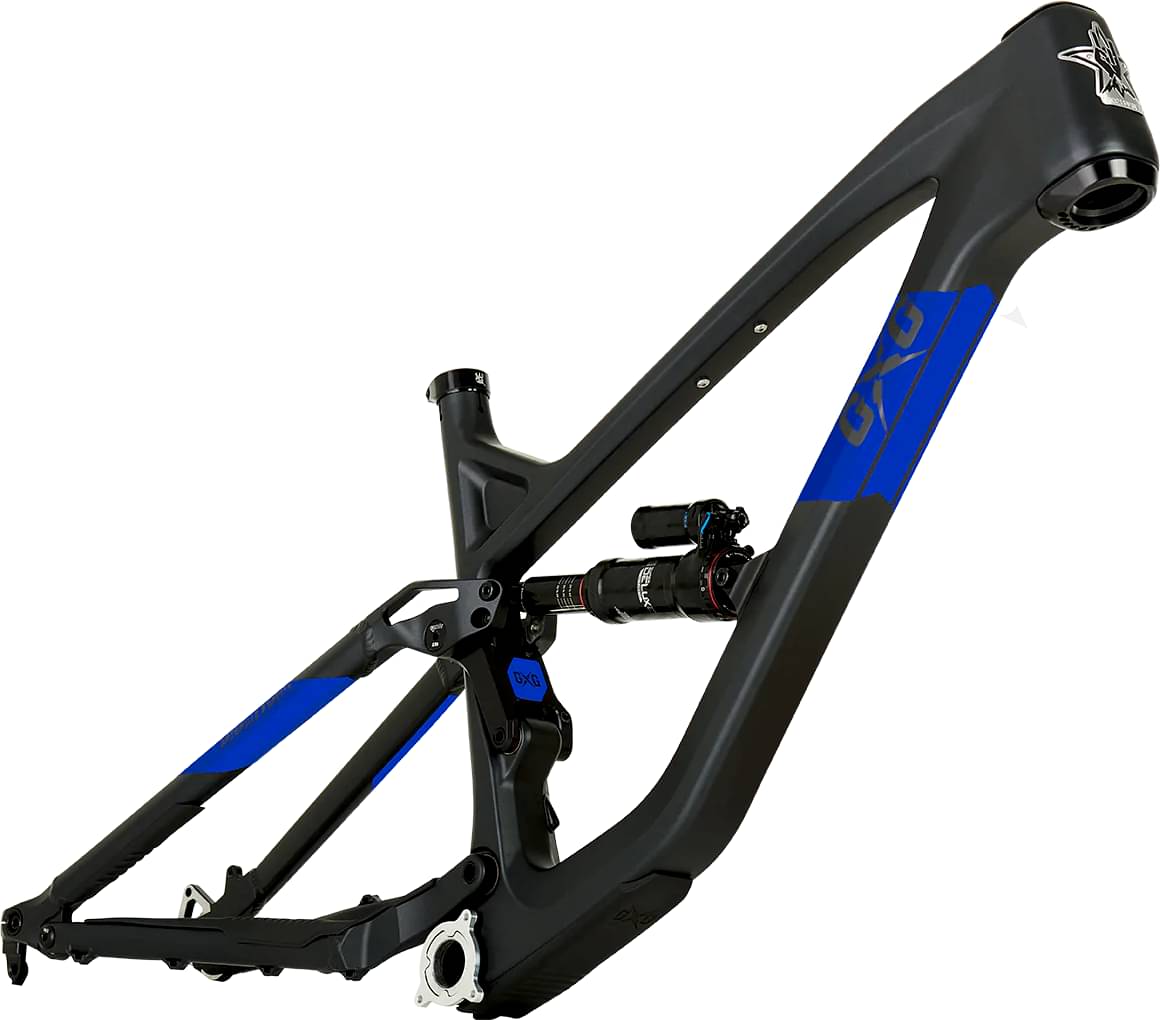

Frame
Frame

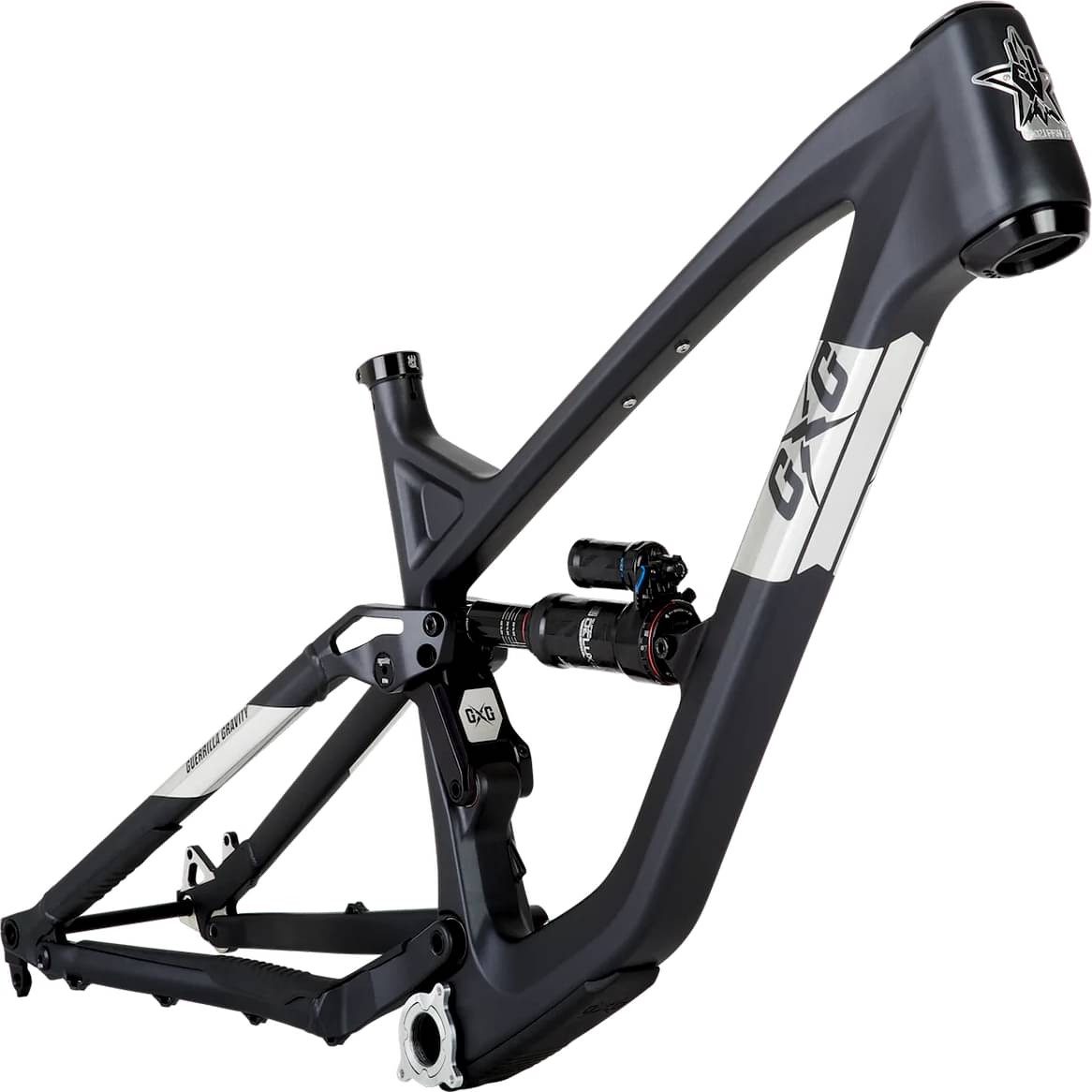

Revved Carbon front and alloy rear triangle
Suspension Fork
None

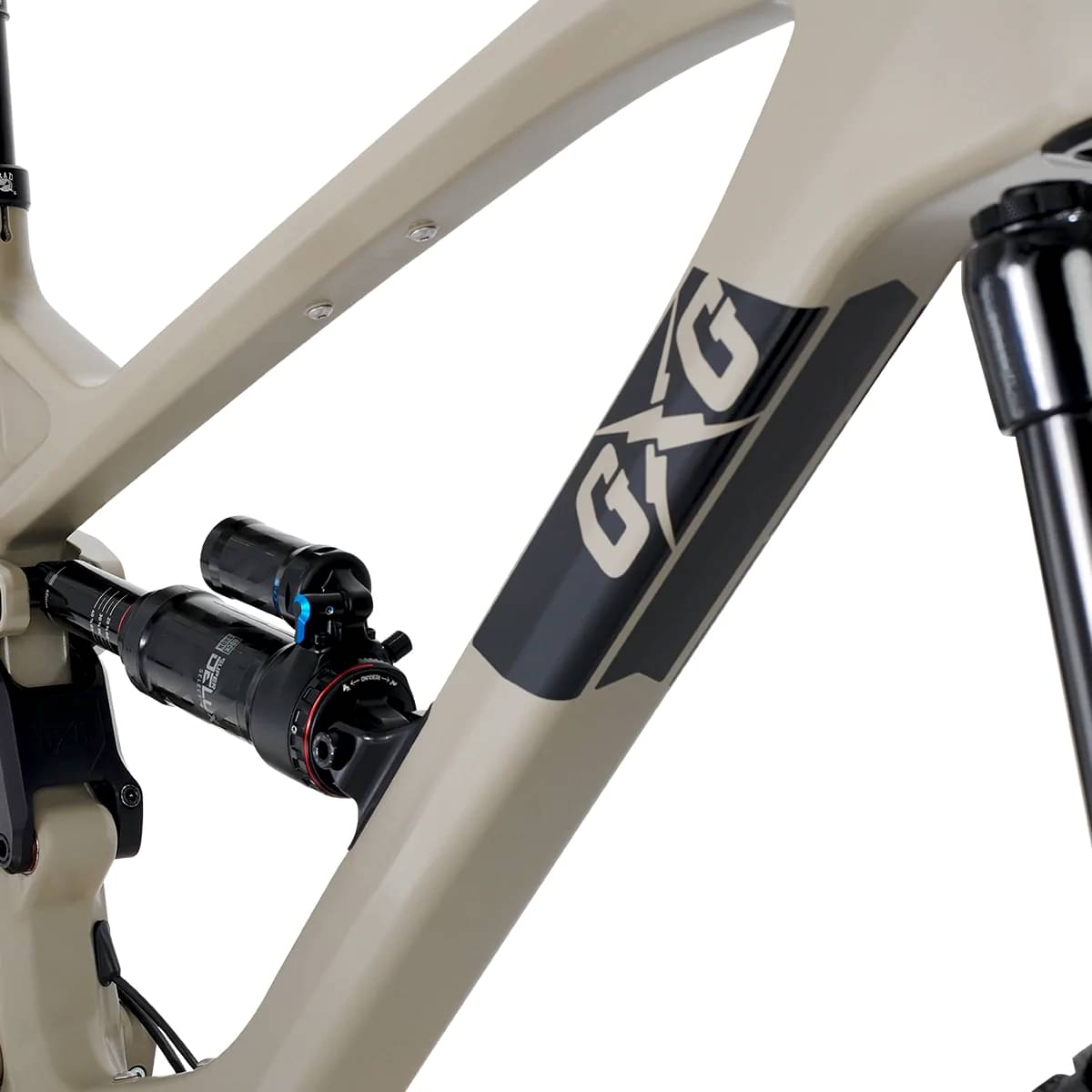

Rear Shock
None 155/165 mm
Drivetrain

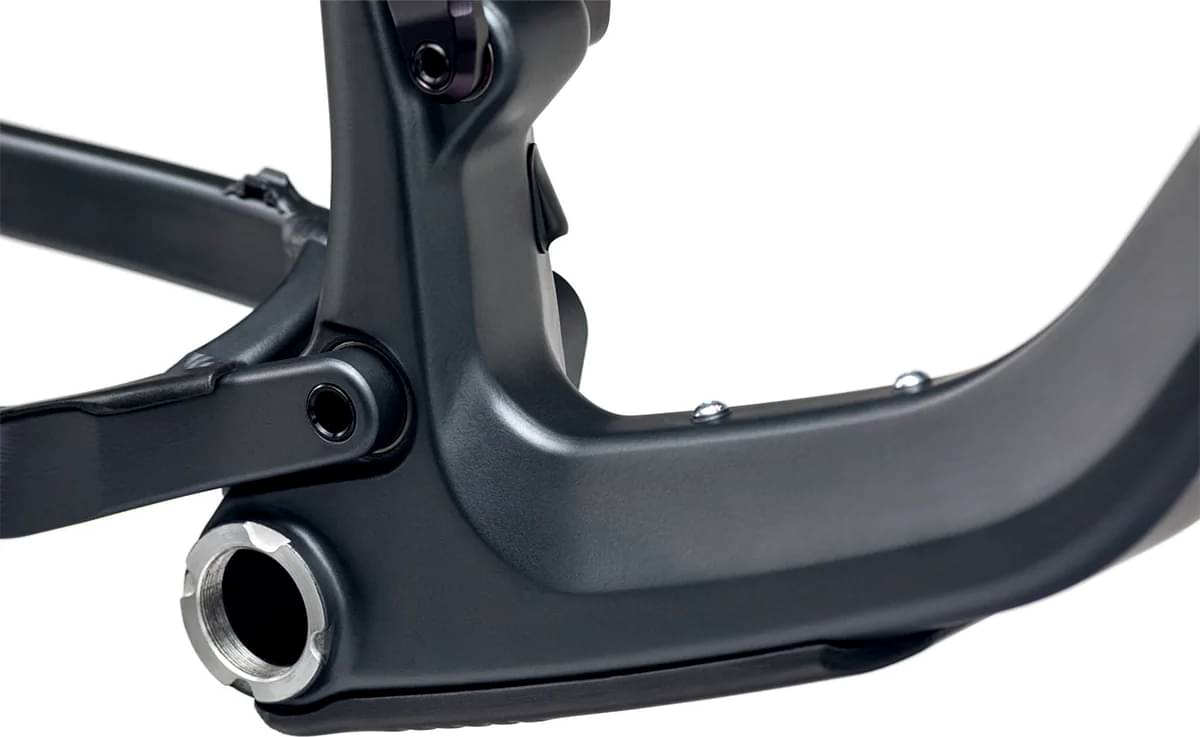

Bottom Bracket
73 mm BSA threaded
Wheels
Rims
None
Tires
Front: None, Rear: None
Brakes
Brakes
None
Cockpit
Stem
None
Handlebar
None
Grips
None
Seat
Saddle
None

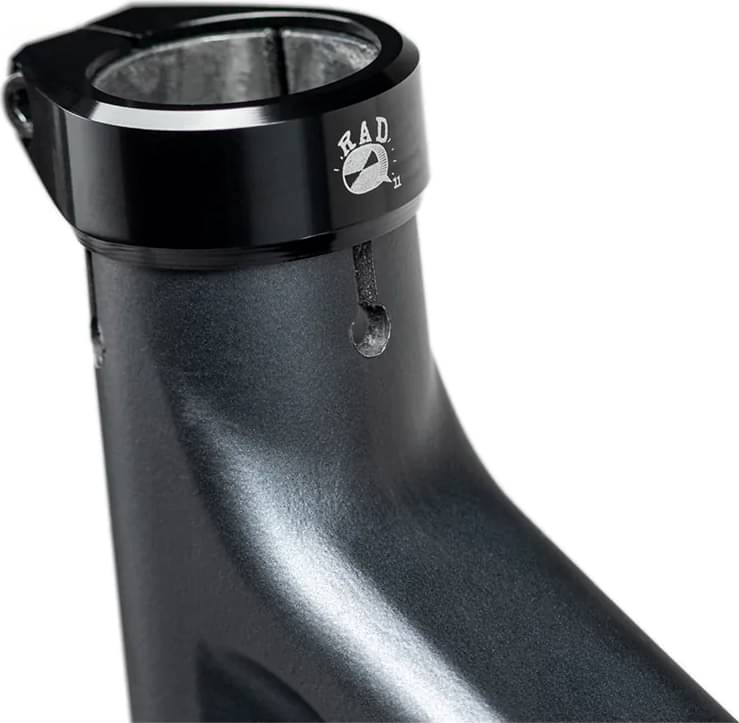

Seatpost
30.9 mm with stealth dropper routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Size 2 | Size 3 | Size 4 |
|---|---|---|---|
| Stack Reach Ratio | 1.341 mm | 1.308 mm | 1.267 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Stack | 610 mm | 628 mm | 646 mm |
| Reach | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 600 mm | 625 mm | 655 mm |
| Seat Tube Angle | 77 ° | 76.9 ° | 76.8 ° |
| Seat Tube Length | 400 mm | 430 mm | 480 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1215 mm | 1248 mm | 1286 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm |
| Standover Height | 728 mm | 731 mm | 734 mm |
| Wheels | 27" | 27" | 27" |
About this model
Megatrail – Frameset is part of the Guerrillagravity Megatrail model. There are 18 frames that carry this model name. Take a sneak peek at all Guerrillagravity Megatrail frames models from 2022, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail frames average price
According to our calculations, the average cost of a Trail frame that is reliable is 1736$. However, even though the average price of a Trail frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Dropper post
The Guerrilla Gravity model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
