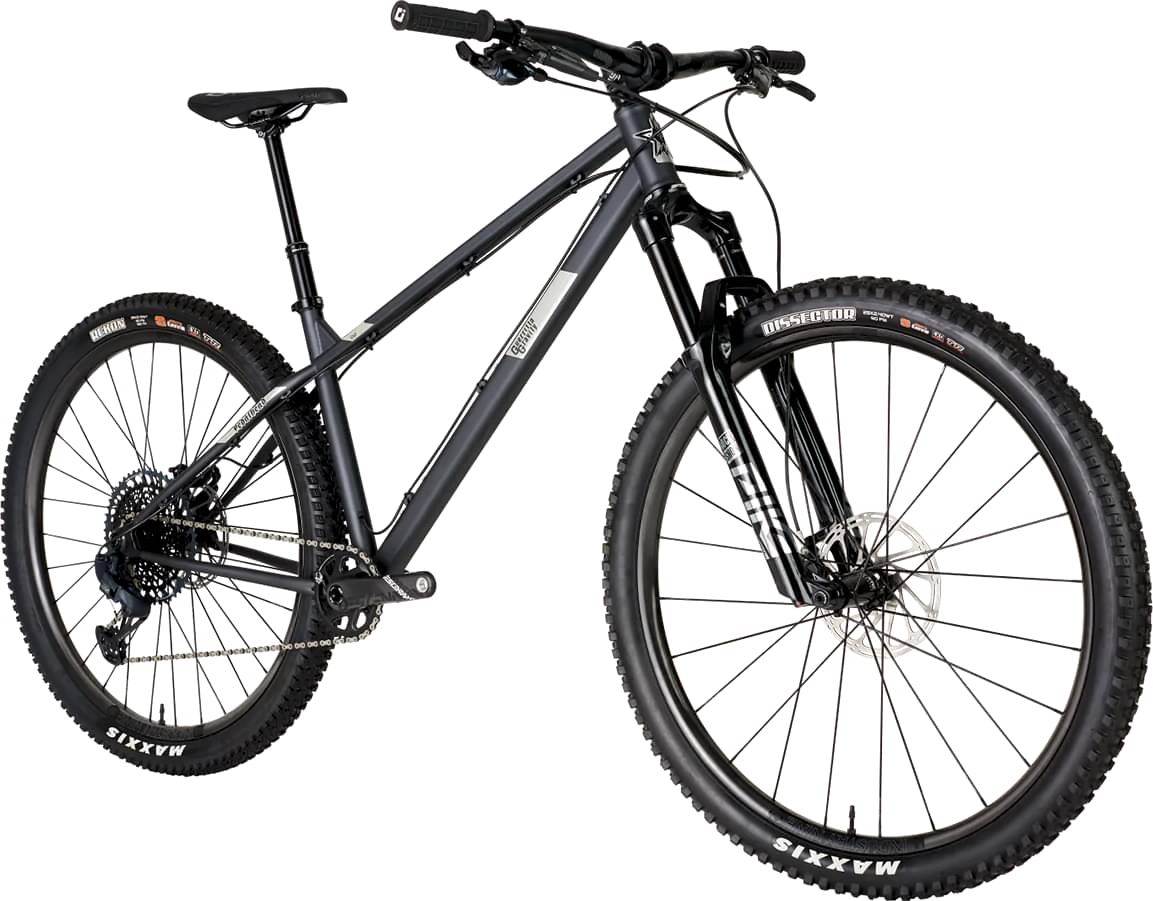

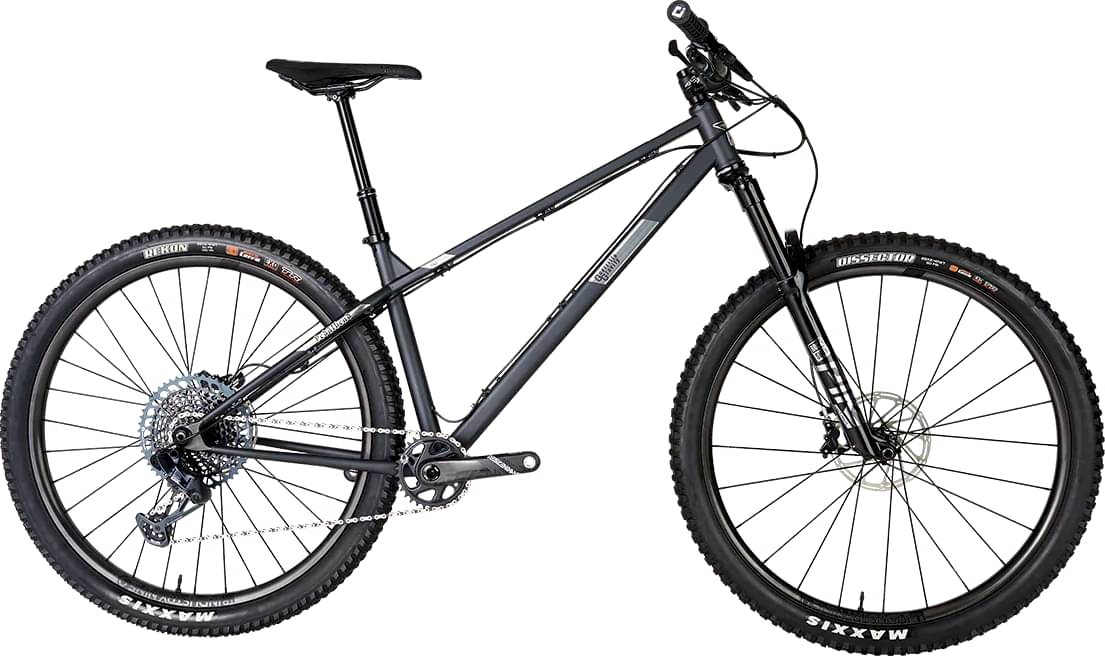

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 140mm -
Fork RockShox Pike Select
-
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
custom square-profile steel tubeset
Suspension Fork
RockShox Pike Select RC - 130 mm - 29"
Rear Shock
undefined undefined
Drivetrain
Bottom Bracket
73 mm BSA threaded
Wheels
Rims
Sun Ringle Duroc SD37 Comp - 29"
Tires
Front: Maxxis DHF 3C/EXO/TR 29x2.3 - Yellow Logo, Rear: Maxxis DHF 3C/EXO/TR 29x2.3 - Yellow Logo
Brakes
Brakes
SRAM Guide T w/ Centerline Rotors
Cockpit
Stem
e*thirteen Base - Ø35 - 50 mm
Handlebar
e*thirteen Base - Ø35 x 800 x 20 mm
Grips
ODI Elite Pro Lock-on
Seat
Saddle
GG Custom SDG Radar
Seatpost
30.9 mm with stealth dropper routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Size 2 | Size 3 | Size 4 |
|---|---|---|---|
| Stack Reach Ratio | 1.437 mm | 1.378 mm | 1.344 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm |
| Stack | 625 mm | 634 mm | 652 mm |
| Reach | 435 mm | 460 mm | 485 mm |
| Top Tube Length | 608 mm | 636 mm | 666 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 115 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1189 mm | 1218 mm | 1251 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm |
| Standover Height | 706 mm | 719 mm | 732 mm |
| Wheels | 29" | 29" | 29" |
About this model
Pedalhead – Ride is a Guerrillagravity Pedalhead model. There are 15 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Pedalhead – Ride components
Fork
The Pedalhead – Ride comes factory-installed with the RockShox Pike Select fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Pedalhead – Ride model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Guerrilla Gravity Pedalhead – Ride has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Pedalhead – Ride. Therefore, climbing or descending will be a breeze.
