Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Suspension Hardtail
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revved Carbon front and alloy rear triangle
Suspension Fork
None
Rear Shock
None 145 mm
Drivetrain
Bottom Bracket
73 mm BSA threaded
Wheels
Rims
None
Tires
Front: None, Rear: None
Brakes
Brakes
None
Cockpit
Stem
None
Handlebar
None
Grips
None
Seat
Saddle
None
Seatpost
30.9 mm with stealth dropper routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Size 2 | Size 3 | Size 4 |
|---|---|---|---|
| Stack Reach Ratio | 1.338 mm | 1.306 mm | 1.267 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Stack | 610 mm | 628 mm | 646 mm |
| Reach | 456 mm | 481 mm | 510 mm |
| Top Tube Length | 596 mm | 625 mm | 662 mm |
| Seat Tube Angle | 77.1 ° | 77 ° | 76.8 ° |
| Seat Tube Length | 400 mm | 430 mm | 480 mm |
| Head Tube Angle | 64.7 ° | 64.7 ° | 64.7 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1221 mm | 1254 mm | 1293 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 730 mm | 731 mm | 737 mm |
| Wheels | 29" | 29" | 29" |
About this model

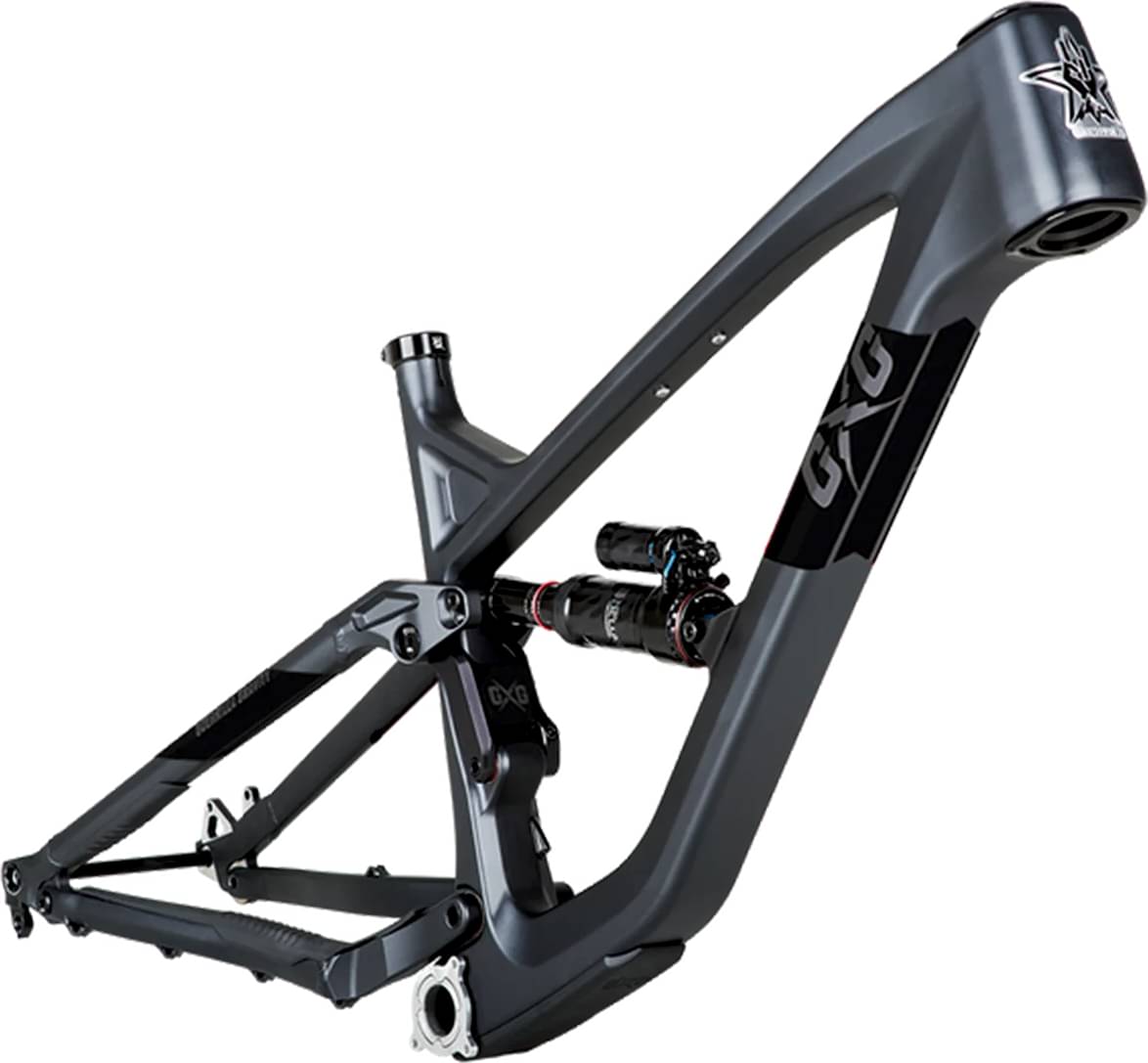

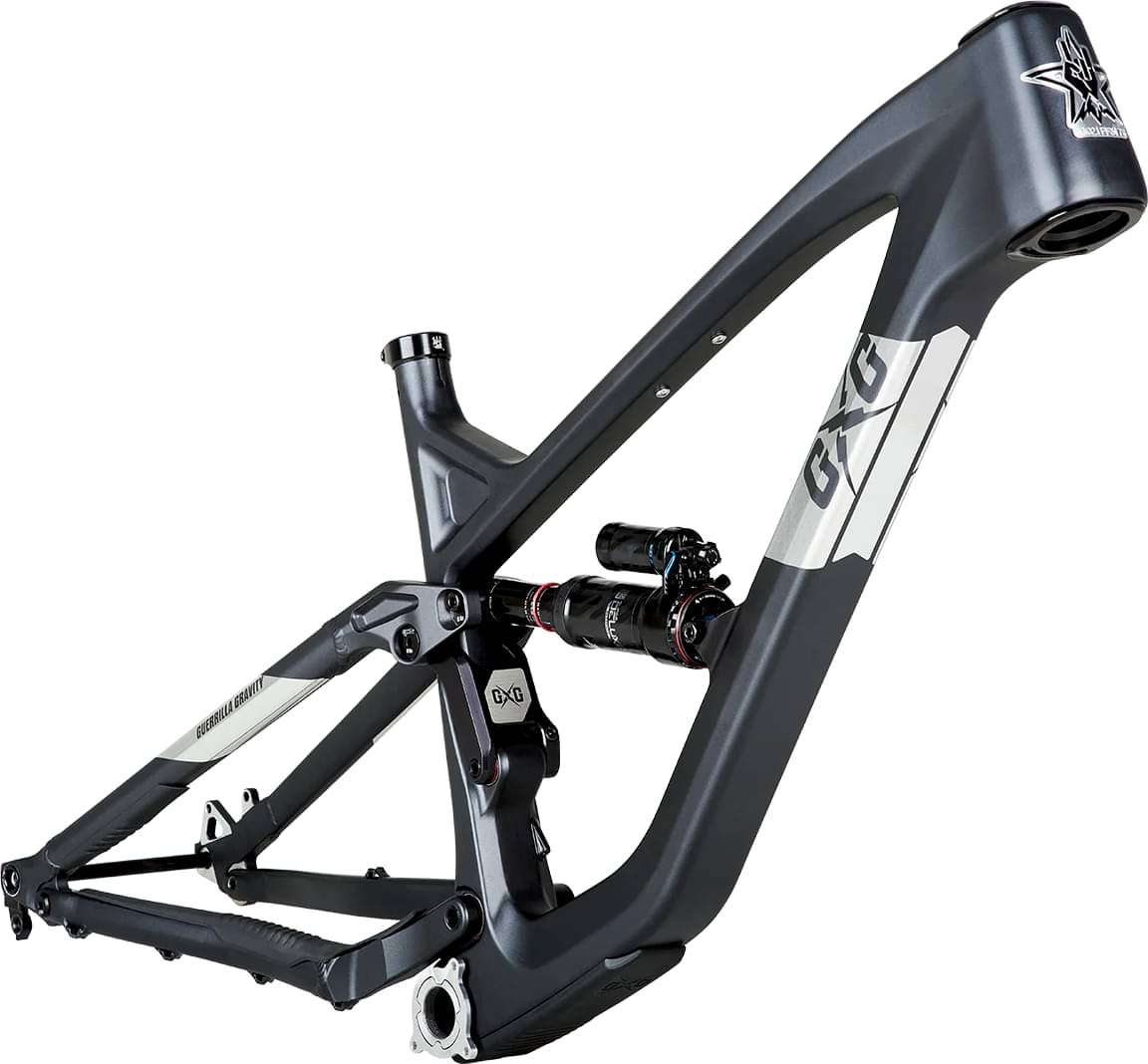

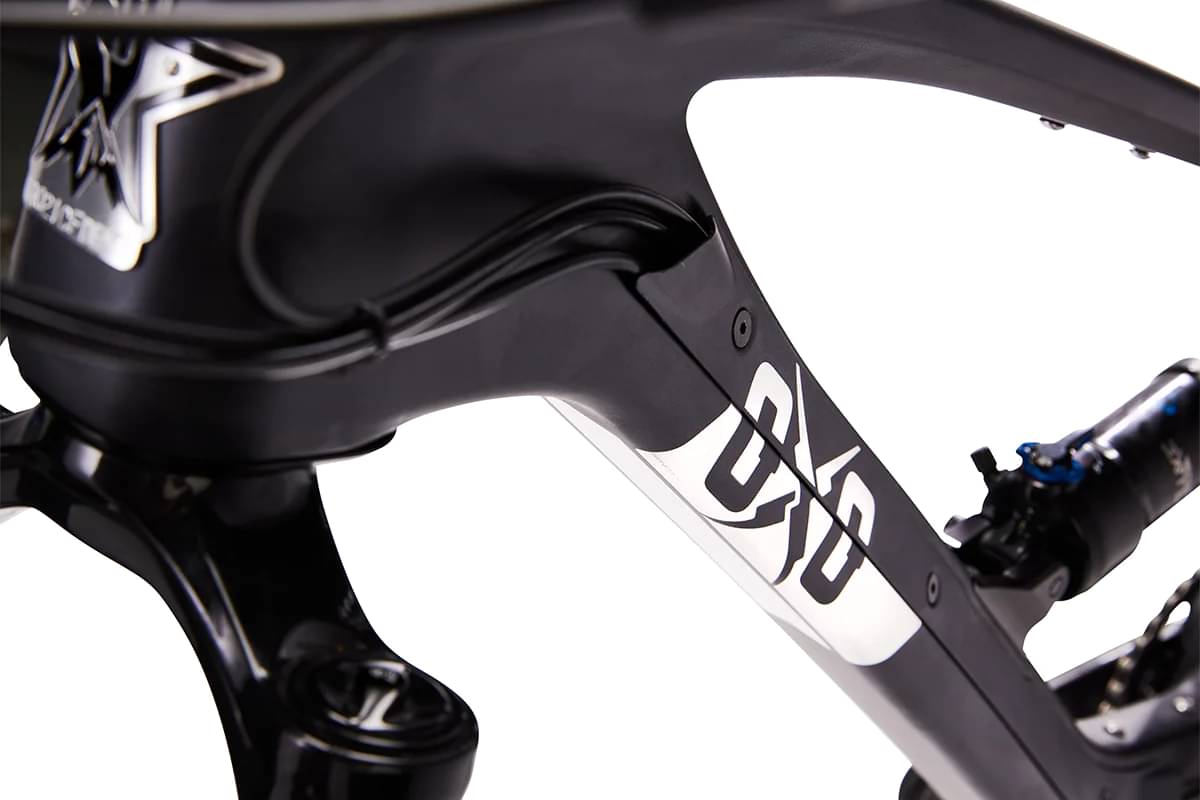

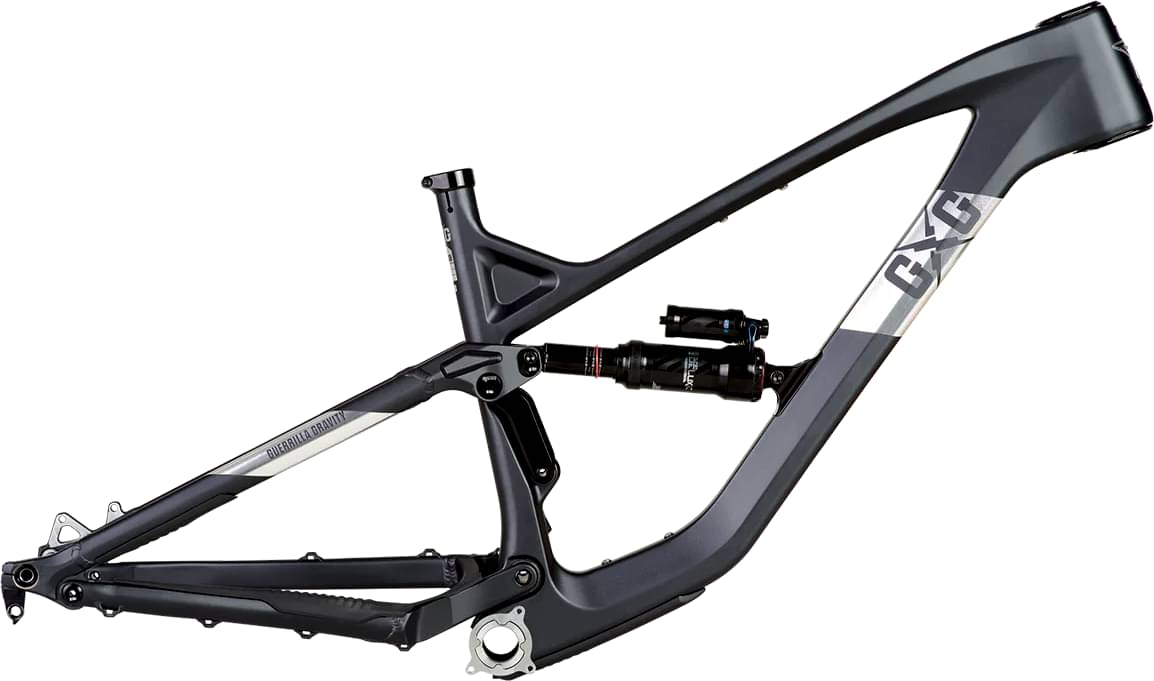

Smash – Frameset is a Guerrillagravity Smash model. Guerrilla Gravity launched 17 frames of this model so far. You can easily view all of the Guerrillagravity Smash frames models from 2023, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro frames
According to our calculations, the average cost of an Enduro frame that is reliable is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Dropper post
Guerrilla Gravity Smash – Frameset comes with a dropper post. Therefore, climbing or descending will be a breeze.
