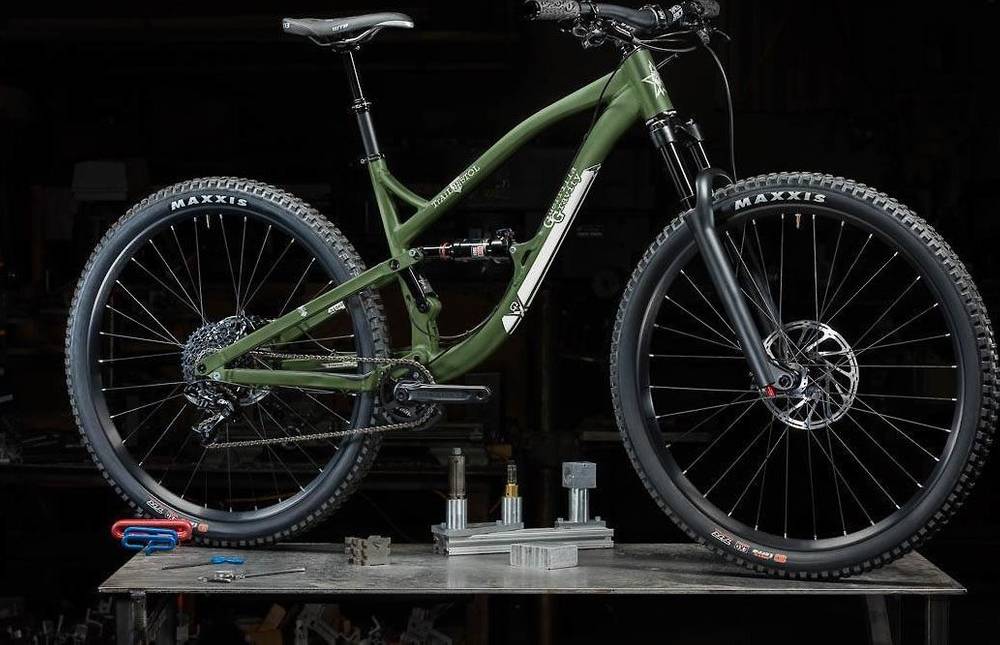

Guerrilla Gravity Trail Pistol Race 2018
2018 Mountain
Estimate price |
4,795$
Weight | 12.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike RC
-
Groupset X01, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RC
Rear Shock
RockShox Deluxe RT
Drivetrain
Rear Derailleur
SRAM X01, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM X01, 11-speed
Cassette
e*thirteen TRS+, 9-46 tooth
Crank
Race Face Next R
Bottom Bracket
External, 73mm threaded
Chain
KMC X11.93
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss XM1501 i30 wheelset
Rear Hub
DT Swiss XM1501 i30 wheelset
Rims
DT Swiss XM1501 i30 wheelset
Spokes
DT Swiss
Tires
Maxxis Minion 2.3" DHF front / DHR II rear, 3C EXO, tubeless ready
Brakes
Brakes
SRAM Guide RSC, 180mm rotors
Brake Levers
SRAM Guide RSC
Cockpit
Stem
Race Face Aeffect R, 50mm length
Handlebar
Race Face Next R, 780mm width
Grips
SDG Slater, lock-on
Headset
FSA DX Pro
Seat
Saddle
GG Custom SDG Fly Mtn
Seatpost
KS Lev Integra, 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Stack | 619 mm | 637 mm | 652 mm | 675 mm |
| Reach | 442 mm | 467 mm | 492 mm | 517 mm |
| Top Tube Length | 586 mm | 619 mm | 650 | 681 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 419 mm | 457 mm | 495 mm | 533 mm |
| Head Tube Angle | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1175 mm | 1209 mm | 1242 mm | 1276 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 688 mm | 721 mm | 759 mm | 795 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Trail Pistol Race is a Guerrillagravity Trail model. Guerrilla Gravity released 16 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Guerrilla Gravity Trail Pistol Ride 2 2018 is the most economical model, with a starting price of 2995$. Guerrilla Gravity Trail Pistol Race 2018 on the other hand costs 4795$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 4795$. If we compare this with the average Trail bike cost we notice that the price is 73.61% more expensive.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 12.66 kg (27.91 lbs), Guerrilla Gravity bike is slightly lighter than average. To sum up, it’s 2.53% lighter than the average weight of Trail bikes.
Overview of components
Fork
The Trail Pistol Race comes factory-installed with the RockShox Pike RC fork. This has a travel range of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the RockShox Deluxe RT model, with a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Trail Pistol Race bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Guerrilla Gravity Trail Pistol Race is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Guerrilla Gravity Trail Pistol Race bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Guerrilla Gravity Trail Pistol Race includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
