Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Pike Ultimate
-
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

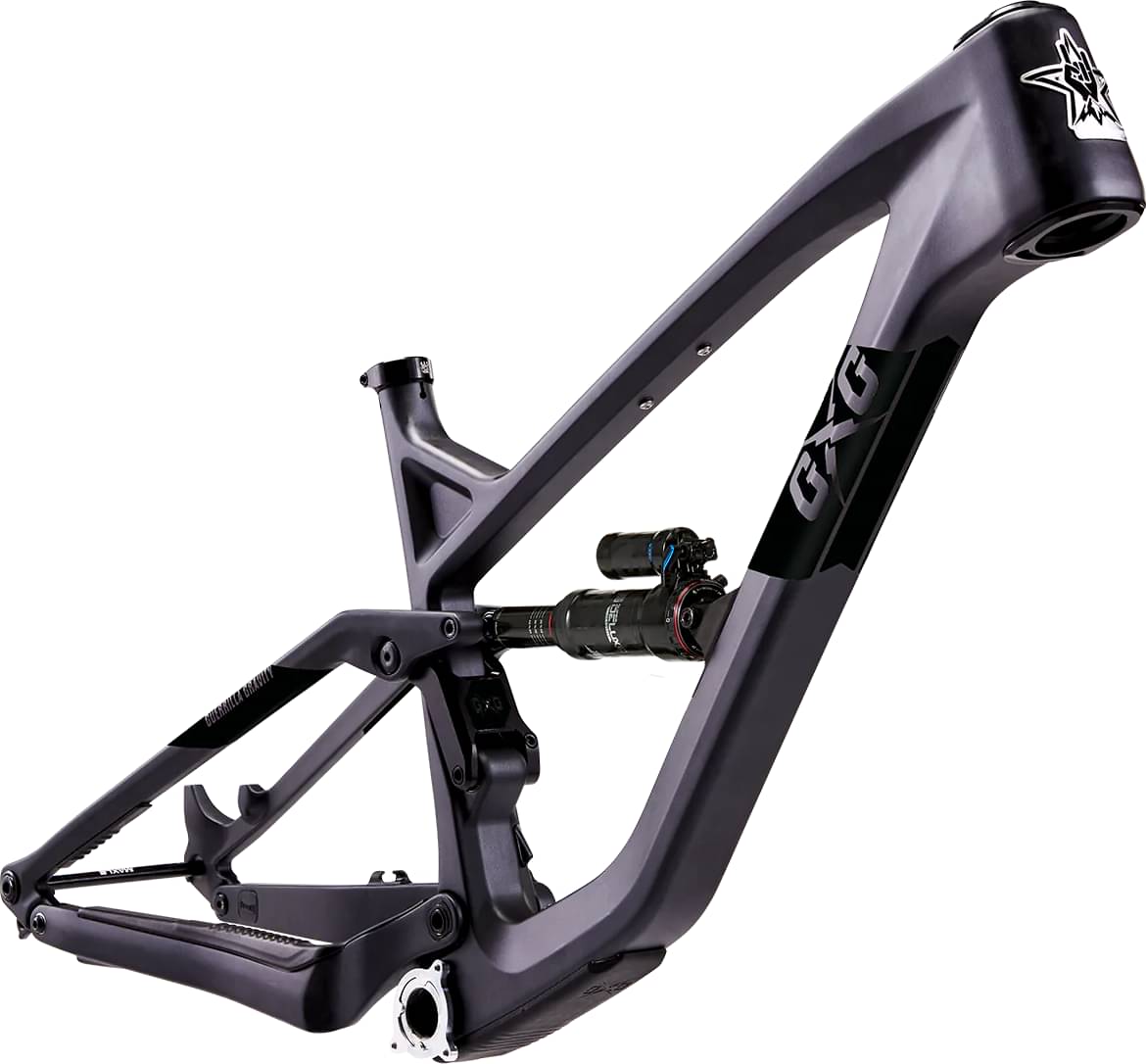

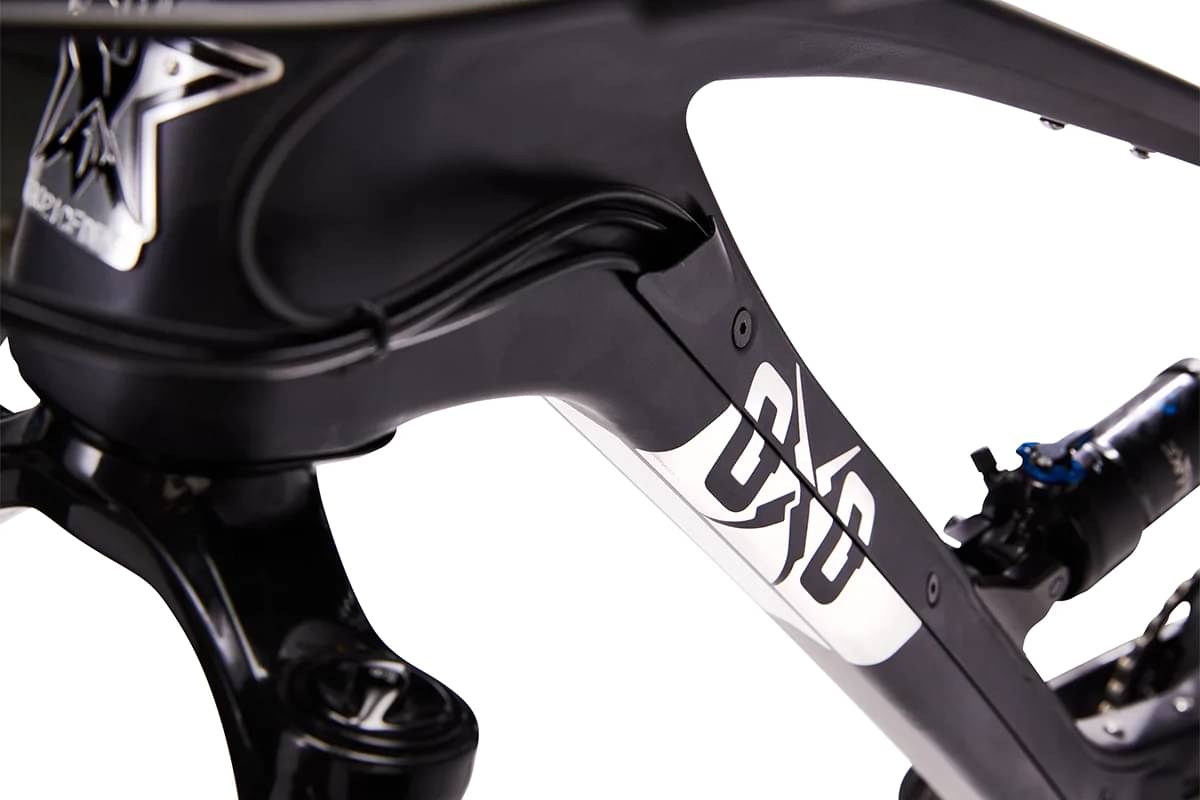

Frame
Frame
Revved Carbon front and rear triangle
Suspension Fork
RockShox Pike Ultimate RC2 - 130 mm Travel - 29" - On Sale!

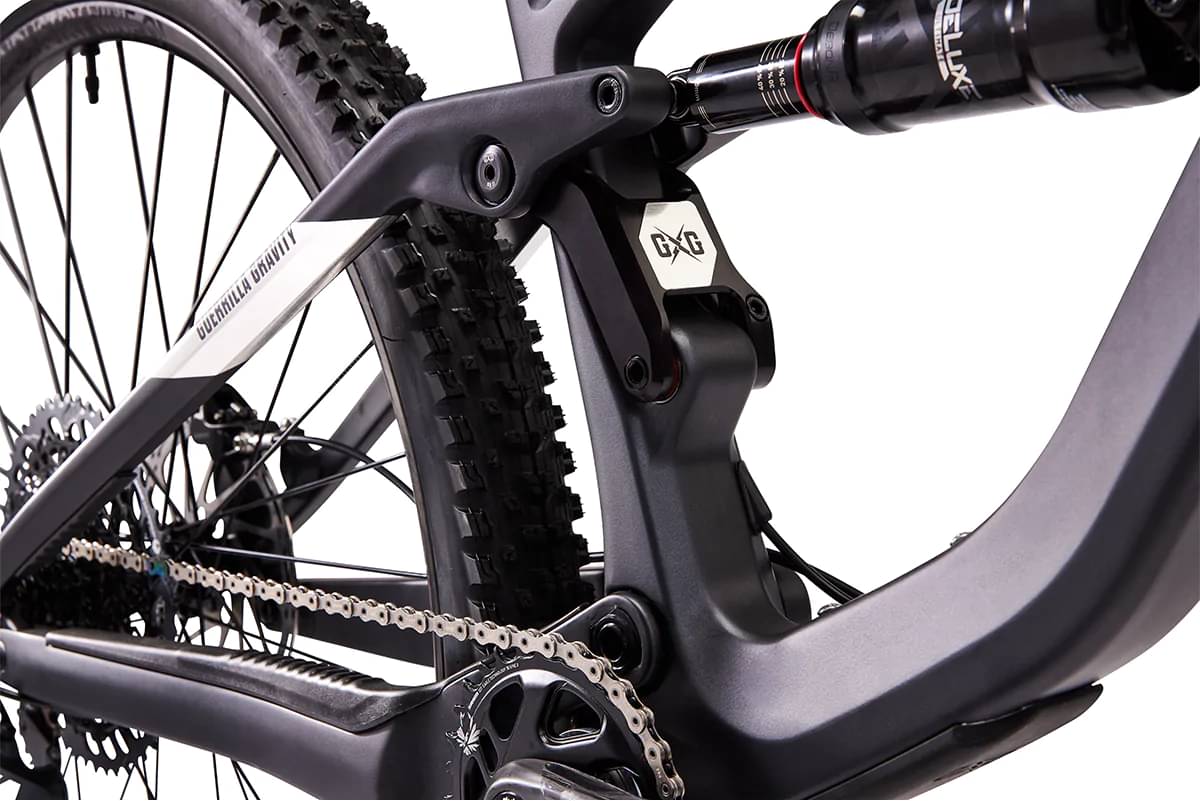

Rear Shock
RockShox Deluxe Ultimate 210x50 - On Sale! 120 mm

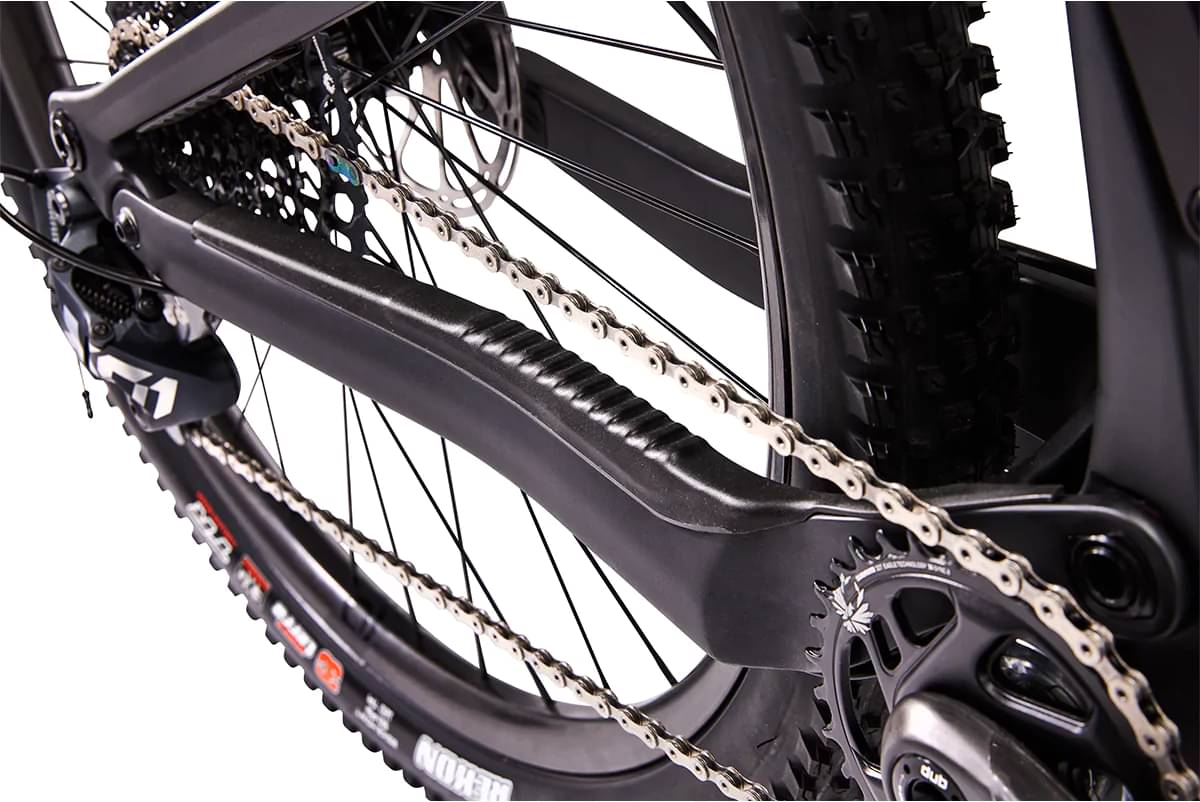

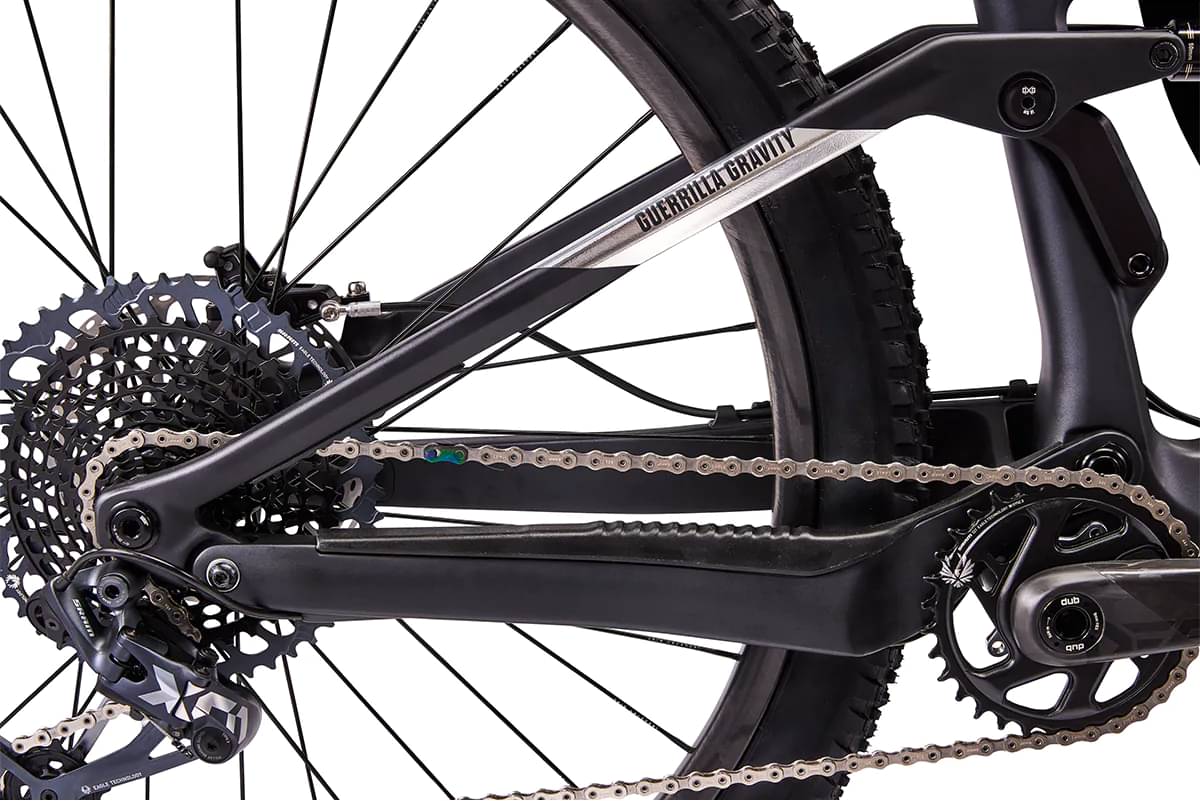

Drivetrain
Bottom Bracket
73 mm BSA threaded
Wheels
Rims
None
Tires
Front: Maxxis DHF 3C/EXO/TR 29x2.3 - Yellow Logo, Rear: Maxxis DHF 3C/EXO/TR 29x2.3 - Yellow Logo
Brakes
Brakes
SRAM G2 RSC w/ Centerline Rotors
Cockpit
Stem
Industry Nine A35 - Ø35 - 32 mm
Handlebar
e*thirteen Race Carbon - Ø35 x 800 x 20 mm
Grips
ODI Elite Pro Lock-on
Seat
Saddle
GG Custom SDG Radar
Seatpost
30.9 mm with stealth dropper routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Size 2 | Size 3 | Size 4 |
|---|---|---|---|
| Stack Reach Ratio | 1.284 mm | 1.254 mm | 1.216 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm |
| Stack | 601 mm | 618 mm | 636 mm |
| Reach | 468 mm | 493 mm | 523 mm |
| Top Tube Length | 593 mm | 623 mm | 658 mm |
| Seat Tube Angle | 78.3 ° | 78.1 ° | 77.9 ° |
| Seat Tube Length | 400 mm | 430 mm | 480 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1200 mm | 1233 mm | 1272 mm |
| Bottom Bracket Drop | 41 mm | 41 mm | 41 mm |
| Standover Height | 715 mm | 717 mm | 719 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
Trail Pistol – Race is part of the Guerrillagravity Trail model. Guerrilla Gravity launched 16 bikes of this model so far. You can easily view all of the Guerrillagravity Trail bikes models from 2022, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Trail Pistol – Race components
Fork
The RockShox Pike Ultimate is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.

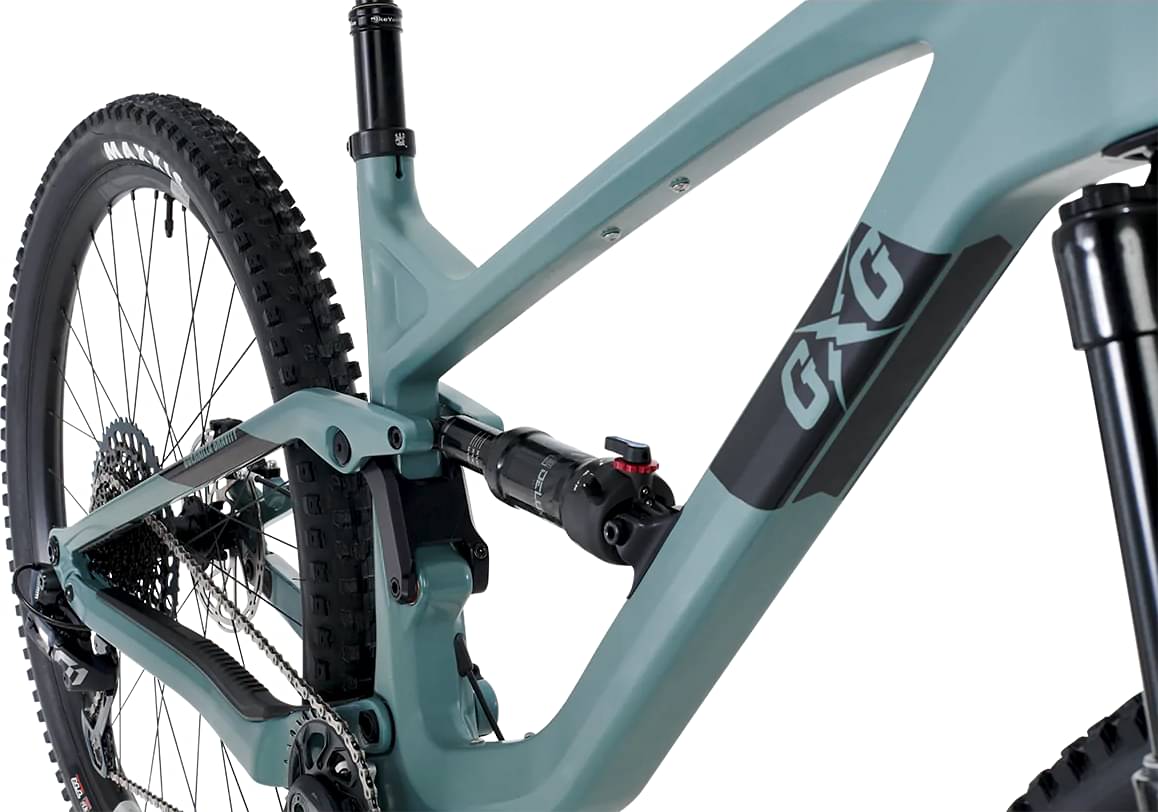

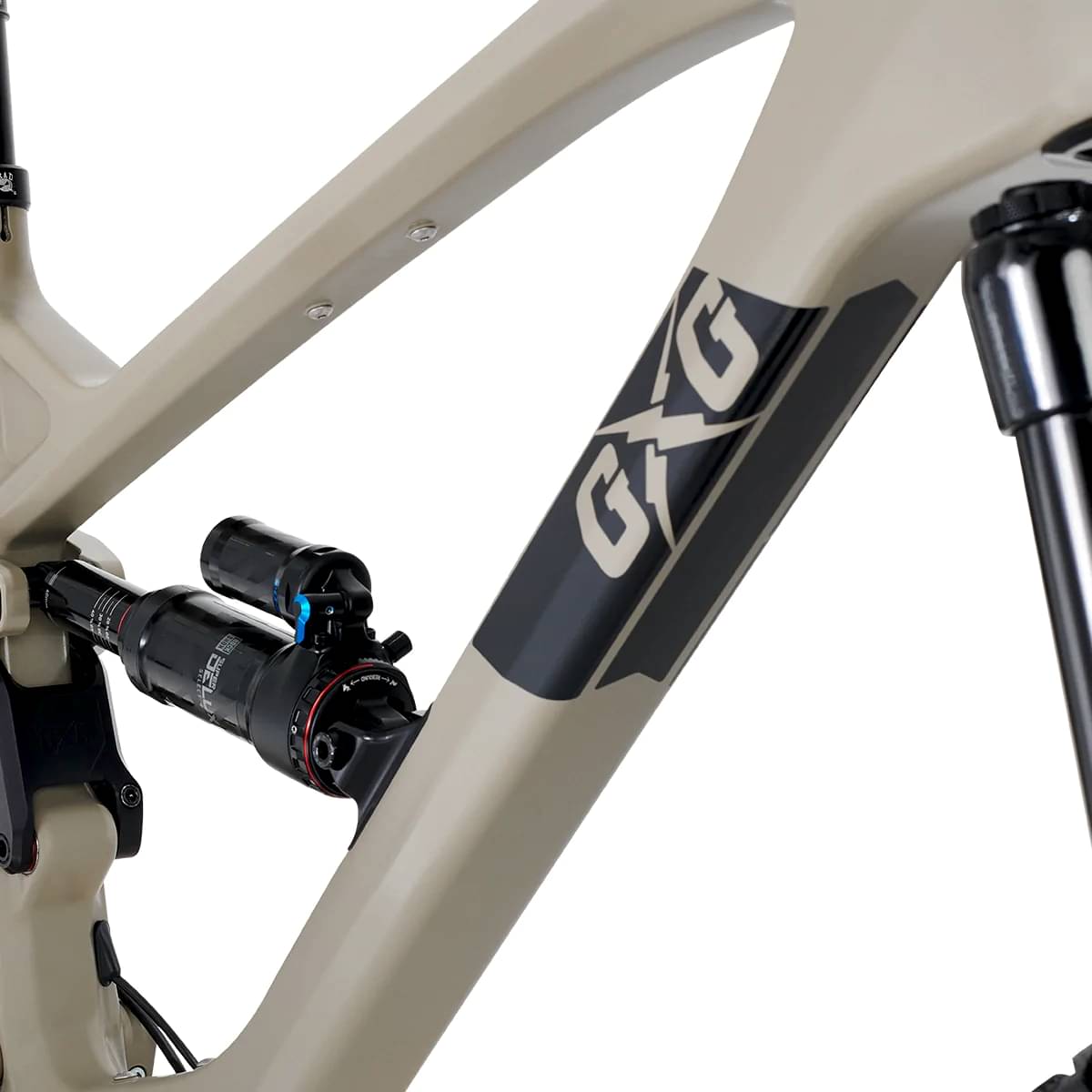

Rear Shock
The shock that’s installed on this bike is RockShox Deluxe Ultimate 210×50 – On Sale! 120 mm, with a travel distance of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Trail Pistol – Race bike is equipped with the 29″ model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
The Guerrilla Gravity model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
