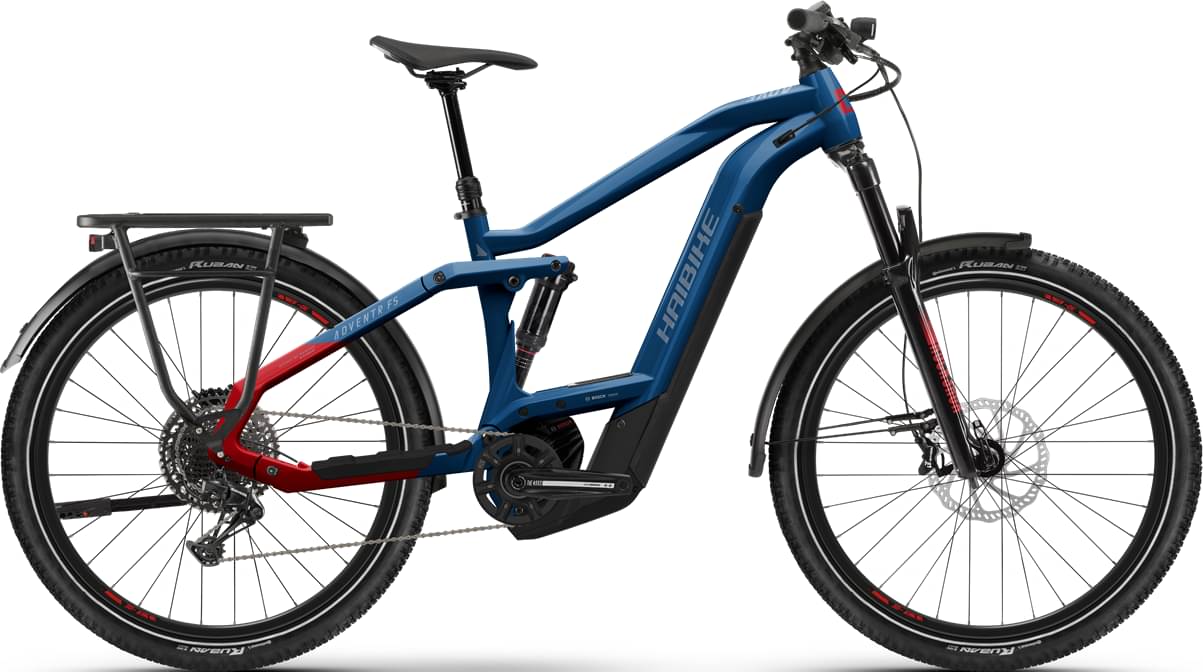

Haibike Adventr FS 9 2022
2022 E-bike
Estimate price |
6,307$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 140mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle, SRAM -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Adventr FS Bosch, Aluminium
Suspension Fork
RockShox, 35 Silver, Air, 140 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Deluxe Select Plus, Air, Trunnion Mount
Drivetrain
Rear Derailleur
SRAM, SX Eagle
Shift Levers
SRAM, SX Eagle, Trigger switch
Cassette
SRAM, Eagle PG1210, 11 - 50 teeth
Crank
SRAM, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, SX Eagle
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Continental, Ruban, 65-584, 27.5 x 2.6 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
Tektro, Orion M745, Aluminium
Cockpit
Stem
Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees
Handlebar
Haibike Components, TheBar ++, 780 mm
Grips
XLC, MTB grips
Headset
Feimin, A-Head Alloy Tapered, Aluminium, Cartridge
Seat
Saddle
XLC, MTB
Seatpost
Seat- Post, Aluminium, 34.9 mm
Motor & Battery
Motor
Bosch, Performance CX GEN4, 250 Wh, 85 Nm, 25 km/h
Battery
Bosch, PowerTube, 625 Wh
Remote
Bosch, Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.522 mm | 1.519 mm | 1.47 mm | 1.396 mm |
| Front Center | 735 mm | 739 mm | 763 mm | 797 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 106 mm | 100 mm | 100 mm | 100 mm |
| Stack | 624 mm | 638 mm | 647 mm | 656 mm |
| Reach | 410 mm | 420 mm | 440 mm | 470 mm |
| Top Tube Length | 562 mm | 576 mm | 598 mm | 630 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1210 mm | 1214 mm | 1238 mm | 1272 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Adventr FS 9 is a Haibike E Adventr model. There are 5 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Haibike Adventr FS 8 2022 is the cheapest e-bike model and costs 4883$. Haibike Adventr FS 10 2022 is the most expensive one and costs 6688$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 5839$. In conclusion, this e-bike price is 135.44% higher than the price of the average Hybrid e-bike.
Overview of components
Fork
This e-bike has the RockShox 35 Silver fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
When it comes to wheels, the Adventr FS 9 e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
