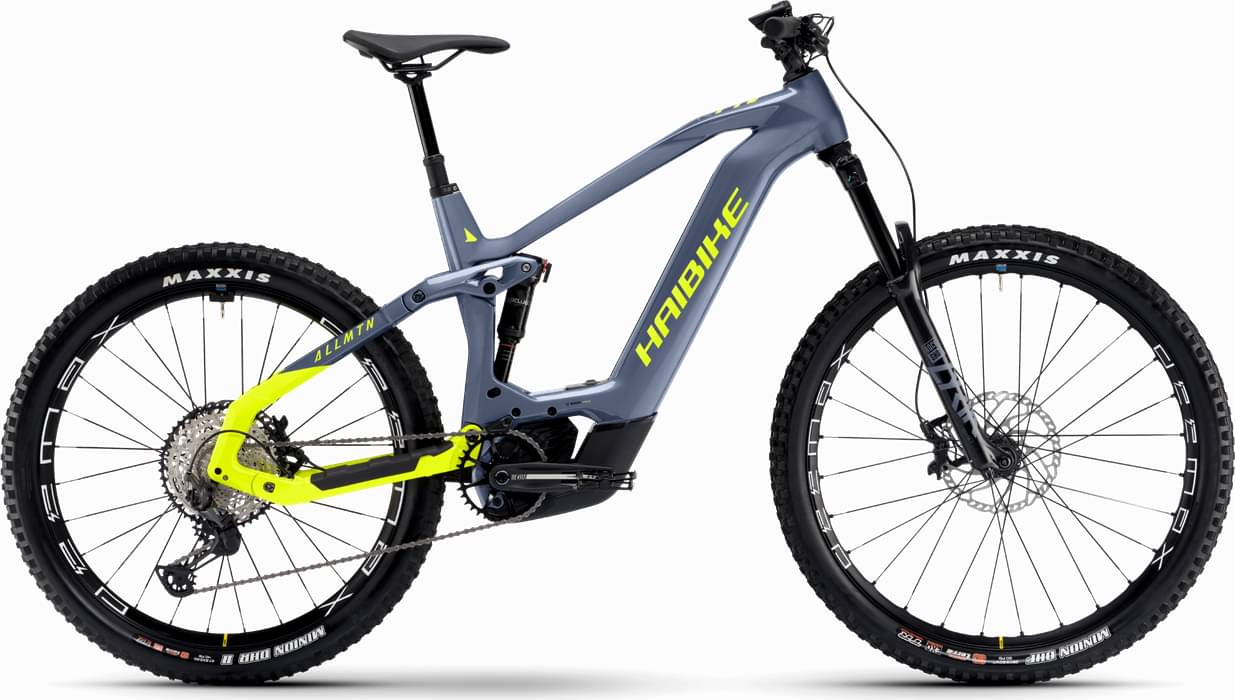

Haibike AllMtn CF 11 2023
2023 E-bike
Estimate price |
10,321$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork RockShox Lyrik Ultimate
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 750 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox, Lyrik Ultimate RC, Air/oil, 160 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Deluxe Select Plus, Air, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano, Deore XT M8100 Shadow Plus
Shift Levers
Shimano, Deore SLX M7100
Cassette
Shimano, M6100, 10 - 51 teeth
Crank
Aluminium, 36 teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, CN-M6100
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Mavic, E- Deemax S
Tires
Maxxis, Minion DHF II, 65-622, 29" x 2.5"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, SLX M7100, Aluminium,
Cockpit
Stem
Alu, A-head, 31.8 mm
Handlebar
Haibike Components, TheBar ++, 780 mm
Headset
Acros, Cable integration, Aluminium
Seat
Saddle
Selle Royal, Vivo
Seatpost
Dropper-Post Remote, Aluminium, Telescope, 31.6 mm
Motor & Battery
Motor
Bosch, Performance CX Smart System, 250W, 85 Nm
Battery
Bosch, PowerTube, 750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.534 mm | 1.46 mm | 1.376 mm | 1.306 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 737 mm | 769 mm | 806 mm | 842 mm |
| Rake | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 408 mm | 435 mm | 468 mm | 500 mm |
| Top Tube Length | 560 mm | 590 mm | 625 mm | 660 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1191 mm | 1223 mm | 1260 mm | 1296 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 790 mm | 810 mm | 830 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
AllMtn CF 11 is a Haibike E Allmtn model. There are 24 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Haibike ALLMTN 3 2023 is the most economical model, with a starting price of 5945$. Haibike AllMtn CF 11 2023 on the other hand costs 9555$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Haibike released this model in 2023, its price was 9555$. Doing a quick comparison, we notice that AllMtn CF 11 price is 99.69% more expensive than the average cost of an Enduro e-bike.
AllMtn CF 11 components
Fork
The AllMtn CF 11 comes factory-installed with the RockShox Lyrik Ultimate fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Haibike AllMtn CF 11 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The AllMtn CF 11 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Haibike AllMtn CF 11 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Haibike AllMtn CF 11 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
