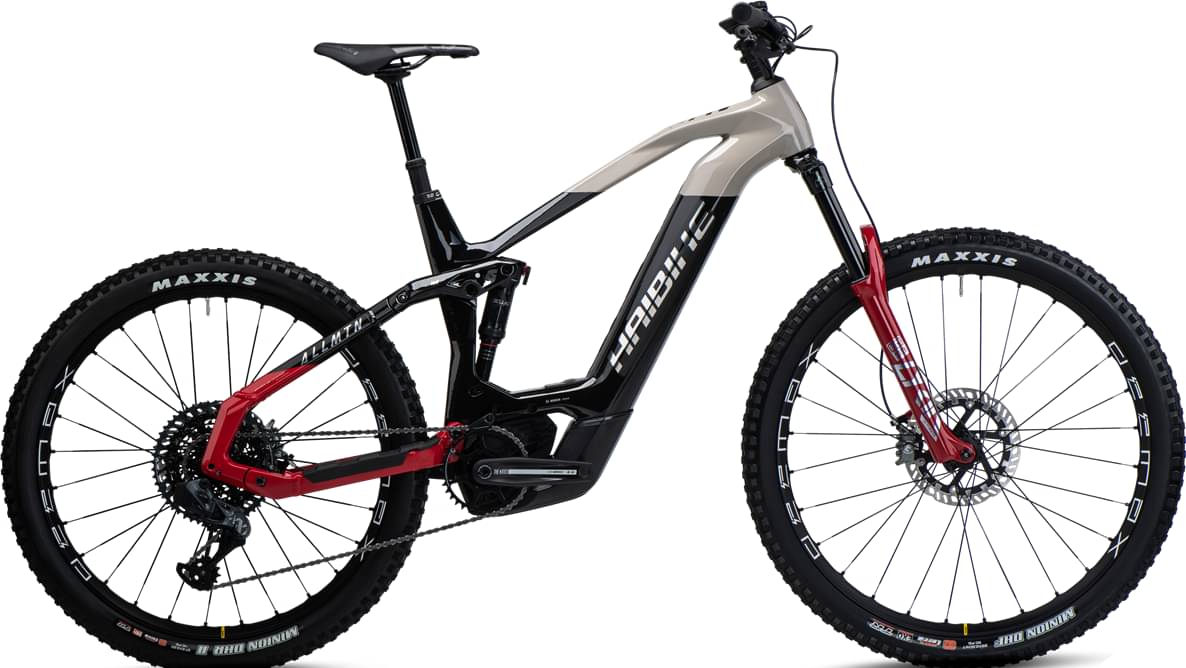

Haibike AllMtn CF SE 2022
2022 E-bike
Estimate price |
10,092$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle AXS, SRAM -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 750 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, AllMtn Bosch CF Smart System, Carbon/aluminium
Suspension Fork
RockShox, Lyrik Ultimate RC, Air/oil, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Deluxe Select Plus, Air, Trunnion Mount
Drivetrain
Rear Derailleur
SRAM, AXS X01 Eagle
Shift Levers
SRAM, AXS Paddle, Trigger switch
Cassette
SRAM, GX 1275 Eagle, 10 - 50 teeth
Crank
SRAM, Aluminium, 36 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, X01 Eagle
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Mavic, E- Deemax
Tires
Maxxis, Minion DHF II, 65-622, 29 x 2.5 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
Magura, MT7 HC-lever
Cockpit
Stem
Raceface, Chester, A-head, 31.8 mm
Handlebar
Raceface, Atlas, 785 mm
Grips
Haibike, MTB grips
Headset
Acros, Cable integration, Aluminium
Seat
Saddle
fi'zi:k, Terra Aidon X5-160
Seatpost
Raceface, Turbine R, Aluminium, Telescope, 31.6 mm
Motor & Battery
Motor
Bosch, Performance CX Smart System, 250 Wh, 85 Nm
Battery
Bosch, PowerTube, 750 Wh
Remote
Bosch, Kiox 300 + LED Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.534 mm | 1.46 mm | 1.376 mm | 1.306 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 737 mm | 769 mm | 806 mm | 842 mm |
| Rake | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 408 mm | 435 mm | 468 mm | 500 mm |
| Top Tube Length | 560 mm | 590 mm | 625 mm | 660 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1191 mm | 1223 mm | 1260 mm | 1296 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 790 mm | 810 mm | 830 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
AllMtn CF SE is part of the Haibike E Allmtn model. 24 e-bikes variations carry this model name so far. Take a sneak peek at all Haibike E Allmtn e-bikes models from 2022, by clicking here.
Model range prices
Haibike AllMtn 1 2022 is the most economical model, with a starting price of 4989$. Haibike AllMtn CF SE 2022 on the other hand costs 9343$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9343$. Comparing this to the average Enduro e-bike price, we see that the price is 95.26% higher.
Overview of components
Fork
Haibike AllMtn CF SE 2022 e-bike is equipped with the RockShox Lyrik Ultimate fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the AllMtn CF SE model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike AllMtn CF SE has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Haibike AllMtn CF SE e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
