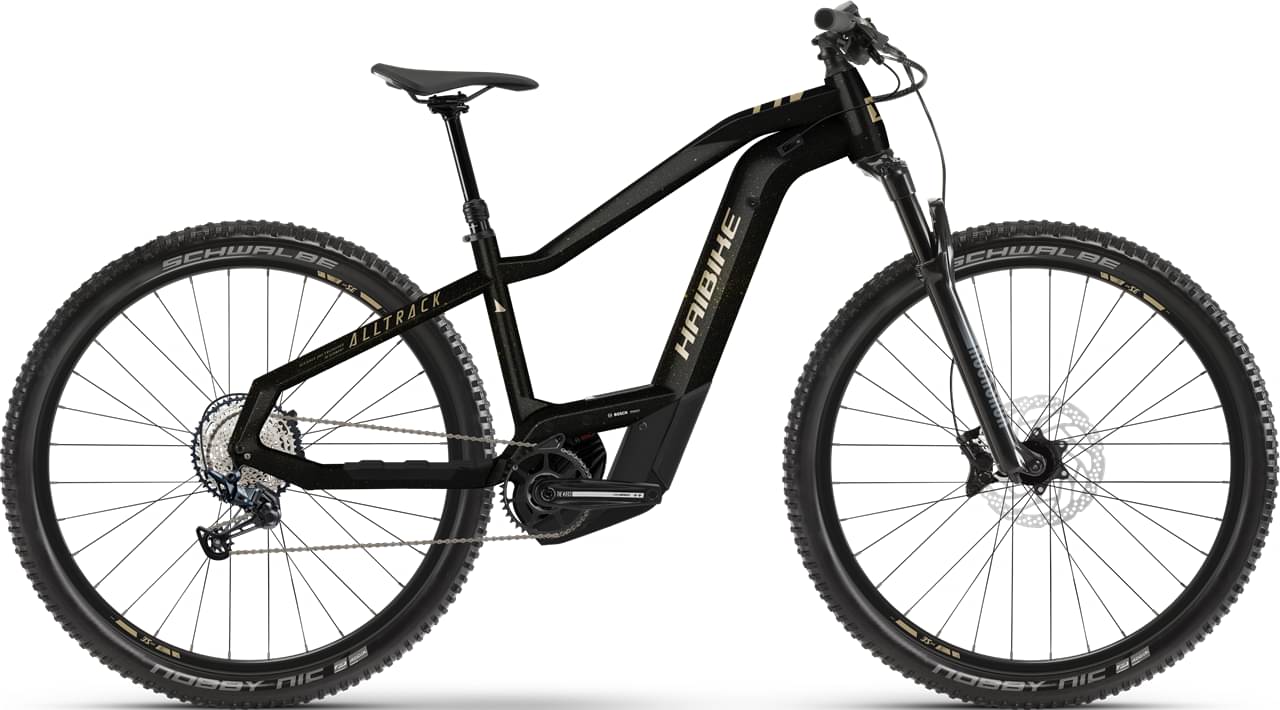

Haibike AllTrack 10 2022
2022 E-bike
Estimate price |
5,467$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Fork RockShox 35 Gold RL -
Groupset SLX, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 750 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, AllTrack 29 Bosch BES 3, Aluminium
Suspension Fork
RockShox, 35 Gold RL, Air, 120 mm travel, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, SLX M7100
Shift Levers
Shimano, Deore M6100, Trigger switch
Cassette
Shimano, M6100, 10 - 51 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, CN-M6100
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Schwalbe, Nobby Nic Performance, 65-622, 29 x 2.6 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, Deore M6100, Aluminium
Cockpit
Stem
Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees
Handlebar
Haibike Components, TheBar ++, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
XLC, MTB
Seatpost
Seat- Post, Aluminium, 34.9 mm
Motor & Battery
Motor
Bosch, Performance CX Smart System, 250 Wh, 85 Nm
Battery
Bosch, PowerTube, 750 Wh
Remote
Bosch, Kiox 300 + LED Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.54 mm | 1.48 mm |
| Front Center | 726 mm | 746 mm | 762 mm | 789 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105 mm | 101 mm | 101 mm | 101 mm |
| Stack | 621 mm | 656 mm | 665 mm | 675 mm |
| Reach | 403 mm | 420 mm | 432 mm | 455 mm |
| Top Tube Length | 595 mm | 623 mm | 638 mm | 663 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 65.5 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 453 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1175 mm | 1203 mm | 1219 mm | 1246 mm |
| Bottom Bracket Drop | 45 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
AllTrack 10 completes the Haibike E Alltrack model. 13 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Haibike AllTrack Kids 2022 is the cheapest e-bike model and costs 2760$. Haibike AllTrack 10 2022 is the most expensive one and costs 4989$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Track e-bikes
If you want an acceptable Track e-bike you should know that the average price is 3049$. However, you could also get a good Track e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Haibike released this model in 2022, its price was 4989$. Comparing the average cost of a Track e-bike to this one, you will see that AllTrack 10 price is 63.63% higher.
Overview of components
Fork
The AllTrack 10 comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on AllTrack 10 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike AllTrack 10 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
