Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour, XCM32 Boost DS, Steel spring/oil, 120 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Alivio M3100
Shift Levers
Shimano, Alivio M3100, Trigger switch
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 34 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, X9
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
WTB, Ranger Comp, 55-584, 27.5 x 2.3 inch
Brakes
Brakes
Hydraulic Disc
Brake Levers
Alhonga, HT472, Aluminium
Cockpit
Stem
XLC, A-Head, A-head, 31.8 mm
Handlebar
XLC, 720 mm
Grips
XLC, MTB grips
Headset
Feimin, A-Head Tapered, Ball bearing
Seat
Saddle
XLC, MTB
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Bosch, Performance Line Gen3 60, 250 W
Fit data
Geometry
Numbers for sizing and ride feel.
Model Overview

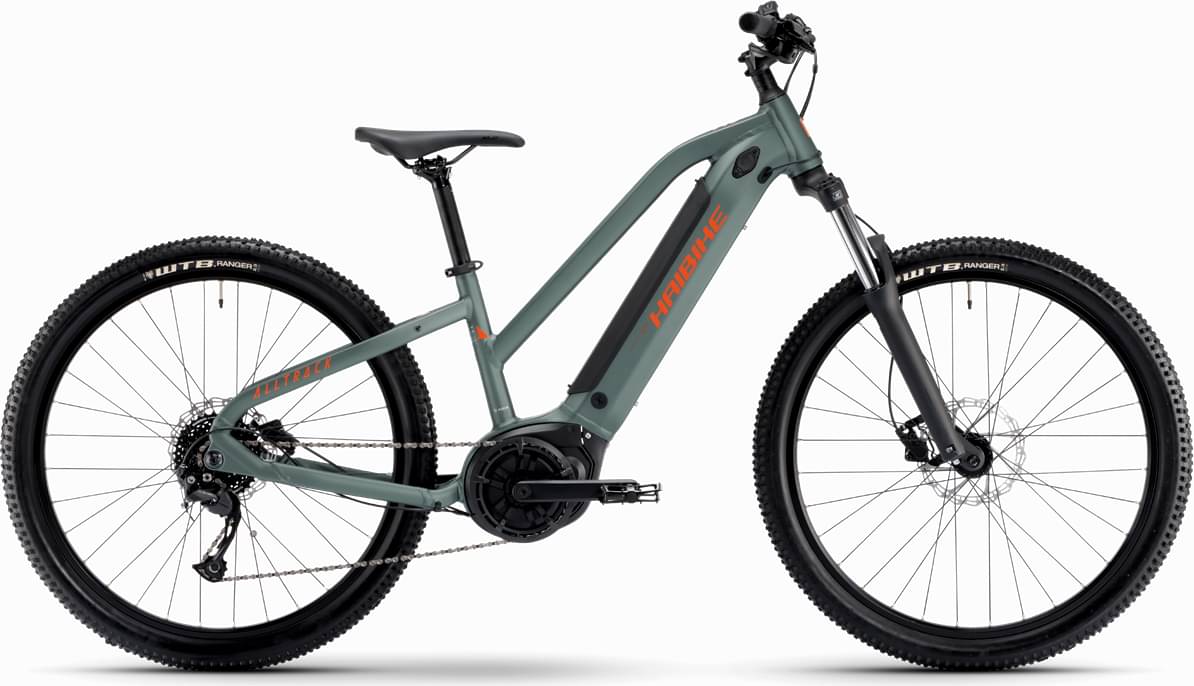

AllTrack is a Haibike E Alltrack model. There are 13 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Haibike AllTrack 2023 is the cheapest e-bike model and costs 3184$. Haibike AllTrack 11 29 2023 is the most expensive one and costs 5308$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Haibike released this model in 2023, its price was 3184$. In conclusion, this e-bike price is 5.68% lower than the price of the average Trail e-bike.
AllTrack components
Fork
Haibike AllTrack 2023 e-bike is equipped with the Suntour XCM fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the AllTrack model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike AllTrack is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
