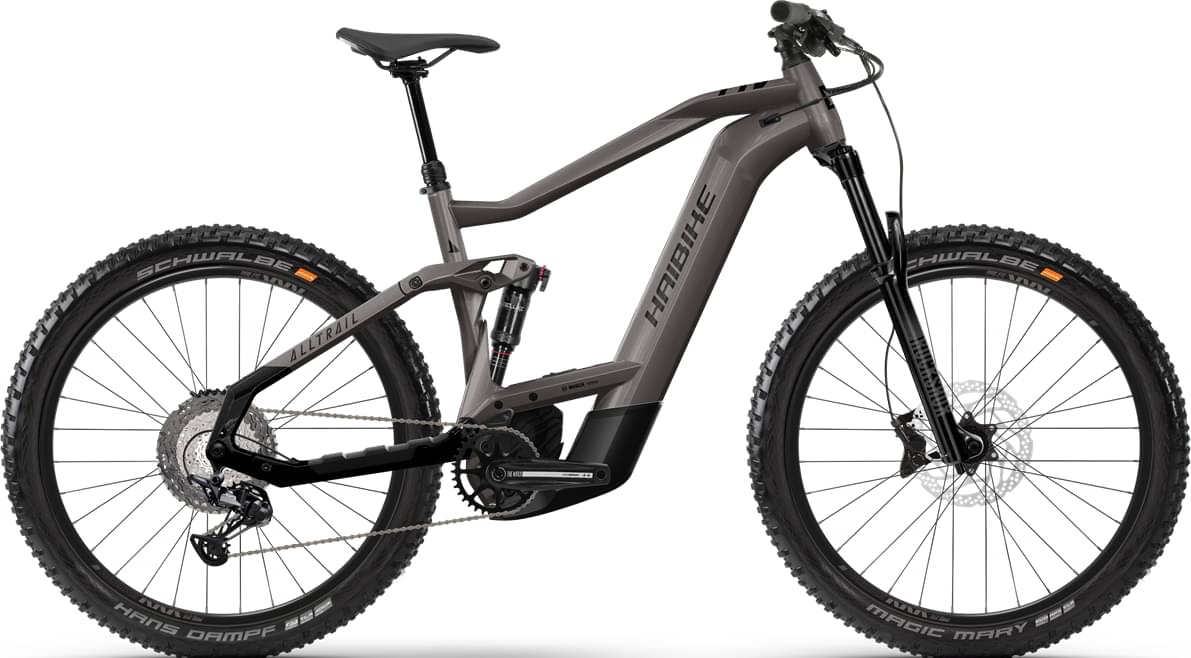

Haibike ALLTRAIL 10 27.5 2023
2023 E-bike
Estimate price |
6,881$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox 35 Gold RL
-
Groupset GX Eagle, SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox, 35 Gold RL, Air, travel= 150 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Deluxe Select Plus, Air, Trunnion Mount
Drivetrain
Rear Derailleur
SRAM, GX Eagle
Shift Levers
SRAM, SX Eagle
Cassette
SRAM, PG1210 Eagle, 11 - 50 teeth
Crank
SRAM, X Sync II Eagle, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, SX Eagle
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Race, Black
Tires
Schwalbe, Magic Mary Evo TLE, 65-584, 27.5" x 2.6"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT401, Aluminium,
Cockpit
Stem
Alu, A-head
Handlebar
Haibike Components, TheBar ++, 780 mm
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
Selle Royal, Vivo
Seatpost
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
Motor & Battery
Motor
Bosch, Performance CX Smart System, 250W, 85 Nm
Battery
Bosch, PowerTube, 750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.498 mm | 1.455 mm | 1.418 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Front Center | 751 mm | 768 mm | 785 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 119 mm | 119 mm |
| Stack | 629 mm | 633 mm | 638 mm |
| Reach | 420 mm | 435 mm | 450 mm |
| Top Tube Length | 573 mm | 589 mm | 605 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 140 mm | 145 mm | 145 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1205 mm | 1222 mm | 1239 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
ALLTRAIL 10 27.5 belongs to the Haibike E Alltrail model. Haibike launched 21 e-bikes of this model so far. Take a sneak peek at all Haibike E Alltrail e-bikes models from 2023, by clicking here.
Model range prices
Haibike ALLTRAIL 3 2023 is the most economical model, with a starting price of 4883$. Haibike ALLTRAIL 10 27.5 2023 on the other hand costs 6370$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6370$. In conclusion, this e-bike price is 33.12% higher than the price of the average Enduro e-bike.
ALLTRAIL 10 27.5 components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The ALLTRAIL 10 27.5 2023 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike ALLTRAIL 10 27.5 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Haibike ALLTRAIL 10 27.5 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
