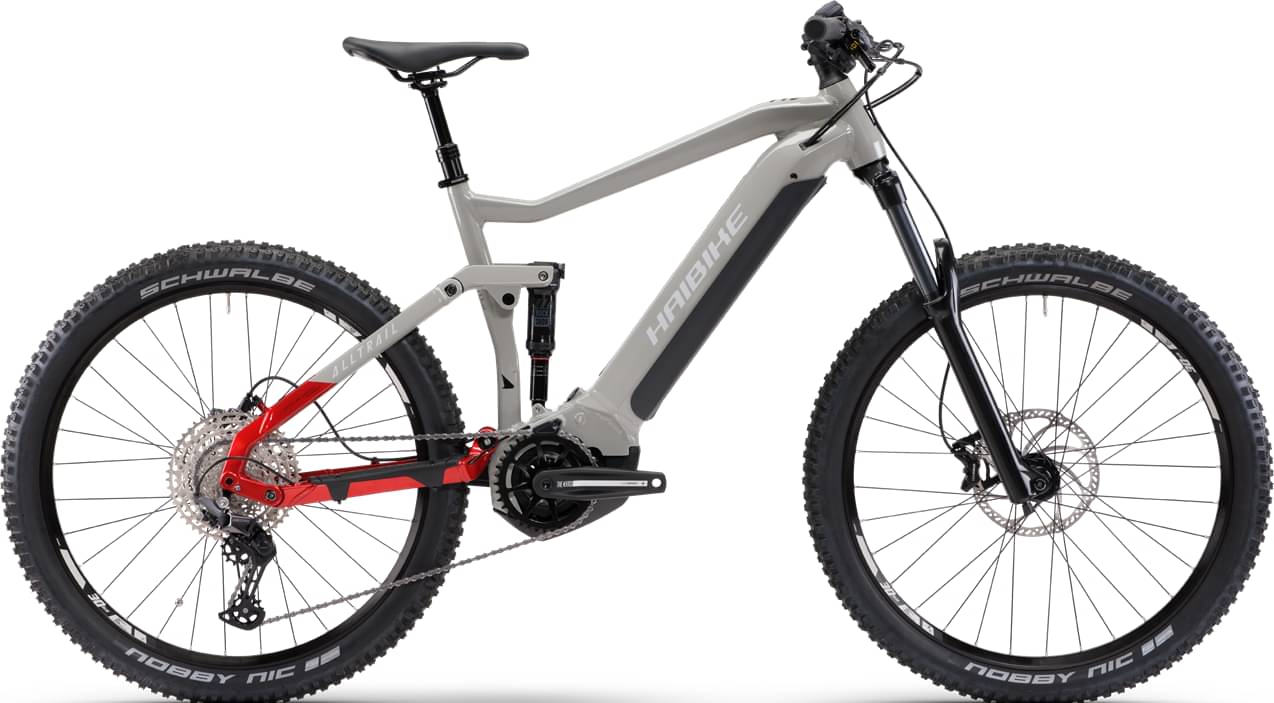

Haibike AllTrail 5 29 2022
2022 E-bike
Estimate price |
5,045$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Motor Yamaha 70Nm mid-drive -
Battery InTube, 630 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, FullNine Yamaha i630, Aluminium 6061
Suspension Fork
RockShox, 35 Silver, Steel spring, 120 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Monarch R, Air
Drivetrain
Rear Derailleur
Shimano, Deore M6100
Shift Levers
Shimano, Deore M6100, Trigger switch
Cassette
Shimano, M6100, 10 - 51 teeth
Crank
Steel, 36 teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, CN-M6100
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Schwalbe, Nobby Nic Performance, 65-622, 29 x 2.6 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
Tektro, Orion M745, Aluminium
Cockpit
Stem
Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees
Handlebar
Haibike Components, TheBar ++, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Ball bearing
Seat
Saddle
Selle Bassano, Reko R2 E-Sport
Seatpost
Dropper-Post Remote 31.6, Aluminium, Telescope, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-ST System, 250 Wh, 70 Nm, 25 km/h
Battery
InTube, 630 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.42 mm | 1.37 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 738 mm | 759 mm | 778 mm |
| Rake | 50 mm | 51 mm | 51 mm |
| Trail | 108 mm | 107 mm | 107 mm |
| Stack | 629 mm | 634 mm | 638 mm |
| Reach | 430 mm | 448 mm | 467 mm |
| Top Tube Length | 626 mm | 646 mm | 666 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 135 mm | 140 mm | 145 mm |
| Chainstay Length | 501 mm | 501 mm | 501 mm |
| Wheelbase | 1237 mm | 1258 mm | 1278 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
AllTrail 5 29 is a Haibike E Alltrail model. Haibike released 21 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Haibike AllTrail 4 29 2022 is the most economical model, with a starting price of 4246$. Haibike AllTrail 9 27.5 2022 on the other hand costs 5520$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 4671$. Comparing this to the average Trail e-bike price, we see that the price is 38.81% higher.
Overview of components
Fork
The RockShox 35 Silver is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
The AllTrail 5 29 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike AllTrail 5 29 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Haibike model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
