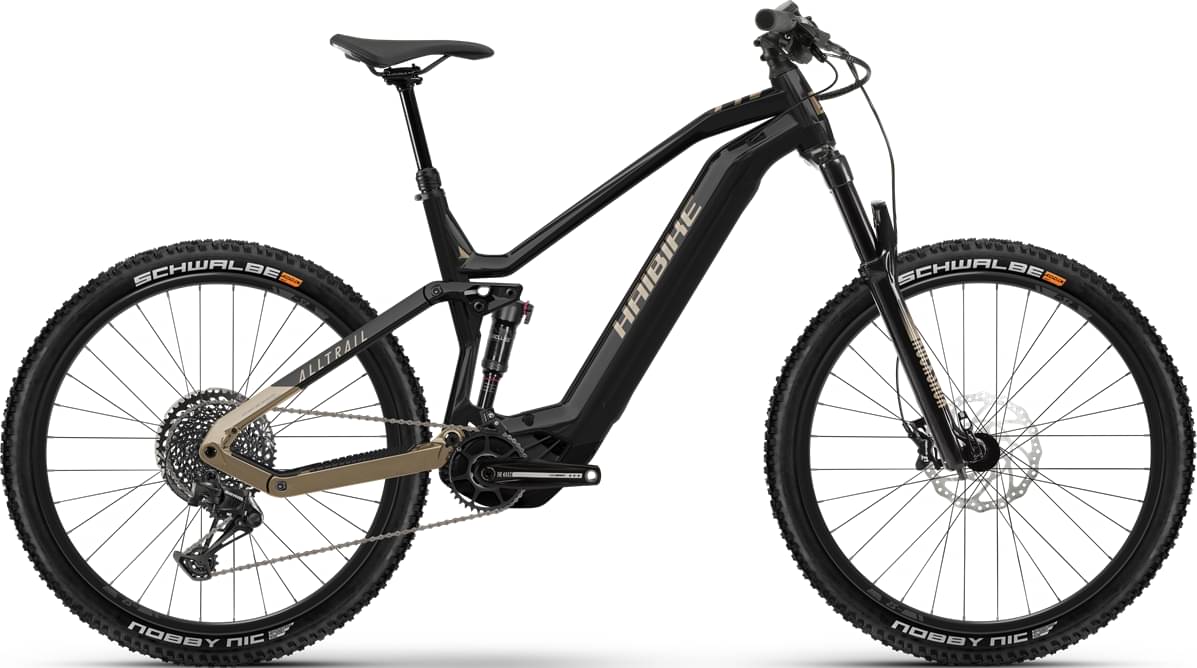

Haibike AllTrail 7 27.5 2022
2022 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle, SRAM -
Suspension Full -
Motor Yamaha 85Nm mid-drive -
Battery InTube, 630 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, AllTrail 27.5 PW-X3, Aluminium
Suspension Fork
RockShox, 35 Gold RL, Air, 140 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Deluxe Select Plus, Air, Trunnion Mount
Drivetrain
Rear Derailleur
SRAM, SX Eagle
Shift Levers
SRAM, SX Eagle, Trigger switch
Cassette
SRAM, Eagle PG1210, 11 - 50 teeth
Crank
SRAM, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, SX Eagle
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
WTB, ST i35 TCS, Double Wall
Spokes
Sapim, Race
Tires
Schwalbe, Nobby Nic Evo SuperTrail, 65-584, 27.5 x 2.6 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
TRP, Slate T4, Aluminium
Cockpit
Stem
Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees
Handlebar
Haibike Components, TheBar ++, 780 mm
Grips
Haibike, MTB grips
Headset
Acros, BlockLock, Aluminium
Seat
Saddle
Selle Royal, Vivo
Seatpost
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-X3, 250 Wh, 85 Nm
Battery
InTube, 630 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.347 mm | 1.284 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Front Center | 764 mm | 778 mm | 800 mm |
| Rake | 44 mm | 45 mm | 45 mm |
| Trail | 117 mm | 116 mm | 116 mm |
| Stack | 623 mm | 610 mm | 610 mm |
| Reach | 434 mm | 453 mm | 475 mm |
| Top Tube Length | 577 mm | 593 mm | 615 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 145 mm | 130 mm | 130 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1223 mm | 1237 mm | 1259 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
AllTrail 7 27.5 is part of the Haibike E Alltrail model. Haibike released 21 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Haibike AllTrail 4 29 2022 is the most economical model, with a starting price of 4246$. Haibike AllTrail 9 27.5 2022 on the other hand costs 5520$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Haibike AllTrail 7 27.5 price was 5308$. If we compare this with the average Trail e-bike cost we notice that the price is 57.74% higher.
AllTrail 7 27.5 components
Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this e-bike is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When it comes to wheels, the AllTrail 7 27.5 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
AllTrail 7 27.5 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the AllTrail 7 27.5. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
