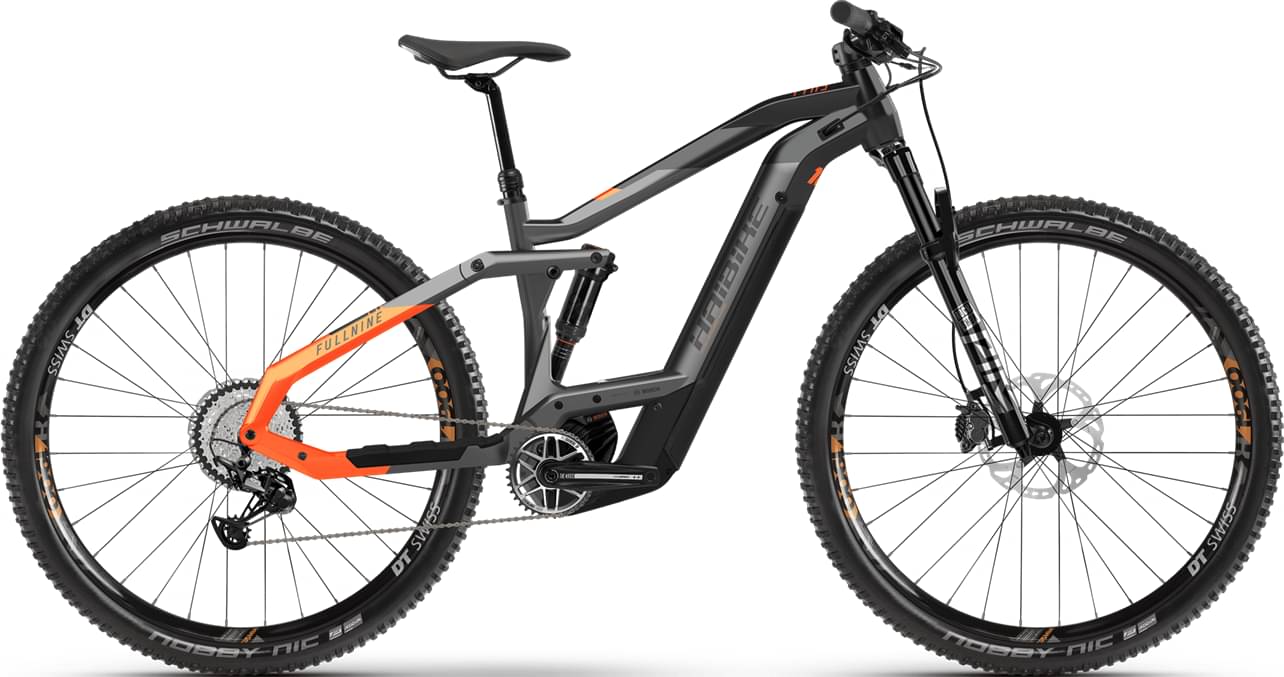

Haibike FullNine 10 2021
2021 E-bike
Estimate price |
6,881$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 140mm -
Fork RockShox Pike Ultimate
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, FullNine Bosch i625, Aluminium 6061
Suspension Fork
RockShox, Pike Ultimate RC, Air/oil, Travel= 140 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Deluxe Select Plus, Air
Drivetrain
Rear Derailleur
Shimano, Deore XT M8100 Shadow Plus
Shift Levers
Shimano, Deore SLX M7100, 12 Speed
Cassette
Shimano, SLX M7100, 10 - 51 teeth
Crank
Haibike Components, Aluminium, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
Shimano, SLX M7100
Chain Guide
Nylon dircetmount
Pedals
Freeridepedal, Aluminium, with Reflector,
Wheels
Rims
DT Swiss, H1900
Tires
Schwalbe, Nobby Nic Evo Super Trail, 65-622, 29" x 2.6"
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, Deore XT M8000, Aluminium
Cockpit
Stem
Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Handlebar
Haibike Components, TheBar +++ Gravity, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
Selle Royal Vivo 1216HRN
Seatpost
Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm
Motor & Battery
Motor
Bosch, Performance CX GEN4, 250W, 85 Nm, 25 km/h
Battery
Bosch, PowerTube, 625 Wh
Remote
Bosch, Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.527 mm | 1.512 mm | 1.475 mm | 1.409 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 724 mm | 738 mm | 765 mm | 800 mm |
| Rake | 43 mm | 43 mm | 44 mm | 43 mm |
| Trail | 120 mm | 120 mm | 119 mm | 120 mm |
| Stack | 626 mm | 635 mm | 649 mm | 662 mm |
| Reach | 410 mm | 420 mm | 440 mm | 470 mm |
| Top Tube Length | 563 mm | 576 mm | 599 mm | 633 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1199 mm | 1213 mm | 1240 mm | 1275 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
FullNine 10 completes the Haibike E Fullnine model. There are 7 e-bikes that carry this model name. You can easily view all of the Haibike E Fullnine e-bikes models from 2021, here.
Model range prices
Haibike FullNine 4 2021 is the most affordable e-bike of this model and has a price of 3715$. On the other hand, Haibike FullNine 10 2021, is the most expensive and costs 6370$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 6370$. If we compare this with the average Trail e-bike cost we notice that the price is 89.3% more expensive.
Overview of components
Fork
The RockShox Pike Ultimate is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the FullNine 10 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike FullNine 10 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
FullNine 10 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
