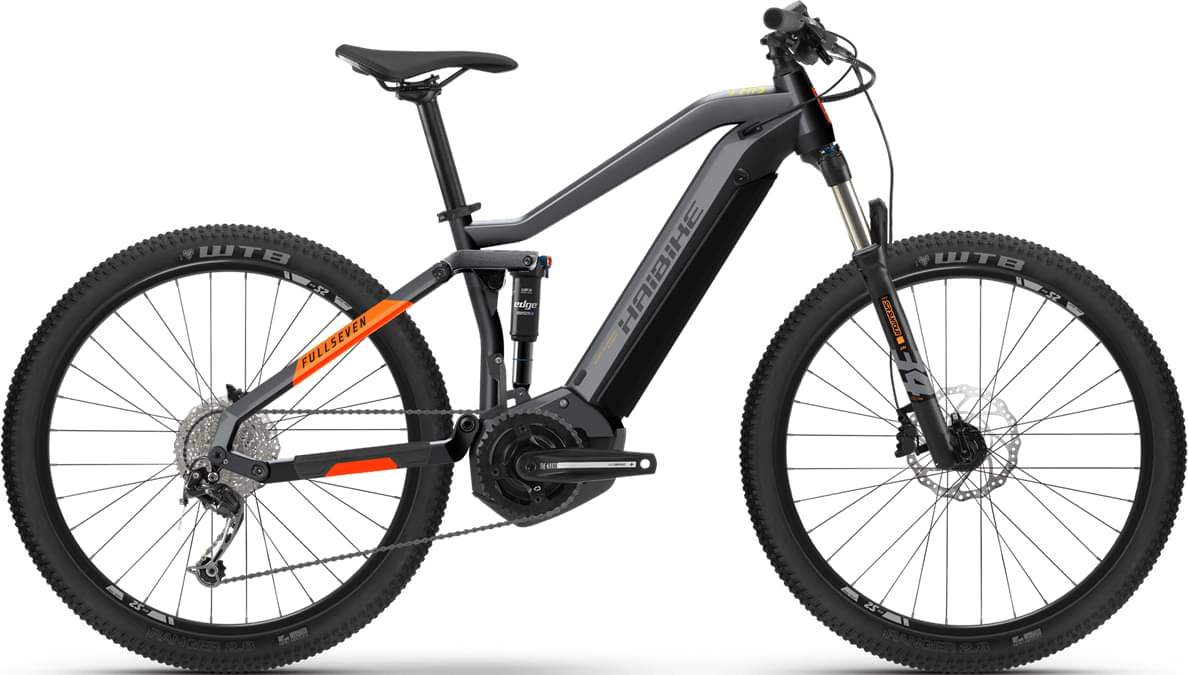

Haibike FullSeven 4 2021
2021 E-bike
Estimate price |
4,013$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W 70Nm mid-drive -
Battery InTube, 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, FullSeven Yamaha i500, Aluminium 6061
Suspension Fork
SR Suntour, XCM34 DS Boost, Steel spring, Travel= 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
SR Suntour, Edge LO-R8, Air
Drivetrain
Rear Derailleur
Shimano, Deore M5120
Shift Levers
Shimano, Deore M6000, Rapidfire, 10 Speed
Cassette
Shimano, M4100, 11 - 46 teeth
Crank
Steel, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, e10S
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector,
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
WTB, Ranger Comp, 55-584, 27.5" x 2.30"
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, MT401, Aluminium
Cockpit
Stem
Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 7.0 °
Handlebar
Haibike Components, TheBar +++ Gravity, 780 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Alloy Tapered, Aluminium, Cartridge
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
Battery
InTube, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.485 mm | 1.434 mm | 1.383 mm | 1.337 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 701 mm | 711 mm | 731 mm | 752 mm |
| Rake | 43 mm | 44 mm | 43 mm | 44 mm |
| Trail | 104 mm | 103 mm | 104 mm | 103 mm |
| Stack | 603 mm | 598 mm | 603 mm | 607 mm |
| Reach | 406 mm | 417 mm | 436 mm | 454 mm |
| Top Tube Length | 590 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1170 mm | 1180 mm | 1200 mm | 1221 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 790 mm | 800 mm | 830 mm | 850 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
FullSeven 4 is part of the Haibike E Fullseven model. Haibike launched 7 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Haibike FullSeven 4 2021 is the cheapest e-bike model and costs 3715$. Haibike FullSeven 10 2021 is the most expensive one and costs 6370$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2021 and its price was 3715$. Comparing this to the average Trail e-bike price, we see that the price is 10.4% higher.
FullSeven 4 components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
FullSeven 4 has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the FullSeven 4 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Haibike FullSeven 4 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
