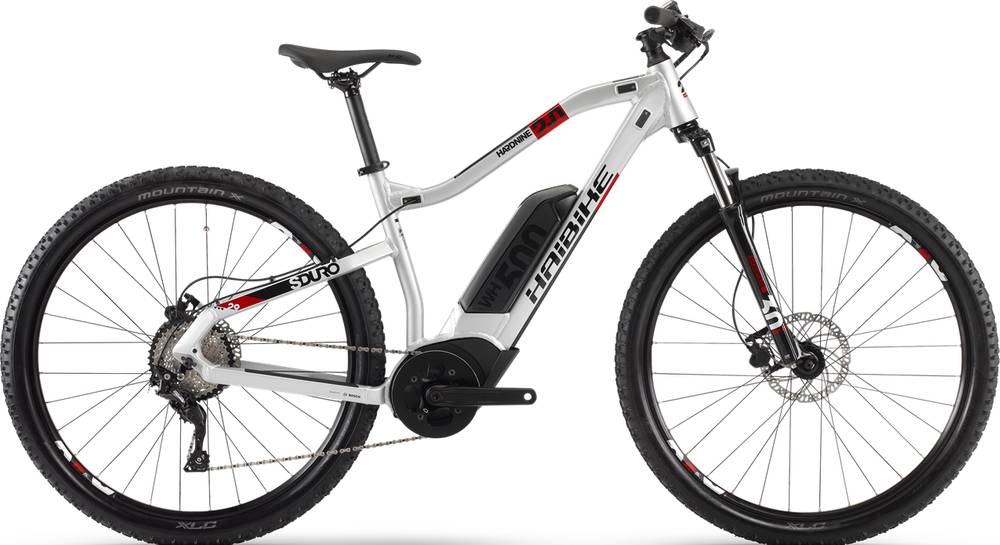

Haibike SDURO HardNine 2.0 2020
2020 E-bike
Estimate price |
2,752$
Weight | 22.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch, PowerPack, 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO HardNine, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Suspension Fork
SR Suntour, XCM DS, Steel spring, Travel= 100 mm, Steel steerer tube 1 1/8", Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Deore M6000
Shift Levers
Shimano, Deore M6000, Rapidfire, 10 speed
Cassette
Shimano, HG500, 11 - 42 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e10S
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Black Rock 21, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
XLC, MountainX, 57-622, 29" x 2.25"
Brakes
Brake Levers
Tektro, M275, Aluminium
Cockpit
Stem
Haibike Components, The Stem +, A-head
Handlebar
Haibike Components, TheBar + Topflat, 720 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, ball bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Bosch, Performance Line, 250 W, 65 Nm, 25 km/h
Battery
Bosch, PowerPack, 500 Wh
Remote
Bosch, Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.539 mm | 1.486 mm | 1.432 mm | 1.387 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 704 mm | 725 mm | 745 mm | 766 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 631 mm | 636 mm | 640 mm | 645 mm |
| Reach | 410 mm | 428 mm | 447 mm | 465 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1173 mm | 1194 mm | 1214 mm | 1235 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 740 mm | 780 mm | 800 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SDURO HardNine 2.0 is a Haibike E Sduro model. Haibike launched 62 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Haibike SDURO HardSeven Life 1.0 2020 is the cheapest e-bike model and costs 2123$. Haibike SDURO FullNine 8.0 2020 is the most expensive one and costs 5839$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Haibike released this model in 2020, its price was 2547$. Doing a quick comparison, we notice that SDURO HardNine 2.0 price is 3.83% higher than the average cost of a Crosscountry e-bike.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, SDURO HardNine 2.0 has a weight of 22.2 kg (48.94 lbs). In other words, this model is 4.55% lighter than the average Crosscountry e-bike.
Overview of components
Fork
This e-bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this e-bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The SDURO HardNine 2.0 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The SDURO HardNine 2.0 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Haibike SDURO HardNine 2.0 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
