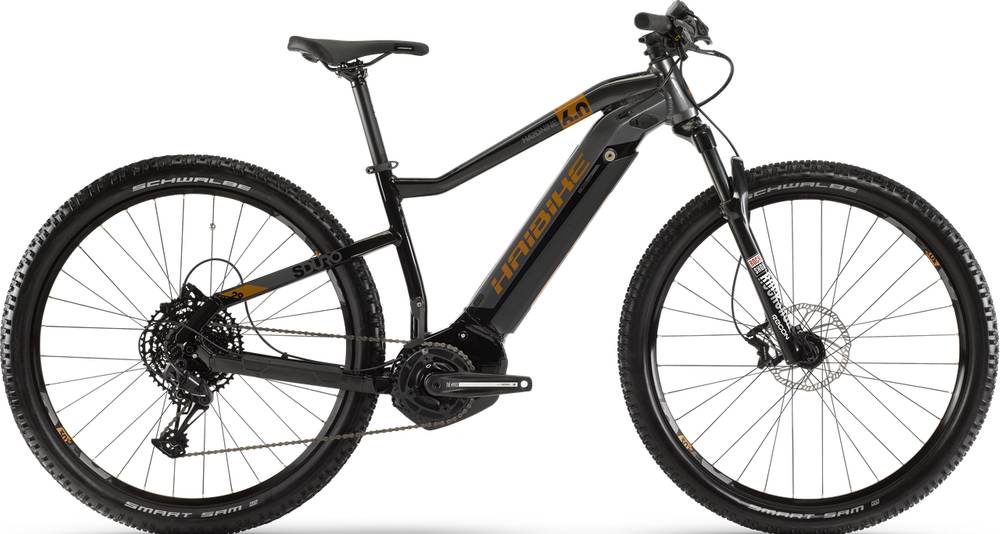

Haibike SDURO HardNine 6.0 2020
2020 E-bike
Estimate price |
3,440$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 110mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle, SRAM -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha, InTube, 500 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO HardNine, Aluminium 6061, Thru-axle M12 (1.75) x 148mm, Disc brake Post Mount
Suspension Fork
RockShox, Recon RL, Remote Lockout, Air, Travel= 110 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Drivetrain
Rear Derailleur
SRAM, SX Eagle
Shift Levers
SRAM, SX Eagle, Trigger switch, 12 speed
Cassette
SRAM, Eagle PG1210, 11 - 50 teeth
Crank
SRAM, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, SX Eagle
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Smart Sam Active, 65-622, 28" x 2.60"
Brakes
Brake Levers
Tektro, Orion M745, Aluminium
Cockpit
Stem
Haibike Components, TheStem +, A-head, Bar bore: 31.8 mm, 6°
Handlebar
Haibike Components, TheBar ++, 740 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, cartridge bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Yamaha, PW-ST System, 250 W, 70 Nm, 25 km/h
Battery
Yamaha, InTube, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.553 mm | 1.496 mm | 1.444 mm | 1.399 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 710 mm | 731 mm | 751 mm | 772 mm |
| Rake | 50 mm | 52 mm | 51 mm | 51 mm |
| Trail | 105 mm | 102 mm | 104 mm | 104 mm |
| Stack | 635 mm | 639 mm | 644 mm | 649 mm |
| Reach | 409 mm | 427 mm | 446 mm | 464 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1184 mm | 1205 mm | 1225 mm | 1246 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 770 mm | 790 mm | 810 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SDURO HardNine 6.0 belongs to the Haibike E Sduro model. Haibike released 62 e-bikes variations of this model so far. Take a sneak peek at all Haibike E Sduro e-bikes models from 2020, by clicking here.
Model range prices
Haibike SDURO HardSeven Life 1.0 2020 is the most economical model, with a starting price of 2123$. Haibike SDURO FullNine 8.0 2020 on the other hand costs 5839$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2020 and its price was 3184$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 29.8% more expensive.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Haibike SDURO HardNine 6.0 it’s weighing 23.5 kg (51.81 lbs). At this weight, is slightly heavier than average. To sum up, it’s 1.25% heavier than the average weight of Crosscountry e-bikes.
Overview of components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 110mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Haibike SDURO HardNine 6.0 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike SDURO HardNine 6.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Haibike SDURO HardNine 6.0 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
