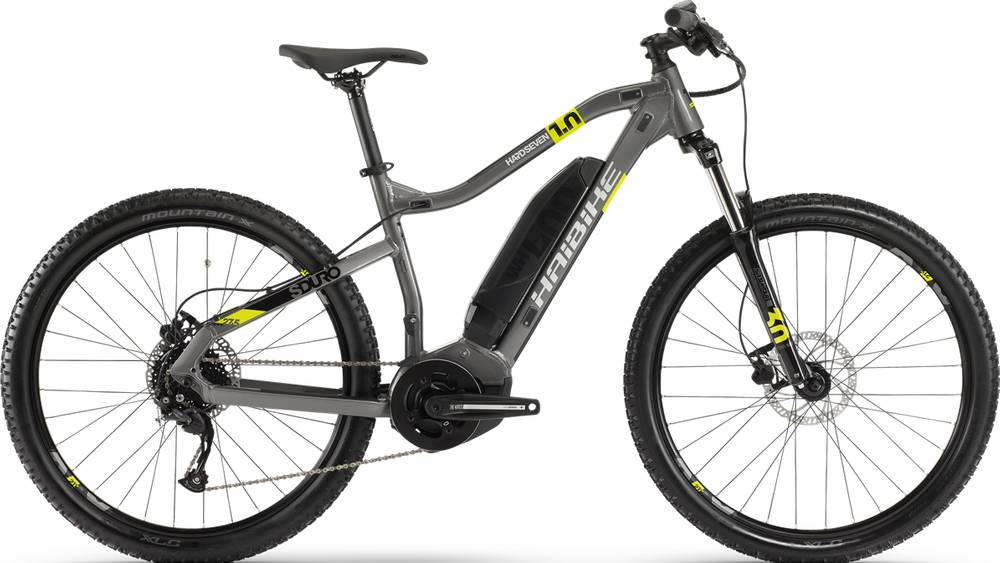

Haibike SDURO HardSeven 1.0 2020
2020 E-bike
Estimate price |
2,293$
Weight | 22.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor Yamaha 250W 70Nm hub-drive -
Battery Yamaha, Lithium Ion, 400 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO HardSeven, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Suspension Fork
SR Suntour, XCM DS, Steel spring, Travel= 120 mm, Steel steerer tube 1 1/8", Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Altus M2000
Shift Levers
Shimano, Altus M2010, Rapidfire, 9 speed
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, X9
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Black Rock 21, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
XLC, MountainX, 57-584, 27.5" x 2.25"
Brakes
Brake Levers
Tektro, M275, Aluminium
Cockpit
Stem
Haibike Components, The Stem +, A-head
Handlebar
Haibike Components, TheBar + Topflat, 720 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, ball bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Yamaha, PW-SE System, 250 W, 70 Nm, 25 km/h
Battery
Yamaha, Lithium Ion, 400 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.632 mm | 1.566 mm | 1.504 mm | 1.452 mm | 1.402 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 653 mm | 674 mm | 694 mm | 715 mm | 735 mm |
| Rake | 42 mm | 42 mm | 42 mm | 43 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 97 mm | 98 mm |
| Stack | 612 mm | 617 mm | 621 mm | 626 mm | 631 mm |
| Reach | 375 mm | 394 mm | 413 mm | 431 mm | 450 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1110 mm | 1131 mm | 1151 mm | 1172 mm | 1192 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 720 mm | 740 mm | 770 mm | 790 mm | 820 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
SDURO HardSeven 1.0 belongs to the Haibike E Sduro model. Haibike released 62 e-bikes variations of this model so far. Take a sneak peek at all Haibike E Sduro e-bikes models from 2020, by clicking here.
Model range prices
Haibike SDURO HardSeven Life 1.0 2020 is the most affordable e-bike of this model and has a price of 2123$. On the other hand, Haibike SDURO FullNine 8.0 2020, is the most expensive and costs 5839$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2123$. If we compare this with the average Trail e-bike cost we notice that the price is 58.5% smaller.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit lighter than average, SDURO HardSeven 1.0 has a weight of 22.4 kg (49.38 lbs). In other words, this model is 5.8% lighter than the average Trail e-bike.
SDURO HardSeven 1.0 components
Fork
The SDURO HardSeven 1.0 comes factory-installed with the SunTour XCM fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this e-bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
The wheels on SDURO HardSeven 1.0 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The SDURO HardSeven 1.0 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
