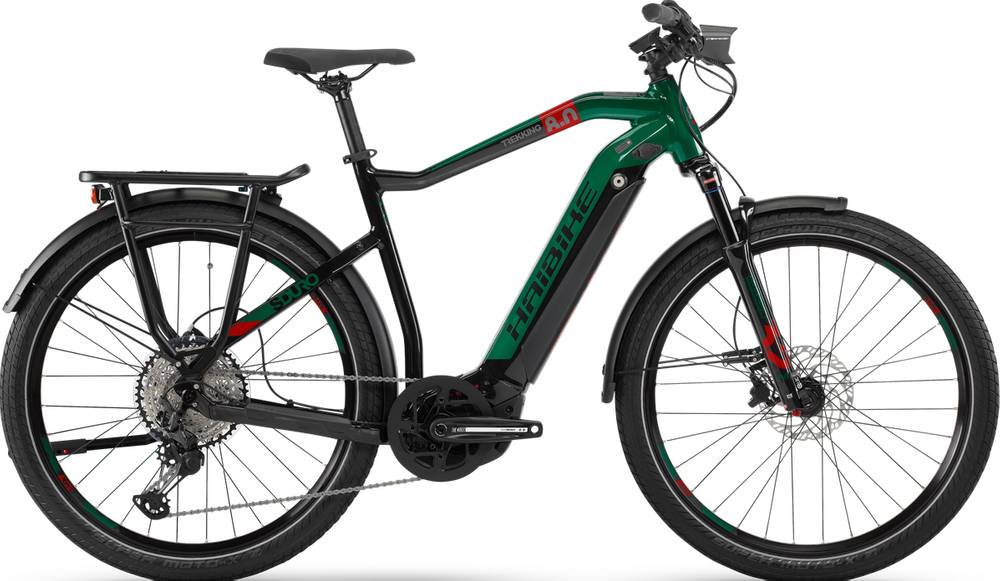

Haibike SDURO Trekking 8.0 2020
2020 E-bike
Estimate price |
4,587$
Weight | 25.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 80mm -
Fork SunTour MOBIE
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch, PowerTube, 500 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO Trekking, Aluminium 6061, Thru-axle M12 (1.75) x 148mm, Disc brake Post Mount
Suspension Fork
SR Suntour, Mobie E45 LOR, Lockout, Air, Travel= 80 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, M8100
Shift Levers
Shimano, Deore SLX M7100, 12 speed
Cassette
Shimano, SLX M7100, 10 - 51 teeth
Crank
Haibike Components, Aluminium, 42 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e11S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Super Moto X, 62-584, 27.5" x 2.40"
Brakes
Brake Levers
Magura, MT4
Cockpit
Stem
Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 12°
Handlebar
Haibike Components, TheBar ++, 740 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Aluminium, cartridge bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Bosch, Performance CX, 250 W, 75 Nm, 25 km/h
Battery
Bosch, PowerTube, 500 Wh
Remote
Bosch, Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.57 mm | 1.54 mm | 1.52 mm | 1.5 mm |
| Front Center | 672 mm | 683 mm | 699 mm | 714 mm | 730 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 45 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm | 85 mm |
| Stack | 614 mm | 624 mm | 633 mm | 642 mm | 651 mm |
| Reach | 391 mm | 398 mm | 410 mm | 422 mm | 434 mm |
| Top Tube Length | 580 mm | 590 mm | 605 mm | 620 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm | 640 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1120 mm | 1131 mm | 1147 mm | 1163 mm | 1179 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
SDURO Trekking 8.0 is a Haibike E Sduro model. Haibike launched 62 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Haibike SDURO HardSeven Life 1.0 2020 has a starting price of 2123$. Haibike SDURO FullNine 8.0 2020 on the other hand is the most expensive at 5839$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Haibike SDURO Trekking 8.0 price was 4246$. If we compare this with the average Hybrid e-bike cost we notice that the price is 71.21% more expensive.
Hybrid e-bikes average weight
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 25.4 kg (56 lbs), Haibike e-bike is a bit heavier than average. In conclusion, the average Hybrid e-bike weighs 6.77% less than SDURO Trekking 8.0.
SDURO Trekking 8.0 components
Fork
The fork installed on this bike is the SunTour MOBIE model. The travel on this model is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on SDURO Trekking 8.0 are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike SDURO Trekking 8.0 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
