Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Seet 2021, Aluminium 6061
Suspension Fork
SR Suntour, XCR Air RL-R, Remote Lockout, Air, Travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore M5100
Shift Levers
Shimano, Deore M5100, Trigger switch, 11 Speed
Cassette
Shimano, M5100, 11 - 51 teeth
Crank
Shimano, Deore M5100, 32 teeth
Chain
KMC, X11
Chain Guide
Nylon directmount
Pedals
Feimin, Plastic, FP-806B, Non-Slip
Wheels
Rims
XLC, X-630 D-WALL, hollow rim, Aluminium
Spokes
Black
Tires
Schwalbe, Tough Tom, 57-584, 27.5" x 2.25" / Schwalbe, Tough Tom, 57-622, 29" x 2.25"
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, MT200
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, MTB grips
Headset
WTB, NO.10 ED 1-1/8" SEMI INTEGRATED, Aluminium
Seat
Saddle
XLC, MTB
Seatpost
Aluminium, Patent, 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.49 mm | 1.55 mm | 1.51 mm | 1.47 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 637 mm | 663 mm | 684 mm | 691 mm | 712 mm | 732 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Trail | 98 mm | 98 mm | 98 mm | 94 mm | 94 mm | 94 mm |
| Stack | 582 mm | 592 mm | 601 mm | 624 mm | 633 mm | 642 mm |
| Reach | 365 mm | 387 mm | 404 mm | 402 mm | 420 mm | 437 mm |
| Top Tube Length | 539 mm | 564 mm | 584 mm | 589 mm | 609 mm | 629 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1057 mm | 1083 mm | 1104 mm | 1128 mm | 1149 mm | 1170 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 182 cm | 189 cm | 195 cm |

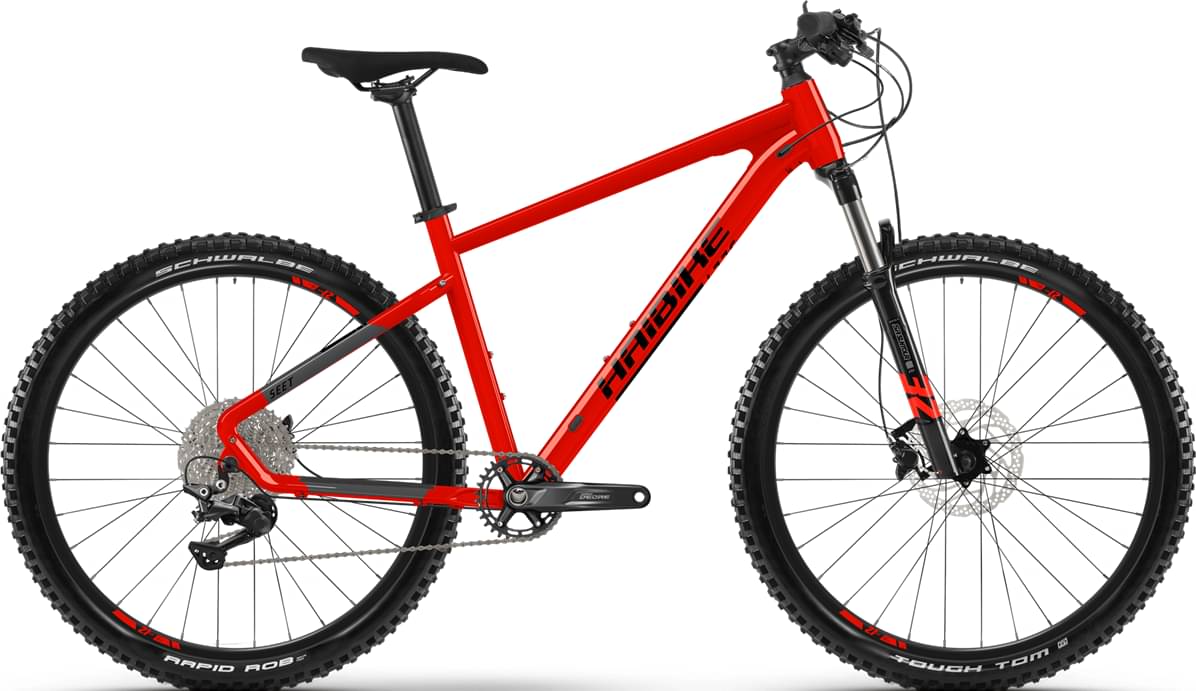

About this model
SEET 9 is a Haibike Seet model. There are 31 bikes that carry this model name. Take a sneak peek at all Haibike Seet bikes models from 2021, by clicking here.
Model range prices
Haibike SEET Greedy 16” 2021 is the most economical model, with a starting price of 264$. Haibike SEET 10 2021 on the other hand costs 901$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 795$. If we compare this with the average Crosscountry bike cost we notice that the price is 139.62% smaller.
Overview of components
Fork
Haibike SEET 9 2021 bike is equipped with the Suntour XCR Air fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
SEET 9 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the SEET 9 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike SEET 9 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 6 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
